Elkay LVRCTLDWSPRO Series | Pro Filtration VR Bottle Filler & B...

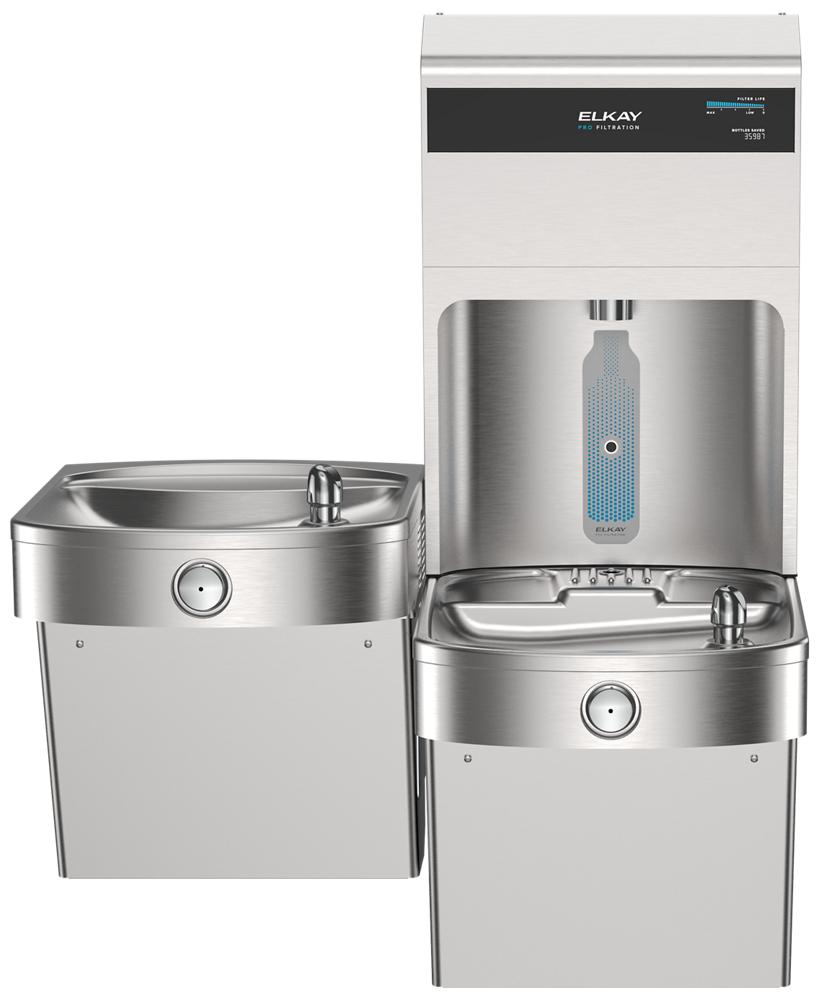

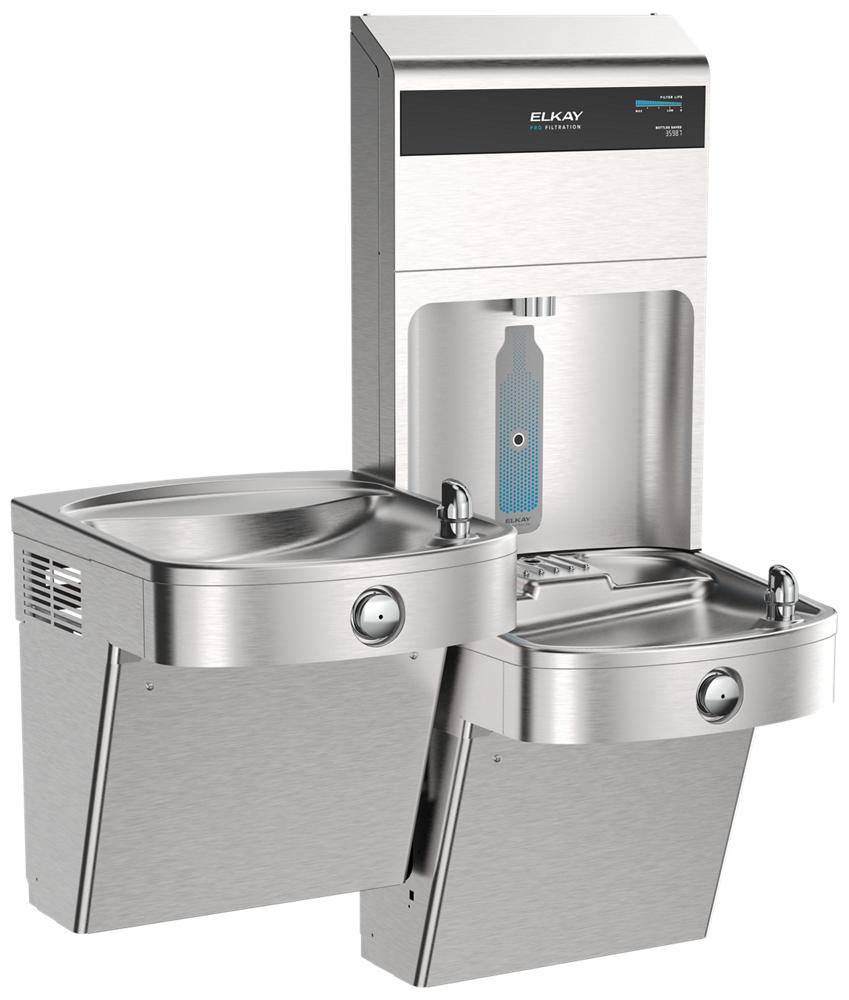

Elkay LVRCTLDWSPRO Series is a wall-mount bottle filler & bi-level cooler delivering filtered, ambient water with vandal-resistant stainless steel design.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Varies by Filter Option Selected (see Filter Option section below)
- Filter Capacity: Varies by Filter Option Selected
- Refrigeration: Not Included. Refers to LVRCTL8WSPRO for Refrigerated Option
- Power: 115V/60Hz, 5 Full Load Amps
Filter Option:
- LVRCTLDWSPRO: (1) FL10 Ultra-Capacity Filter (10,000 Gal.)
- LVRCTLDWSPRO-2FL10: (2) FL10 Ultra-Capacity Filter (20,000 Gal. if Combined)

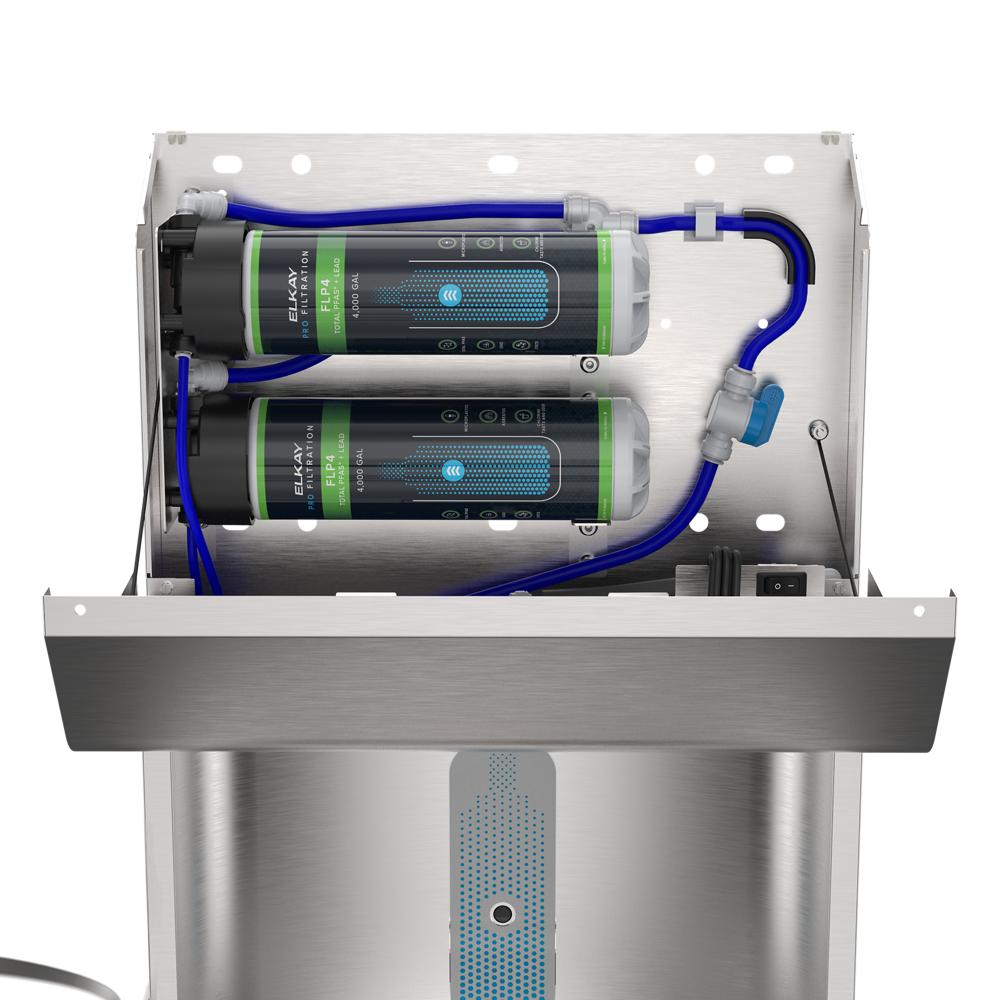

- LVRCTLDWSPRO-2FLP4: (2) FLP4 Total PFAS and Lead Filter (8,000 Gal. if Combined)
- LVRCTLDWSPRO-FLP4: (1) FLP4 Total PFAS and Lead Filter (4,000 Gal.)
- LVRCTLDWSPRO-FSR5: (1) FL10 Ultra-Capacity Filter with (1) FSR5 Sediment Prefilter
- LVRCTLDWSPRO-FLP4-UV: (1) FLP4 Total PFAS + Lead Filter with built-in UV Protection
- LVRCTLDWSPRO-FLP4-FSR5: (1) FLP4 Total PFAS and Lead Filter with (1) FSR5 Sediment Prefilter
- LVRCTLDWSPRO-UV: (1) FL10 Ultra-Capacity Filter with built-in UV Protection
Features & Benefits:
- Dual-Level Hydration Access: Bi-level design serves users of varying heights and needs at one convenient location.
- Advanced Water Purity: Certified filtration removes lead, microplastics, cysts, and other contaminants for safer drinking water.
- Smart Remote Monitoring: Cloud connectivity via plumbSMART allows tracking of filter status and maintenance needs remotely.

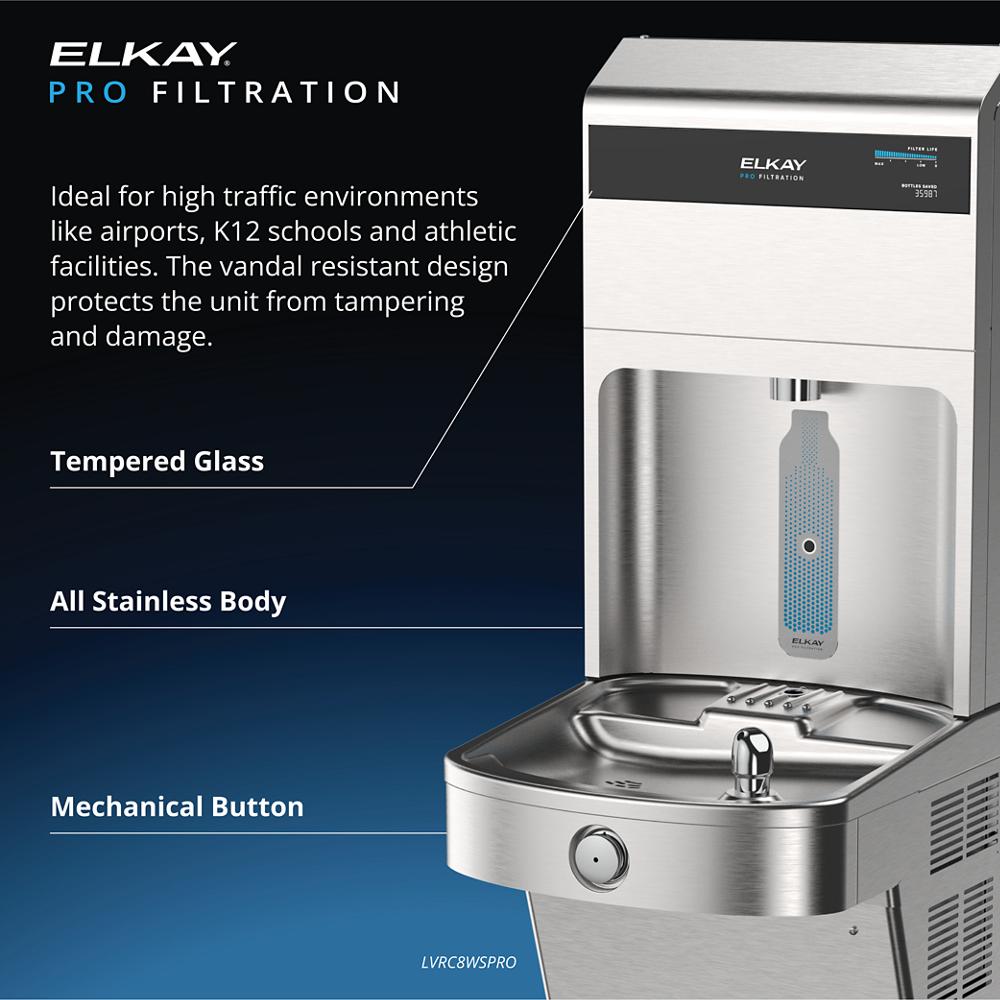

- Built to Last: Vandal-resistant stainless steel construction withstands high-traffic public environments.
FAQ
Q: Does this unit include refrigeration for chilled water?
A: No, this is a non-refrigerated model delivering ambient temperature water; the LVRCTL8WSPRO offers a refrigerated version.
Q: How often does the filter need to be replaced?
A: Varies by Filter Option Selected (see Filter Option section above).
Q: Can this unit be monitored remotely?
A: Yes, it is cloud-connected through plumbSMART, requiring a separate Gateway and Account for remote tracking.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation

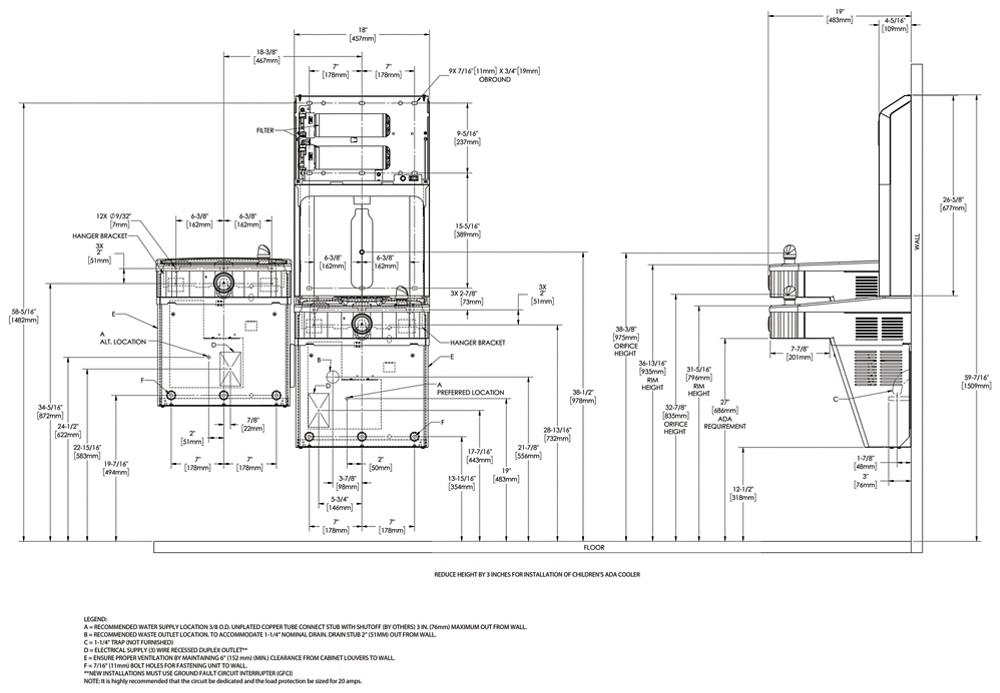

To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

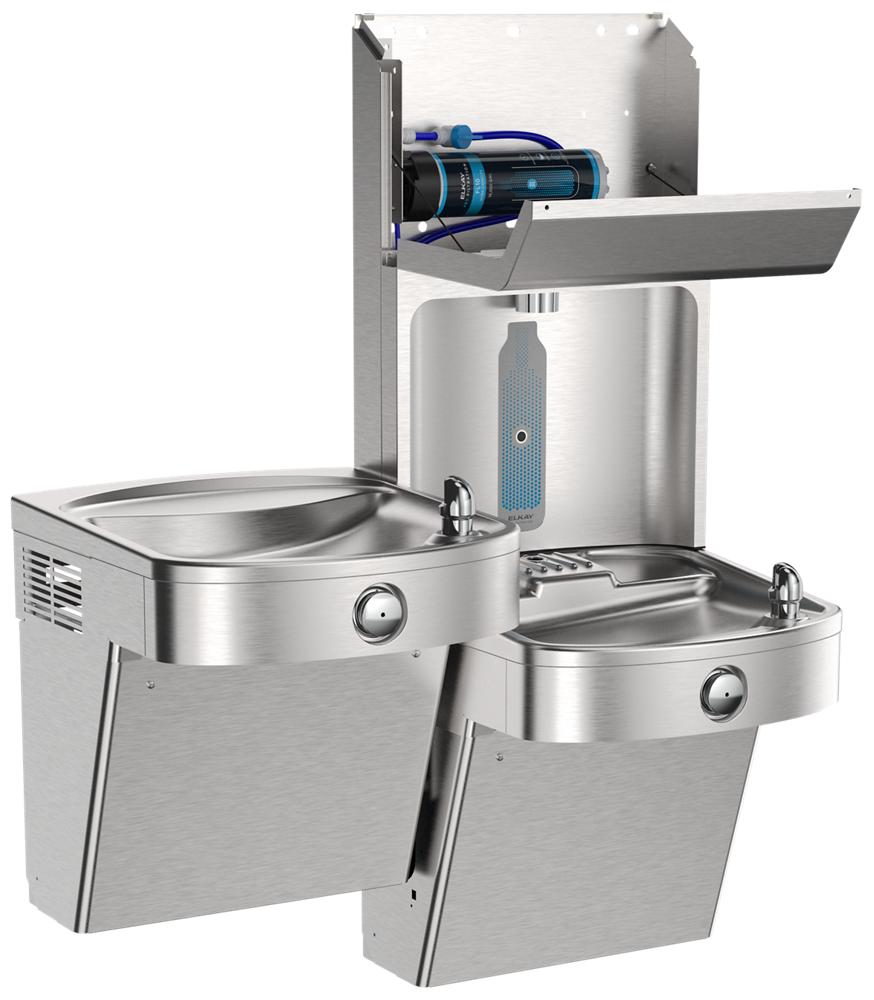

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
