Elkay LVRCTLDWSPRO-FLP4-FSR5 | VR Bottle Filling Station & Bi-L...

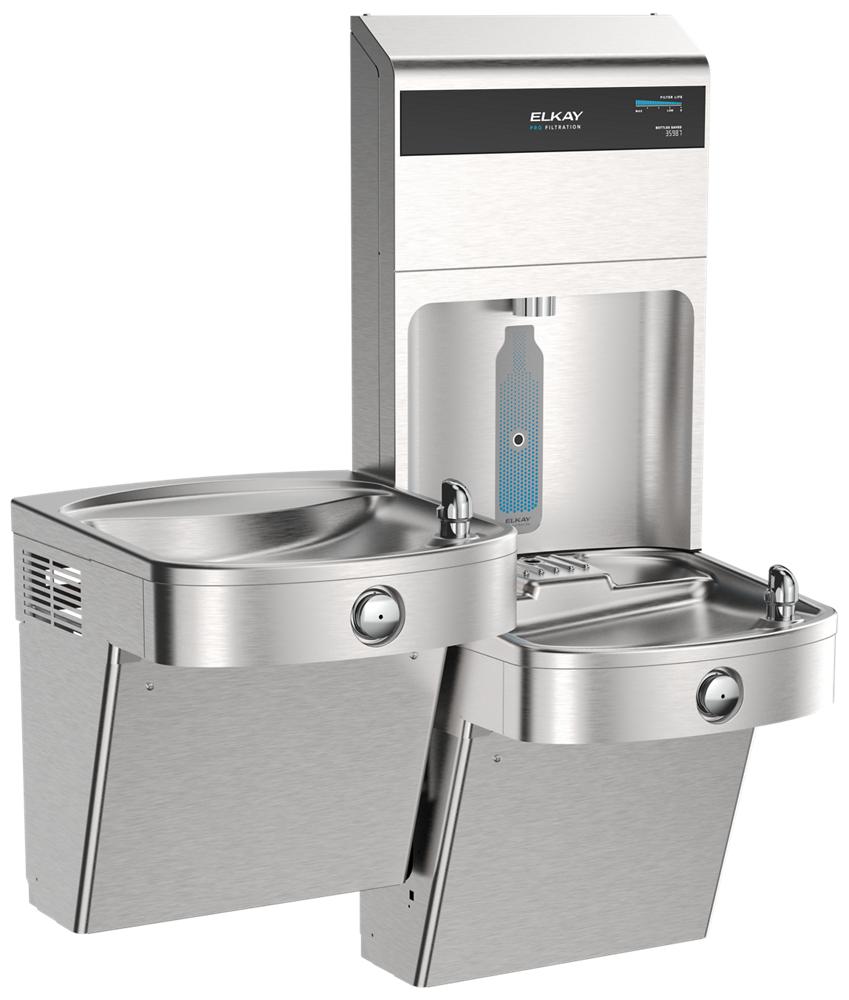

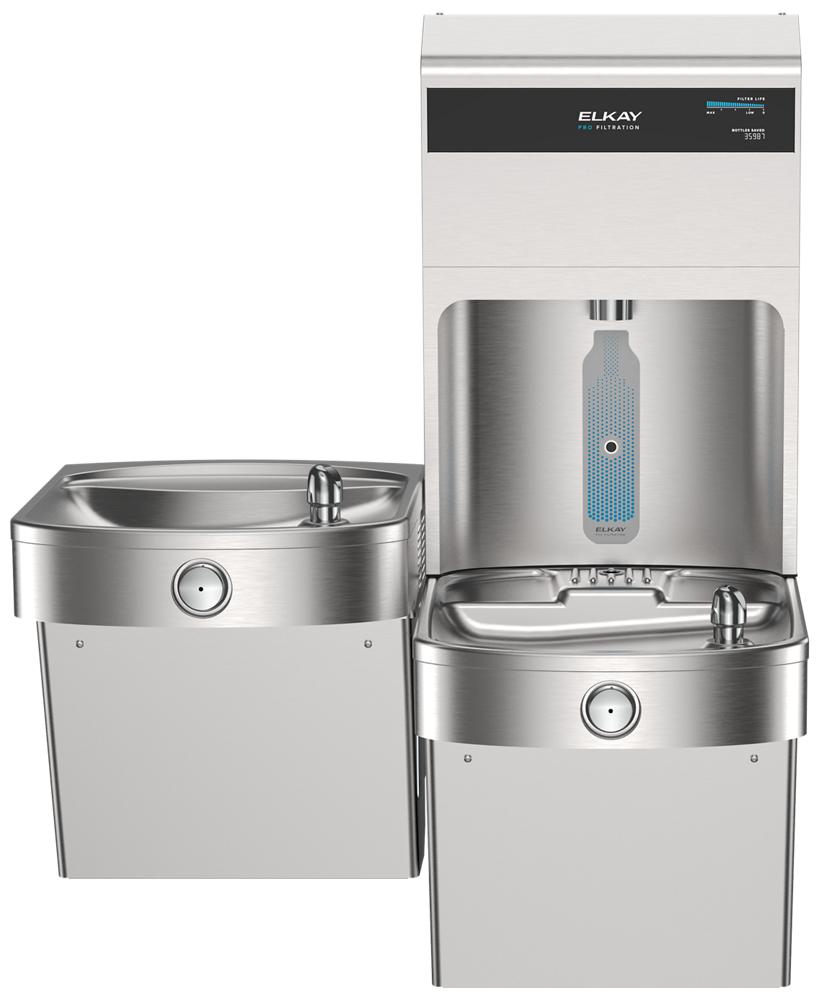

The Elkay LVRCTLDWSPRO-FLP4-FSR5 is a vandal-resistant bi-level bottle filling station and water cooler with Total PFAS filtration and sediment prefilter.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Asbestos, Turbidity, Chlorine, Taste & Odor
- Filter Capacity: 4,000 Gal. (FLP4) with FSR5 Stage 1 Sediment Prefilter
- Refrigeration: Non-refrigerated, refers to LVRCTL8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Total PFAS Filtration: The Elkay LVRCTLDWSPRO-FLP4-FSR5 includes an FLP4 filter certified to NSF/ANSI 42, 53, and 401, removing Total PFAS, lead, microplastics, and more for safer, cleaner drinking water.
- Top-Access Filter Replacement: Filters can be changed in seconds from the top of the unit, minimizing maintenance time and reducing system disruption in busy environments.
- Cloud-Connected Smart Monitoring: Via plumbSMART, facility managers can remotely track filter status, monitor bottles saved, and flush the unit — keeping maintenance proactive and efficient.

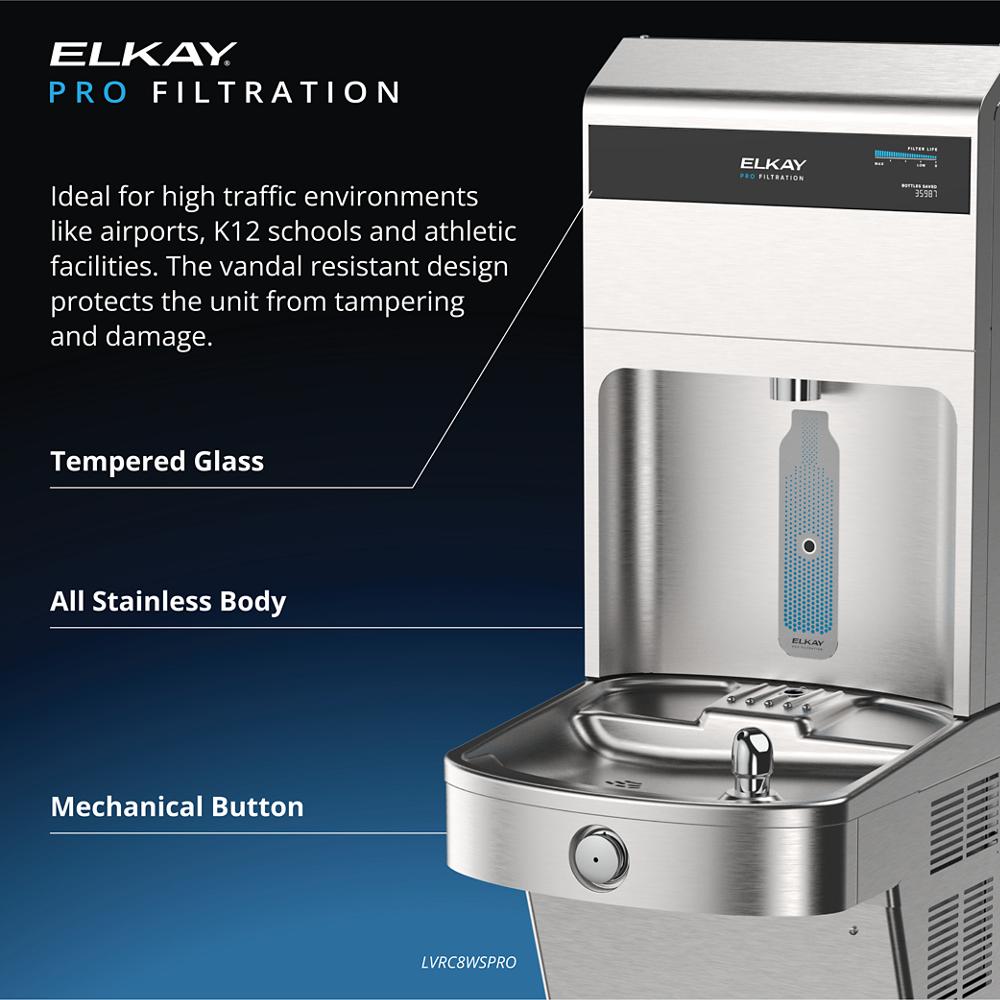

- Vandal-Resistant Durability: Built with a stainless steel vandal-resistant design and tempered glass display cover, the Elkay LVRCTLDWSPRO-FLP4-FSR5 is engineered to withstand heavy daily use in high-traffic indoor spaces.
FAQ
Q: What contaminants does the LVRCTLDWSPRO-FLP4-FSR5 filter remove?
A: The included FLP4 filter is certified to NSF/ANSI 42, 53, and 401 to reduce Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, cysts, asbestos, turbidity, chlorine, and taste & odor. The FSR5 sediment prefilter adds an additional stage of protection for material safety and structural integrity.
Q: Is a special gateway required to use the cloud-connected features?
A: Yes, the plumbSMART Gateway and a plumbSMART Account are required to access remote monitoring features such as filter status tracking, bottle count, and remote flush functionality.
Q: Can the bottle filler be installed on the left side?
A: By default, the bottle filler is positioned on the right side. The VERSATILEPRO accessory is required to install the bottle filler on the left side.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

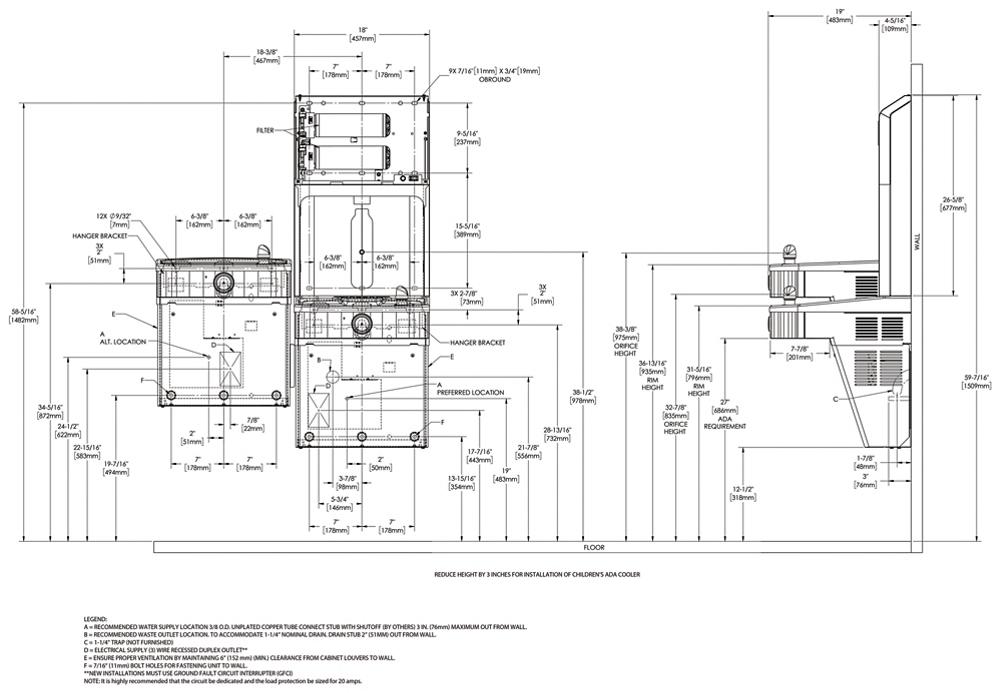

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
