Elkay LVRCTLDWSPRO-UV | Pro Filtration VR Bottle Filler & Bi-Level | 10,000 Gal.+UV Protection, Non-Refrigerated
Elkay LVRCTLDWSPRO-UV | Pro Filtration VR Bottle Filler & Bi-Level | 10,000 Gal.+UV Protection, Non-Refrigerated is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
🚚✨ Free Shipping in the Continental U.S.
All Products. No Minimums.
Estimated Shipping Times:
Important Note on Delivery Times
All shipping estimates provided are approximate only. While we always strive to meet or exceed your delivery expectations, we cannot guarantee the exact delivery times listed.
For time-sensitive orders, please contact us directly so we can provide a more accurate lead time estimate based on your specific requirements.
Same Day Shipping
All in stock orders received before 3PM EST will ship the same day. Orders received after 3PM EST will ship the following business day.
Water Filters, Hand Dryers, & Indoor Bottle Fillers are our most popular in stock items.
Outdoor Tubular Drinking Fountains
Evergreen normally ships in 5-15 days. Black, Gray and Blue ship in 2-4 weeks.
Ice Machines
In stock units ship within 48 hours. Other units normally ship in 2-4 weeks.
Other
Orders that ship directly from a manufacturer normally have a firm shipping estimate but those dates are subject to change due to manufacturer production, inventory or shipping. We do our best to estimate ship dates but orders shipping directly from the manufacturer can have unexpected delays. We will confirm tracking information when orders ship directly from a manufacturer but may not have updates or estimates beyond the original estimate. Once your order is placed with the manufacturer, it may not be able to be cancelled even if it hasn't shipped yet.
Please contact support@bottlefillingstations.com to confirm delivery time for a specific product or quantity. Or to inquire about an existing order.
Special Case Shipping Rates
Please note that shipping rates are subject to change at any time. We reserve the right to charge an additional fee in addition to the regularly advertised shipping fee for shipping to remote areas not easily accessible by typical freight carrier means (i.e. islands only accessible by ferry). If your order falls into this category, you will be notified upon receipt of your order, and have the option to complete the purchase with additional fee or to cancel the order. Please note, these instances are very rare, as most locations are reachable by regular freight. If you have any questions, please contact us!
Key Terms & Conditions
Exceptions may apply to islands and other remote territories.
All orders shipped by the carrier of our choice.
Elkay LVRCTLDWSPRO-UV | Pro Filtration VR Bottle Filler & Bi-Le...

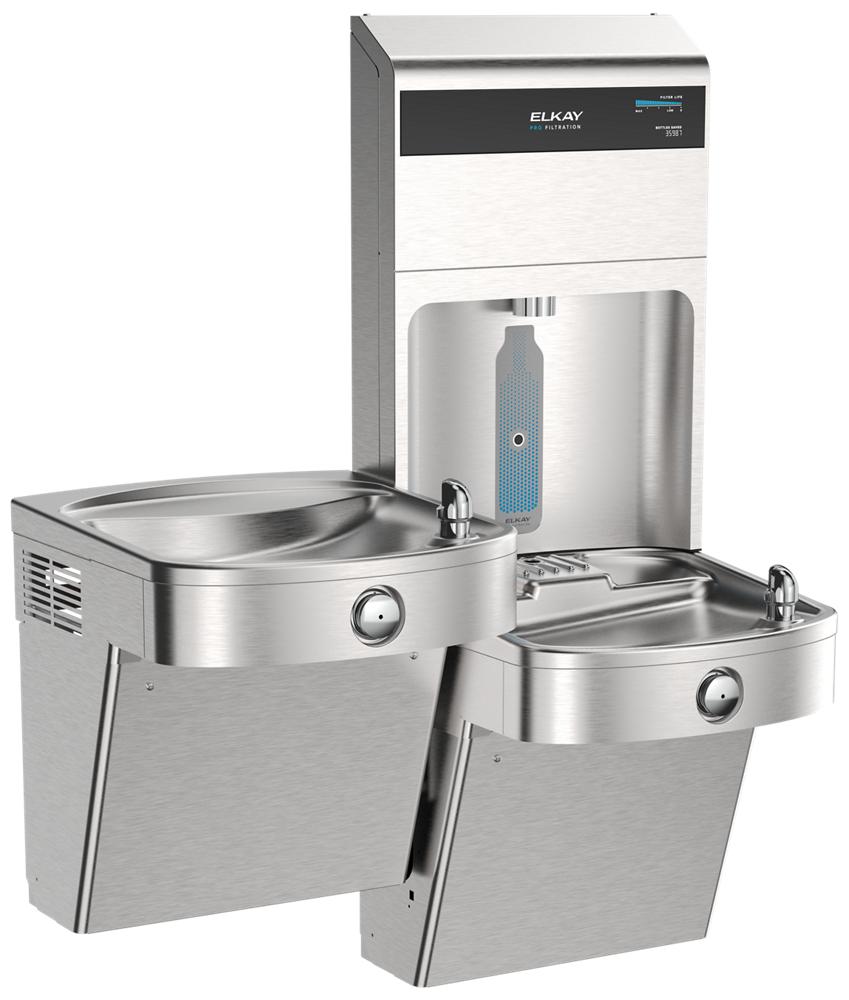

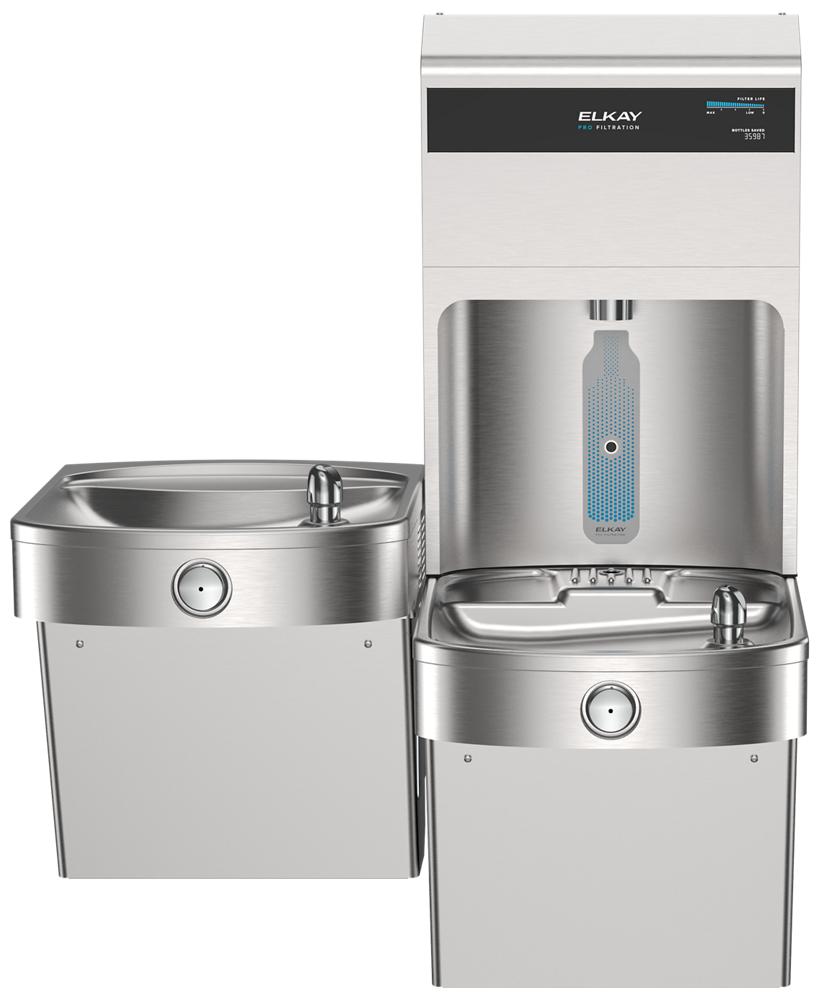

The Elkay LVRCTLDWSPRO-UV is a vandal-resistant bi-level bottle filling station and water cooler with UV purification and 10,000-gallon Pro Filtration.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Cysts, Asbestos, Turbidity, Particulate Class 1, Chlorine, Taste & Odor
- Filter Capacity: 10,000 Gal. (FL10 Ultra-Capacity Filter Included)
- Refrigeration: Non-refrigerated, refers to LVRCTL8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Built-In UVC-LED Purification: The Elkay LVRCTLDWSPRO-UV features a built-in UVC-LED at the dispense point, delivering an additional layer of purification beyond standard filtration for enhanced water safety.
- Smart Cloud Connectivity (plumbSMART): The Elkay LVRCTLDWSPRO-UV connects remotely via plumbSMART, enabling facility managers to track filter status, receive maintenance alerts, and flush the unit without being on-site — reducing downtime and operating costs.
- Tool-Free Top-Mount Filter Replacement: Filters can be changed in seconds from the top of the unit, minimizing disruption and keeping maintenance simple even in high-traffic environments.
- Sustainability Tracking with Green Ticker™: The blue LCD interactive display shows the number of 20oz plastic bottles saved, giving users and facility managers real-time environmental impact data to support sustainability goals.
FAQ
Q: What type of contaminants does the Elkay LVRCTLDWSPRO-UV filter remove?
A: The included FL10 Ultra-Capacity filter is certified to NSF/ANSI 42, 53, and 401 and reduces lead, microplastics, cysts, asbestos, turbidity, particulate class 1, chlorine, and taste and odor. The built-in UVC-LED at the dispense point provides additional purification beyond the filter.
Q: Is a special accessory needed to move the bottle filler to the left side?
A: Yes, the VERSATILEPRO accessory is required to install the bottle filler on the left side of the unit. This add-on kit is available separately.
Q: Does the cloud connectivity feature require additional hardware or an account?
A: Yes, the plumbSMART cloud connectivity feature requires both a plumbSMART Gateway (such as the ZGW-LORA-W1-LTE) and an active plumbSMART account to enable remote filter status tracking, maintenance alerts, and unit flush capabilities.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

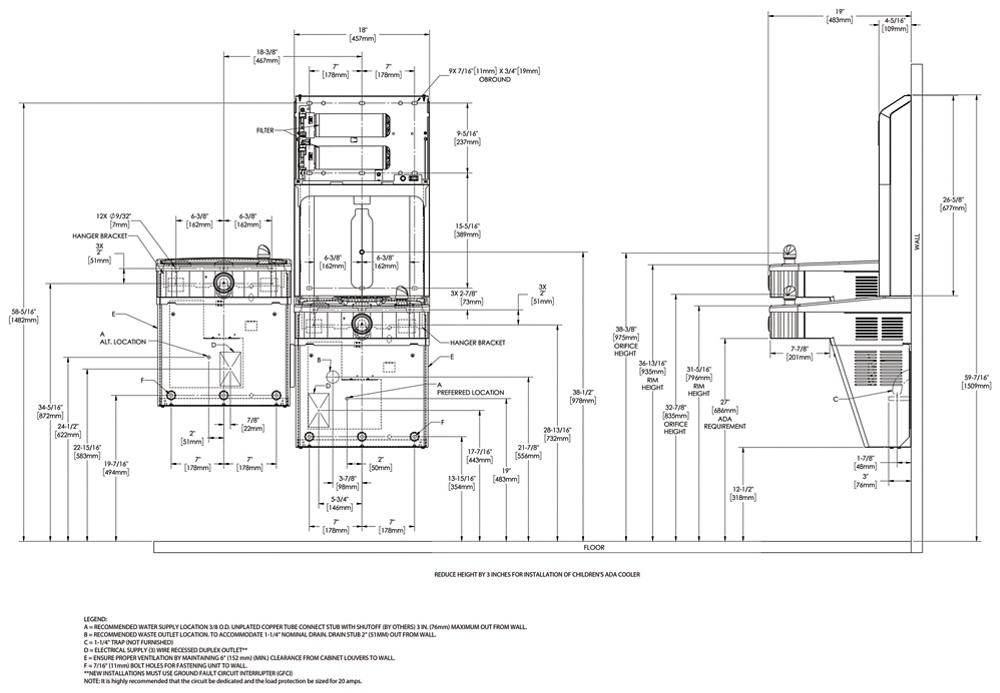

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
