Elkay LVRCTLDWSPRO-2FLP4 | VR Bottle Filling Station & Bi-Level...

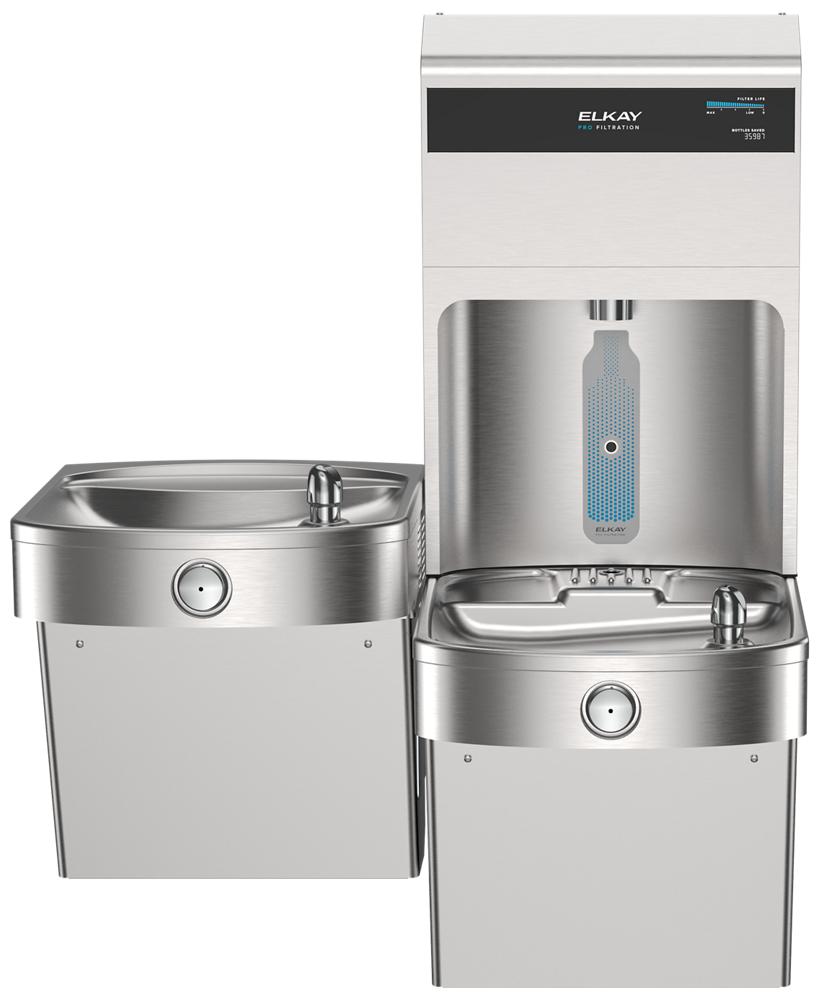

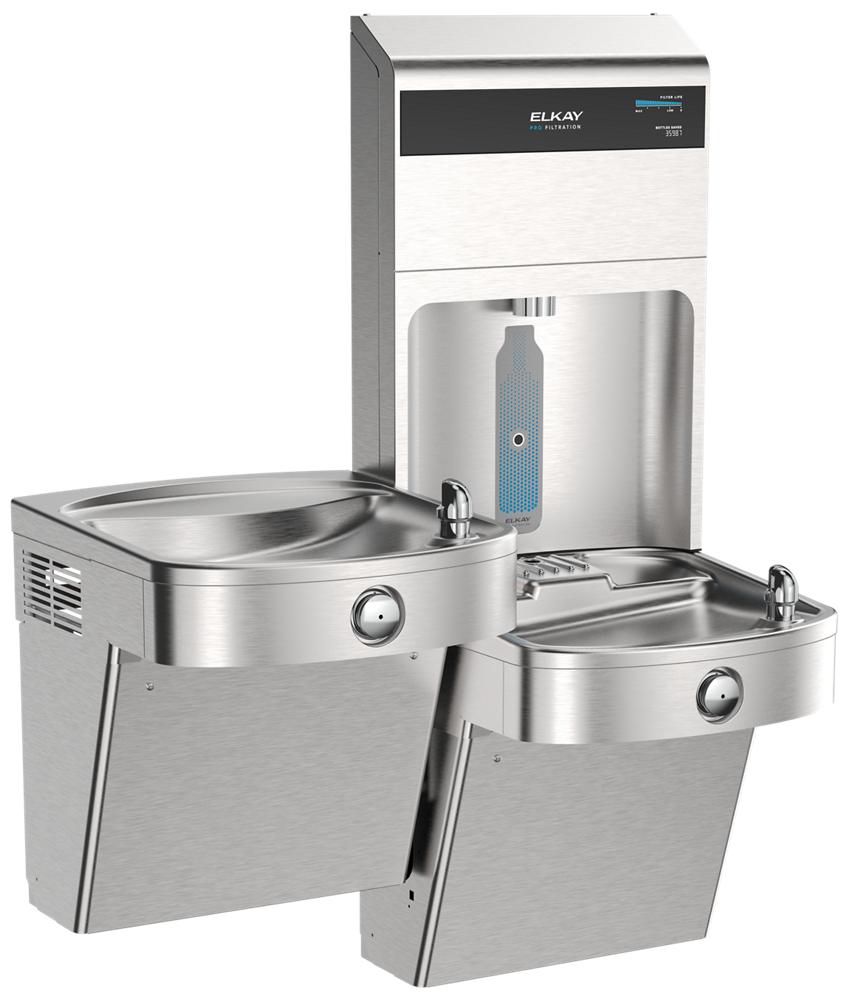

The Elkay LVRCTLDWSPRO-2FLP4 is a vandal-resistant, cloud-connected bi-level bottle filling station and water cooler with dual Total PFAS filtration.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Total PFAS, Lead, Microplastics, Cysts, Chlorine Taste & Odor, Asbestos, Turbidity, Particulate Class 1
- Filter Capacity: 4,000 Gal. per Filter (2 FLP4 Filters Included)
- Refrigeration: Non-refrigerated, refers to LVRCTL8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Total PFAS & Advanced Contaminant Reduction: The Elkay LVRCTLDWSPRO-2FLP4 includes dual FLP4 Pro Filtration filters certified to NSF/ANSI 42, 53 & 401, reducing Total PFAS, lead, microplastics, and more — delivering cleaner, safer drinking water in high-demand environments.

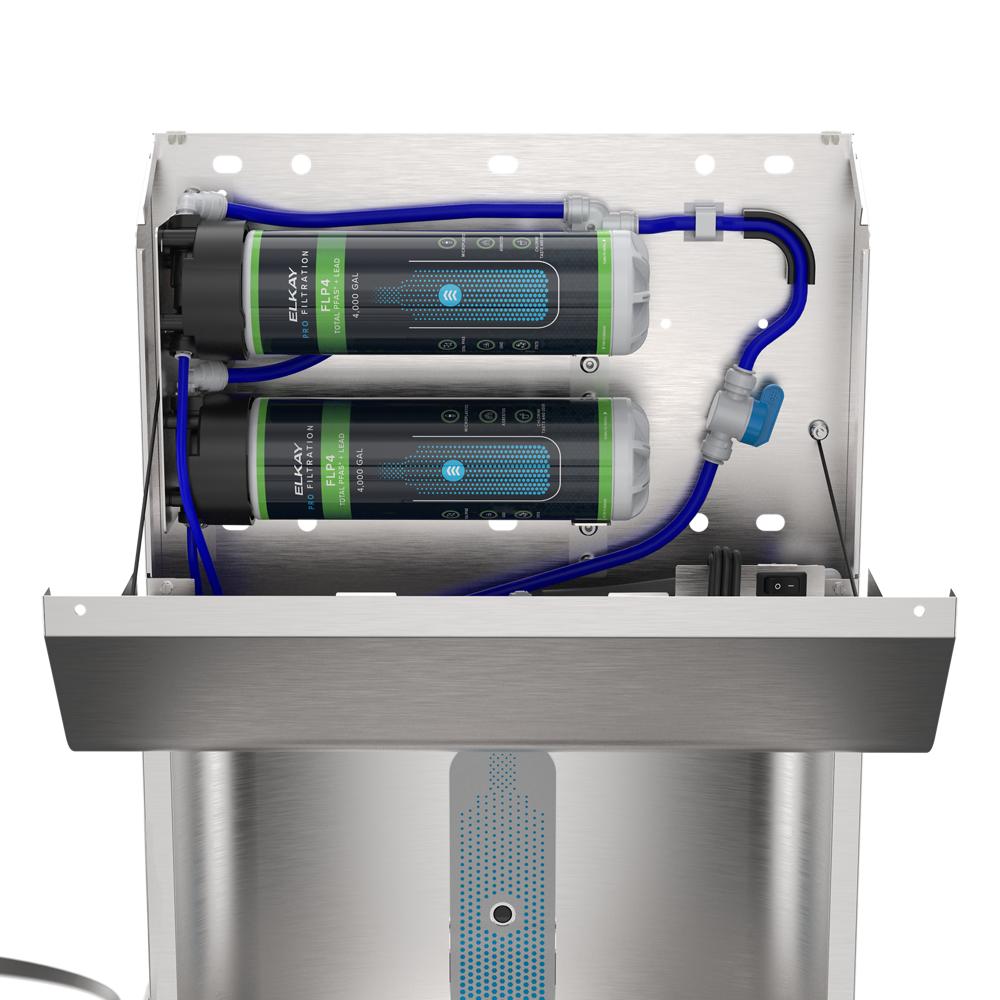

- Top-Mount Quick Filter Change: Filters are accessible from the top of the unit, allowing for fast, tool-minimized replacements that reduce maintenance downtime and keep the station in service longer.
- Cloud-Connected Smart Monitoring (plumbSMART): The Elkay LVRCTLDWSPRO-2FLP4 connects to the plumbSMART platform, enabling facility managers to remotely track filter status, flush the unit, and monitor bottles saved — helping teams stay ahead of maintenance needs without being on-site.

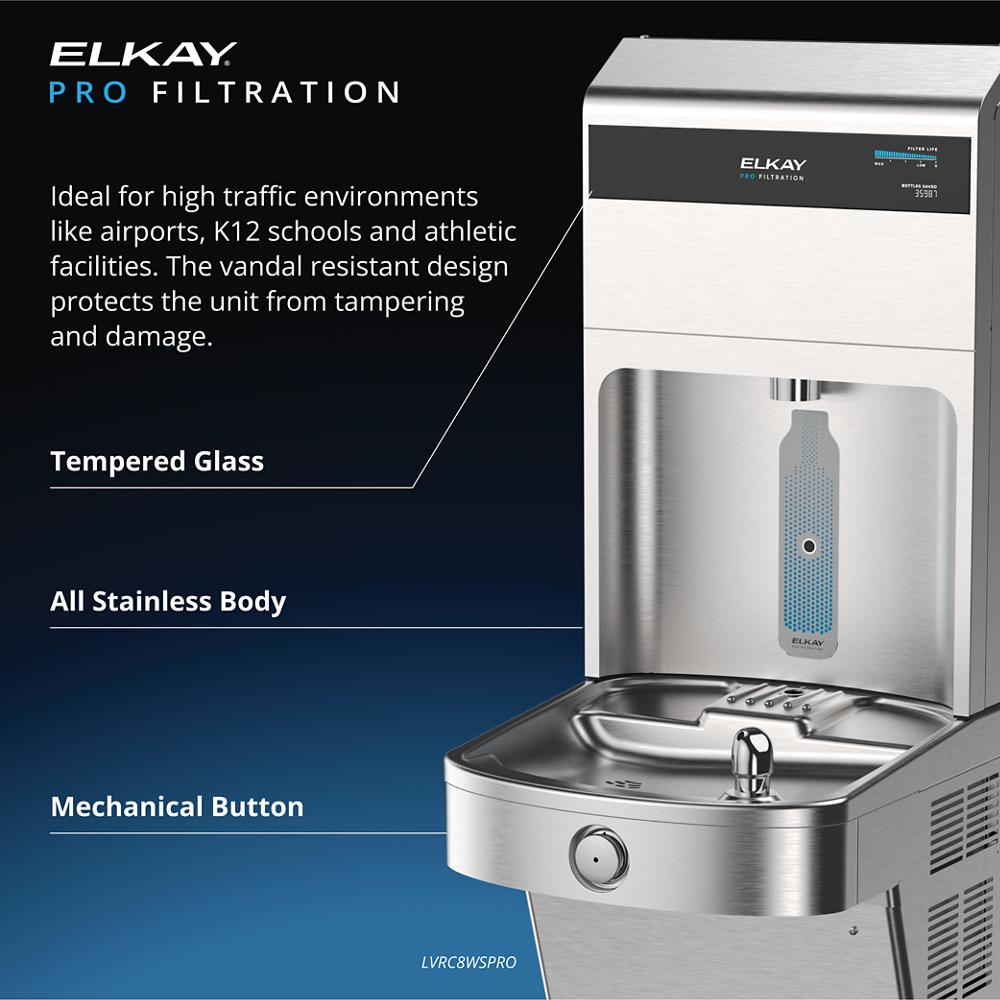

- Vandal-Resistant Build for High-Traffic Areas: Engineered with a stainless steel alcove design and vandal-resistant bubbler, the LVRCTLDWSPRO-2FLP4 is built to withstand demanding public environments while maintaining a sleek, professional appearance.
FAQ
Q: What contaminants do the included FLP4 filters reduce in the Elkay LVRCTLDWSPRO-2FLP4?
A: The included dual FLP4 filters are certified to NSF/ANSI 42, 53 & 401 and reduce Total PFAS (as defined by NSF/ANSI 53), lead, microplastics, cysts, chlorine taste & odor, asbestos, turbidity, and particulate class 1.
Q: Does the Elkay LVRCTLDWSPRO-2FLP4 require any additional accessories for cloud connectivity or left-side bottle filler installation?
A: Yes. A plumbSMART Gateway and Account are required to enable cloud connection features. Additionally, the VERSATILEPRO accessory is required if the bottle filler needs to be installed on the left side.
Q: How often do the filters need to be replaced on the LVRCTLDWSPRO-2FLP4?
A: Each FLP4 filter has a capacity of 4,000 gallons. The unit features an automatic filter status reset, a blue LCD display showing remaining filter capacity, and an automatic filter flush — making it easy to monitor and manage replacement schedules.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
