Elkay LVRCTLDWSPRO-2FL10 | VR Bottle Filling Station & Bi-Level...

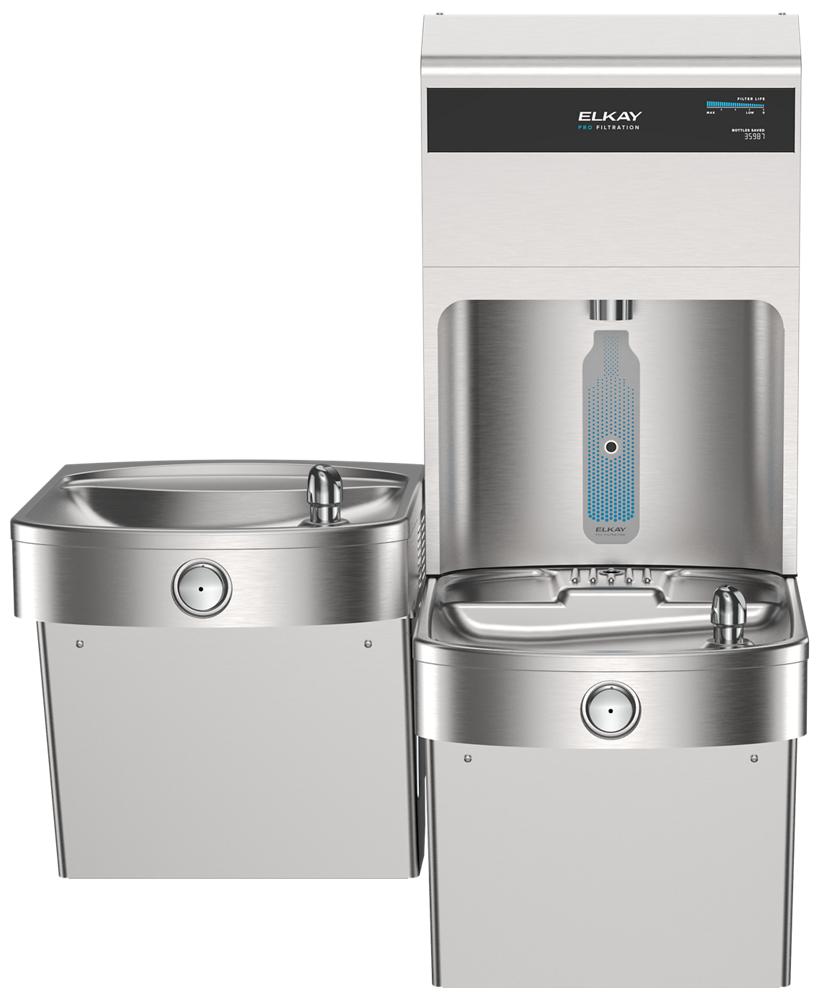

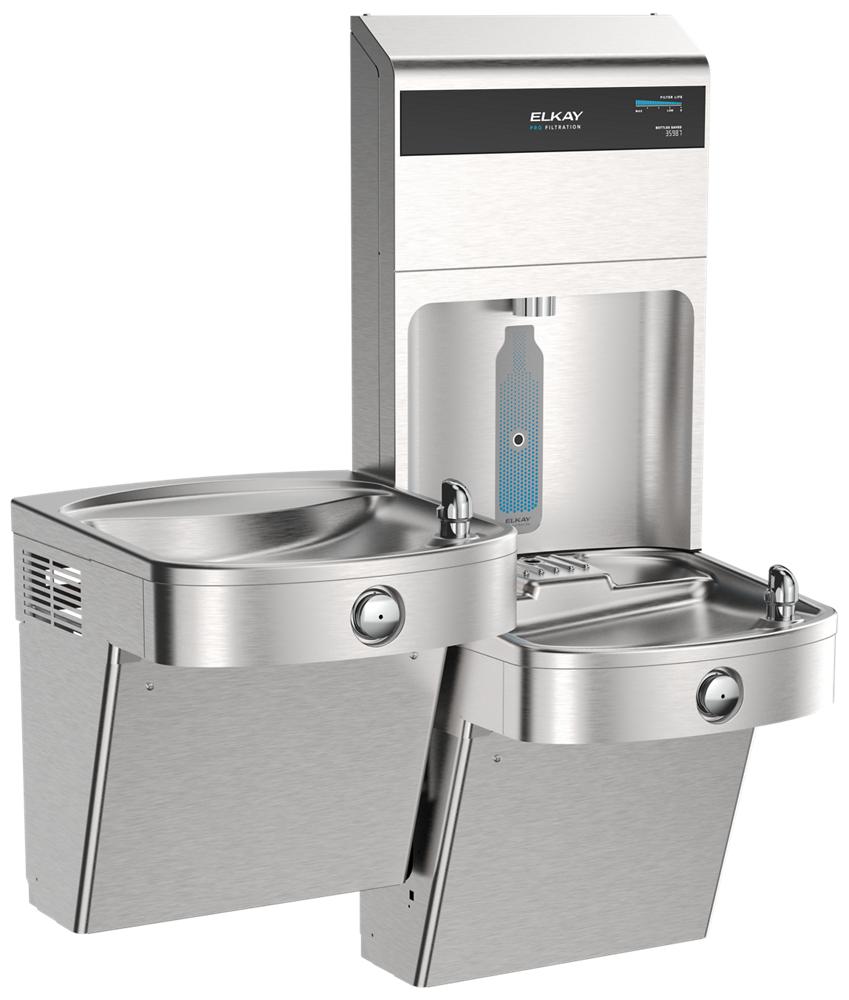

The Elkay LVRCTLDWSPRO-2FL10 is a vandal-resistant, cloud-connected bi-level bottle filling station and water cooler with dual 10,000-gallon ultra-capacity filtration.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Cysts, Asbestos, Turbidity, Chlorine, Taste & Odor

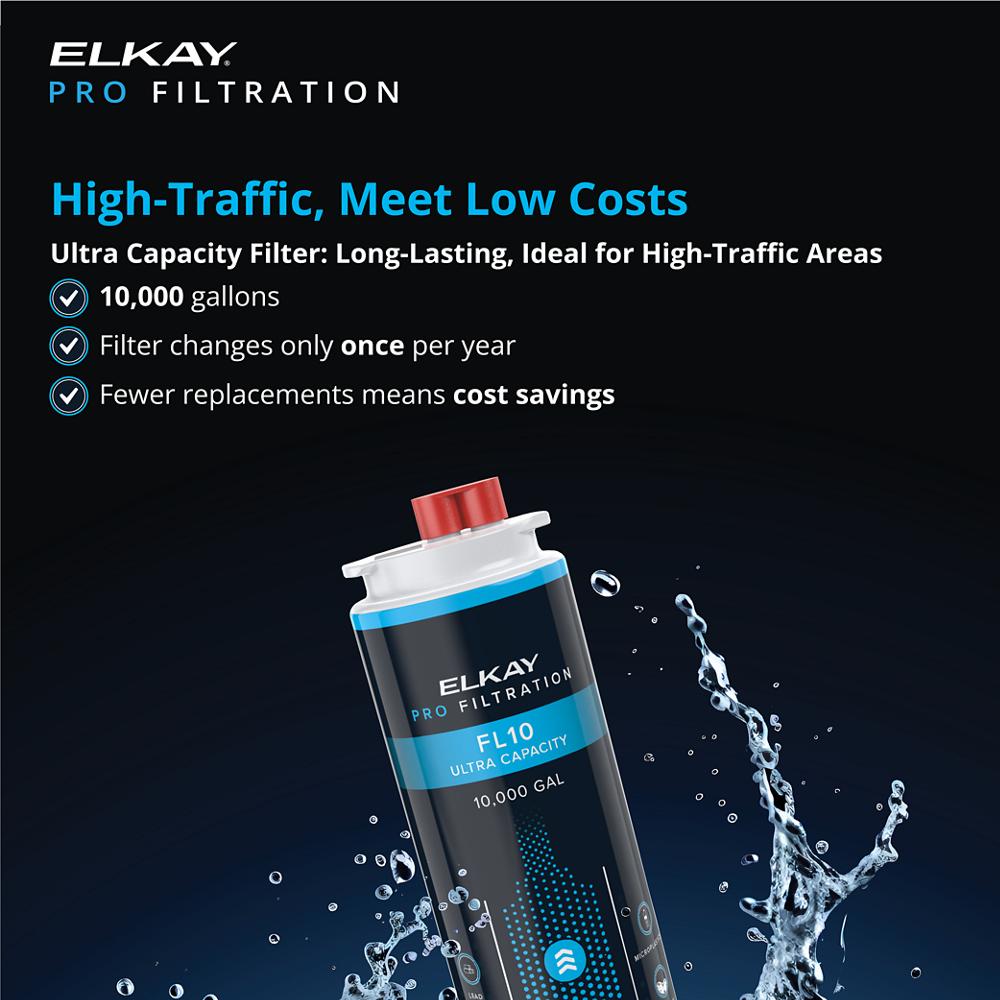

- Filter Capacity: Dual 10,000 Gal. Ultra-Capacity Filters (2x FL10)
- Refrigeration: Non-refrigerated, refers to LVRCTL8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps

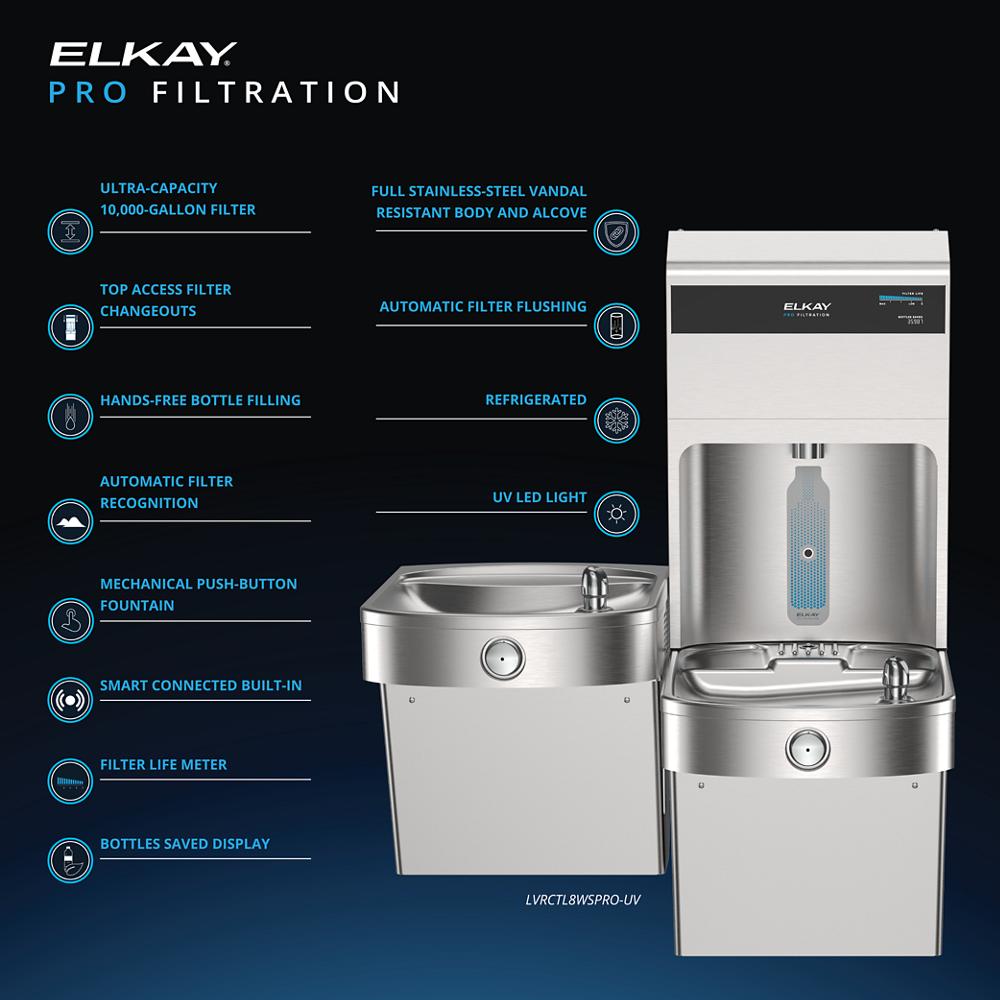

Features & Benefits:
- Advanced Pro Filtration System: The Elkay LVRCTLDWSPRO-2FL10 features dual FL10 ultra-capacity filters certified to NSF/ANSI 42, 53 & 401, reducing lead, microplastics, cysts, asbestos, turbidity, chlorine, and taste & odor for cleaner, safer drinking water in high-traffic environments.
- Top-Mount Quick Filter Change: Filters are accessible from the top of the unit, allowing fast replacements with minimal system disruption — reducing maintenance downtime and keeping the station operational longer.
- Cloud-Connected Smart Monitoring: With plumbSMART compatibility, facility managers can remotely track filter status, monitor bottles saved, trigger filter flushes, and anticipate maintenance needs — all without being on-site (plumbSMART Gateway and Account required).

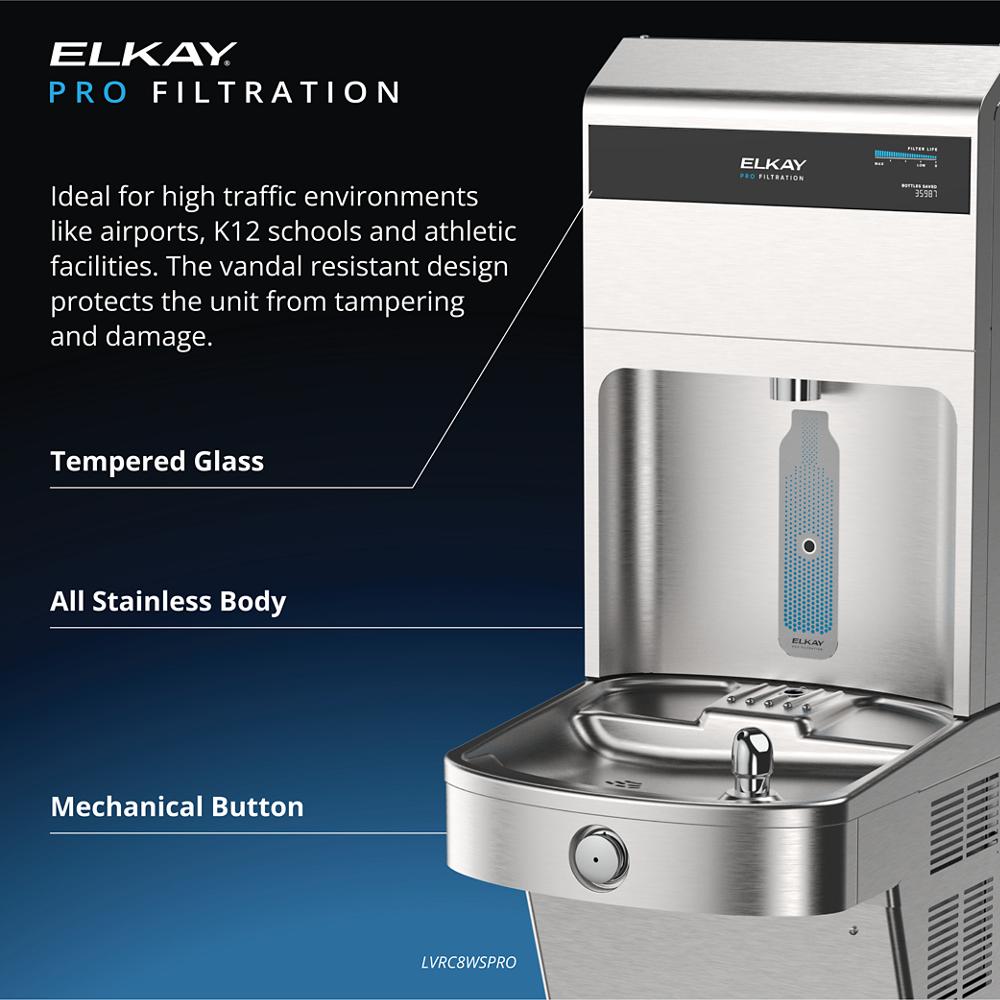

- Durable Vandal-Resistant Design: Built with a stainless steel alcove, tempered glass display cover, and vandal-resistant bubbler, the Elkay LVRCTLDWSPRO-2FL10 is engineered to withstand high-traffic, demanding public environments while maintaining a clean, modern aesthetic.
FAQ
Q: What contaminants do the filters in the Elkay LVRCTLDWSPRO-2FL10 reduce?
A: The included dual FL10 ultra-capacity filters are certified to NSF/ANSI 42, 53 & 401 and reduce lead, microplastics, cysts, asbestos, turbidity, chlorine, and taste & odor.
Q: Can the bottle filler be installed on the left side of the unit?
A: Yes, however the VERSATILEPRO accessory kit is required to move the bottle filler to the left side. This is not included with the unit and must be purchased separately.
Q: Does the Elkay LVRCTLDWSPRO-2FL10 require an internet connection or special account to function?
A: The unit functions as a standalone bottle filling station and water cooler without an internet connection. However, cloud-connected features — such as remote filter status tracking and maintenance monitoring — require a plumbSMART Gateway and Account.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

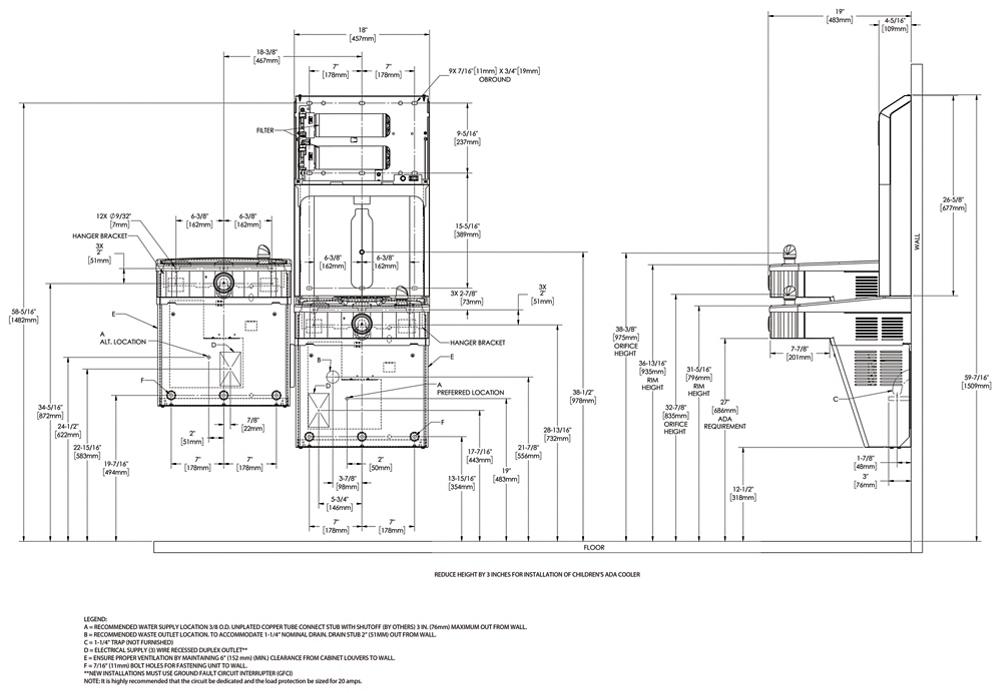

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
