Elkay LVRCTLDWSPRO-FSR5 | Pro VR Bottle Filling Station & Bi-Le...

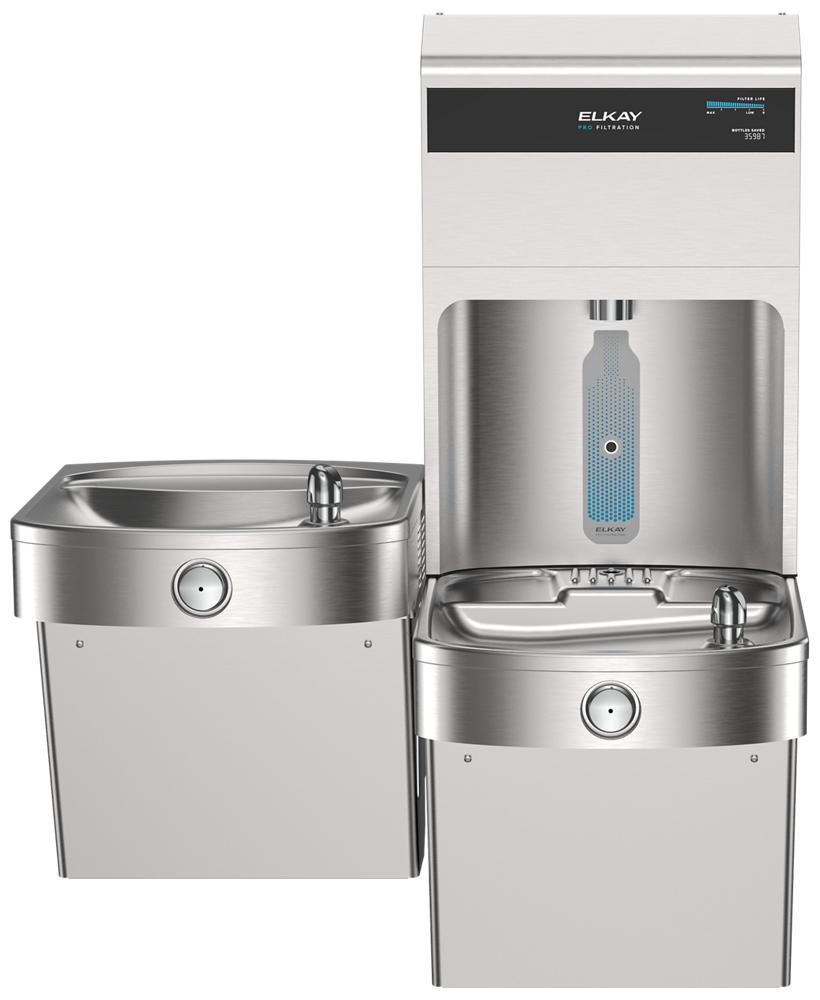

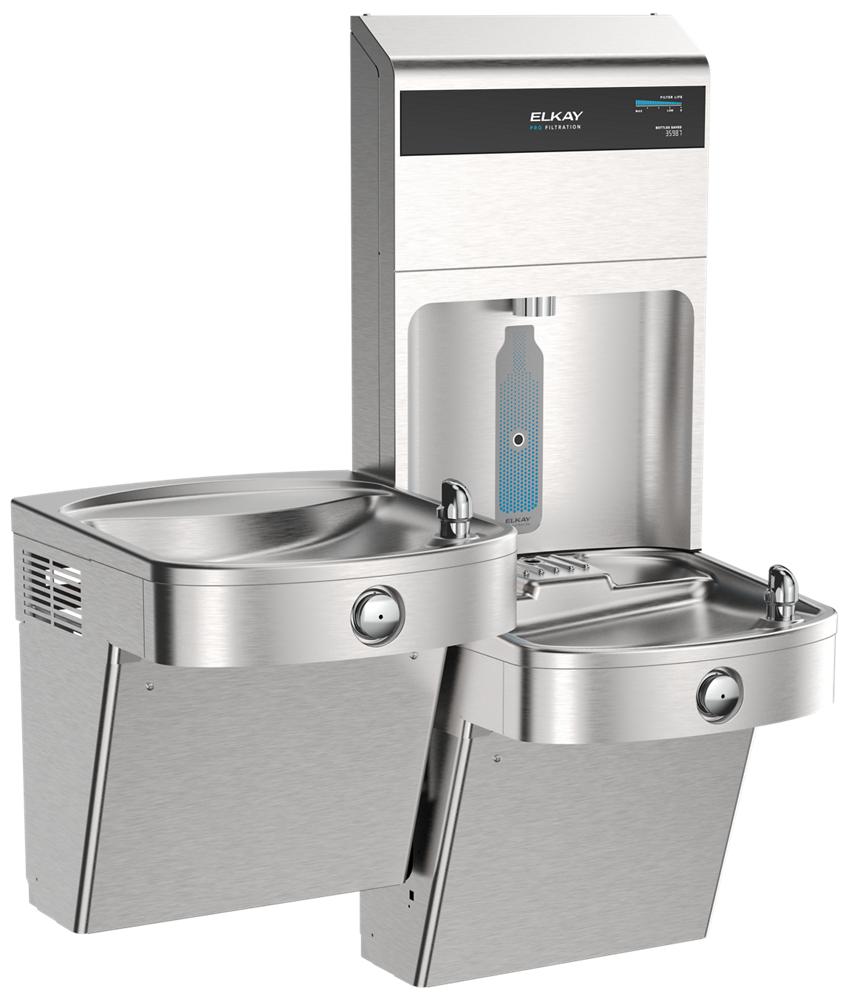

The Elkay LVRCTLDWSPRO-FSR5 is a vandal-resistant, smart-connected bi-level bottle filling station and water cooler with 10,000-gal. pro filtration and sediment prefilter.
Note: This product will be available soon
Key Specifications:
- Finish: Stainless Steel
- Filter Performance: Lead, Microplastics, Cysts, Asbestos, Turbidity, Particulate Class 1, Chlorine, Taste & Odor
- Filter Capacity: 10,000 Gal. (FL10 Ultra-Capacity) + FSR5 Sediment Prefilter Included
- Refrigeration: Non-refrigerated, refers to LVRCTL8WSPRO series for refrigerated option
- Power: 115V/60Hz, 5 Full Load Amps
Features & Benefits:
- Advanced Pro Filtration with Sediment Prefilter: The LVRCTLDWSPRO-FSR5 includes both the FL10 Ultra-Capacity 10,000-gallon filter and the FSR5 Sediment Prefilter, certified to NSF/ANSI 42, 53 & 401, delivering cleaner, safer water by reducing lead, microplastics, cysts, chlorine, and more.
- Smart Cloud Connectivity: Through the plumbSMART platform, facility managers can remotely monitor filter status, trigger automatic filter flushes, reset filter indicators, and track bottles saved — reducing unplanned downtime and supporting sustainability goals.
- Top-Access Filter Replacement: Filters are accessed and changed from the top of the unit in seconds, minimizing maintenance disruption and keeping the station operational in high-traffic environments.
- Durable Vandal-Resistant Construction: Engineered with a stainless steel alcove, vandal-resistant bubbler, and tempered glass display cover, the LVRCTLDWSPRO-FSR5 is purpose-built to withstand heavy public use while maintaining a clean, modern appearance.
FAQ
Q: Is the plumbSMART cloud connection required to operate the LVRCTLDWSPRO-FSR5?
A: No. The unit operates fully as a bottle filling station and water cooler without the cloud connection. However, a plumbSMART Gateway and Account are required to access remote filter tracking, filter flush, and bottles-saved monitoring features.
Q: What contaminants does the included filtration system reduce?
A: The LVRCTLDWSPRO-FSR5 includes the FL10 Ultra-Capacity filter certified to NSF/ANSI 42, 53 & 401, reducing lead, microplastics, cysts, asbestos, turbidity, particulate class 1, chlorine, taste, and odor. The FSR5 Sediment Prefilter is additionally certified to NSF/ANSI 42 for material safety and structural integrity.
Q: Can the bottle filler be installed on the left side?
A: Yes. The VERSATILEPRO accessory (sold separately) is required to move the bottle filler to the left side of the unit.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

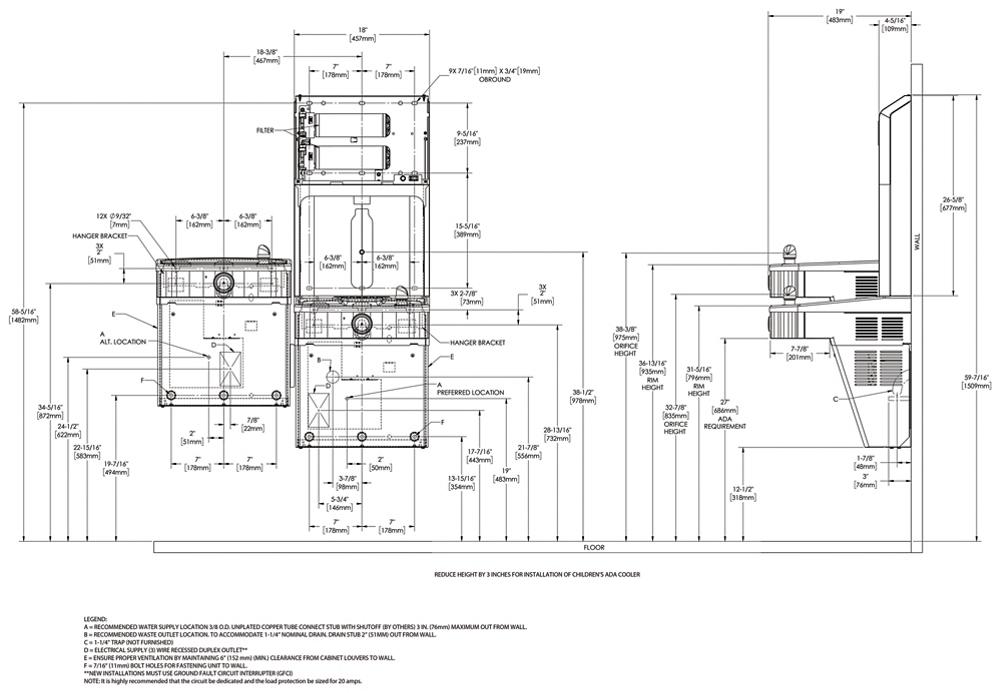

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
