Elkay LZ8WSBPRO Series | Pro Filtration plumbSMART Bottle Filler, B...

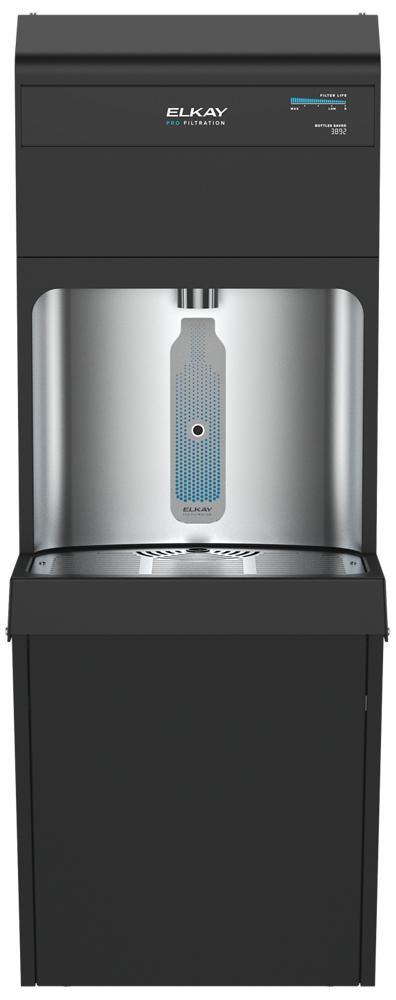

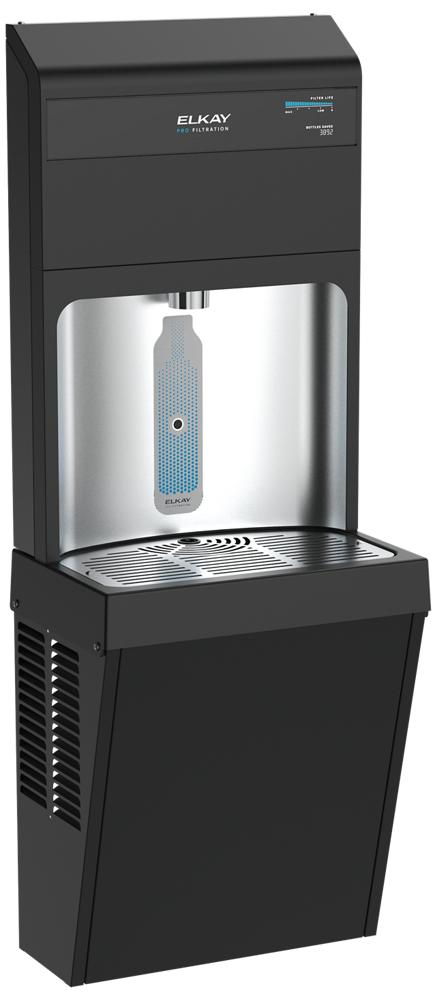

The Elkay LZ8WSBPRO Series is a wall-mount bottle filler with built-in refrigeration and Pro Filtration for lead and PFAS reduction.
Key Specifications:
| Finish | Black Stainless |
| Filter Performance | Reduces Lead, Total PFAS, Microplastics, Copper, Asbestos |
| Filter Capacity | Up to 20,000 Gal. (Standard: 10,000 Gal.) |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 15 Rated Watts |
Water Filter Options:
- LZ8WSBPRO: (1) FL10 Ultra-Capacity Filter (10,000 Gal.)
- LZ8WSBPRO-2FL10: (2) FL10 Ultra-Capacity Filter (20,000 Gal. if Combined)

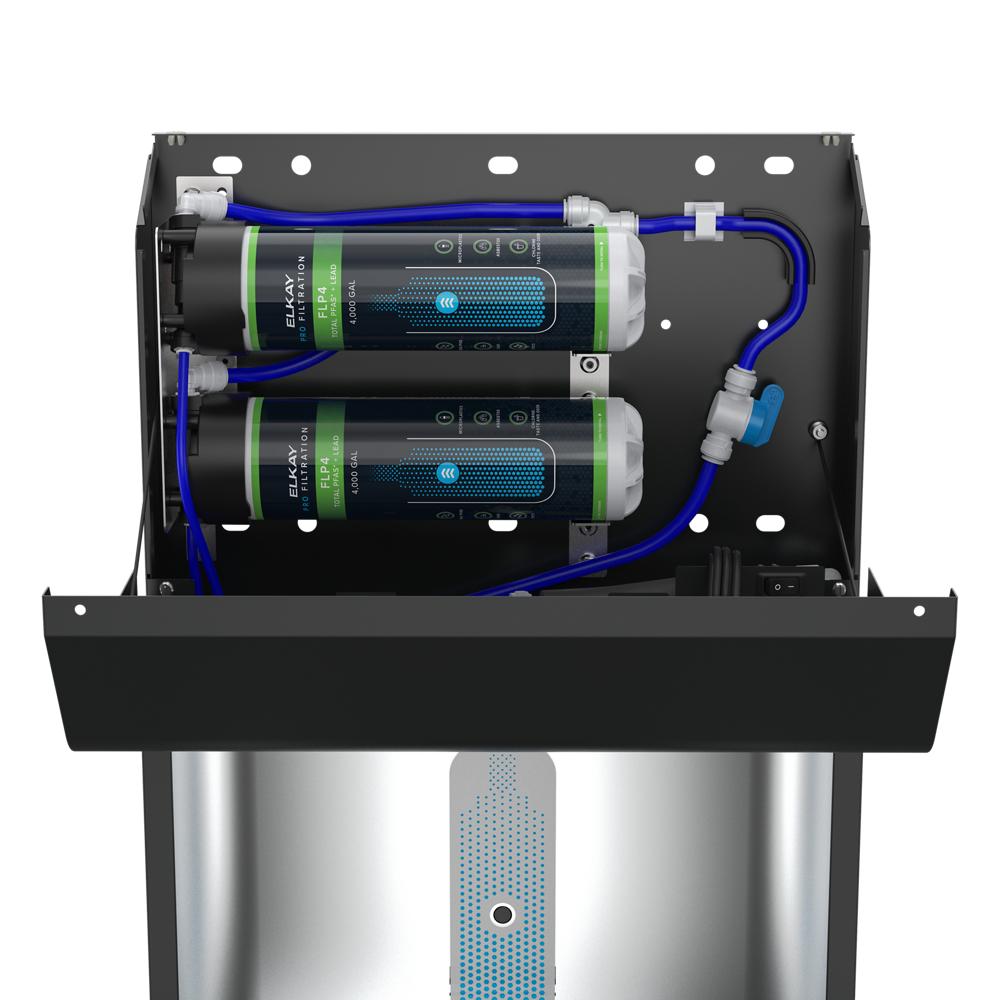

- LZ8WSBPRO-2FLP4: (2) FLP4 Total PFAS and Lead Filter (8,000 Gal. if Combined)
- LZ8WSBPRO-FLP4: (1) FLP4 Total PFAS and Lead Filter (4,000 Gal.)
- LZ8WSBPRO-FSR5: (1) FL10 Ultra-Capacity Filter with (1) FSR5 Sediment Prefilter
- LZ8WSBPRO-UV: (1) FL10 Ultra-Capacity Filter with built-in UV Protection
Features & Benefits:
- Certified Filtration: The Elkay LZ8WSBPRO Series reduces lead, total PFAS, microplastics, copper, and asbestos for cleaner drinking water.

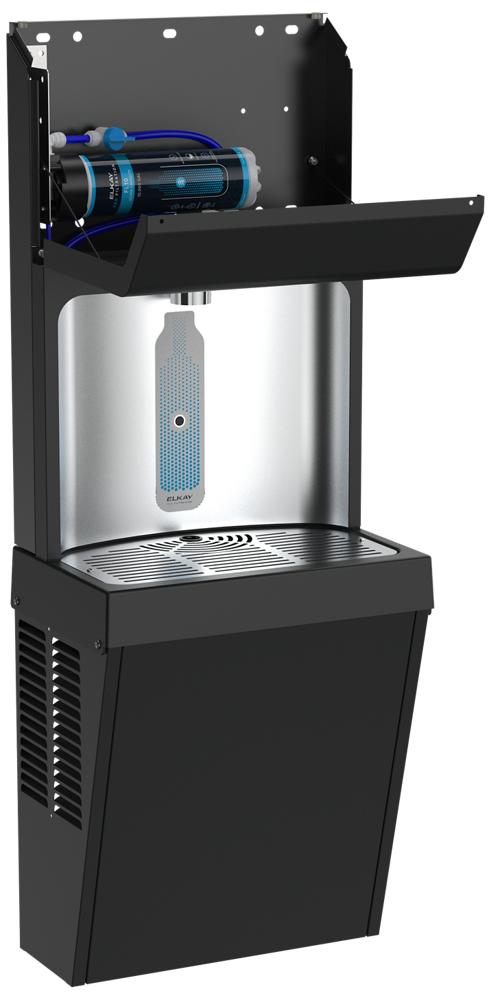

- Top-Access Filter Replacement: Change filters in seconds from the top, minimizing maintenance time and system disruption.
- Smart Connected Monitoring: The LZ8WSBPRO Series allows remote tracking of filter status, waterway flushing, and bottles saved when paired with a plumbSMART Gateway.
- Automated Filter Startup: Recognizes new filters, resets status lights, and flushes the waterway automatically, reducing installation labor.
FAQ
Q: Does the Elkay LZ8WSBPRO Series require an internet connection for basic operation?
A: No, basic filtration and chilling functions operate independently; a plumbSMART Gateway and Account are only required for cloud-connected features such as remote filter status tracking.
Q: What filtration options are available for this model?
A: The LZ8WSBPRO Series can be configured with Ultra-Capacity Filters, Total PFAS Filters, Sediment Prefilters, or a UV-equipped option depending on the suffix selected.
Q: How is the unit installed?
A: The LZ8WSBPRO Series is designed for indoor wall-mount installation and serves a single station.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

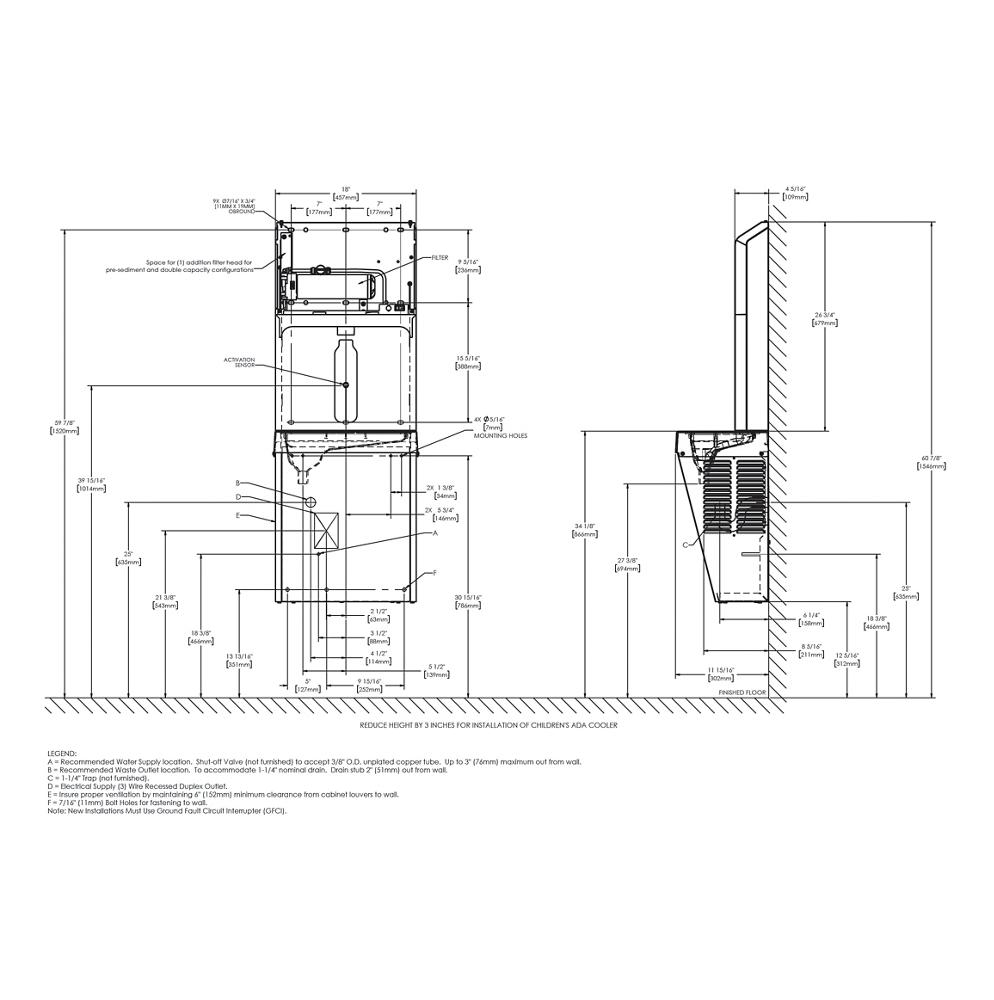

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.
- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
