Elkay LZ8WSBPRO-2FLP4 | Pro Filtration Bottle Filler, Wall Mount | ...

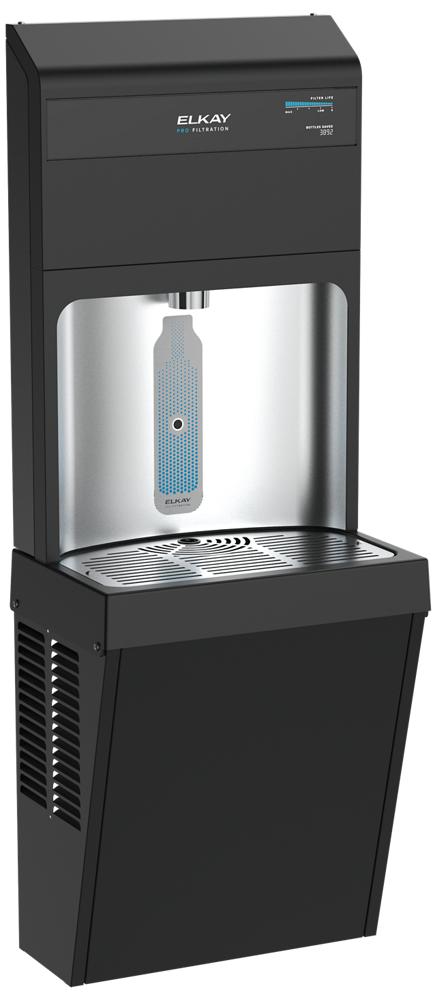

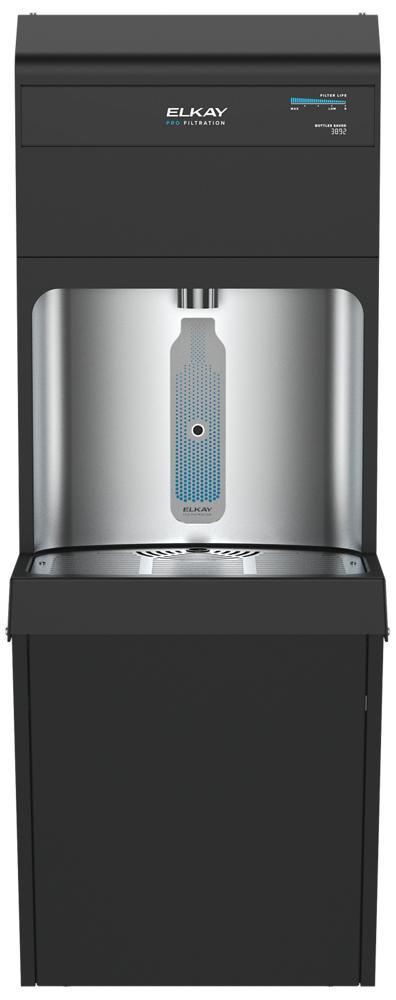

The Elkay LZ8WSBPRO-2FLP4 is a wall-mounted bottle filler with dual Total PFAS filtration and 8.0 GPH chilling capacity.
Key Specifications:
| Finish | Black Stainless (BK) |
| Filter Performance | Reduces Total PFAS, Lead, Microplastics & More |
| Filter Capacity | 8,000 Gal. Combined ((2) FLP4 Filters) |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 5 Full Load Amps, 15 Rated Watts |
Features & Benefits:
- Advanced Contaminant Reduction: The Elkay LZ8WSBPRO-2FLP4 uses (2) FLP4 filters certified to reduce Total PFAS, lead, and microplastics for safer drinking water.
- Extended Filter Life: Combined 8,000 gallon filter capacity minimizes maintenance frequency and reduces long-term operating costs.

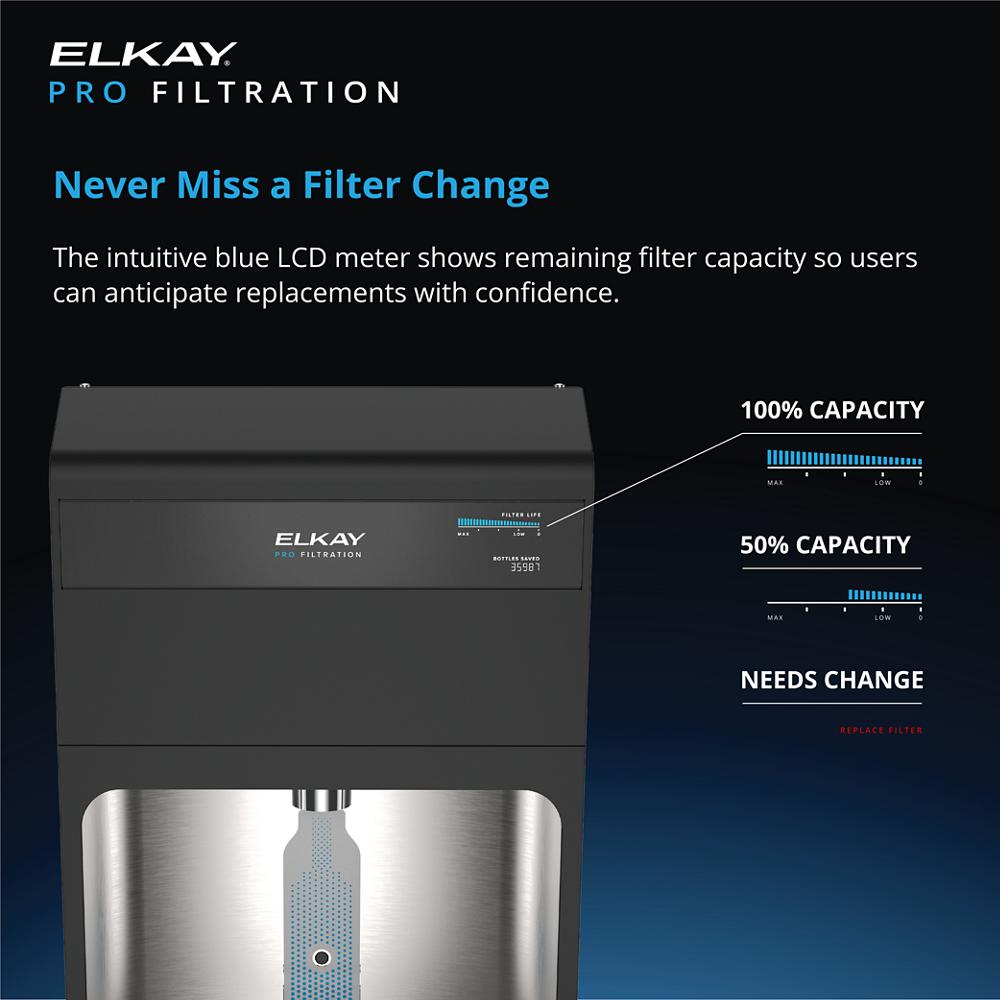

- Smart Monitoring: Interactive Blue LCD display tracks filter capacity and bottles saved, while Smart Connected capability enables remote filter status tracking.
- Effortless Maintenance: Top-Access Filter Replacement and Automated Filter Startup reduce installation time and simplify upkeep on the LZ8WSBPRO-2FLP4.
FAQ
Q: What contaminants does the Elkay LZ8WSBPRO-2FLP4 filter reduce?
A: The dual FLP4 filters are certified to NSF/ANSI 42, 53 & 401 to reduce Total PFAS, lead, microplastics, and more.
Q: Does this unit require electricity for cloud connectivity?
A: Yes, remote filter tracking and flush features require a plumbSMART Gateway and Account in addition to standard 115V power.
Q: How is the unit installed?
A: The LZ8WSBPRO-2FLP4 is designed for wall mount (on wall) indoor installation, serving a single station.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation

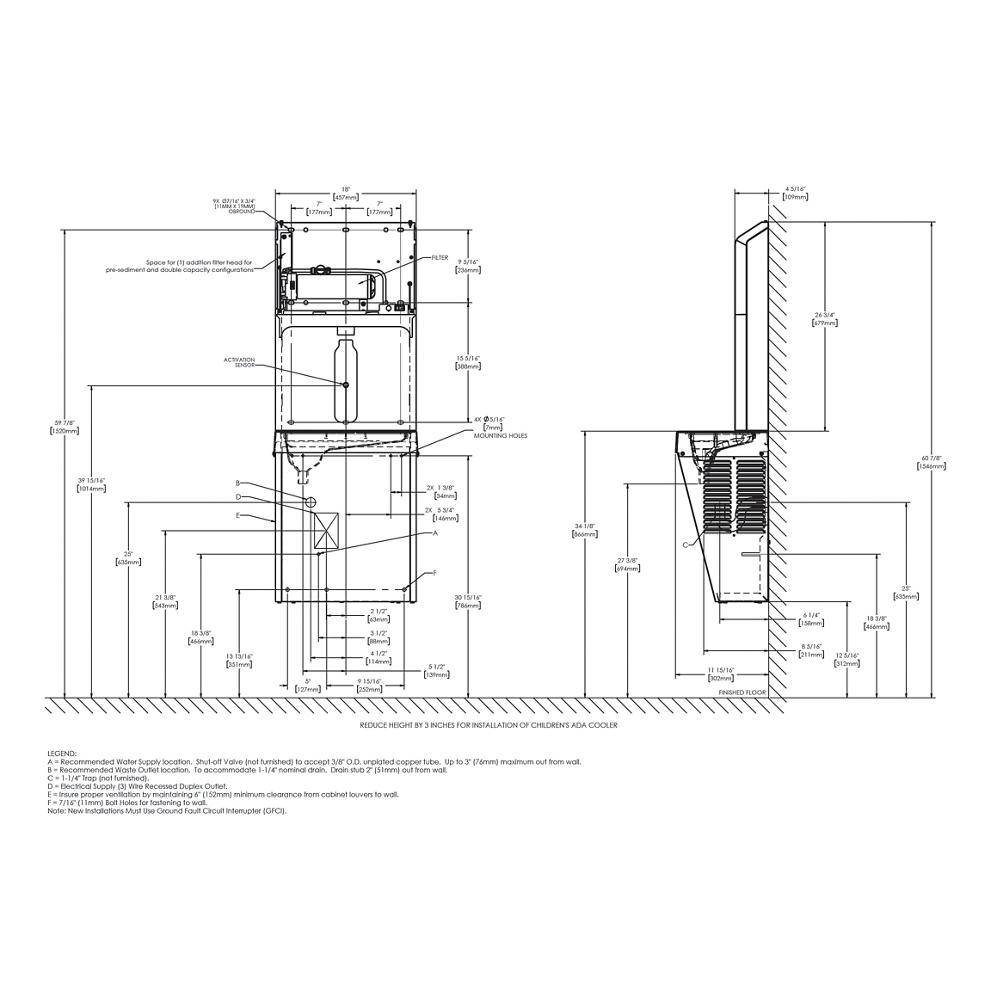

To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

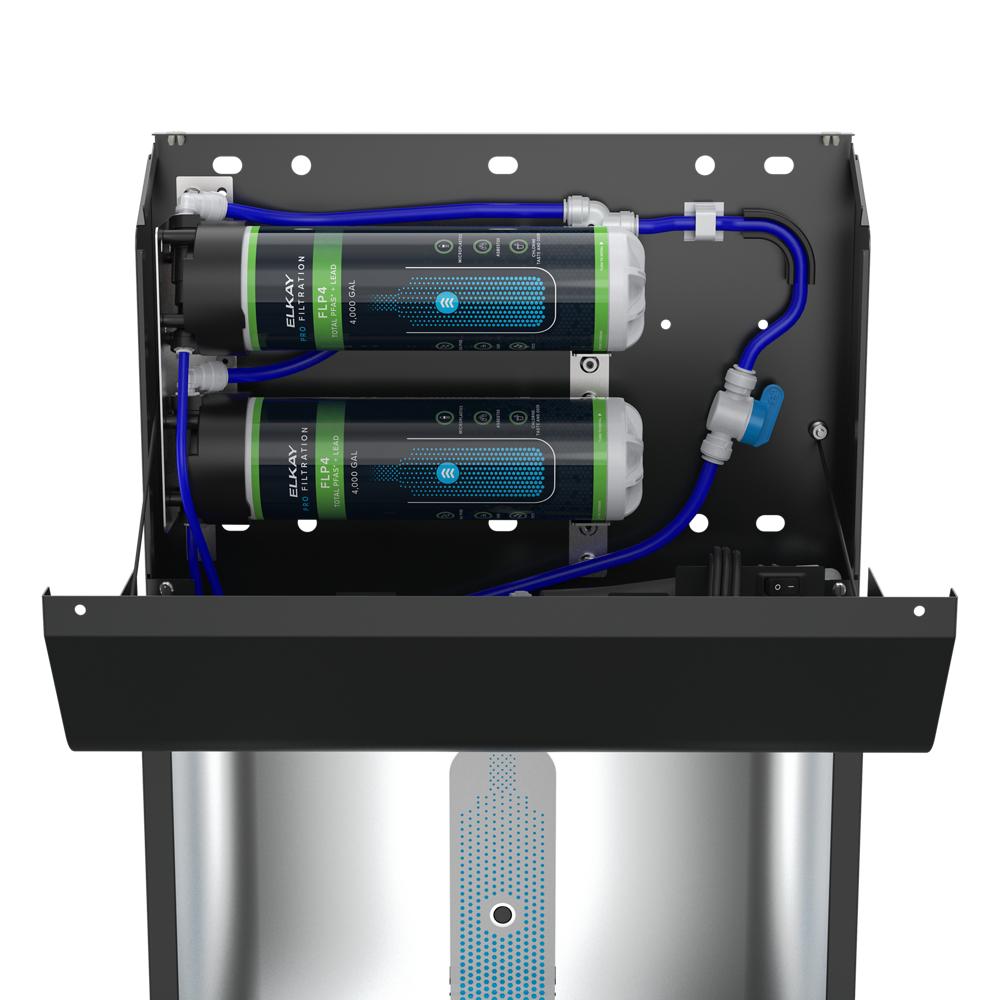

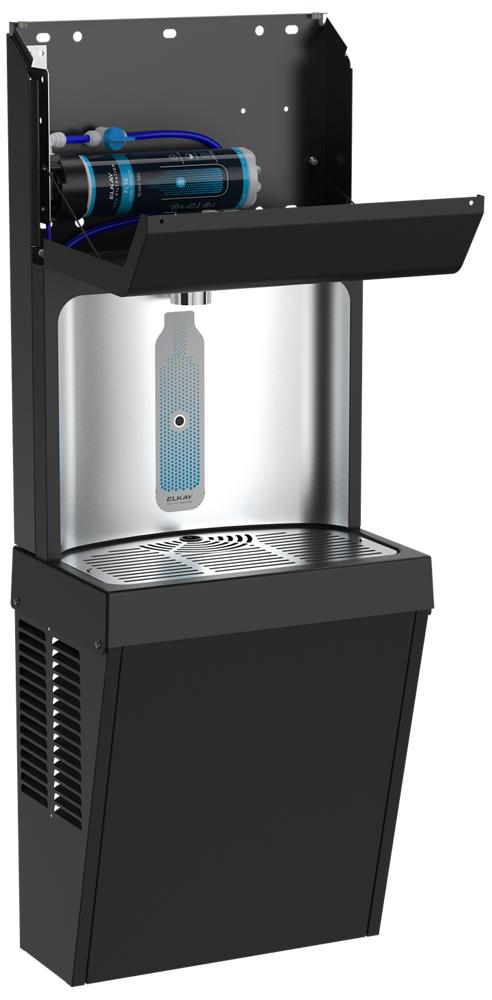

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
