Elkay LZ8WSBPRO-FLP4 | Wall Mount Bottle Filler, Refrigerated | 8.0...

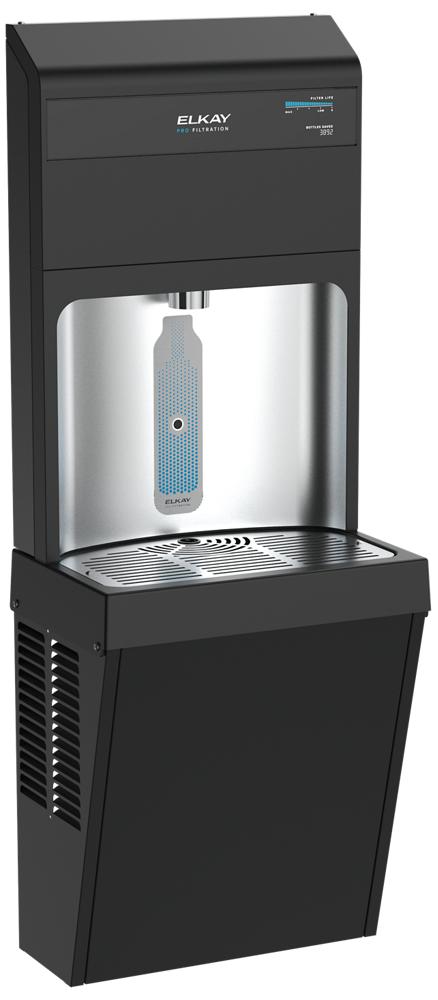

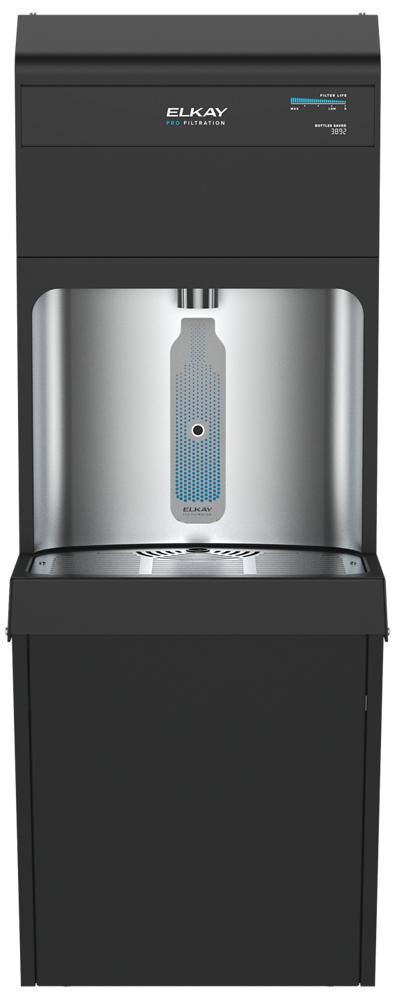

The Elkay LZ8WSBPRO-FLP4 is a wall-mount refrigerated bottle filler with Pro Filtration for lead, PFAS & microplastic reduction.
Key Specifications:
| Finish | Black Stainless (BK) |
| Filter Performance | Reduces Total PFAS, Lead, Microplastics (NSF/ANSI 42, 53 & 401) |
| Filter Capacity | FLP4 Filter — 4,000 Gal. |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 15 Rated Watts |
Features & Benefits:
- Cleaner Drinking Water: The Elkay LZ8WSBPRO-FLP4 uses a certified FLP4 filter to reduce Total PFAS, lead, and microplastics for safer hydration.
- Effortless Maintenance: Top-access quick filter change and automated filter startup minimize service time on the LZ8WSBPRO-FLP4.

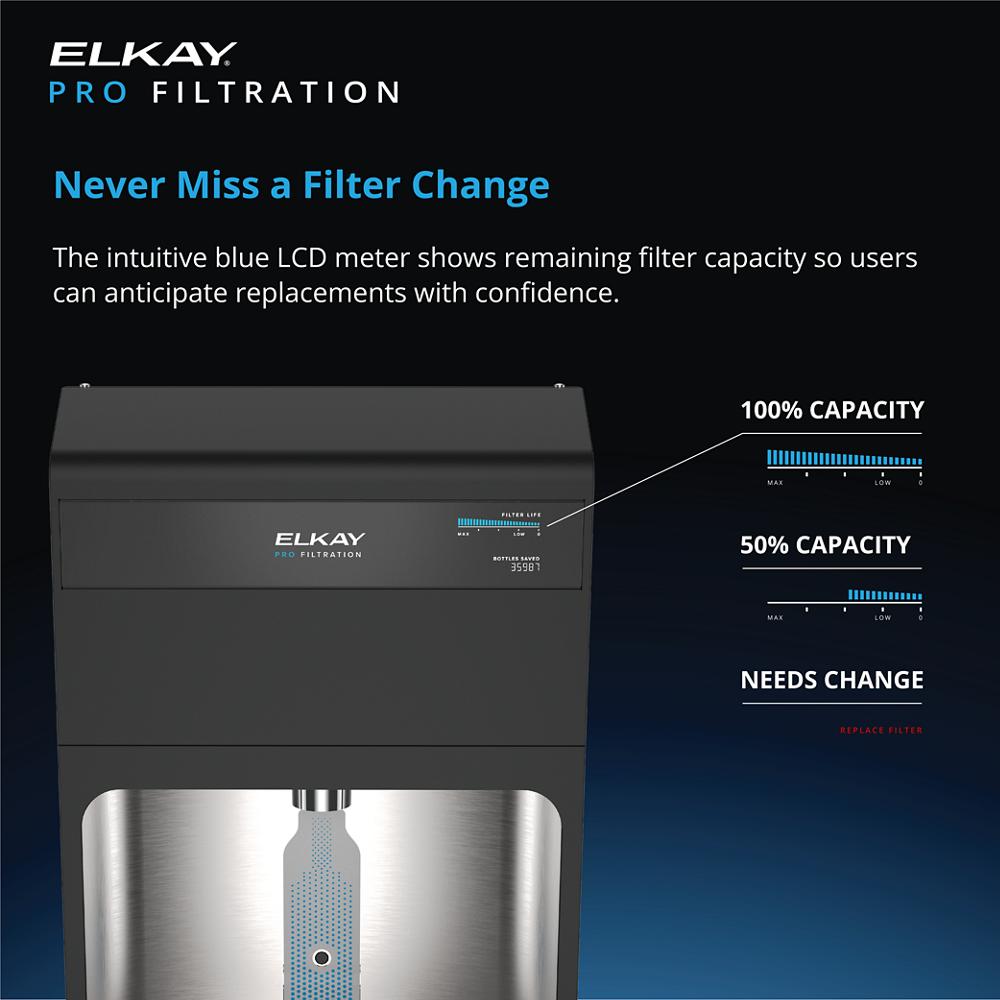

- Smart Monitoring: An interactive Blue LCD display tracks filter capacity and bottles saved, while Smart Connected features enable remote status tracking.
- Reliable Chilled Water: Delivers 8.0 GPH of 50°F drinking water, providing consistent refreshment for daily use.
FAQ
Q: What contaminants does the LZ8WSBPRO-FLP4 filter reduce?
A: The included FLP4 filter reduces Total PFAS, lead, microplastics, and more, certified to NSF/ANSI 42, 53 & 401.
Q: Does the LZ8WSBPRO-FLP4 require internet connectivity for smart features?
A: Yes, remote filter tracking and flush require a plumbSMART Gateway and account.
Q: How is the unit installed?
A: The LZ8WSBPRO-FLP4 is designed for indoor wall mounting and serves a single station.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation

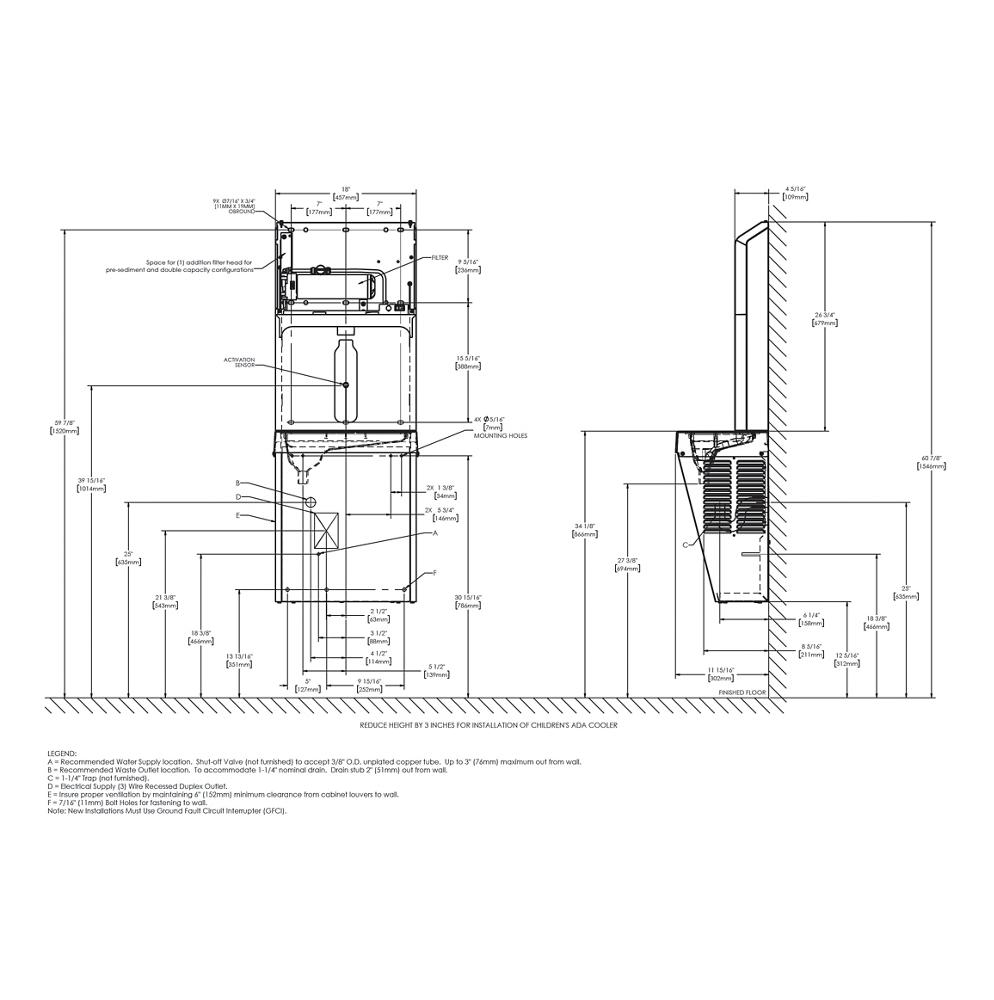

To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

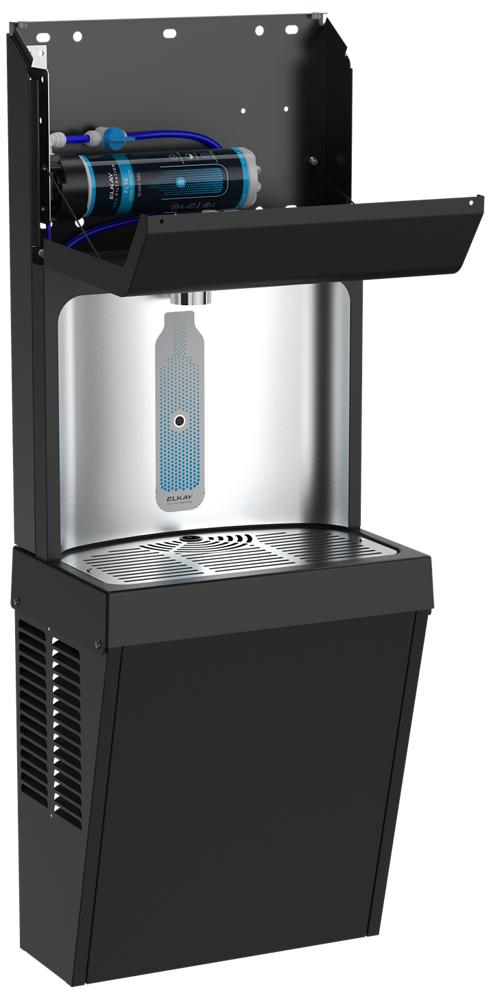

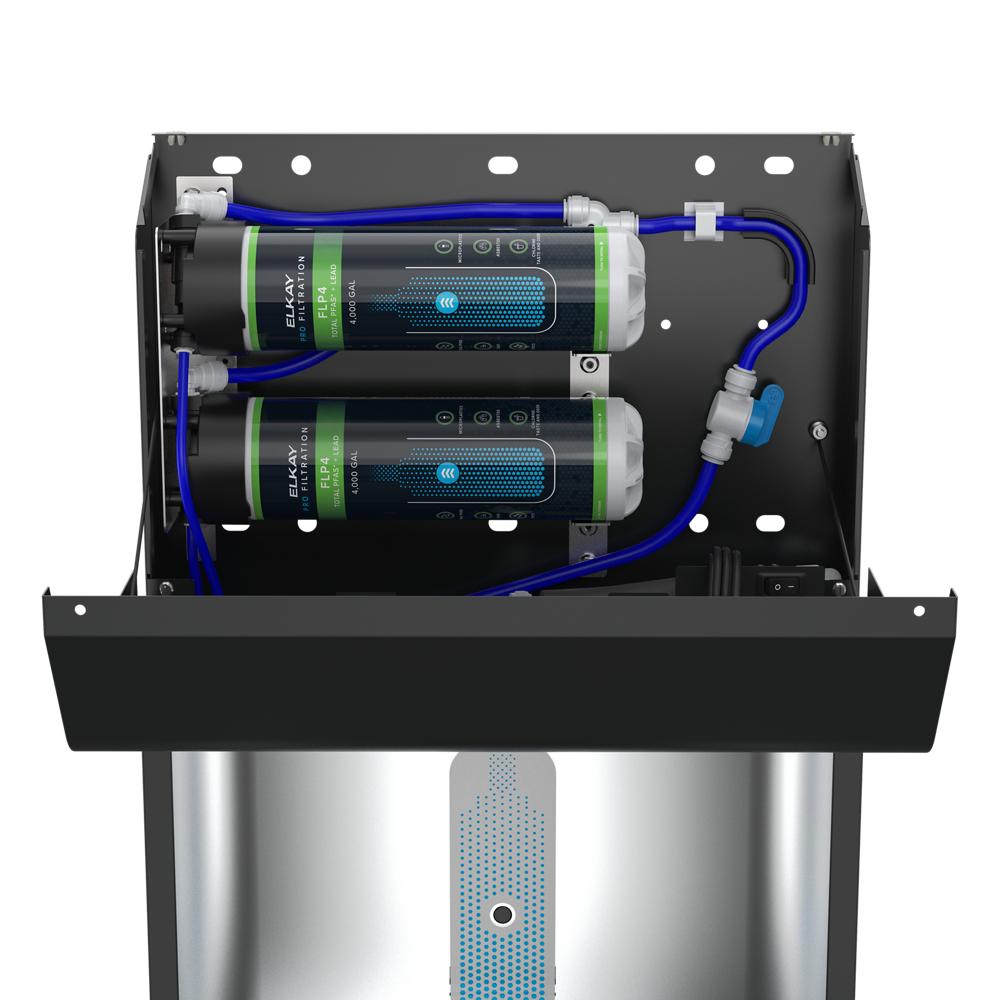

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
