Elkay LZ8WSBPRO-UV | Pro Filtration Bottle Filler w/ UVC-LED | 8.0 GPH

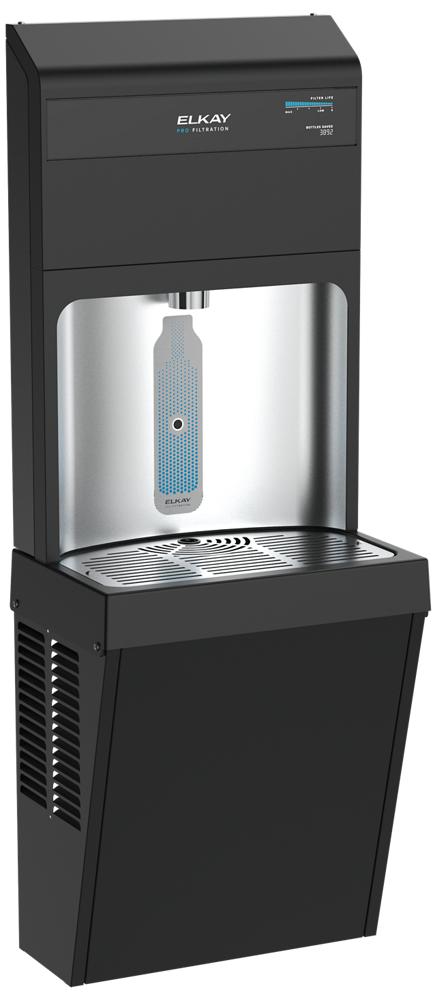

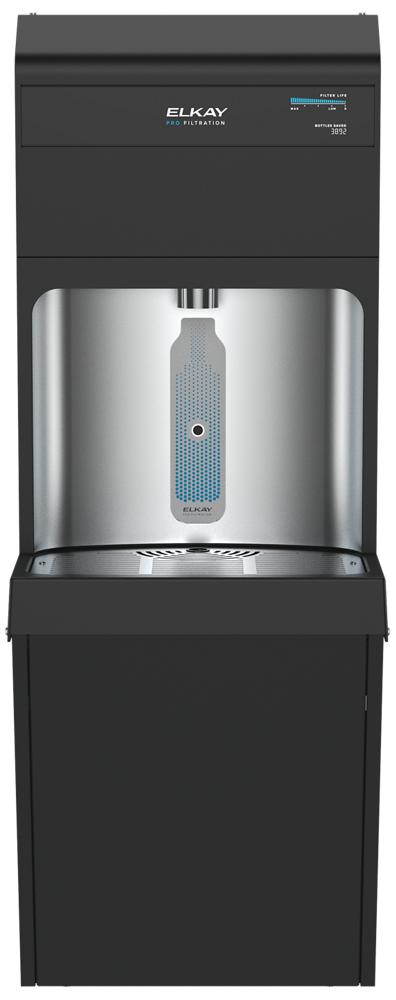

The Elkay LZ8WSBPRO-UV is a wall-mount bottle filler with built-in UVC-LED disinfection and 8.0 GPH chilling capacity for clean, cold hydration.
Key Specifications:
| Finish | Black Stainless |
| Filter Performance | Reduces Lead, Microplastics & More |
| Filter Capacity | FL10 Ultra-Capacity Filter, 10,000 Gal. |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 15 Rated Watts |
Features & Benefits:
- Built-In UVC-LED Disinfection: The Elkay LZ8WSBPRO-UV features a UVC-LED at the dispense point for added protection against contaminants at the point of use.
- High-Capacity Certified Filtration: Equipped with an FL10 Ultra-Capacity Filter rated for 10,000 gallons, the LZ8WSBPRO-UV reduces lead, microplastics, and other contaminants for safer drinking water.
- Smart Connected Monitoring: With plumbSMART connectivity, the LZ8WSBPRO-UV allows remote tracking of filter status and remote flush capability, reducing maintenance downtime.

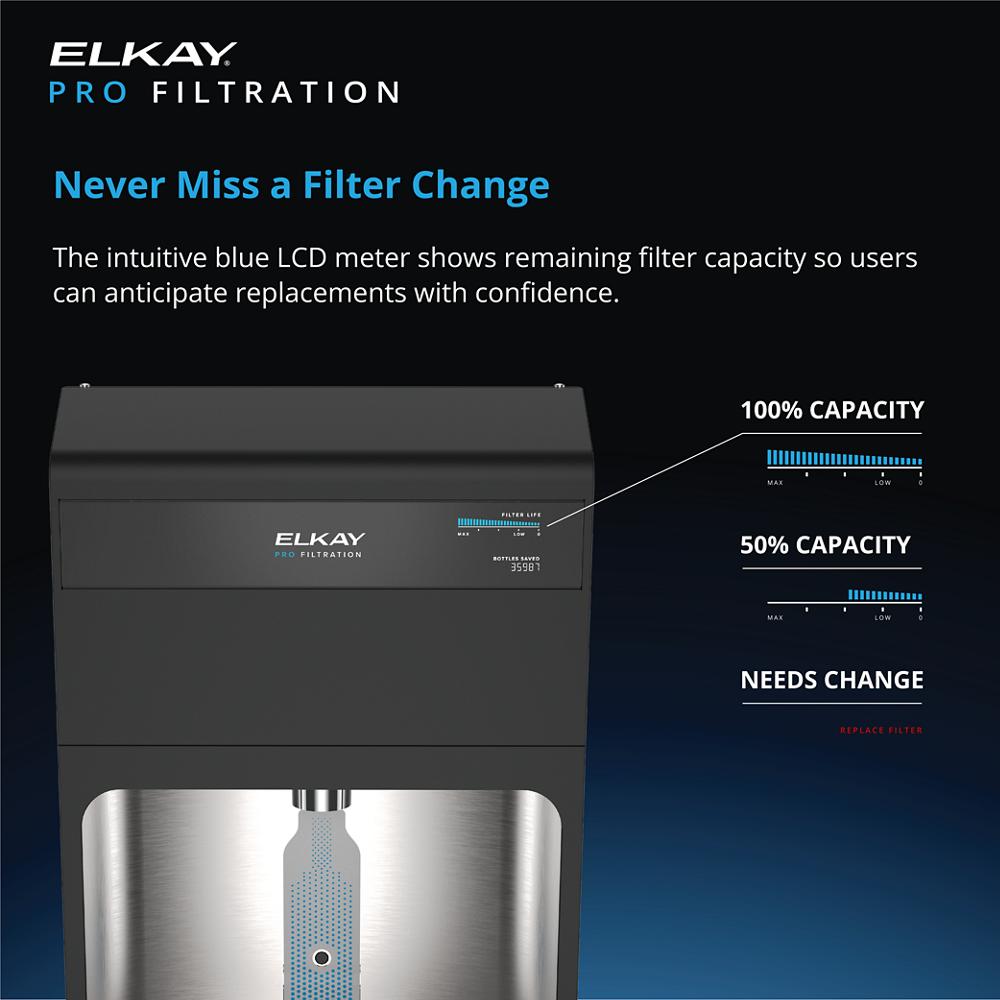

- Sustainability Tracking: The interactive blue LCD display shows remaining filter capacity and bottles saved, helping facilities monitor environmental impact and reduce single-use plastic waste.
FAQ
Q: Does the LZ8WSBPRO-UV require additional equipment for smart monitoring?
A: Yes, remote filter status tracking and flush functions require a plumbSMART Gateway and Account.
Q: What does the built-in UVC-LED do?
A: It provides added disinfection at the dispense point every time water is drawn, working alongside the filtration system.
Q: How easy is it to replace the filter?

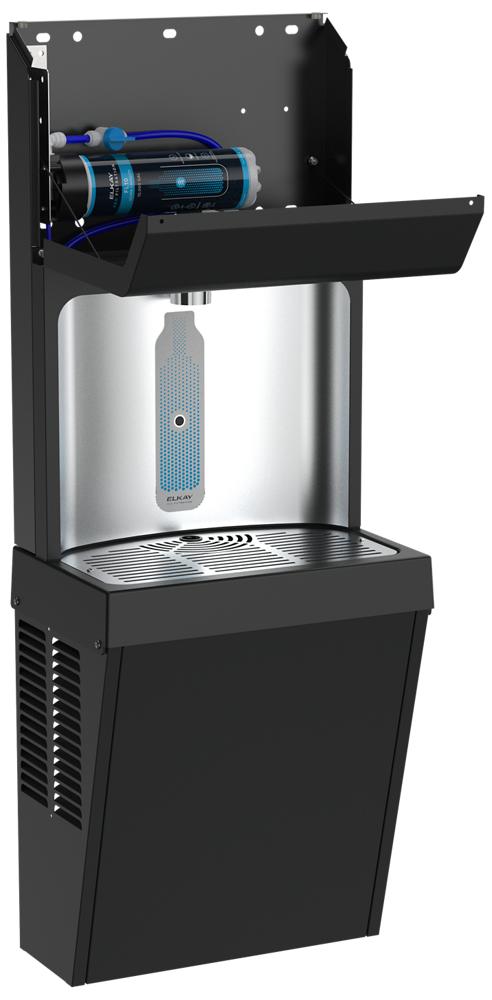

A: The unit features top-access filter replacement, allowing filters to be changed quickly with automated filter startup and status reset.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

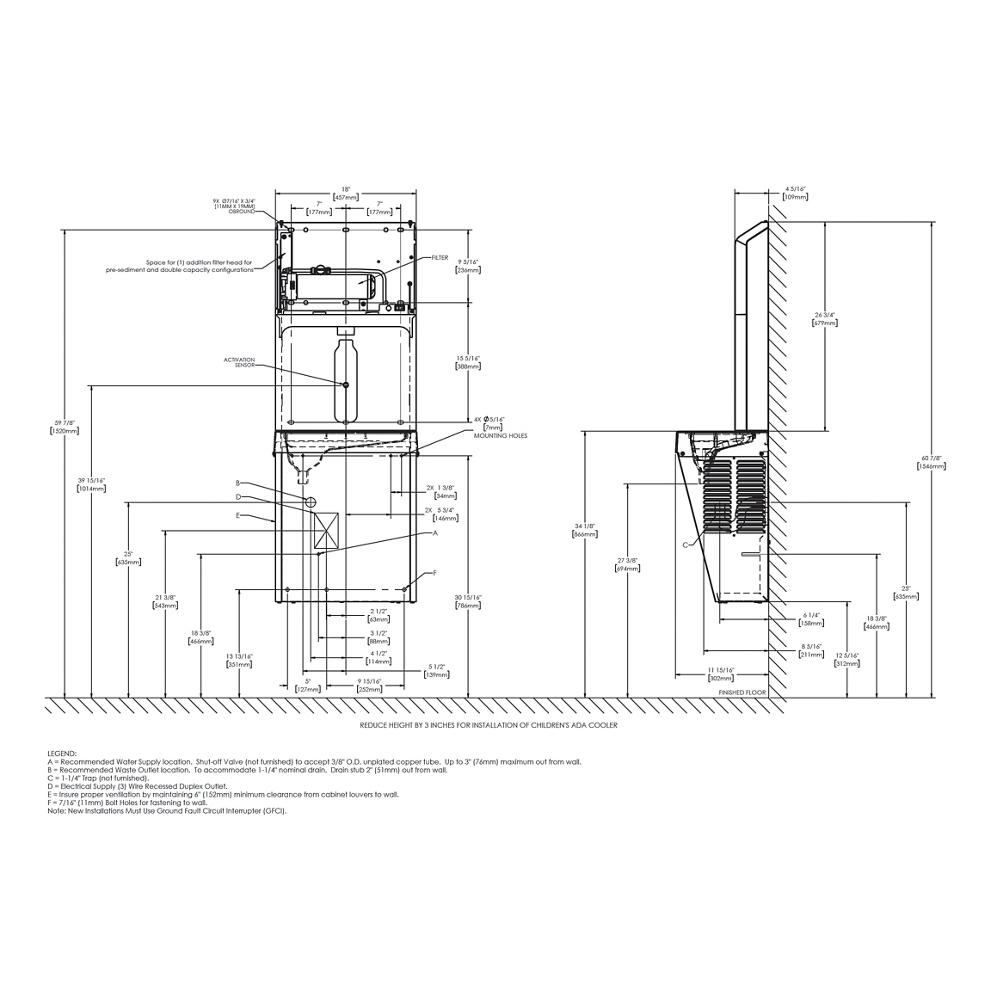

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

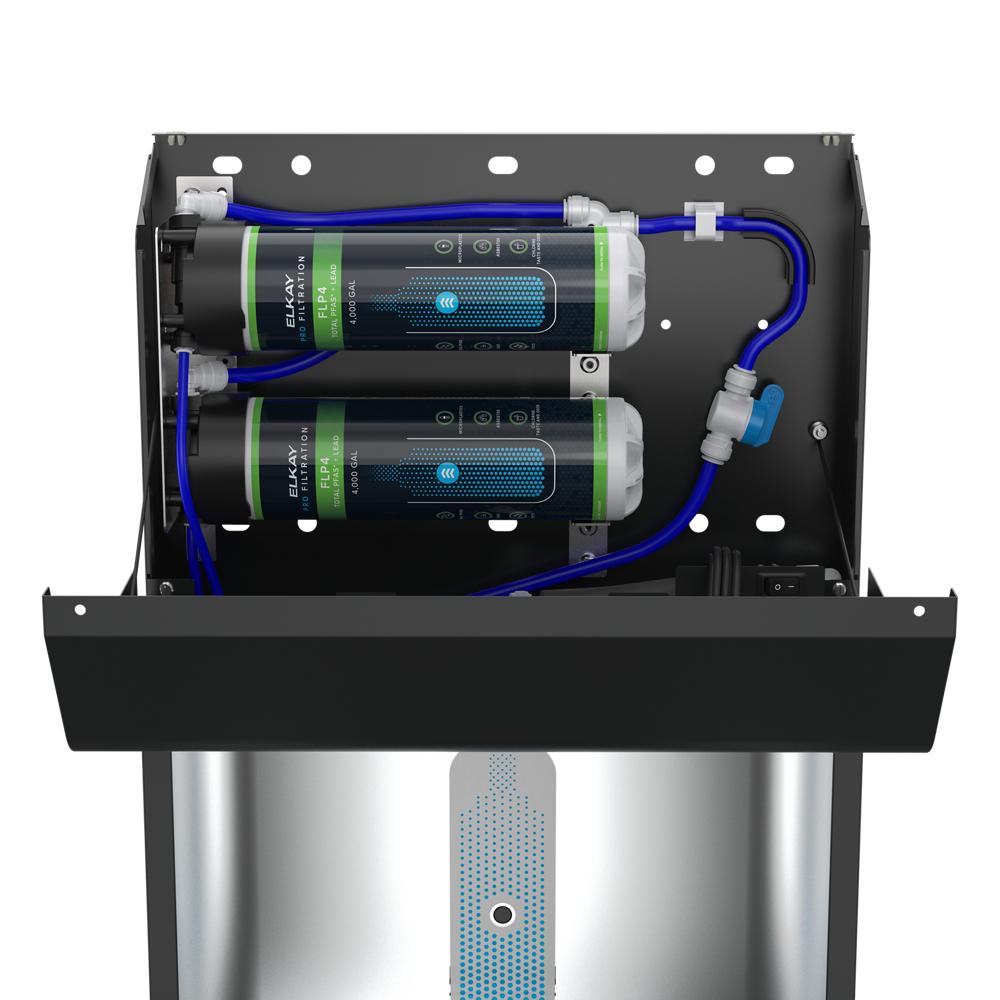

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
