Elkay LZ8WSBPRO-FSR5 | Pro Filtration Bottle Filler, Black Stainles...

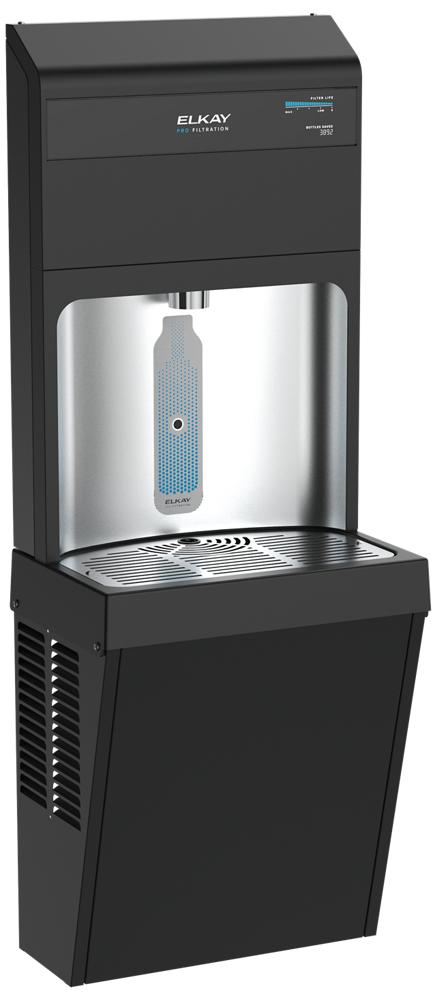

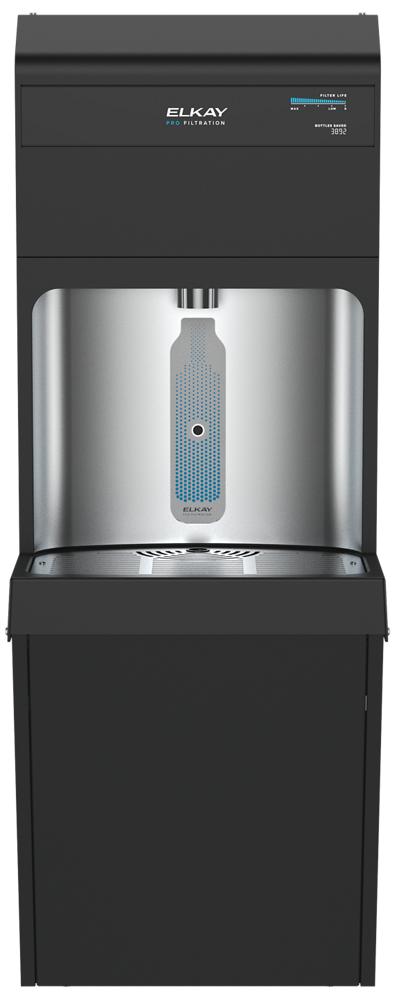

The Elkay LZ8WSBPRO-FSR5 is a wall-mounted, single-station bottle filler with refrigeration and Pro Filtration for lead and sediment reduction.
Key Specifications:
| Finish | Black Stainless (BK) |
| Filter Performance | Lead, Microplastics, Sediment, Material Safety |
| Filter Capacity | FL10 (10,000 Gal.) + FSR5 Prefilter |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 15 Watts, 5 Full Load Amps |
Features & Benefits:
- Fast, Effective Filtration: The Elkay LZ8WSBPRO-FSR5 pairs an Ultra-Capacity FL10 filter with an FSR5 sediment prefilter to reduce lead, microplastics, and particulates for safer drinking water.
- Reliable Chilled Hydration: Delivers 8.0 GPH of 50°F water, ensuring consistent cold refreshment even in high-traffic environments.

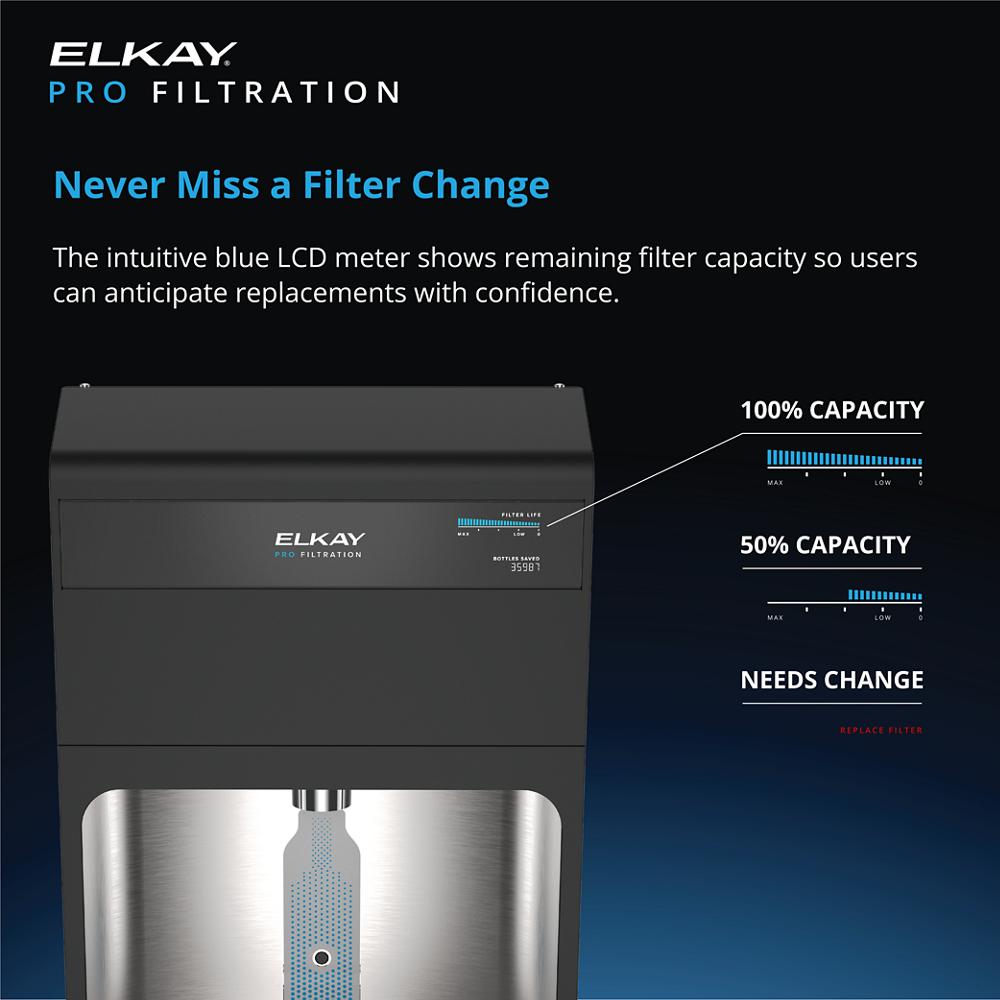

- Smart Maintenance: Top-access filter replacement and automated filter startup reduce downtime, while the Interactive Blue LCD Display tracks filter capacity and bottles saved.
- Remote Monitoring: Smart Connected capability allows remote filter status tracking and flushing when paired with a plumbSMART Gateway and Account, streamlining facility maintenance for the LZ8WSBPRO-FSR5.
FAQ
Q: What filters are included with the Elkay LZ8WSBPRO-FSR5?
A: It ships with one FL10 Ultra-Capacity Filter (10,000 Gal.) and one FSR5 Sediment Prefilter for enhanced protection.
Q: Does this unit require a bubbler?
A: No, the LZ8WSBPRO-FSR5 is bottle filler only, activated via an electronic sensor with no bubbler component.
Q: What is needed for remote filter monitoring?
A: A plumbSMART Gateway and Account are required to enable cloud-connected filter status tracking and remote flush features.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

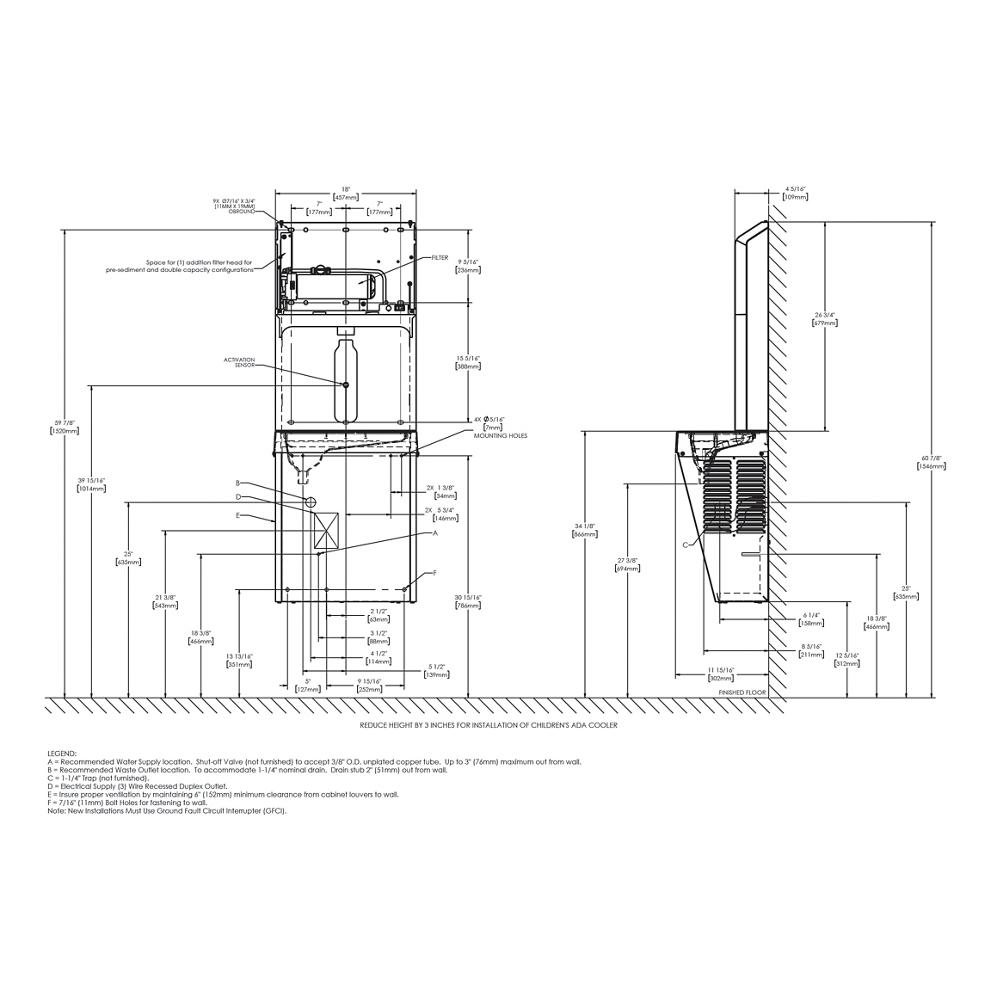

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

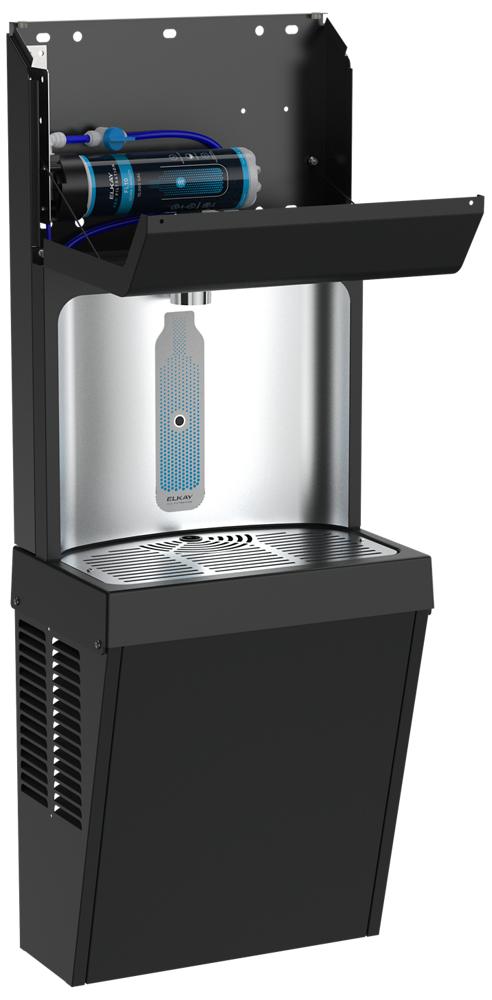

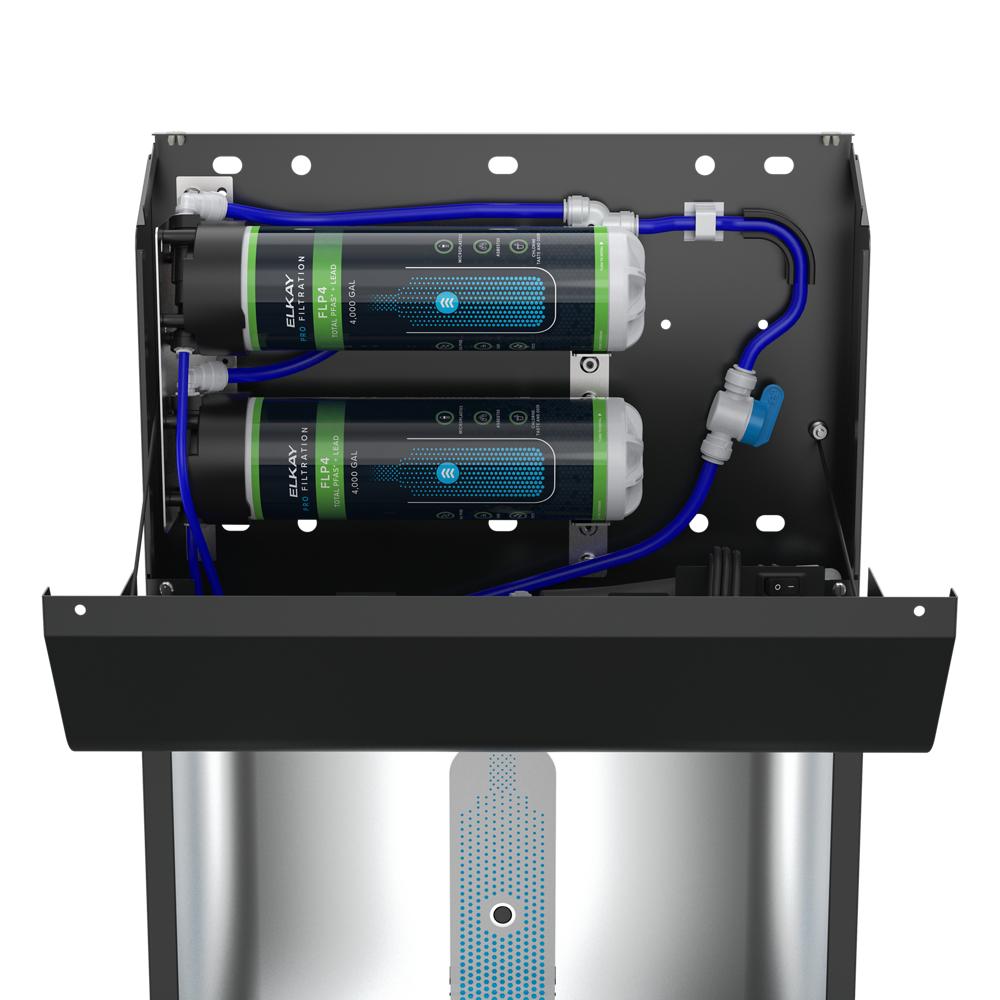

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
