Elkay  |  SKU: LBWDM0SSBC

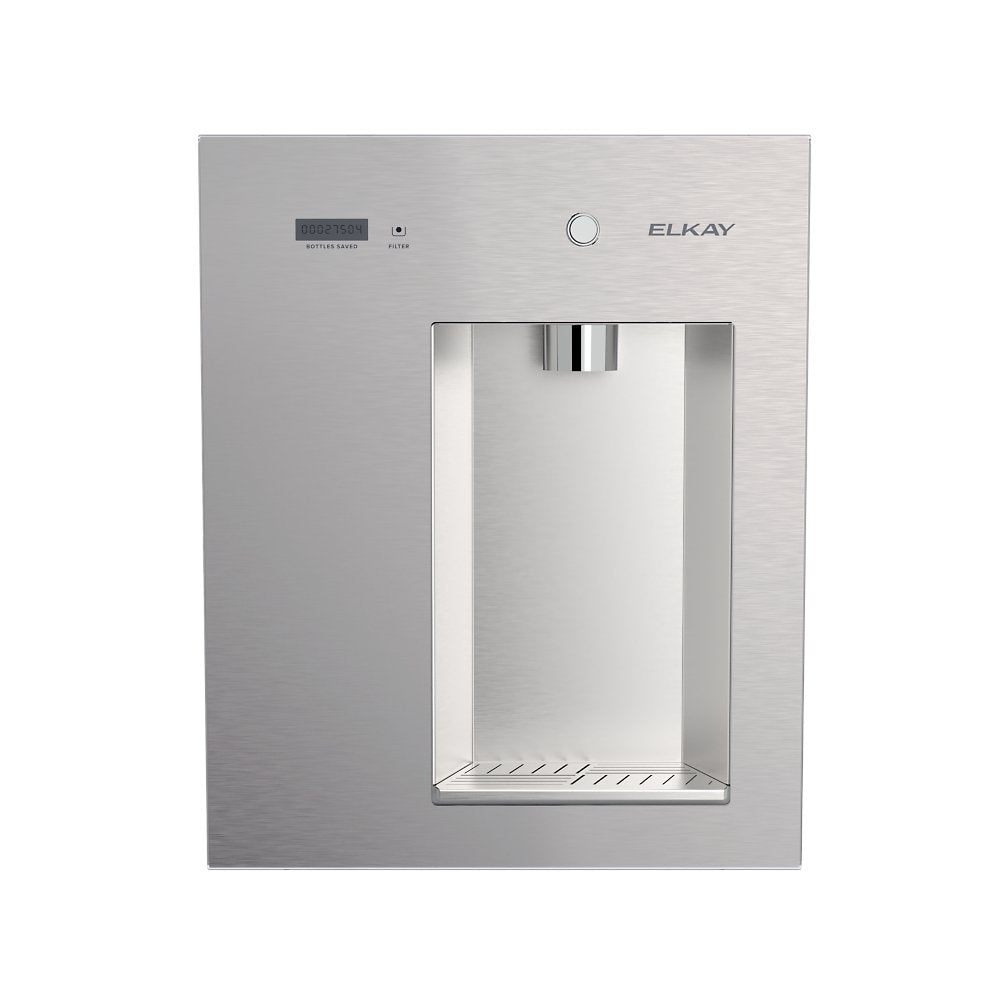

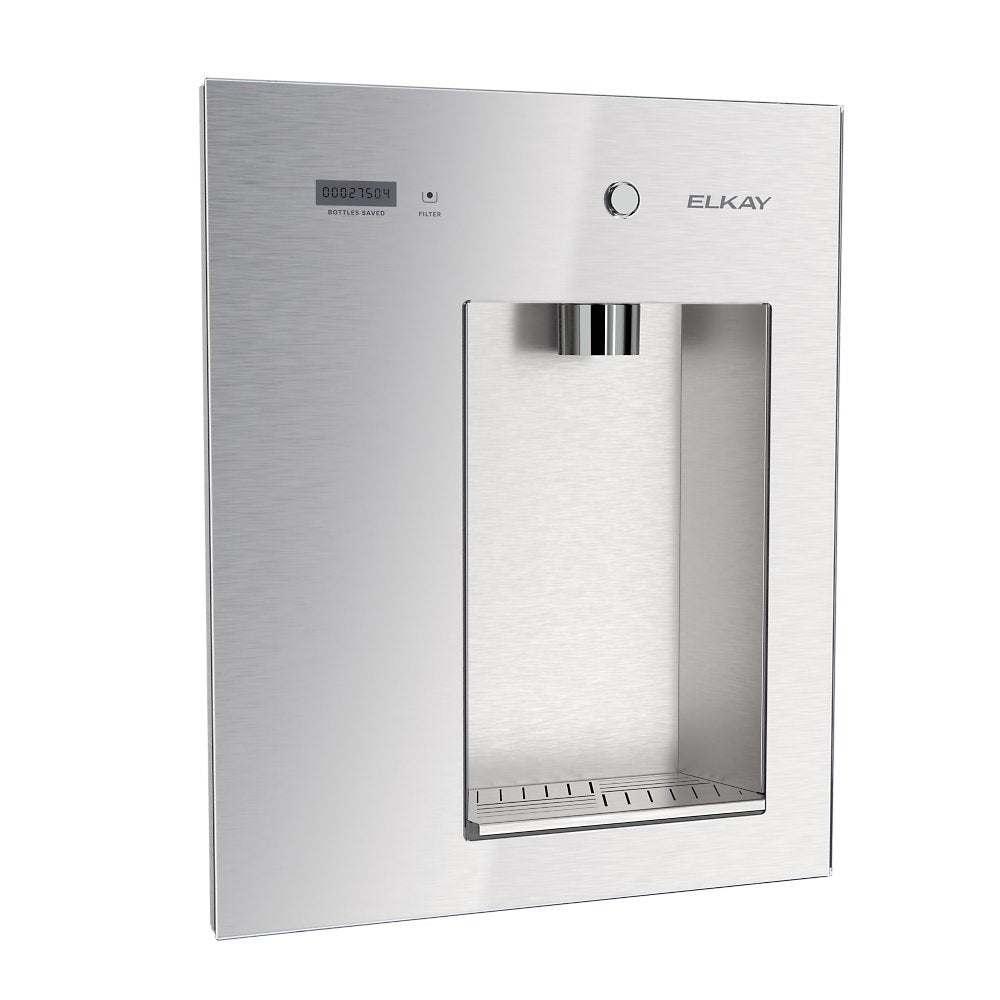

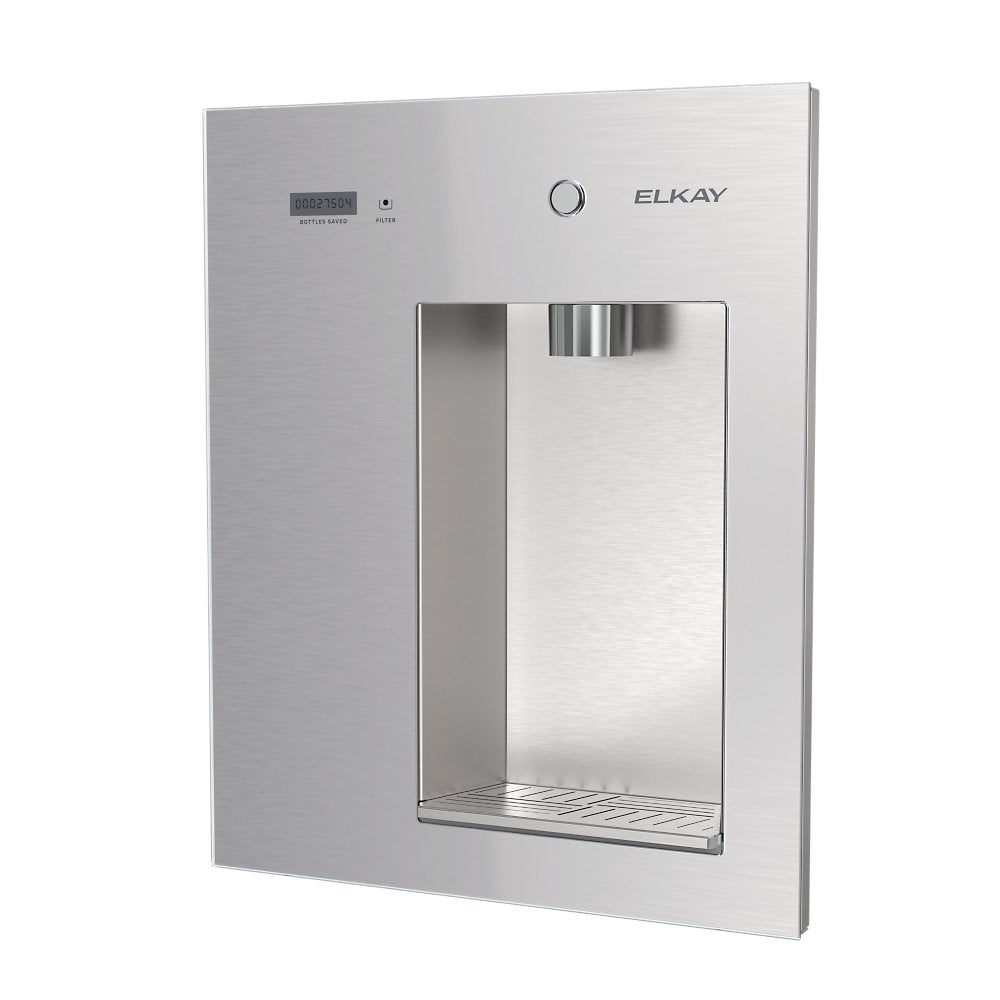

Elkay LBWDM0SSBC | Liv EZ, Filtered Water Dispenser for Home | Battery-Operated, Steel Gray

$ 1,269.00
Shipping calculated at checkout.

Product Care Information

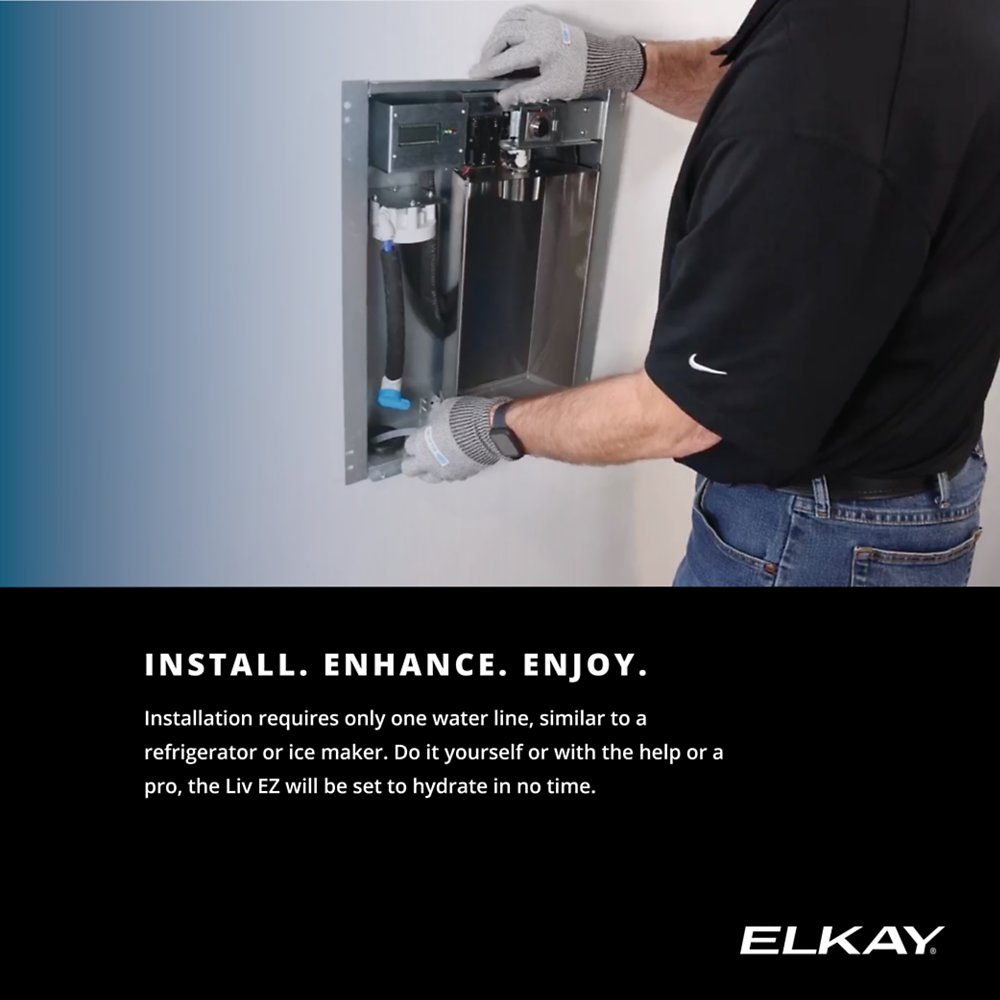

Installation

To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.

  • Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
  • Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
  • Route the 3/8" water line through the opening at the base of the dispenser.
  • Level the unit and secure it to wall studs using 4 screws (not included).
  • Install the 3 AA batteries in the battery compartment.
  • Insert the filter into the filter head and turn clockwise to lock in place.
  • Connect the water line to the shutoff valve at the filter's inlet.
  • Open the water supply and check for leaks.
  • Flush the system by dispensing at least one gallon of water before regular use.
  • Attach the glass front cover using the included Phillips head screws.



Maintenance

To keep your Elkay LIV EZ in optimal condition:

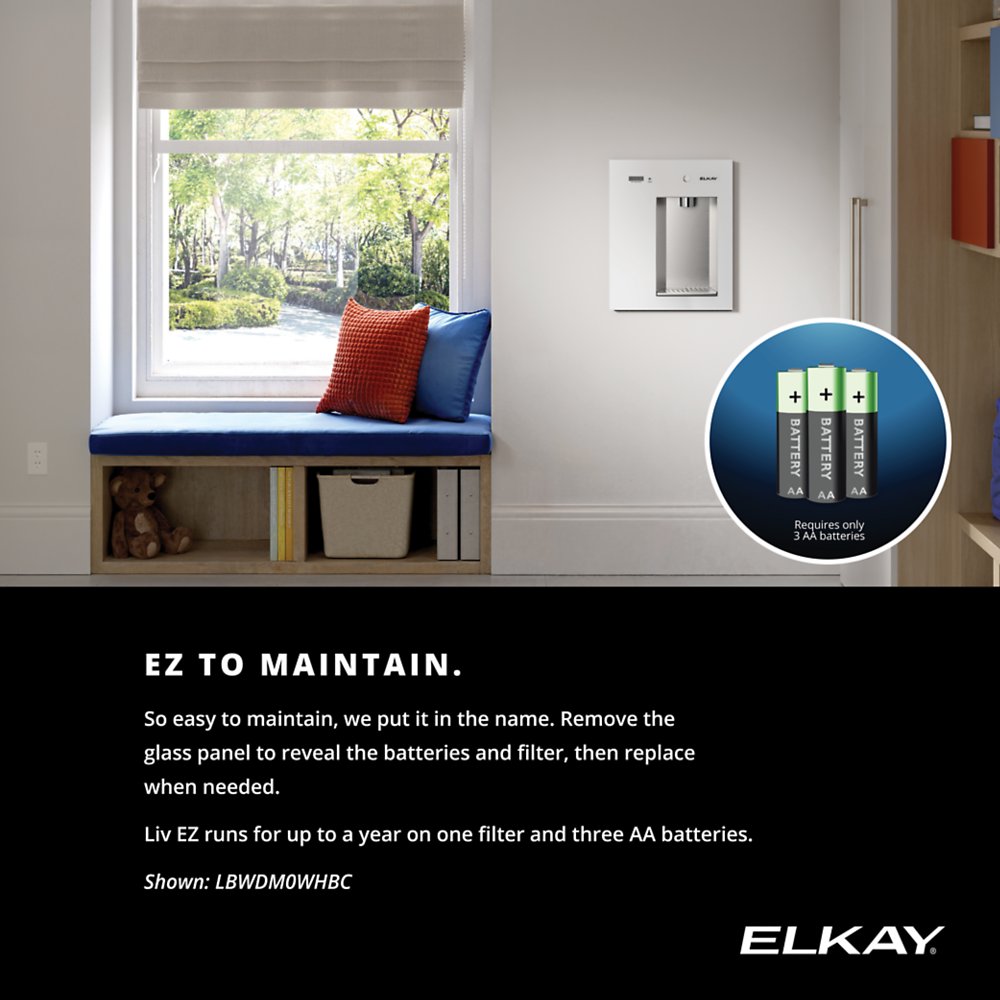

  • Replace the filter and batteries annually.
  • Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
  • Remove the front panel screws when replacing the filter.
  • Turn off the water supply before filter replacement.
  • Rotate old filter counterclockwise to remove it.
  • Install new filter by turning clockwise until locked.
  • Turn water supply back on after filter replacement.
  • Press the reset button above the battery compartment to reset the filter light.
  • Maintain water pressure between 40-105 psi (60 psi optimal).
  • Regularly check for leaks around connections.
  • Clean exterior with mild detergent and soft cloth as needed.



Refer to the product manual for detailed installation and maintenance information.

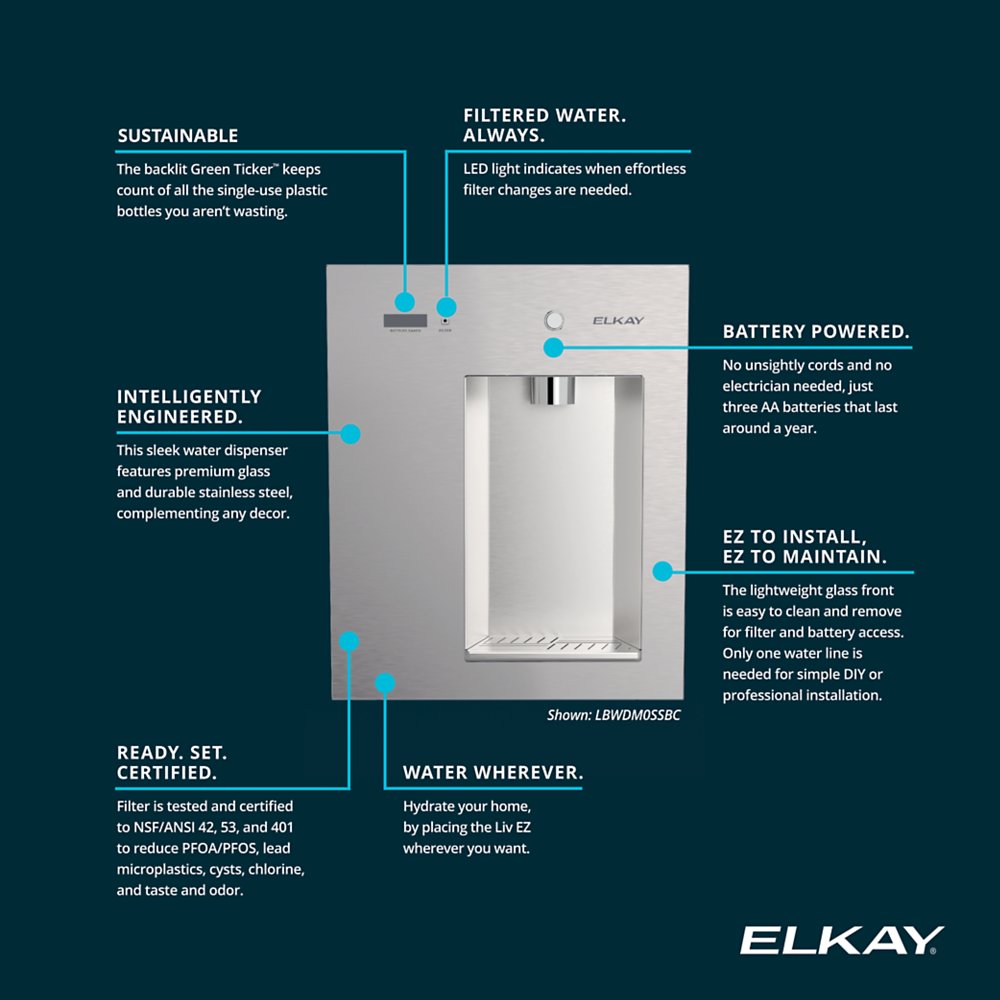

The Elkay LBWDM0SSBC Liv EZ filtered water dispenser brings unmatched convenience to your home with its intuitive design and easy installation.

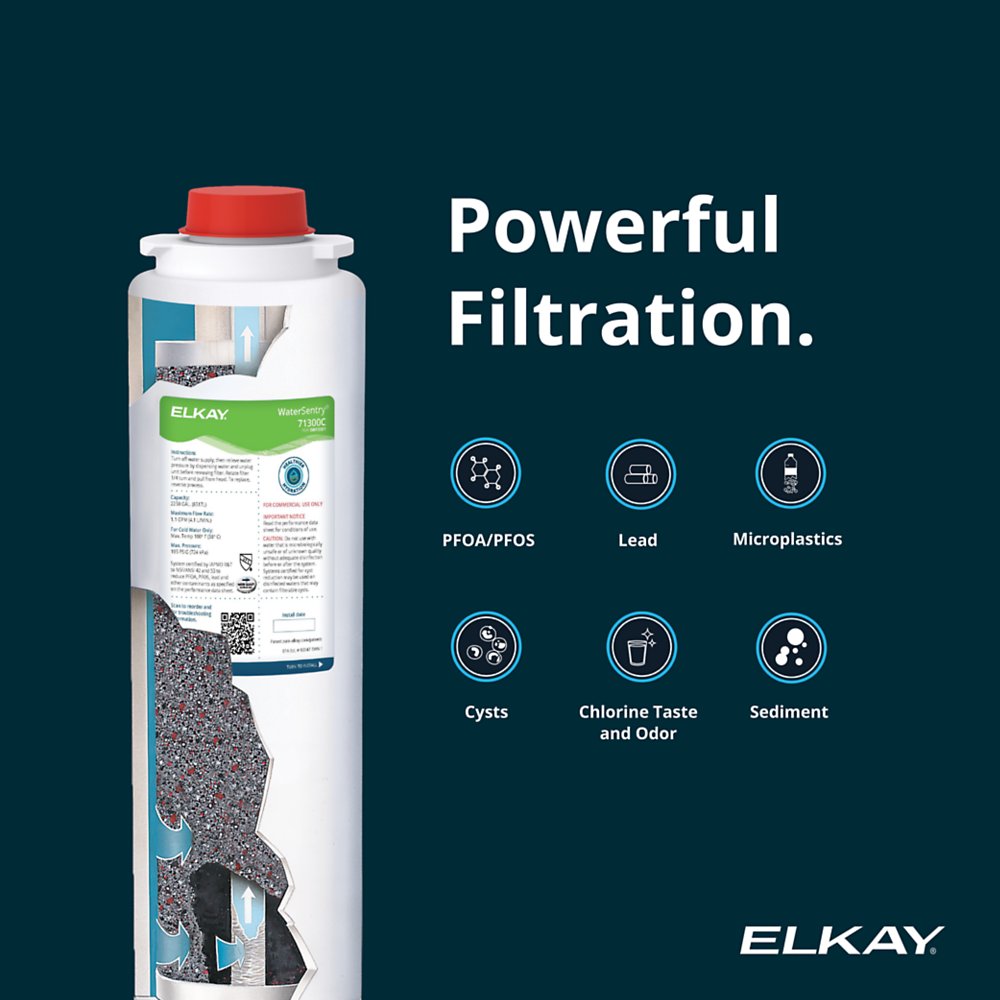

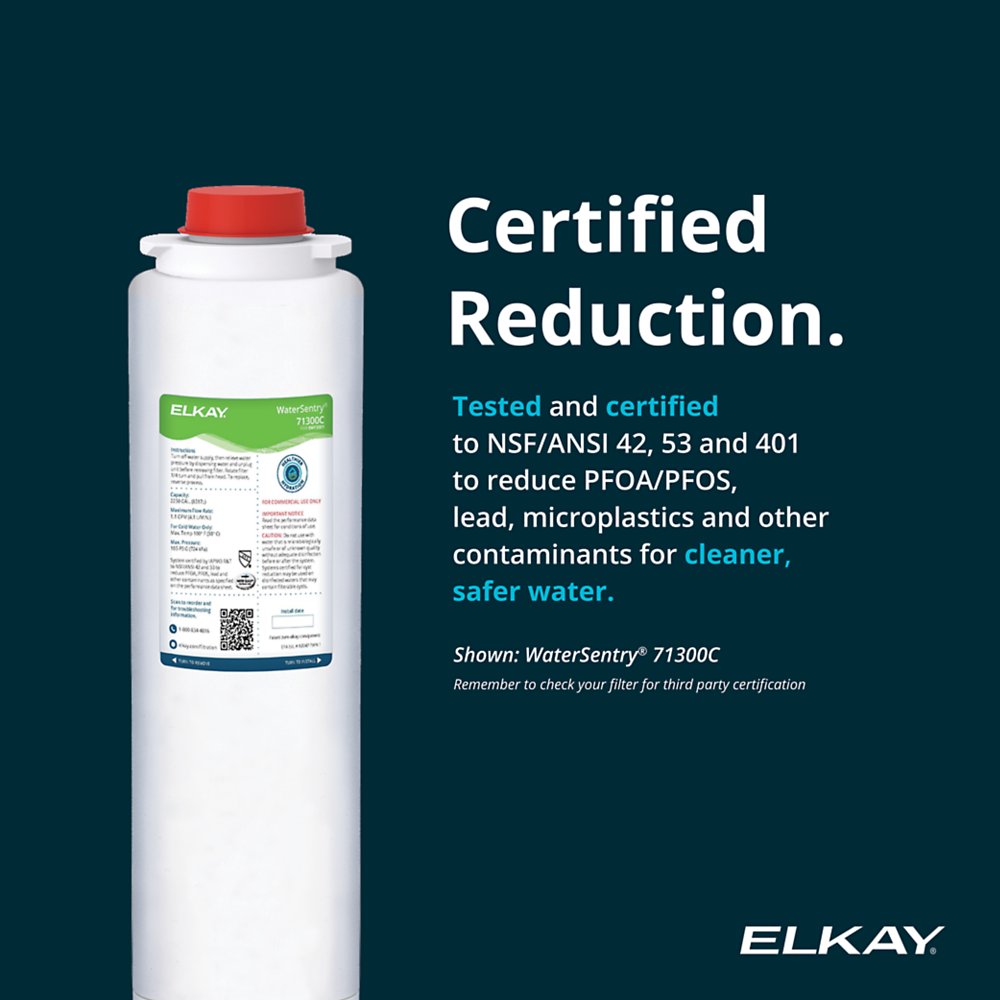

This residential bottle filler delivers cleaner, safer water through its included PFAS filter, certified to NSF/ANSI standards to reduce harmful “forever chemicals” (PFOA/PFOS), lead, microplastics, and other contaminants.

Simple to install and operate, Liv EZ enhances daily life, from brewing better coffee to providing high-quality water for pets and plants.


Key Specifications:

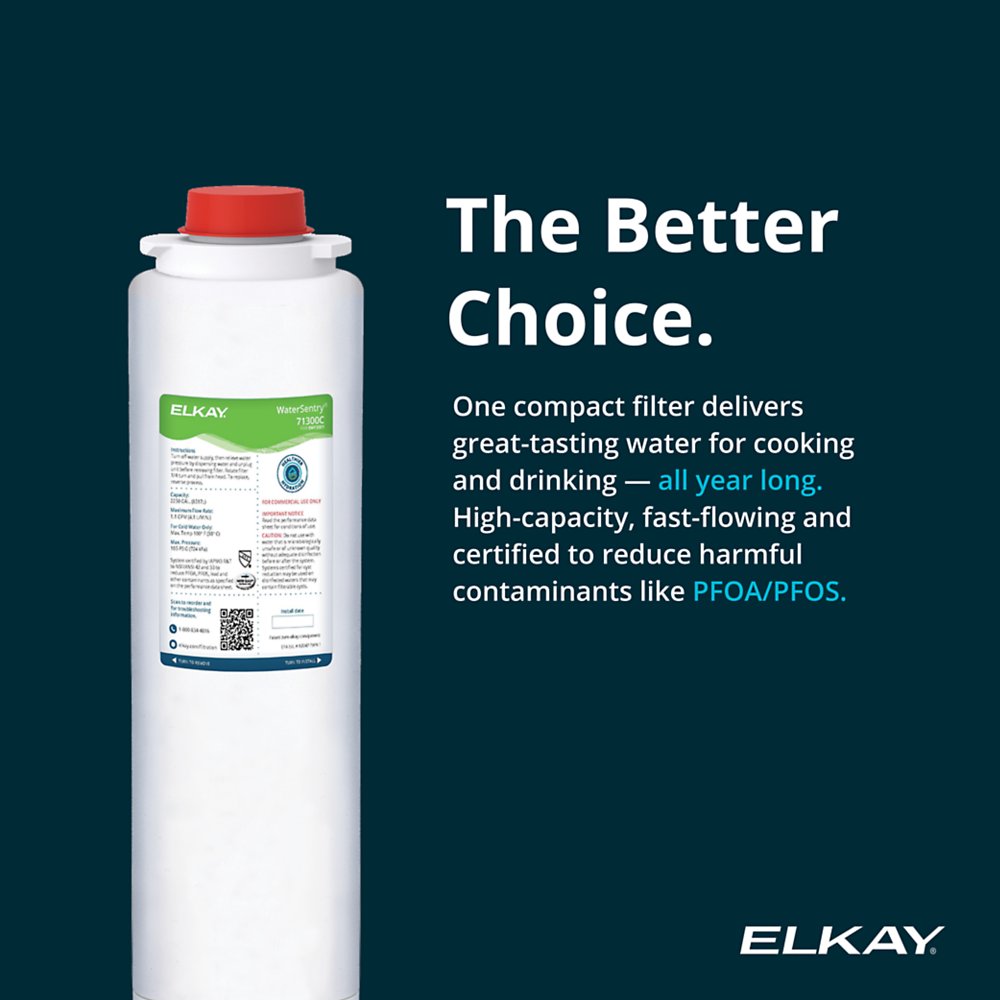

  • Filtration System: Includes a 3000-gallon WaterSentry® Plus filter that reduces lead and other contaminants for cleaner, better-tasting water.
  • Operation: Mechanically operated, push-button. Powered by 3 AAA batteries.
  • Installation: Designed for easy built-in installation with a compact profile that integrates seamlessly into countertops.
  • Color Finish: Steel Gray
  • Refrigeration: Refrigeration not included. For a remote chiller, select the ERS11Y add-on below the add to cart.


Features & Benefits:

  • Filtered Water Access: The Elkay LBWDM0SSBC provides clean, filtered water on demand, reducing reliance on bottled water.
  • Space-Saving Design: The built-in configuration saves valuable counter space while offering a streamlined appearance.
  • Environmental Impact: Helps reduce plastic waste by eliminating the need for single-use water bottles.
  • Low Maintenance: Simple filter replacement process and durable construction ensure long-term performance with minimal upkeep.


FAQ


Q: How often does the filter need to be replaced in the Elkay LBWDM0SSBC?

A: The WaterSentry Plus filter included with the Elkay LBWDM0SSBC has a capacity of 3000 gallons or approximately one year of typical use, whichever comes first.

Q: What type of installation is required for this water dispenser?

A: The Elkay LBWDM0SSBC requires a built-in installation with access to a cold water supply line and appropriate countertop cutout according to the installation specifications in the manual.

Q: Is the Elkay LBWDM0SSBC suitable for high-traffic areas?

A: Yes, this model is designed for commercial applications and can handle regular use in moderate to high-traffic environments such as offices, schools, and healthcare facilities.


Detailed Features & Benefits


Advanced Filtration Technology: The Elkay LBWDM0SSBC Series features a WaterSentry Plus filtration system that effectively reduces contaminants including lead, chlorine, particulates, and odors. This results in cleaner, better-tasting water that encourages hydration while providing peace of mind about water quality.

Durable, Hygienic Design: Constructed with high-quality stainless steel and finished in an attractive steel gray color, the LBWDM0SSBC is built to withstand the demands of commercial environments. The non-porous surface resists bacterial growth and is easy to clean, making it an ideal choice for health-conscious facilities.

Versatile Installation Options: The compact design of the Elkay LBWDM0SSBC allows for flexible installation in various settings. Its built-in configuration integrates seamlessly with countertops, making it an excellent addition to break rooms, waiting areas, and other spaces where access to filtered water is desired.


NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
