Elkay ERS11Y | 1.5 GPH Remote Chiller for Non-Refrigerated Bottle F...

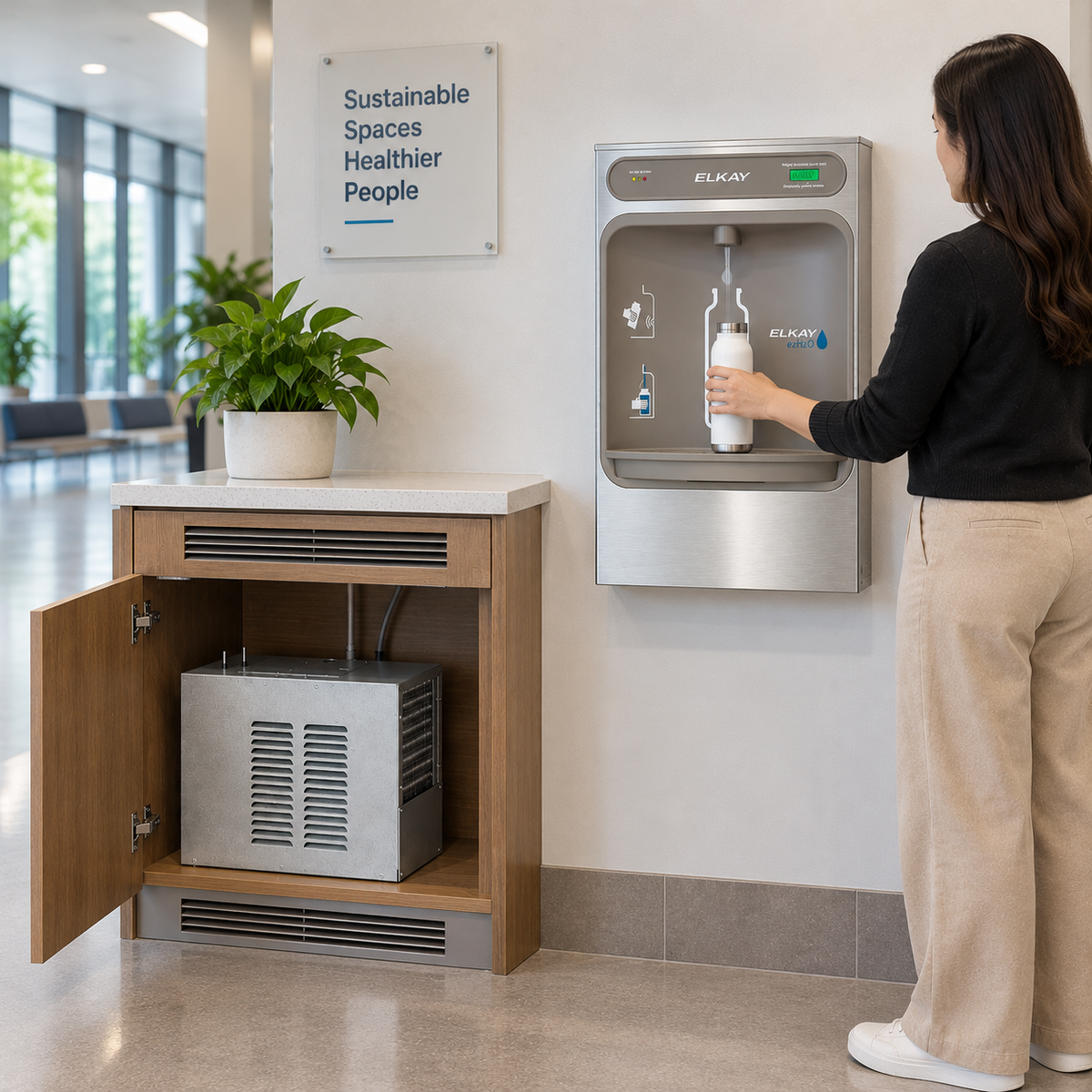

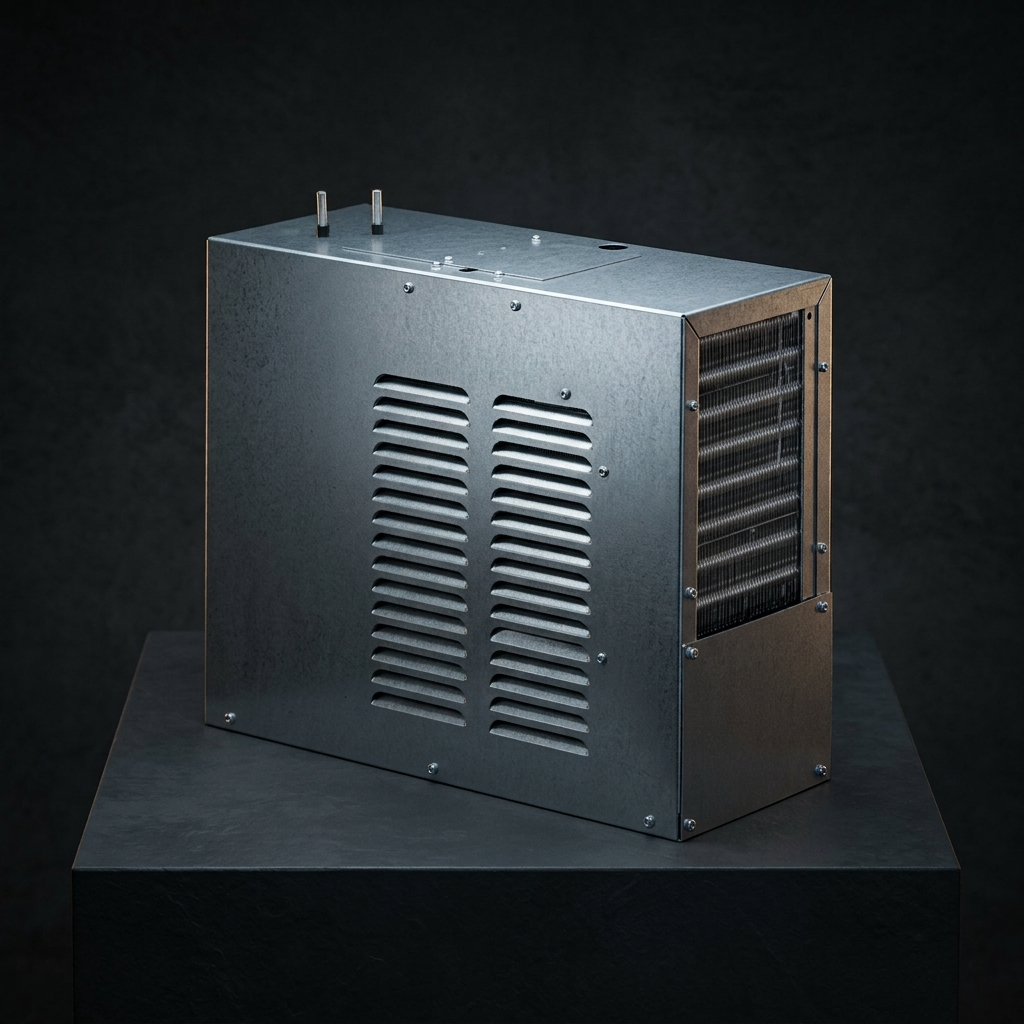

The Elkay ERS11Y is a compact remote chiller designed to deliver 1.5 GPH of chilled drinking water at 50°F. Built with stainless steel waterways and a galvanized steel cabinet, the ERS11Y is ideal for pairing with drinking fountains, bottle fillers, bubblers, or dispensers to provide reliable cold water service in commercial and institutional settings.
Key Specifications:
| Chilling Capacity | 1.5 GPH at 50°F (based on 80°F inlet water and 90°F ambient) |
| Finish | Galvanized steel cabinet with stainless steel tank and waterways |
| Compatibility | Compatible with bottle filling stations such as LZWSSM, LZWSDK, LBWDC00WHC, and LBWD00WHC. |
| Dimensions | 17" L × 7" W × 14" H |
| Stations Served | 1 |
Features & Benefits:
- Compact Design: Installs under fountains or in service areas within 15 feet of the outlet
- Reliable Cooling: Hermetically sealed compressor with fan‑cooled condenser and EPS foam insulation
- Durable Build: Stainless steel tank and waterways resist corrosion and support long‑term use
- Flexible Applications: Compatible with drinking fountains, bubblers, glass fillers, and bottle filling stations
- RO Compatibility: Approved for use with reverse osmosis filtered water
What's Included:
- ERS11Y Remote Chiller Unit
- Galvanized steel cabinet with stainless steel tank
- Factory‑installed compressor and condenser system
- Installation and operation manual
- Warranty documentation
Comparison of Elkay Remote Chillers:
| Feature | ERS11Y (This Model) | ER101Y | ECH8 |
|---|---|---|---|
| Chilling Capacity | 1.5 GPH | 10.0 GPH | 8.0 GPH |
| Stations Served | 1 | 2 | 2 |
| Dimensions | 17" × 7" × 14" | 19-1/2" × 7-7/8" × 22" | 13-1/4" × 10-1/4" × 17-3/8" |
| Weight | 33 lbs. | 74 lbs. | 43 lbs. |
| Power / Watts | 115V / 140W | 115V / 490W | 115V / 370W |
| Best For | Compact installations needing single-station cooling | High-demand areas requiring large capacity | Medium-demand applications with moderate capacity |
How to Maintain Elkay ERS11Y:
- Ensure proper ventilation: allow 4" clearance on all sides for airflow
- Clean cabinet louvers and condenser fins periodically with a brush, air hose, or vacuum
- Inspect water connections and service stop valve regularly
- Adjust thermostat only if altitude requires; factory preset at 50°F
- Motors are lifetime lubricated and require no servicing
FAQ
Q: What Products Can Be Paired with Elkay ERS11Y?
A: The ERS11Y can be connected to Elkay drinking fountains, bubblers, glass fillers, and bottle filling stations such as LZWSSM, LZWSDK, LBWDC00WHC, and LBWD00WHC.
Q: What Is the Recommended Installation Location for Elkay ERS11Y?
A: The ERS11Y is designed for indoor installation. It can be placed directly under a fountain or in a nearby service area, with a recommended distance of up to 15 feet from the outlet.
Q: What Water Pressure Range Is Required for Elkay ERS11Y?
A: The ERS11Y operates on supply line pressures between 40–105 PSI. A service stop should be installed at the chiller inlet line.
Q: What Accessories Are Available for Elkay ERS11Y?
A: Optional accessories include the 734261251550 In‑Wall Chiller Box and the PM3 On‑Wall Chiller Shelf for flexible installation options.
Q: How Should the Elkay ERS11Y Be Maintained?
A: Keep condenser fins and cabinet louvers clean, ensure proper ventilation, and check water connections regularly. Motors are lifetime lubricated and require no servicing.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay ERS11Y is a compact remote water chiller designed to deliver 1.5 gallons per hour of chilled drinking water at 50°F. Built with stainless steel waterways and a galvanized steel cabinet, it is ideal for pairing with drinking fountains, bottle fillers, bubblers, or dispensers in commercial and institutional settings.
Key Installation Requirements:
- Indoor installation only, within 15 feet of the outlet
- Cold water line connection (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Supply line pressure: 40–105 PSI
- Drain connection required for condensate
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing
- Provide adequate ventilation clearance around louvers
- Unit is approved for use with reverse osmosis filtered water
- Secure chiller firmly to prevent vibration or movement
Basic Installation Overview:
- Position chiller under fountain or in service area within 15 feet of outlet
- Connect cold water supply line to inlet; flush line thoroughly
- Connect drain line to building drain system
- Wire electrical supply to grounded outlet; verify cooling system powers on
- Pressurize system slowly and check for leaks
- Test bubbler stream height and adjust regulator if needed
- Install cover panels and finish trim
Compatible Products:
- Elkay drinking fountains and bubblers
- Glass fillers and bottle filling stations (e.g., LZWSSM, LZWSDK, LBWDC00WHC, LBWD00WHC)
- Optional accessories: In‑Wall Chiller Box (734261251550), PM3 On‑Wall Chiller Shelf
For complete specifications and installation guidelines, download the official ERS11Y Spec Sheet and the Installation Manual.
