Elkay LBWD00WHC | Liv Built-in Filtered Water Dispenser | Non-refri...

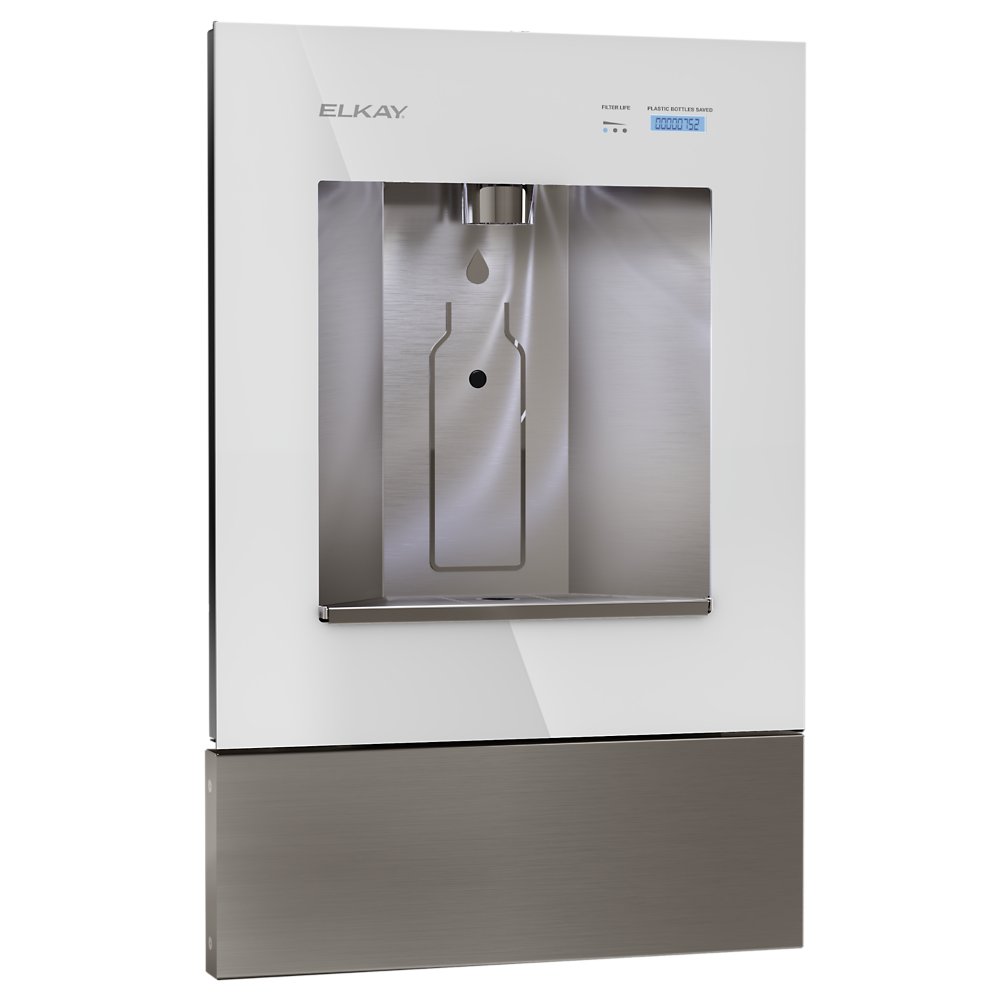

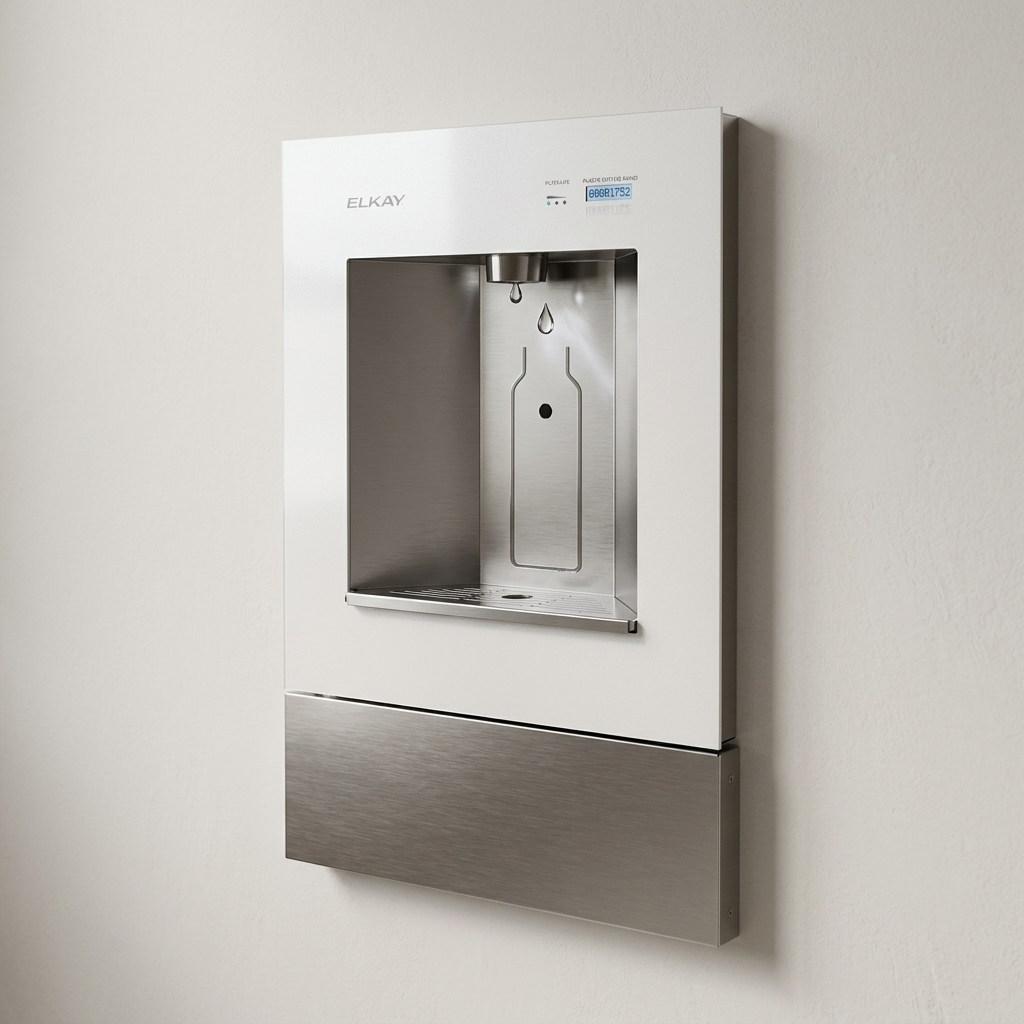

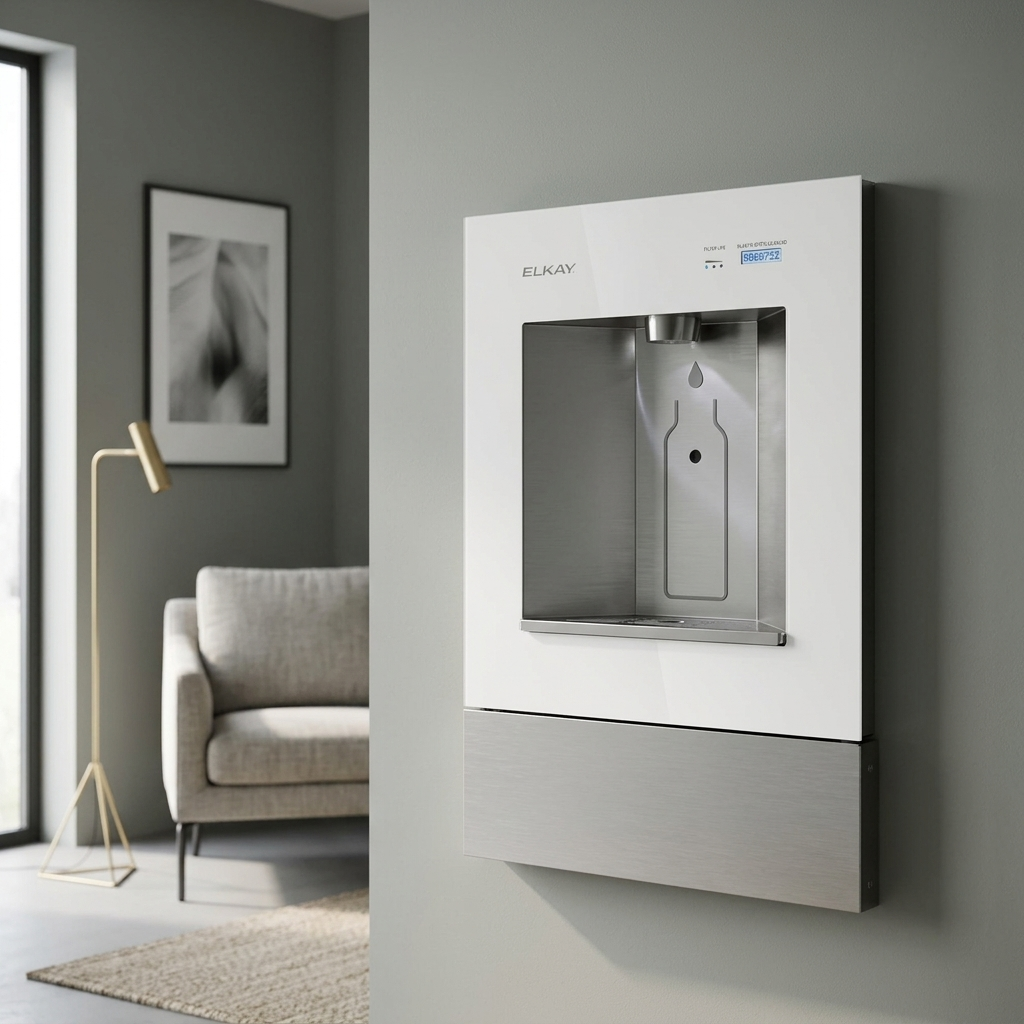

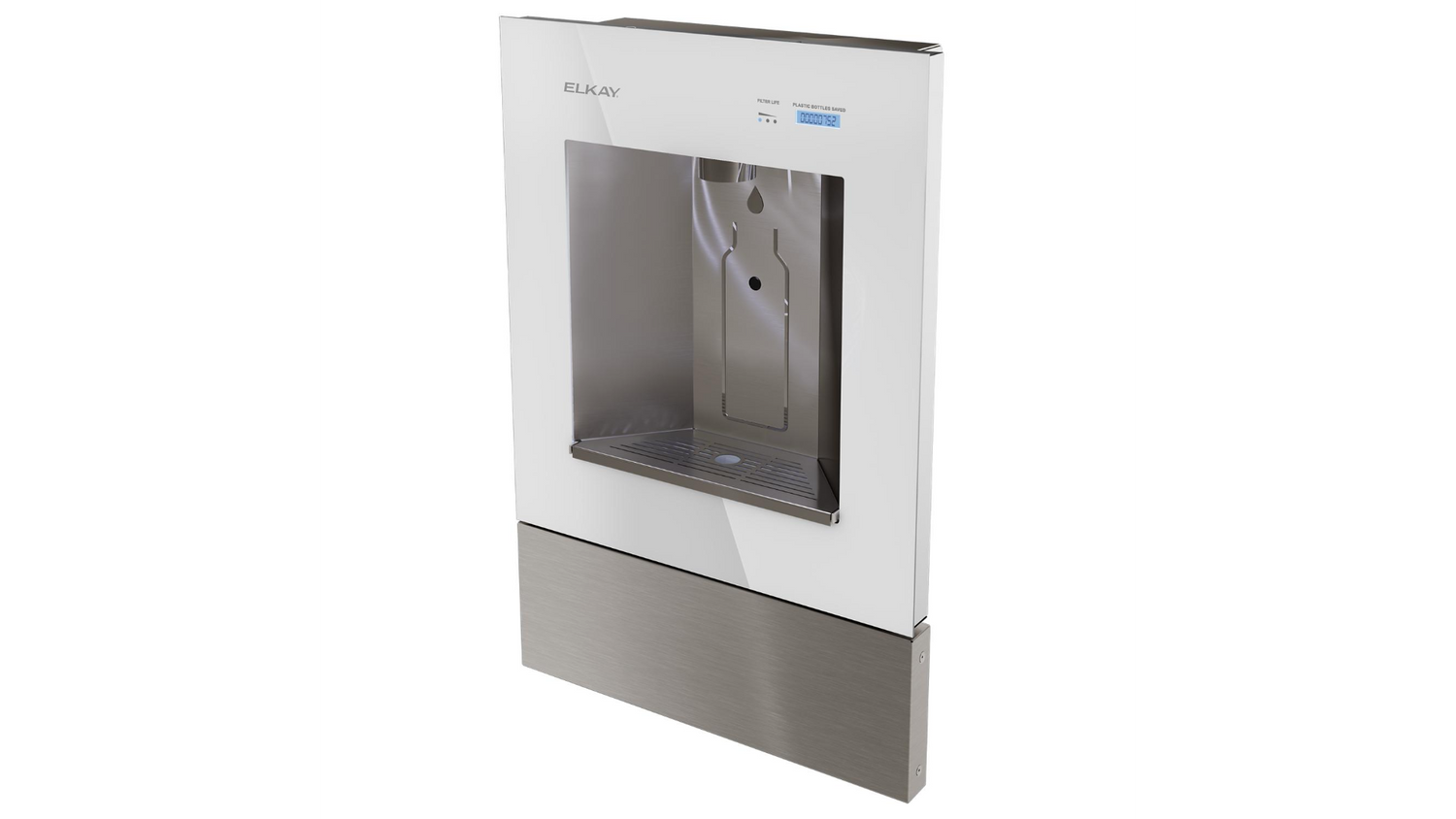

The Elkay LBWD00WHC is a built-in, non-refrigerated filtered water dispenser featuring hands-free sensor activation, PFAS reduction, and ambient water delivery. Designed for modern indoor spaces, it combines advanced filtration, ADA compliance, and sleek Aspen White styling.
Key Specifications:
| Filtration | 71300C WaterSentry® Filter, NSF/ANSI 42, 53, 61, 372, and 401 certified; reduces PFOA/PFOS, lead, microplastics, particulates, cysts, and chlorine taste/odor. 2,250-gallon capacity or 1 year after installation |
| Refrigeration | Non-refrigerated ambient water; compatible with optional ERS11Y Remote Chiller |
| Activation | Hands-free electronic sensor with laminar flow |
| Finish | Aspen White; also available in Midnight Black |
| Stations Served | 1 |

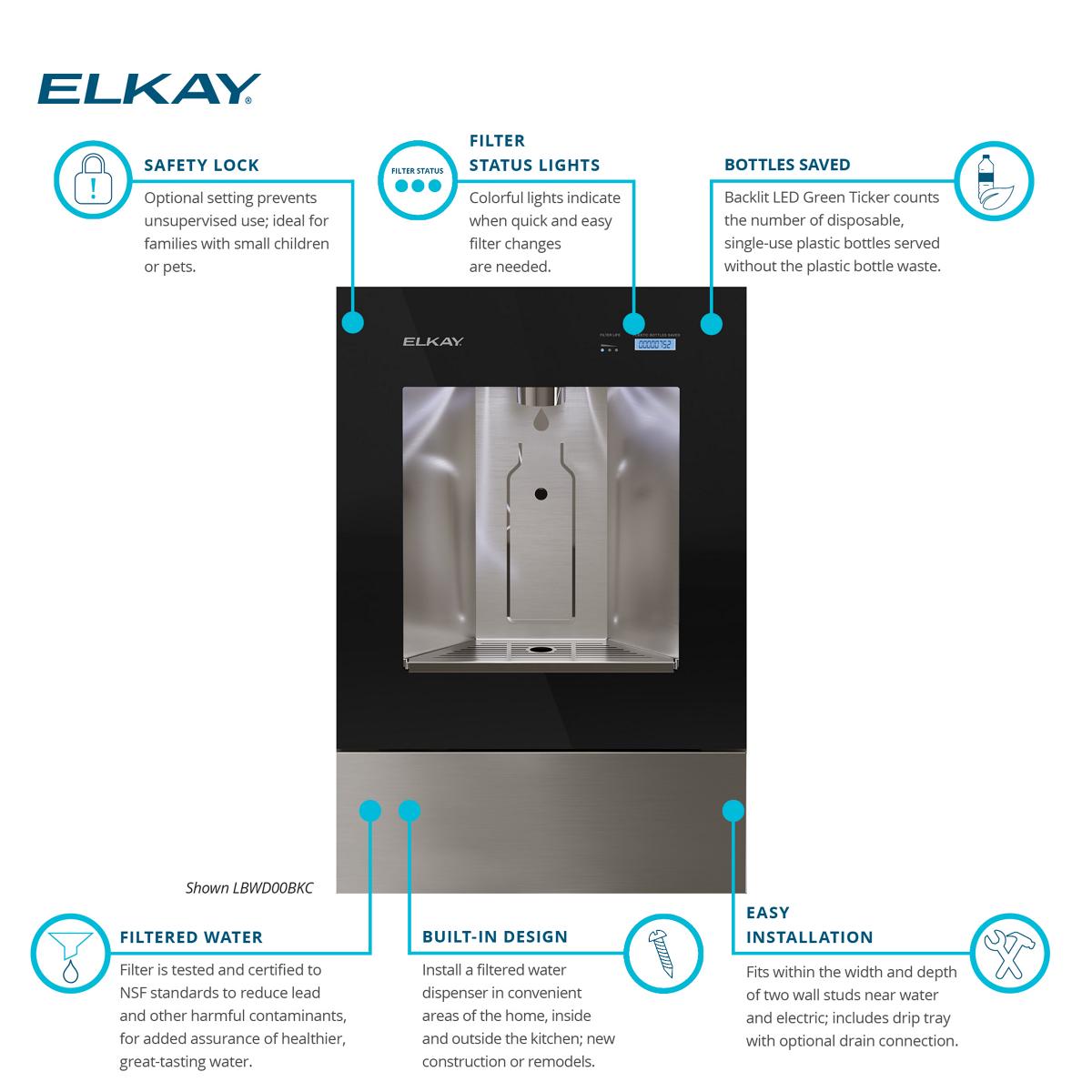

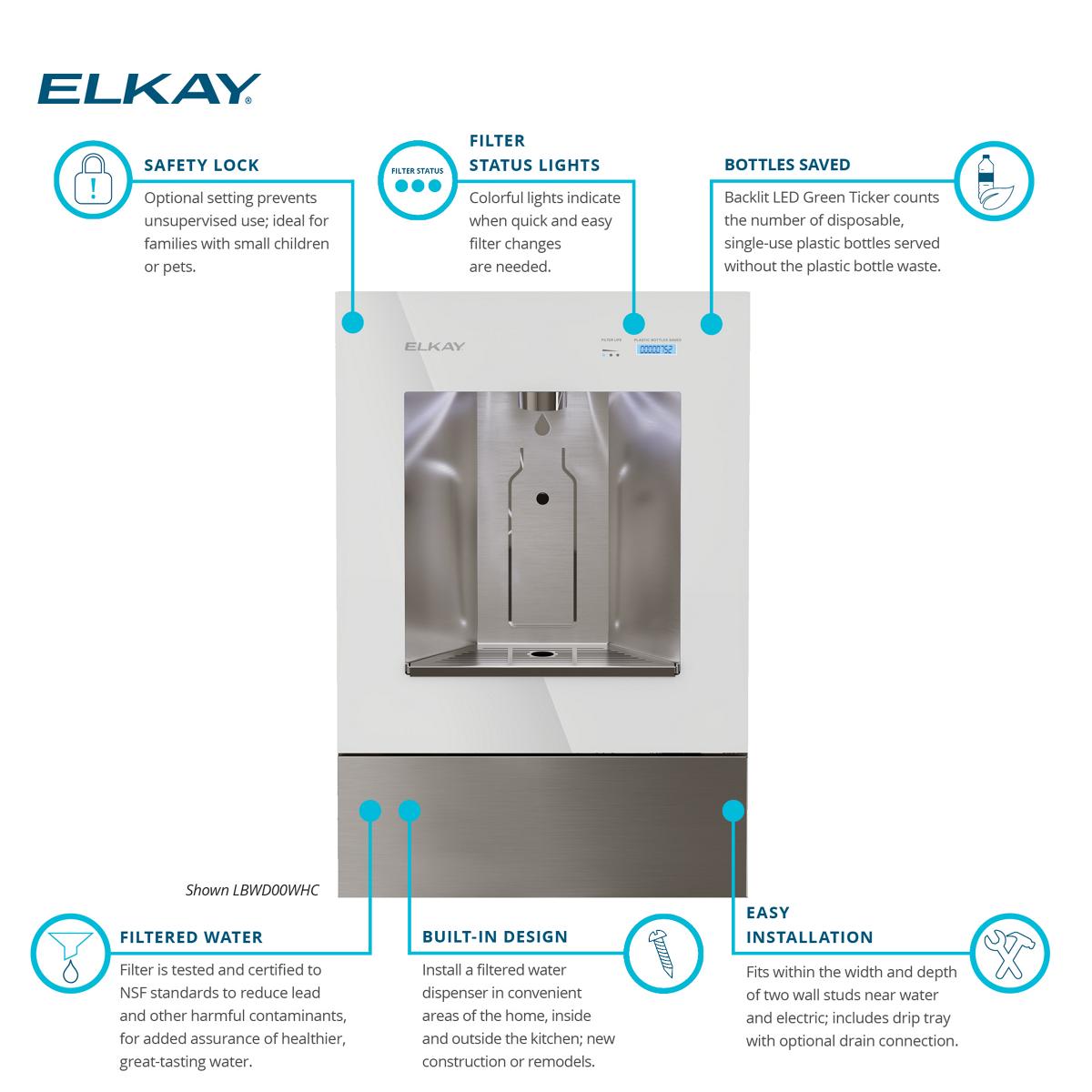

Features & Benefits:

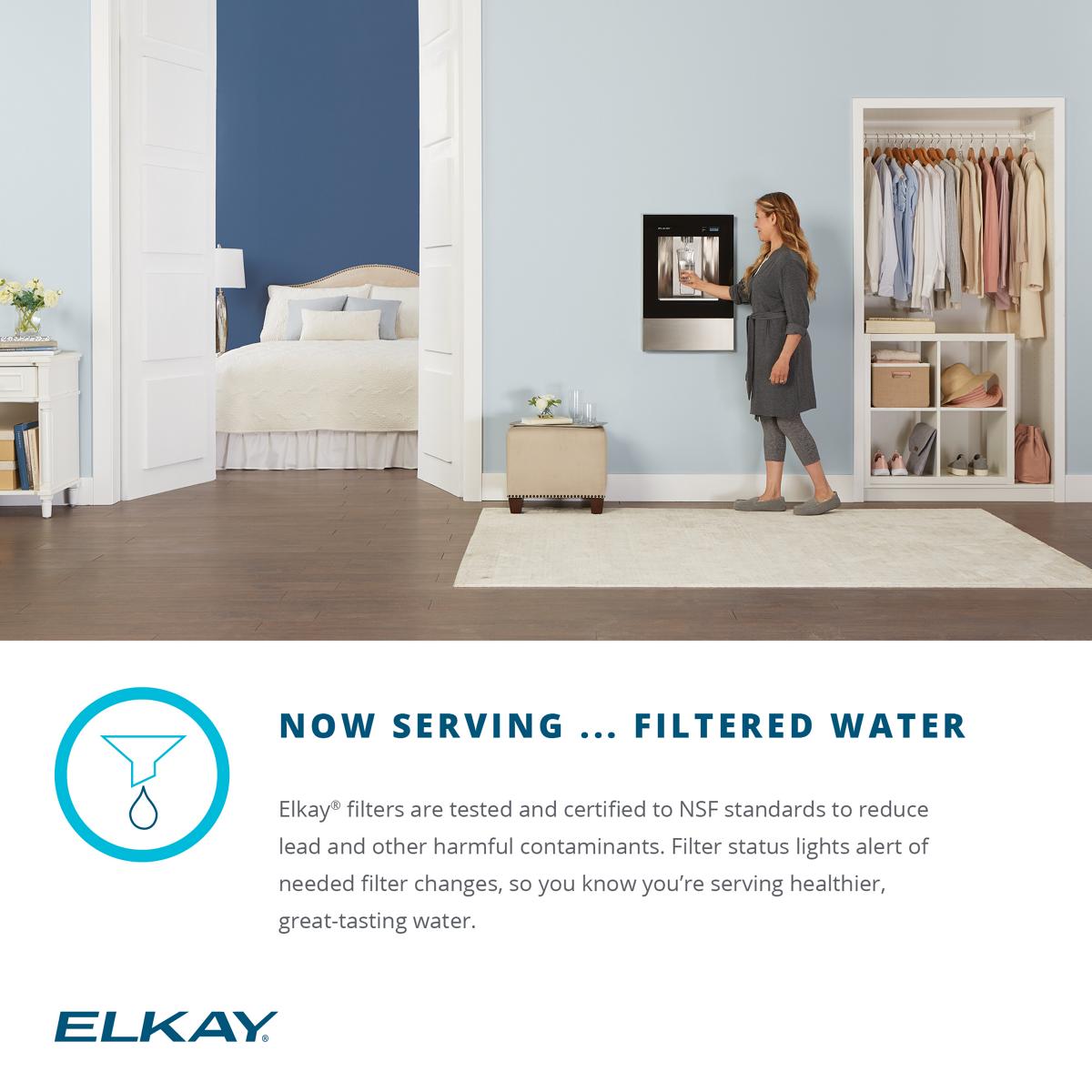

- Advanced Filtration: Certified filter reduces PFAS, lead, microplastics, cysts, and chlorine taste/odor for safer drinking water.

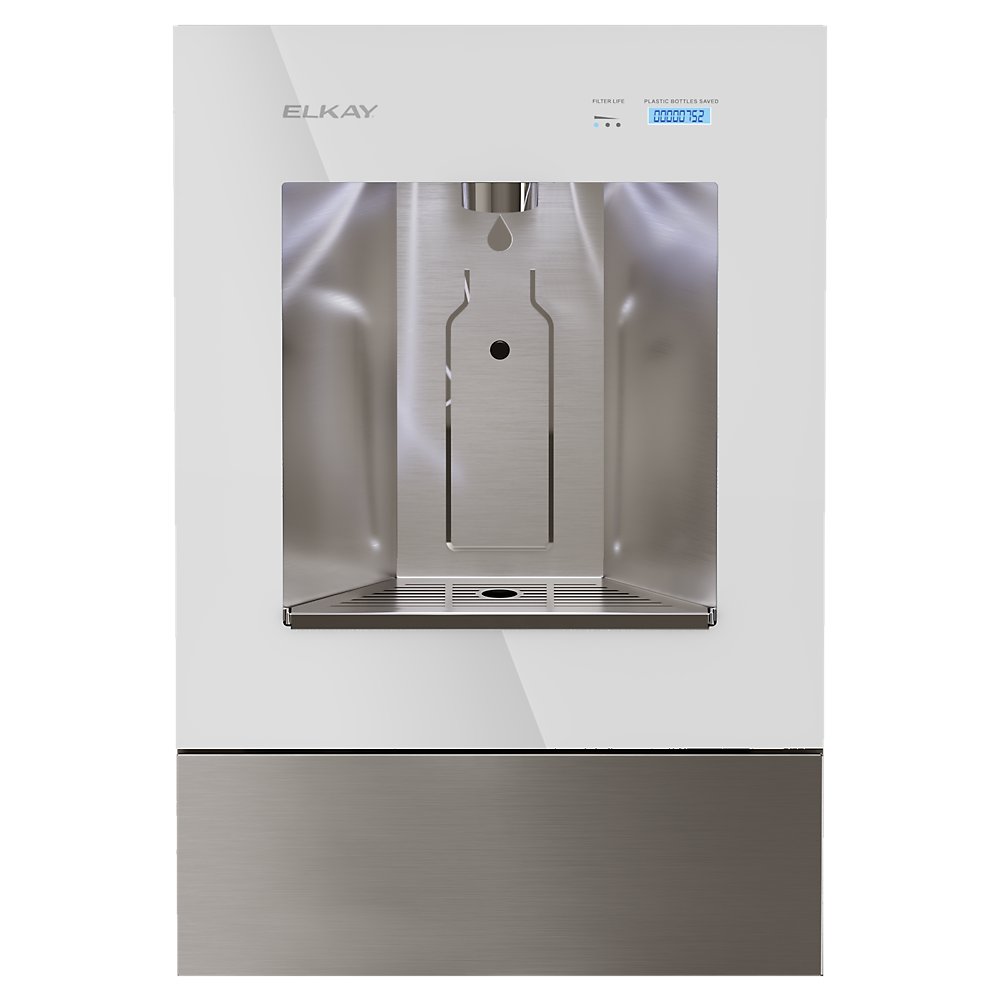

- Environmental Impact: Green Ticker™ displays the number of plastic bottles saved from waste.

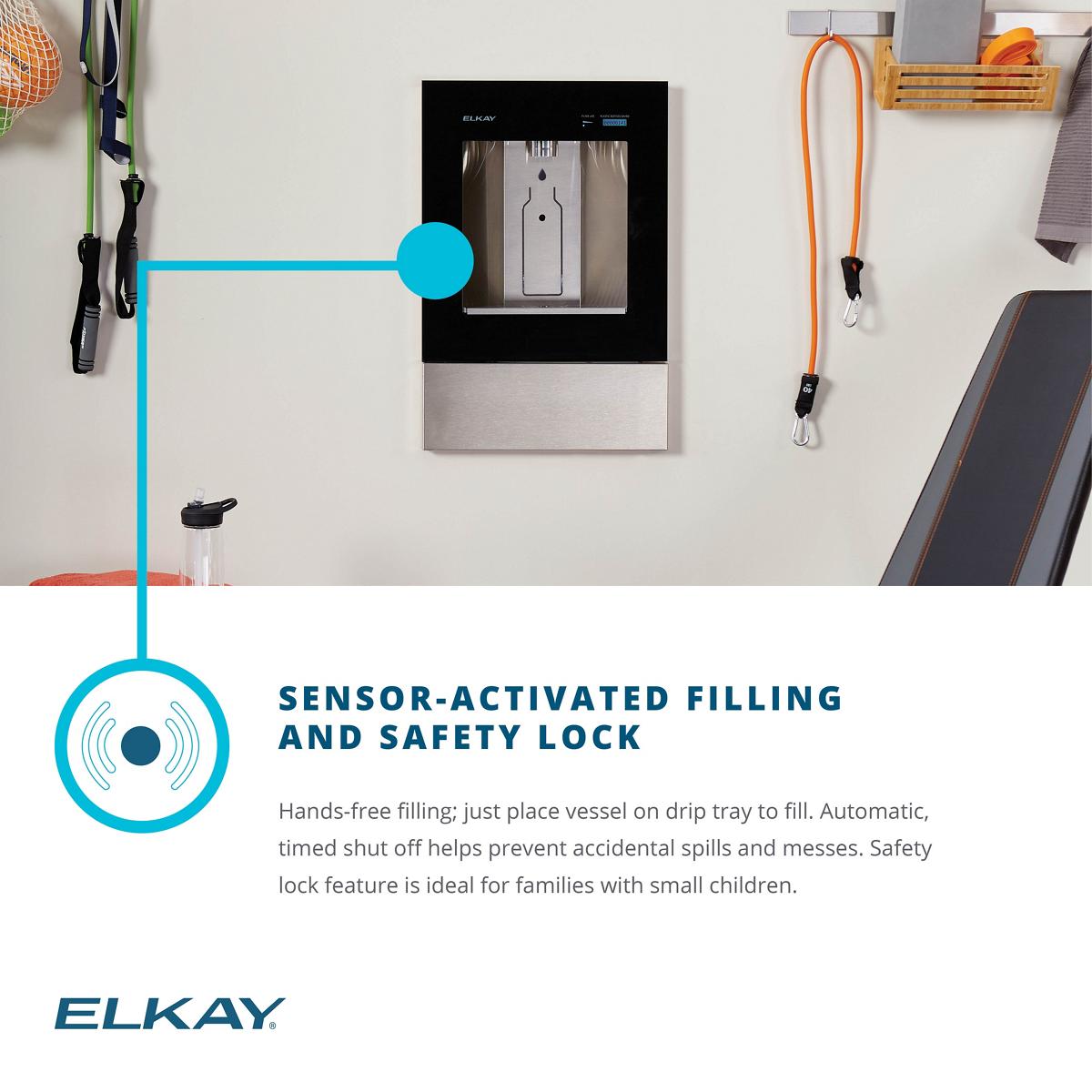

- Touchless Convenience: Hands-free sensor activation with laminar flow provides clean, splash-free fills.

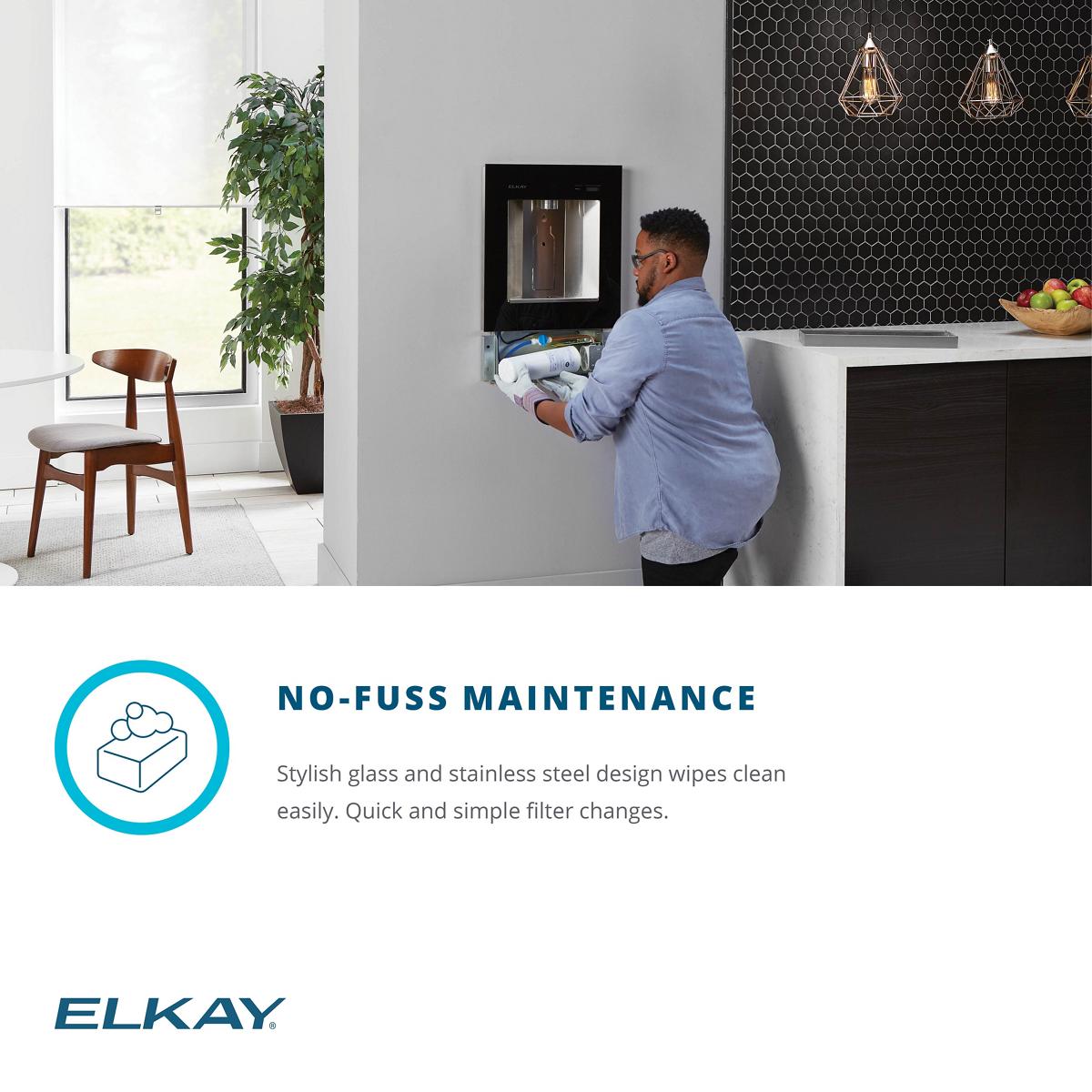

- Easy Maintenance: Visual LED filter monitor with automatic reset alerts users when replacement is needed.
- ADA Compliant: Meets accessibility standards when installed per ADA guidelines.
What's Included:
- LBWD00WHC built-in filtered water dispenser
- 71300C WaterSentry® Filter

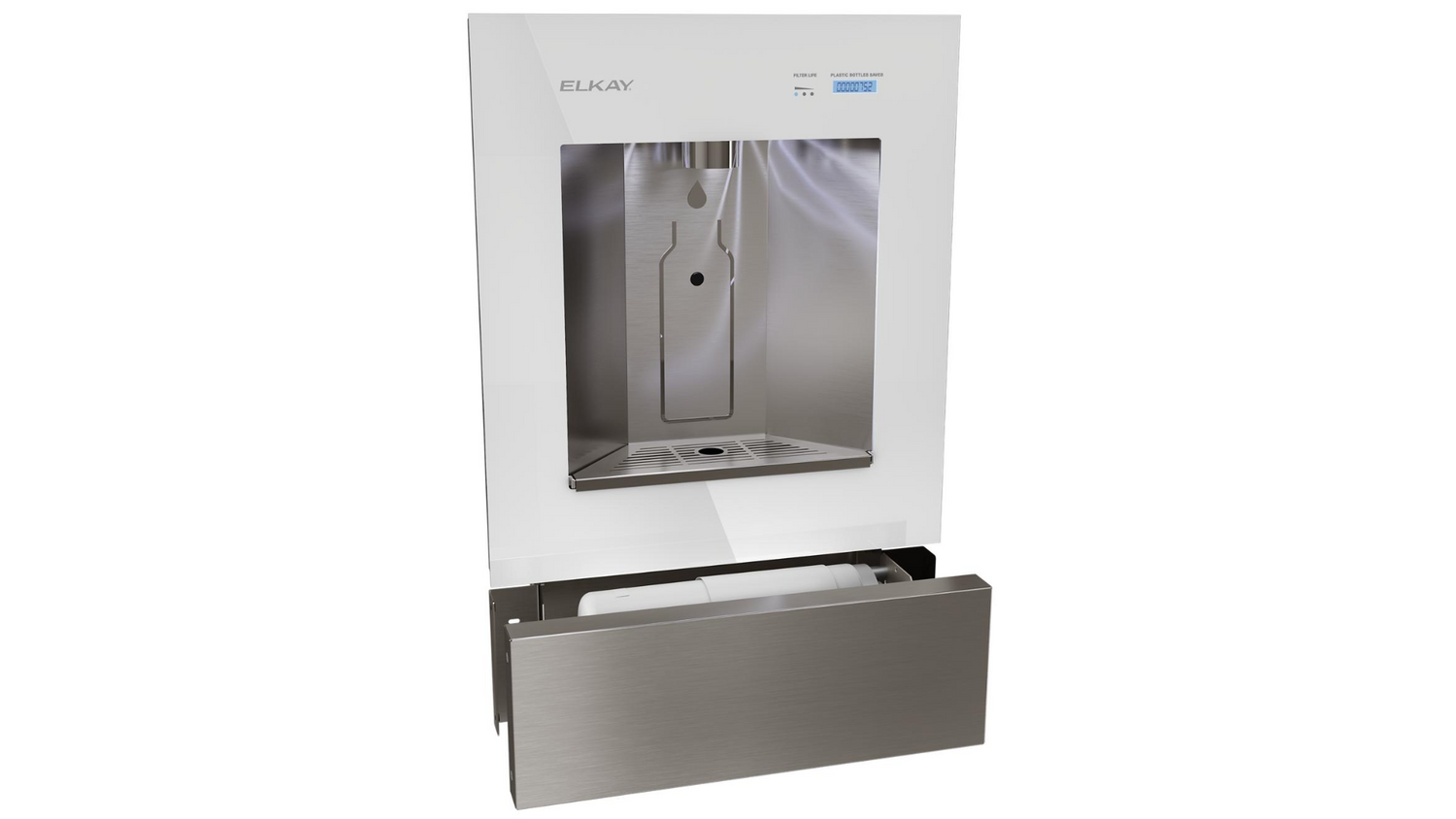

- SS filter box
- Installation instructions
- Owner’s manual and warranty guide
Comparison of Built-In Water Dispensers:
| Feature | LBWD00WHC | LZWSM8K | LBWDM0WHBC |
|---|---|---|---|
| Finish | Aspen White | Stainless Steel | White |
| Filtration | 71300C WaterSentry® Filter, 2,250-gallon capacity | 51600C WaterSentry® Plus Filter, 6,000-gallon capacity | Standard filter, 3,000-gallon capacity |
| Best For | Residential or office spaces needing ambient filtered water | High-traffic commercial installations requiring chilled water | Simple mechanical operation in residential or light commercial settings |
| Special Features | Green Ticker™, LED filter monitor, laminar flow | Chilled water, high-capacity filtration, ADA compliant | Mechanical push activation, compact design |
| Activation | Hands-free electronic sensor | Hands-free electronic sensor | Mechanical push button |
FAQ
Q: What Contaminants Does the LBWD00WHC Filter Remove?
A: The included filter is certified to reduce PFOA/PFOS, lead, microplastics, particulates, cysts, and chlorine taste/odor, meeting NSF/ANSI 42, 53, 61, 372, and 401 standards.
Q: How Often Does the Filter Need to Be Replaced?
A: The 71300C WaterSentry® Filter has a capacity of 2,250 gallons or 1 year after installation. The LED filter monitor indicates when replacement is necessary.
Q: Can This Unit Be Installed With Existing Plumbing Systems?
A: Yes. It connects to standard 3/8" water inlet supply lines, requires 115V/60Hz electrical power, and operates on 40–105 psi supply line pressure.
Q: Is There a Remote Chiller Option?
A: Yes. The ERS11Y Remote Chiller can be paired with the LBWD00WHC to provide chilled water output.
Q: What Accessories Are Available?
A: Optional accessories include the In‑Wall Chiller Box for use with 1 or 8 GPH chillers.
Q: Can I Use the 51600C Filter Instead of the 71300C?
A: Yes. The 51600C WaterSentry® Plus Filter is compatible and offers a higher 6,000‑gallon capacity compared to the 71300C’s 2,250‑gallon capacity. It is ideal for higher‑traffic installations where extended filter life is preferred.
Q: What Warranty Is Included?
A: The LBWD00WHC comes with a 1‑year limited warranty on electrical components and water system (drinking water applications only).
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LBWD00WHC Liv Built‑In Filtered Water Dispenser provides ambient filtered water with touchless sensor activation. Designed for residential and light commercial use, it offers a sleek in‑wall installation with advanced filtration and ADA compliance.
Key Installation Requirements:

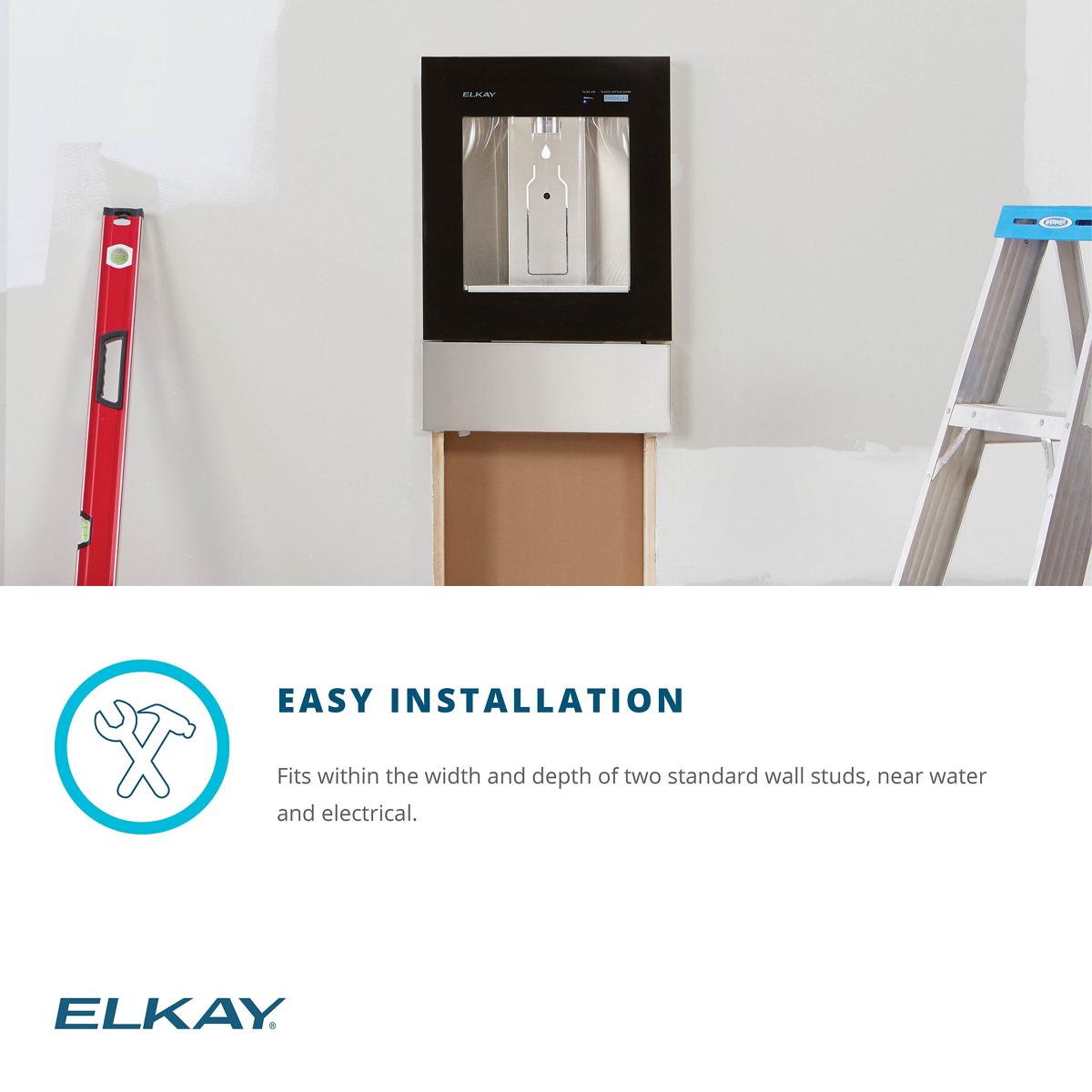

- Wall‑mounted installation with in‑wall carrier or support bracket
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Maintain clearance for filter replacement and servicing
- Indoor installation only; not rated for outdoor use
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is non‑refrigerated; optional remote chiller can be added if chilled water is required
- Always depressurize water line before servicing or replacing filter
- Ensure proper ADA installation height for accessibility
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate clearance for servicing and avoid pinching or straining wires
Basic Installation Overview:
- Mount in‑wall carrier or bracket securely to wall
- Connect cold water supply line to inlet
- Connect drain line if applicable
- Wire electrical supply to grounded 115V outlet
- Install filter cartridge into filter head and rotate clockwise until seated
- Turn on water supply and flush system for 5 minutes
- Test sensor activation and Green Ticker™ display for proper operation
For complete specifications and installation guidelines, download the official LBWD00WHC Spec Sheet and the Installation Checklist.
