Elkay  |  SKU: LBWDM0WHBC

Elkay LBWDM0WHBC | Liv EZ Filtered Water Dispenser for Home | Battery-Powered, Aspen White

$ 1,269.00
Shipping calculated at checkout.

Product Care Information

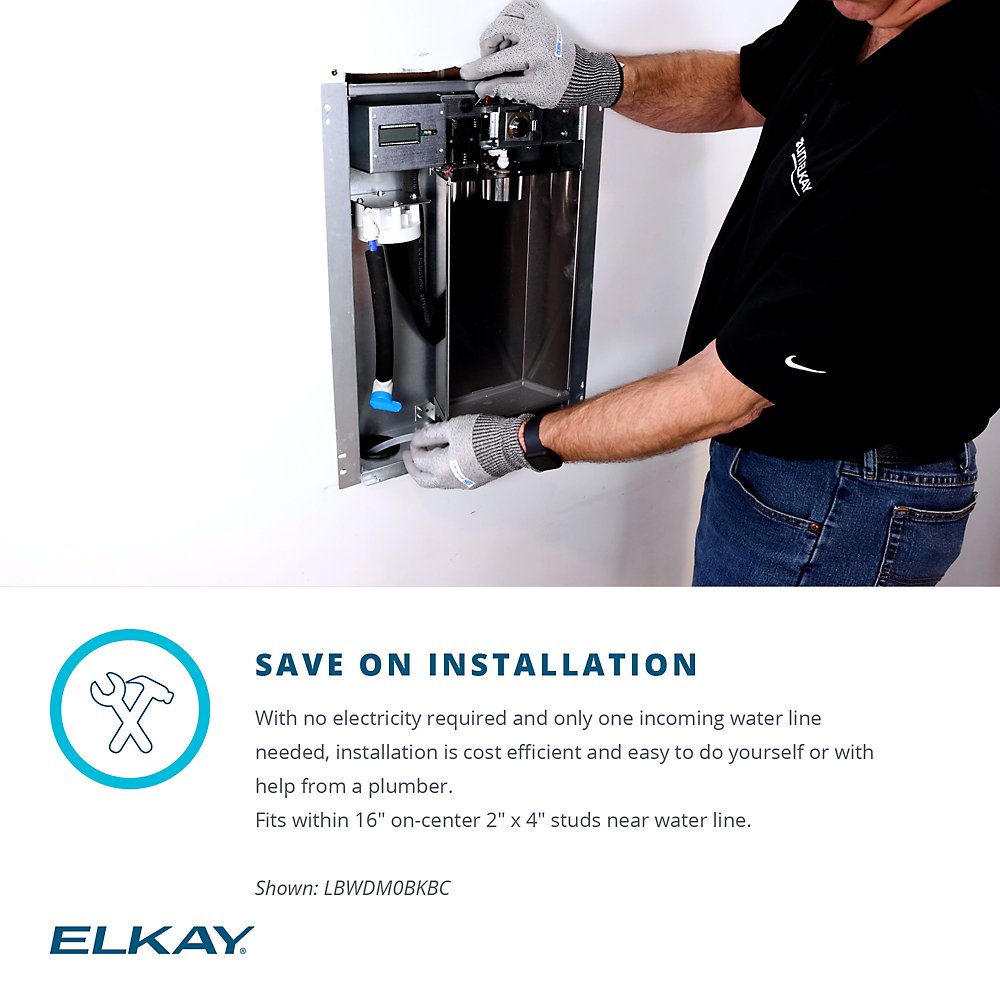

Installation

To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.

  • Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
  • Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
  • Route the 3/8" water line through the opening at the base of the dispenser.
  • Level the unit and secure it to wall studs using 4 screws (not included).
  • Install the 3 AA batteries in the battery compartment.
  • Insert the filter into the filter head and turn clockwise to lock in place.
  • Connect the water line to the shutoff valve at the filter's inlet.
  • Open the water supply and check for leaks.
  • Flush the system by dispensing at least one gallon of water before regular use.
  • Attach the glass front cover using the included Phillips head screws.

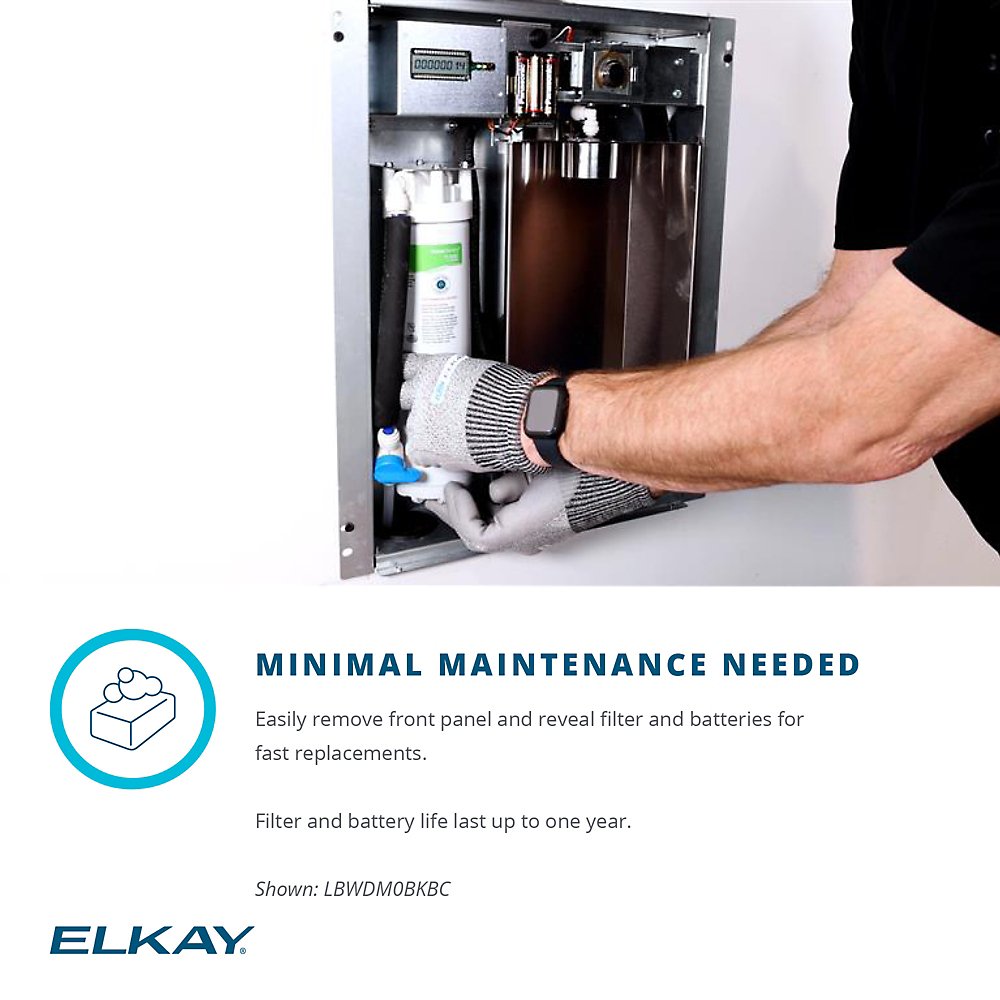

Maintenance

To keep your Elkay LIV EZ in optimal condition:

  • Replace the filter and batteries annually.
  • Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
  • Remove the front panel screws when replacing the filter.
  • Turn off the water supply before filter replacement.
  • Rotate old filter counterclockwise to remove it.
  • Install new filter by turning clockwise until locked.
  • Turn water supply back on after filter replacement.
  • Press the reset button above the battery compartment to reset the filter light.
  • Maintain water pressure between 40-105 psi (60 psi optimal).
  • Regularly check for leaks around connections.
  • Clean exterior with mild detergent and soft cloth as needed.



Refer to the product manual for detailed installation and maintenance information.

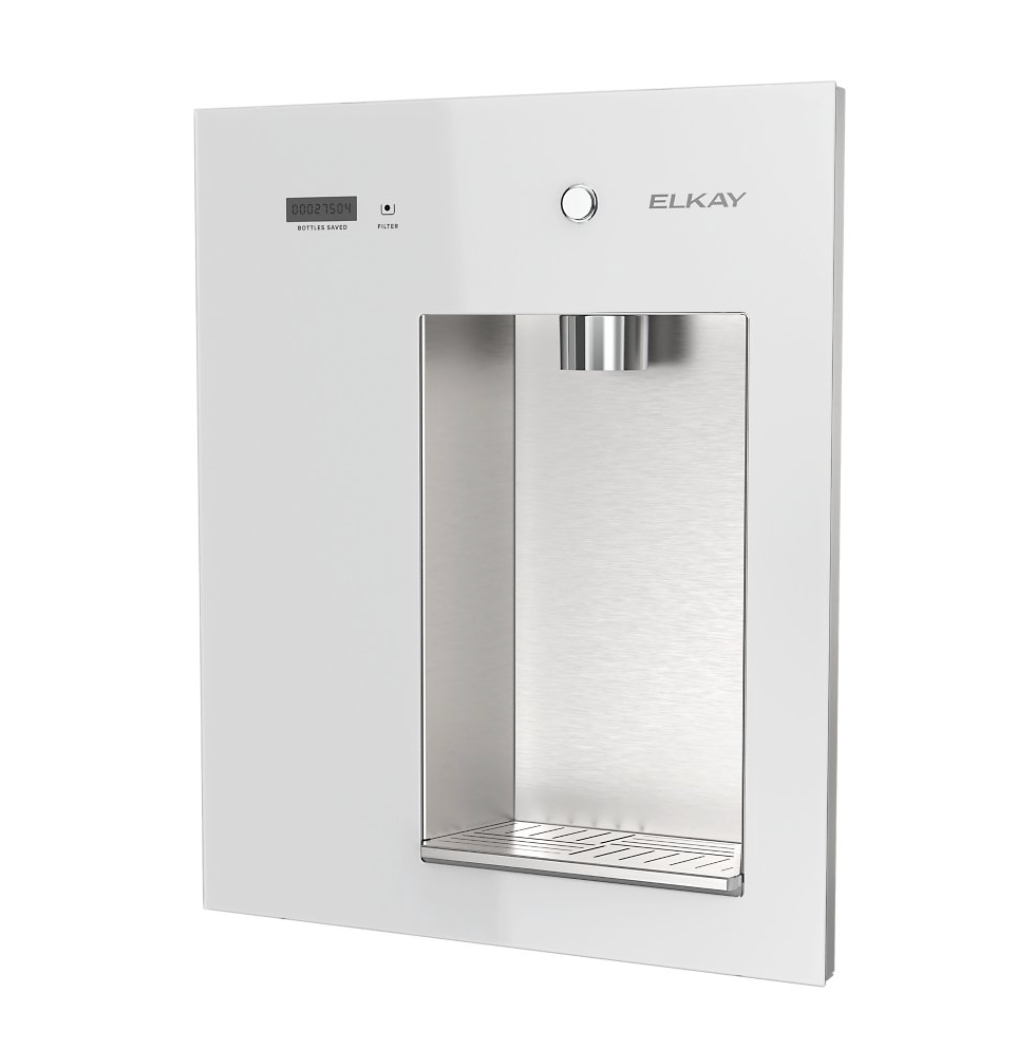

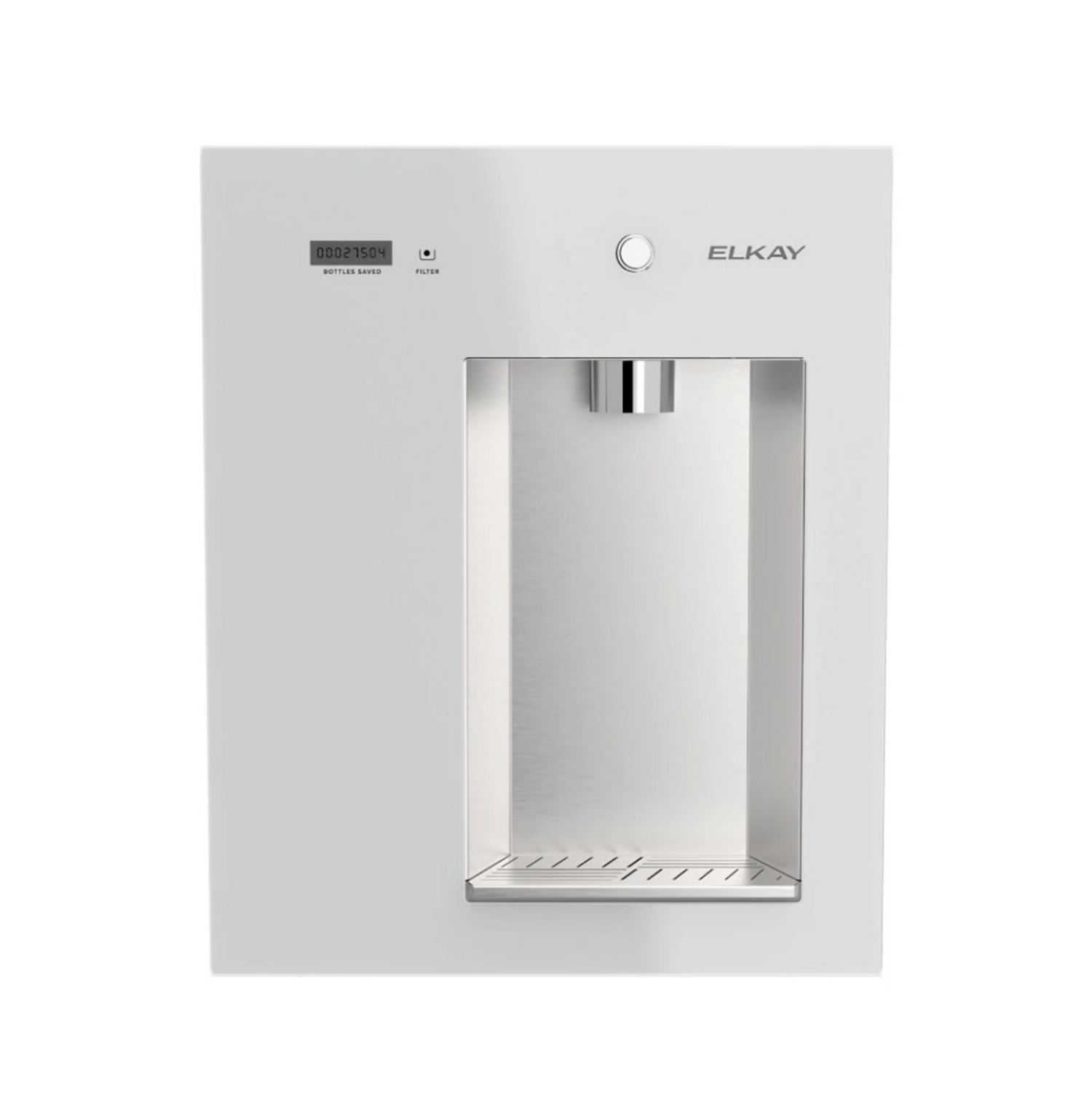

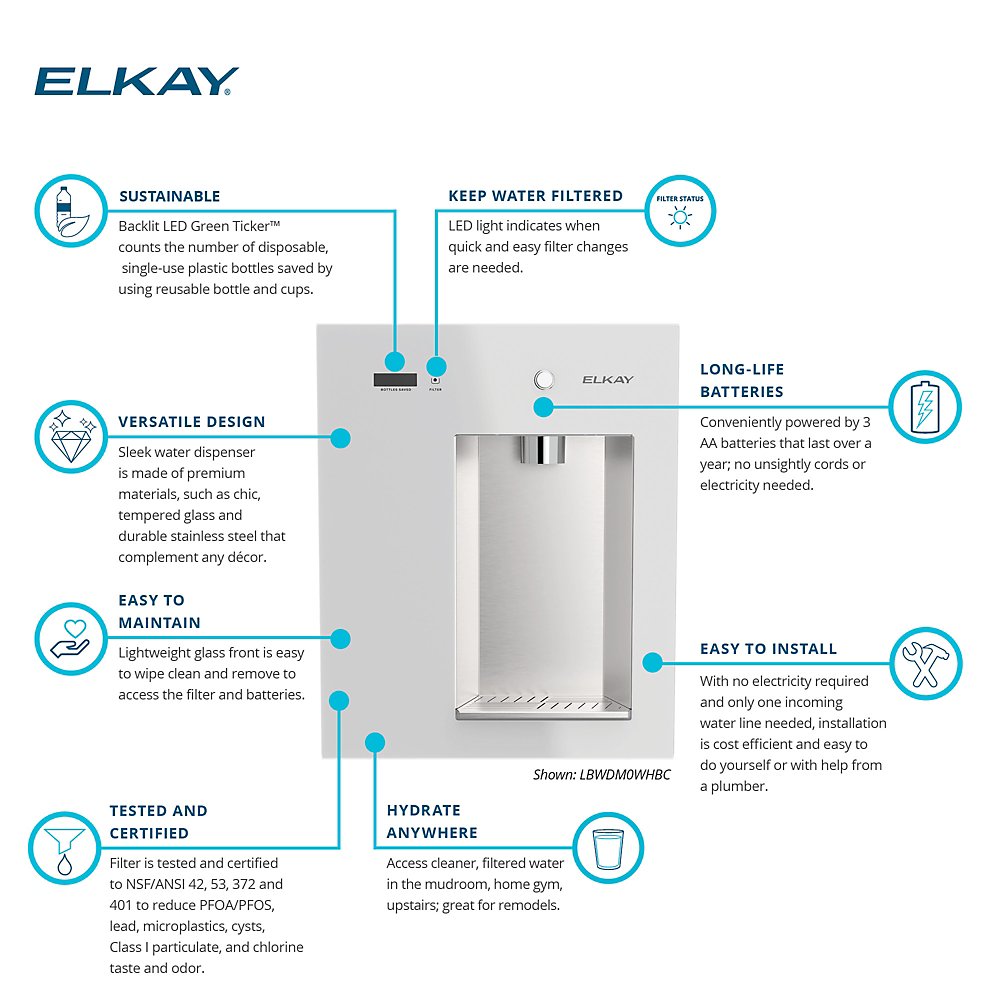

The Elkay LBWDM0WHBC Liv EZ is a Filtered Water Dispenser that delivers clean, filtered water in any room with a water line.

No electrical access? No problem - this system is mechanically operated, running on AA batteries.

Based on Elkay’s award-winning bottle filling stations seen in schools and airports, this sleek, space-saving design brings powerful filtration technology into your home while reducing plastic waste and making hydration easier for you and your loved ones.


Key Specifications:

  • Advanced Filtration: Includes a WaterSentry 71300C filter certified for the reduction of PFOA/PFOS, lead, microplastics, Class 1 particulate, cysts, and chlorine taste and odor with 2,250 gallon capacity.
  • Battery-Powered: Runs on 3 AA batteries that last up to a year, requiring no electrical connections and ensuring water access even during power outages.
  • Compact Design: Measures 4-9/16" x 16-3/4" x 20-1/2" with a built-in installation that fits seamlessly into your wall.
  • Mechanical Activation: Features a push-button activation system that provides reliable operation without complex electronic components.
  • Refrigeration not included: Select the ERS11Y remote chiller add-on above "add to cart"

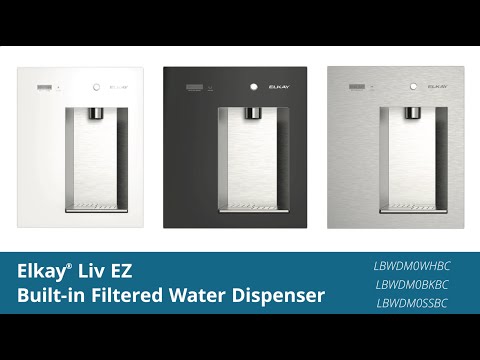

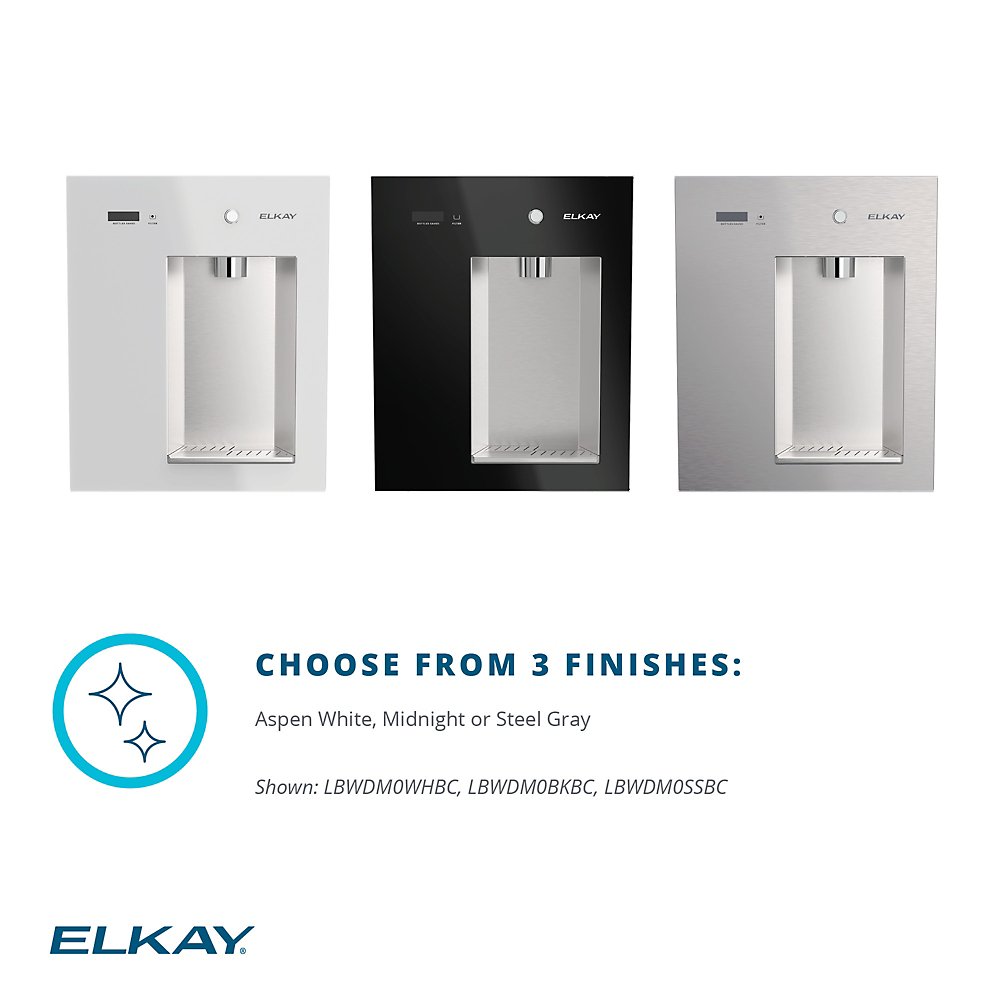

  • Color Finish: Aspen White (choose also Midnight Black or Steel Gray)



Features & Benefits:

  • Easy Installation: Battery-powered for easy wall-mount installation with any water line, offering convenient access to filtered water beyond just the kitchen.

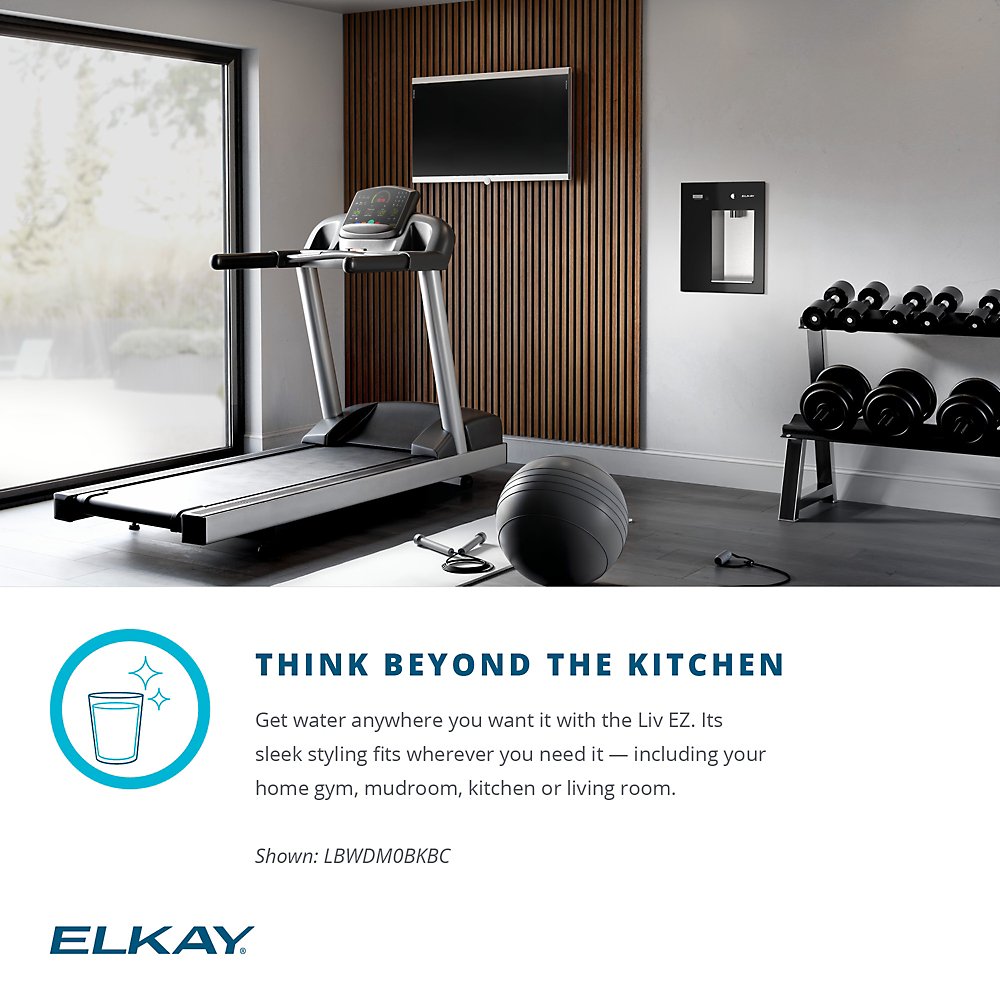

  • Versatile Placement: Ideal for mudrooms, corridors, kitchens, gyms, and beyond.
  • Environmental Impact: The Green Ticker™ counter displays the number of 20 oz. plastic water bottles saved from landfills, supporting sustainability goals while encouraging regular hydration.
  • Filter Replacement Alerts: Filter status light indicates when replacement is needed (after approximately 12 months), ensuring you always have clean, great-tasting water.
  • Easy Push-Button: Spacious alcove for large reusable bottles.
  • Elevated Style: Sleek design meets simple setup for any environment.
  • Spacious Bottle Fill Area: 12″-tall alcove fits larger cups and reusable bottles, supporting extended hydration.


What’s Included in the Elkay LBWDM0WHBC:

  • Liv EZ Water Dispenser unit
  • WaterSentry 71300C Filter - PFOA/PFOS, 2250 Gallon



FAQ



Q: Does the Elkay LBWDM0WHBC water dispenser require electricity?
A: No, the Liv EZ is mechanically activated and runs on 3 AA batteries that last up to a year, making it ideal for areas without nearby electrical outlets and ensuring continued operation during power outages.

Q: What contaminants does the filter remove?

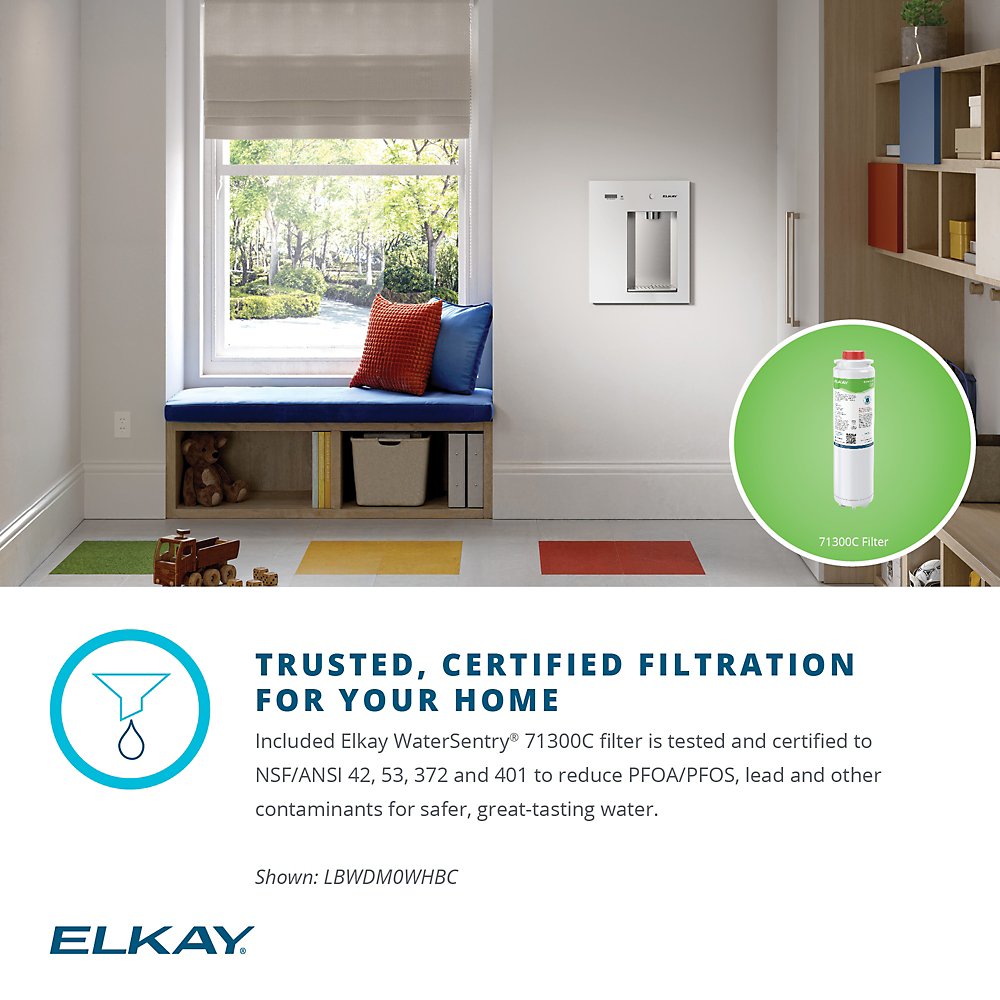

A: The included WaterSentry 71300C filter is certified to NSF/ANSI standards 42, 53, 372, and 401 for the reduction of PFOA and PFOS (two prevalent PFAS chemicals), lead, microplastics, Class 1 particulate, cysts, and chlorine taste and odor.

Q: How often does the filter need to be replaced?
A: The filter has a capacity of 2,250 gallons or approximately 12 months of use. The unit features a convenient filter status light that will pulse red when the filter is at 91.6% capacity and stay solid red when replacement is needed.



Detailed Features & Benefits



Advanced Filtration Technology: The Liv EZ features Elkay’s premium filtration system that addresses today’s most concerning water contaminants. Unlike basic carbon filters, this comprehensive system is certified to reduce PFOA/PFOS (common “forever chemicals”), lead, and microplastics, delivering water that’s not just better tasting but significantly healthier for your family. With a 2,250-gallon capacity, each filter provides the equivalent of approximately 17,000 16 oz. water bottles of clean, filtered water.

Space-Saving Built-in Design: The Liv EZ’s wall-mounted design liberates valuable counter space while adding a sleek, modern aesthetic to any room. With its stainless steel alcove and clean lines, this dispenser blends seamlessly into contemporary interiors. The unit is recessed into the wall, protruding minimally into the room while providing a generous 12-inch alcove height that accommodates filling of various container sizes. The True Retrofit for Clean Filtered Water.

Sustainable Hydration Solution: As part of Elkay’s commitment to environmental stewardship, the Liv EZ helps reduce reliance on single-use plastic bottles. The built-in Green Ticker™ counter visually displays the environmental impact of choosing filtered tap water, having already helped save billions of disposable bottles from landfills. This feature not only promotes sustainability but serves as a motivating reminder to stay hydrated.



NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
