Elkay LBWDM06WHBC | Liv EZ Filtered & Chilled Water Dispenser |...

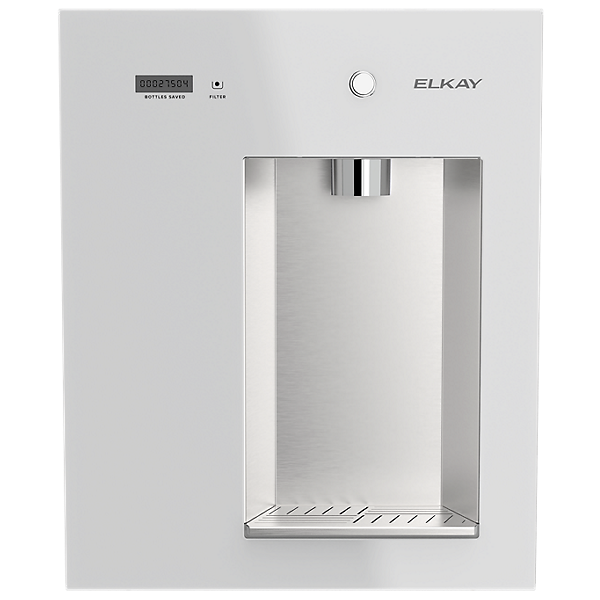

The Elkay LBWDM06WHBC is a wall-mounted filtered and chilled water dispenser with mechanical activation, delivering 1.5 GPH of 50°F water.
Key Specifications:
- Finish: Aspen White
- Filter Performance: PFOA/PFOS, Lead, Microplastics, Class 1 Particulate, Cysts, Chlorine Taste & Odor
- Filter Capacity: 2,250 Gal. or 1 year
- Refrigeration: 1.5 GPH Water Chiller Included
- Power: Runs on 3 AA Batteries. Electric needed for chiller only.
Other Related Variants:
- LBWDM06BKBC: Midnight Black finish
- LBWDM06SSBC: Steel Gray finish

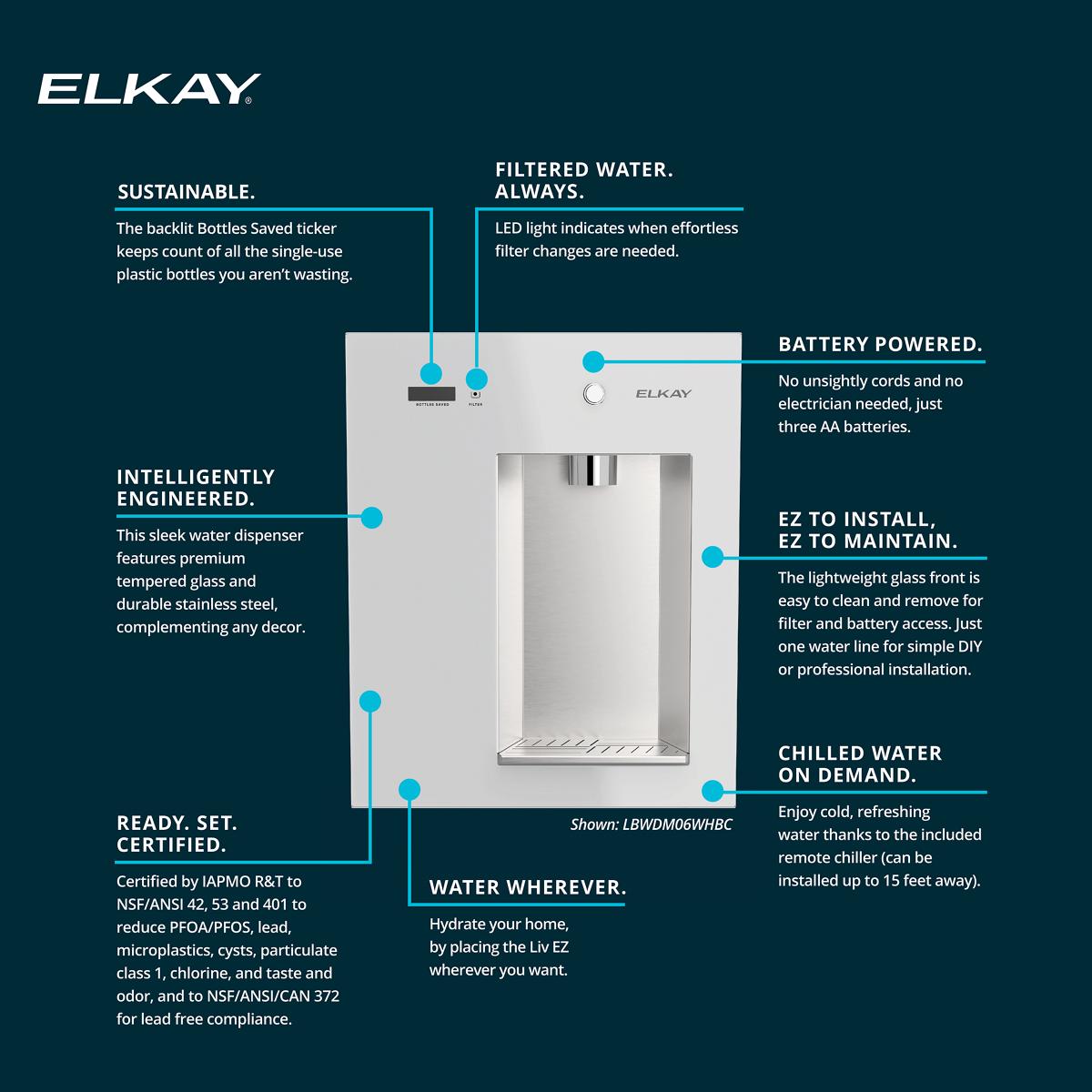

Features & Benefits:
- Reliable Water Access: Mechanically-activated design continues to supply water during power outages or service disruptions, ensuring uninterrupted hydration.
- Advanced Filtration: NSF/ANSI 42, 53, 372, and 401 certified filter removes PFOA/PFOS, lead, microplastics, cysts, and chlorine taste and odor for cleaner, safer drinking water.
- Refreshing Chilled Water: Delivers 1.5 GPH of 50°F chilled water with included 1.5 GPH chiller, providing a consistent supply of cold, filtered water for optimal hydration.
- Space-Efficient Design: Wall-mounted installation with in-wall frame/plate saves floor space while providing convenient access to filtered and chilled water in indoor environments.
FAQ
Q: What contaminants does the included filter remove?
A: The LBWDM06WHBC filter is certified to NSF/ANSI standards 42, 53, 372, and 401 for reduction of PFOA/PFOS (prevalent PFAS chemicals), lead, microplastics, Class 1 particulate, cysts, and chlorine taste and odor, with a capacity of 2,250 gallons or 1 year.
Q: Will this dispenser work during a power outage?
A: Yes, the mechanical bottle filler button activation allows the unit to continue supplying filtered water during power outages or service disruptions. However, the chilling function requires 115V/60Hz power and will not operate without electricity.
Q: What is included with the LBWDM06WHBC purchase?
A: The unit includes the water dispenser, a 1.5 GPH water chiller (model ERS11Y), and a 2,250 gallon filter. All components ship in one box with an approximate shipping weight of 70 lbs.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
Installation
To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.
- Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
- Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
- Route the 3/8" water line through the opening at the base of the dispenser.
- Level the unit and secure it to wall studs using 4 screws (not included).
- Install the 3 AA batteries in the battery compartment.
- Insert the filter into the filter head and turn clockwise to lock in place.
- Connect the water line to the shutoff valve at the filter's inlet.
- Open the water supply and check for leaks.
- Flush the system by dispensing at least one gallon of water before regular use.
- Attach the glass front cover using the included Phillips head screws.
Maintenance
To keep your Elkay LIV EZ in optimal condition:
- Replace the filter and batteries annually.
- Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
- Remove the front panel screws when replacing the filter.
- Turn off the water supply before filter replacement.
- Rotate old filter counterclockwise to remove it.
- Install new filter by turning clockwise until locked.
- Turn water supply back on after filter replacement.
- Press the reset button above the battery compartment to reset the filter light.
- Maintain water pressure between 40-105 psi (60 psi optimal).
- Regularly check for leaks around connections.
- Clean exterior with mild detergent and soft cloth as needed.
Refer to the product manual for detailed installation and maintenance information.
