Elkay  |  SKU: 51300C

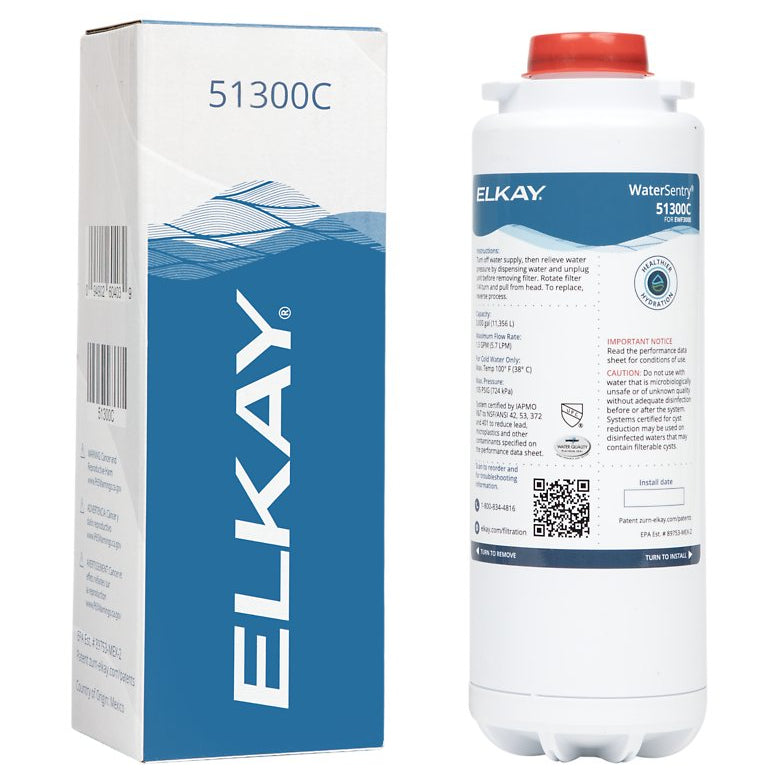

Elkay 51300C | WaterSentry Plus Filter Replacement for Bottle Fillers

$ 75.99
Shipping calculated at checkout.
Package

Product Care Information

Installation


To install the Elkay 51300C WaterSentry filter, a licensed plumber should perform the installation. Make sure the filter is placed in a location where it will not freeze. Follow these steps:

  • Disconnect the power to the unit to avoid the risk of electric shock.
  • Securely mount the filter head to the provided bracket, ensuring the filter cartridge will be positioned above the head.
  • Connect the water inlet and outlet tubes to the filter head.
  • Shut off the water supply before starting the installation to prevent leaks.
  • If replacing an old filter, turn it ¼ turn to the left to remove it.
  • Insert the new filter into the filter head and turn it ¼ turn to the right until it locks into place, with the front label clearly visible.
  • Turn the water supply back on.
  • Flush the system by dispensing water for 10 minutes to remove any air and fine carbon particles.



Maintenance


The Elkay 51300C WaterSentry filter operates within a water pressure range of 20 to 105 psi and a temperature range of 40 to 100°F. Regular maintenance is essential for optimal performance. Follow these steps:

  • Replace the filter after 3,000 gallons of use or 1 year, whichever comes first.
  • Flush the system by dispensing water for 10 minutes after replacing the filter.
  • Regularly inspect the system for any leaks in the water connections and ensure the water pressure is within the acceptable range.
  • Clean the exterior of the unit with a soft cloth and mild detergent, avoiding abrasive cleaners.
  • If installed in an area prone to freezing, winterize the unit to protect the filter from damage.



Refer to the product manual for detailed installation and maintenance tips.

In-Stock. Order by 3pm EST for Same Day Shipping.

The Elkay 51300C is a high-performance water filter replacement element designed for use with Elkay ezH2O bottle filling stations, Liv Pro Water Dispensers, and Universal EWF3000 WaterSentry systems. This filter provides healthier hydration by reducing various contaminants, making it beneficial for both people and the planet.

**This is the appropriate model for the Elkay LZS8WSLP filter replacement and other popular ezH2O products including but not limited to:



Key Specifications

  • Working Pressure: 20 - 105 psi (241 - 724 kPa)
  • Operating Temperature: 40 - 100°F (5 - 38°C)
  • Filter Specs: Lead, cysts, Class I particulates, chlorine, and microplastics
  • Capacity: 3,000 Gallons (11,356 L) or 1 Year Maximum



Features & Benefits

  • Comprehensive Filtration: Reduces lead, cysts, Class I particulates, chlorine taste and odor, and microplastics
  • High Capacity: Filters up to 3,000 gallons of water, lasting up to one year
  • Eco-Friendly: Helps reduce reliance on single-use plastic water bottles
  • Easy Installation: Quick-Disconnect, 1/4 turn installation with automatic inlet shutoff valve
  • Versatile Compatibility: Fits various Elkay drinking water products



What's Included

  • Elkay 51300C WaterSentry Plus Replacement Filter Cartridge
  • Installation instructions


FAQ

Q: How often should I replace the Elkay 51300C filter?
A: The filter should be replaced after filtering 3,000 gallons of water (approximately 19,200 20 oz. bottle fills) or after one year, whichever comes first. The average filter lasts about 6 months.
Q: What does the 51300C Filter remove from water?
A: The Elkay 51300C is NSF certified to reduce lead, chlorine taste and odor, Class I particulates , cysts, and microplastics.
Q: My specs say I need the ECF3000 filter, but can't find it. Will this work?
A: Yes. The ECF3000 filter has been discontinued and replaced by the 51300C filter.
Q: I currently have a Non-filtered unit, but want to convert it. Will this filter work?
A: You will want to order the EWF3000, which will convert your existing system into a filtered one. Then, you can order this 51300C model as the replacement filter.
Q: Do these filters have a shelf life?
A: The filters do not have a shelf life, but they should be stored in a place protected from moisture.
Q: How to change the Elkay 51300C Filter?
A: Follow these steps:
  1. Turn off the water supply and unplug the unit to ensure safety.
  2. Remove the lower cover by unscrewing the screws on the underside of the cooler.
  3. Relieve the pressure by dispensing water through either the bubbler or the bottle filler.
  4. Turn the used filter clockwise to remove it from the filter head.
  5. Insert the new filter and twist it clockwise until it locks into place.
  6. Turn on the water supply and plug in the unit.

  7. Flush the filter for about five minutes to remove any air bubbles and reset the filter status light.



Detailed Features & Benefits

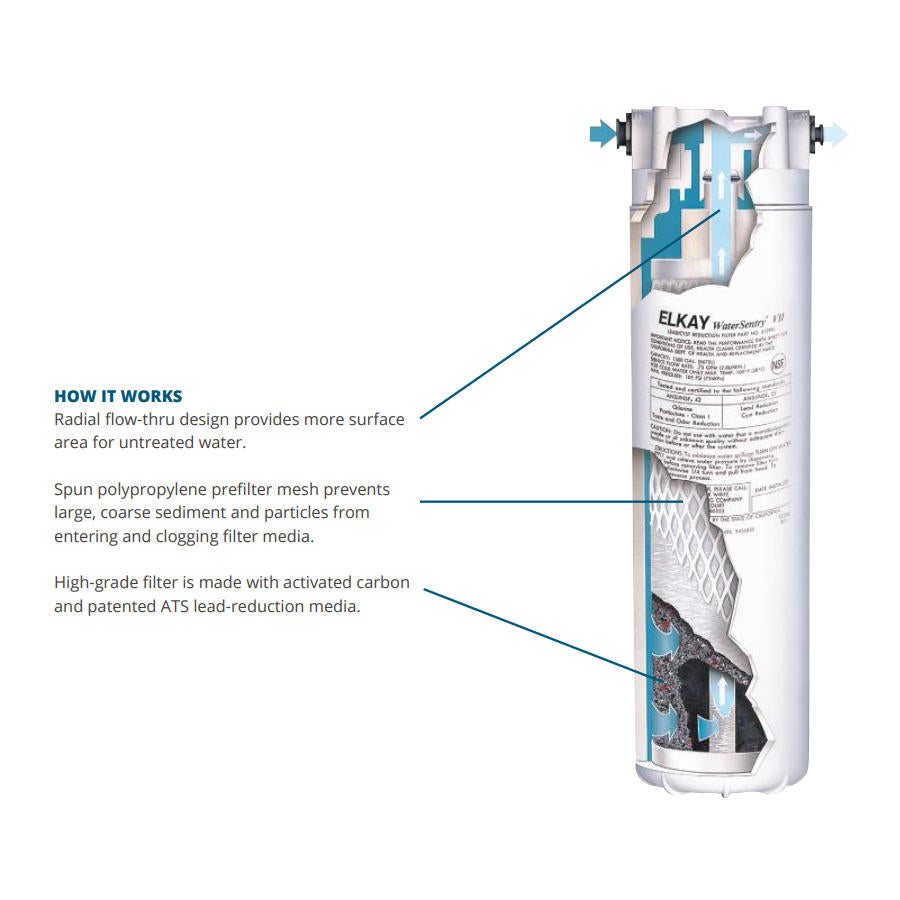

Comprehensive Filtration System

The Elkay 51300C excels in reducing a wide range of contaminants. It's particularly effective against lead, cysts, Class I particulates, chlorine taste and odor, and microplastics. Class 1 particulate represents particle sizes that range from ½-1 micron. This comprehensive approach ensures that your drinking water is not only safer but also tastes better.

High-Performance Design

Engineered to handle a working pressure of 20-105 psi and operating temperatures between 40-100°F, this filter is built to perform consistently under various conditions. Its flow rate of 1.5 GPM ensures a steady supply of filtered water without compromising on contaminant reduction efficiency.

Eco-Friendly Solution

By providing high-quality filtered water directly from your tap or bottle filling station, the Elkay 51300C helps reduce reliance on single-use plastic water bottles. This not only contributes to reducing plastic waste but also promotes a more sustainable approach to daily hydration needs.

Easy Maintenance and Replacement

The filter is designed for easy installation and replacement with its Quick-Disconnect, 1/4 turn installation feature. The automatic inlet shutoff valve closes when the filter is removed, making the replacement process clean and efficient. This design ensures that users can easily maintain their water filtration system, ensuring consistent performance and water quality over time.

Versatile Compatibility

The Elkay 51300C is designed to fit a wide range of Elkay drinking water products, including ezH2O Bottle Filling Stations, Liv Pro Water Dispensers, and Universal EWF3000 WaterSentry systems. This versatility makes it a convenient choice for various applications in different settings.

Other Item reference numbers: 11u265

NOTICE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

*ASSEMBLED IN THE UNITED STATES.
