Elkay LBWDC00WHC | Liv Pro™ Filtered Water Dispenser | Aspen White

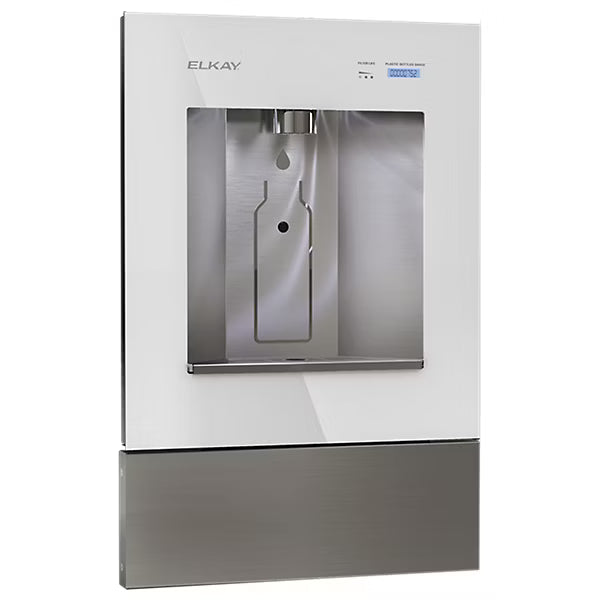

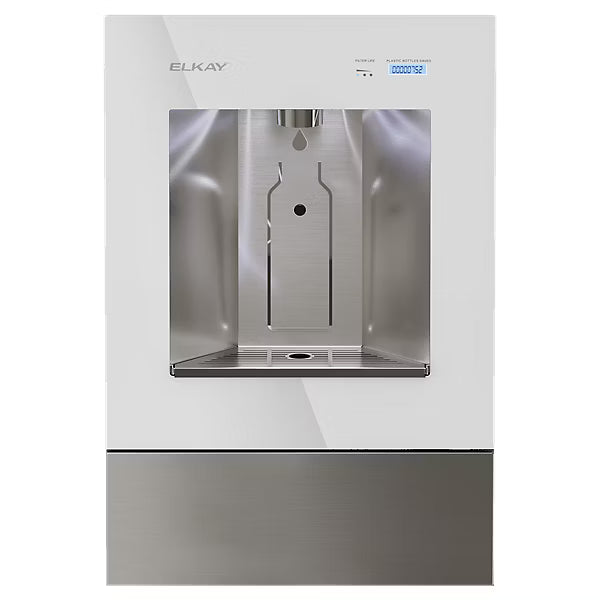

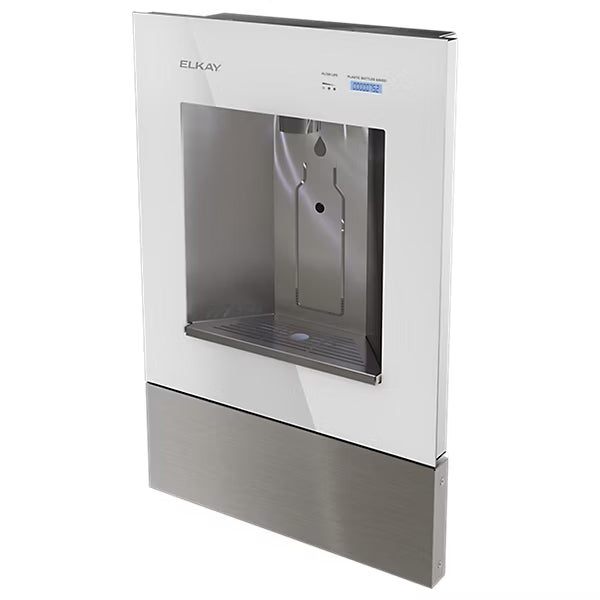

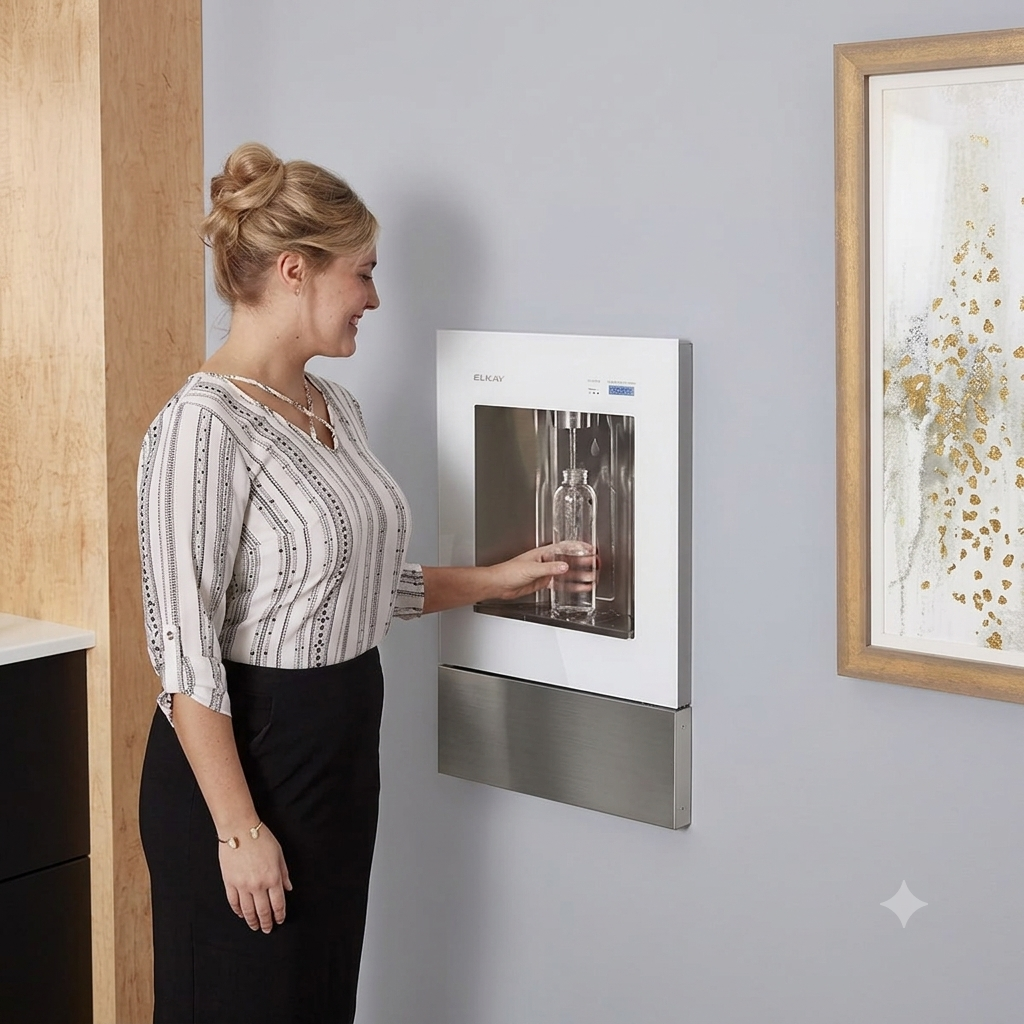

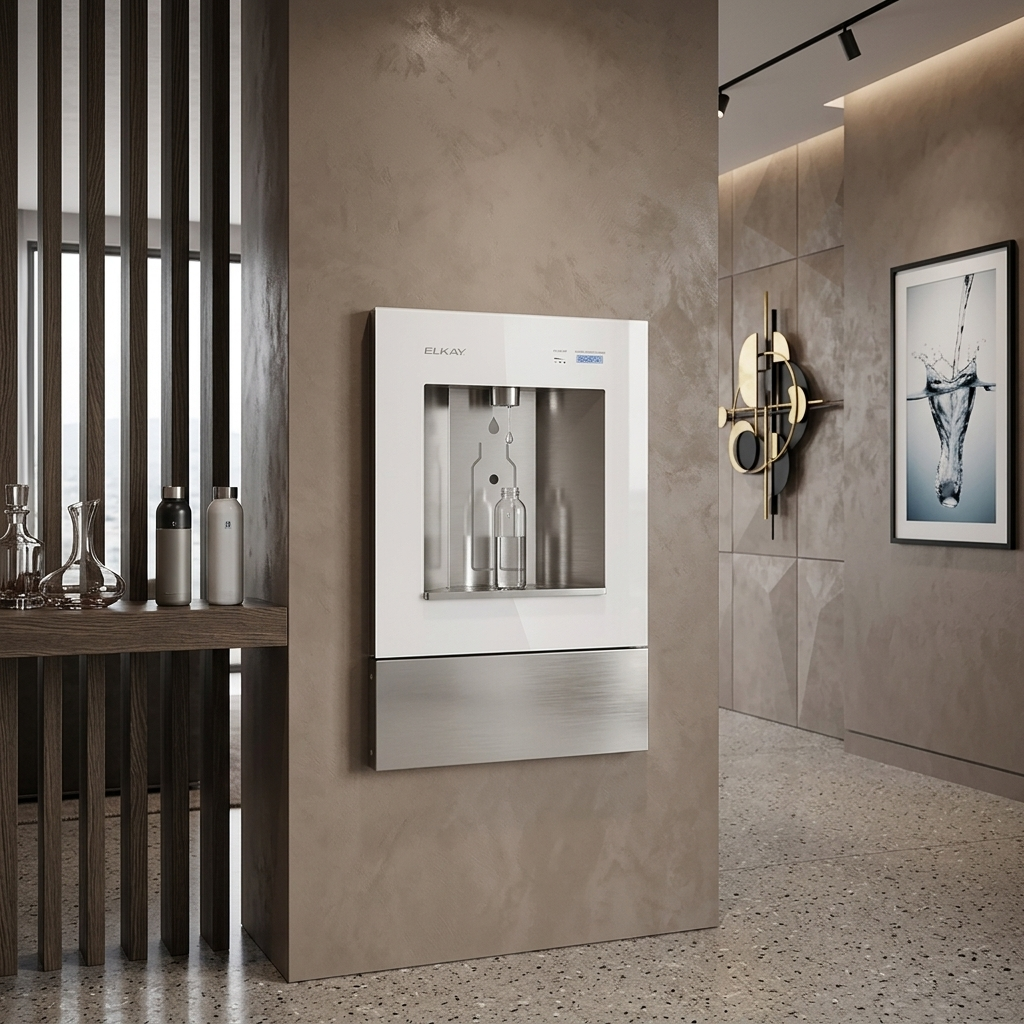

The Elkay LBWDC00WHC Liv Pro™ is a hands-free commercial filtered bottle filling station in Aspen White. It features laminar flow, Green Ticker™ sustainability display, and a 3,000-gallon WaterSentry® filter for clean, reliable hydration in modern commercial spaces.
Key Specifications:
- Design: Wall-mounted in-wall bottle filling station with electronic sensor activation
- Finish: Aspen White. Also available in Midnight Black (LBWDC00BKC)

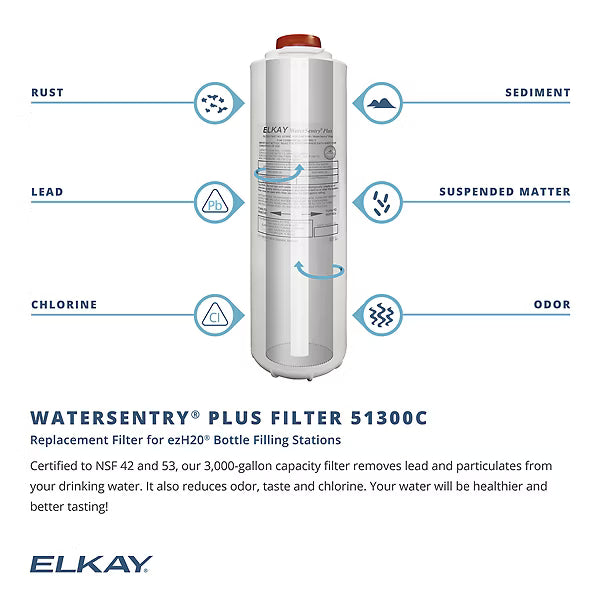

- Filtration: Includes 51300C WaterSentry® Filter, NSF/ANSI 42, 53, 372, and 401 certified for reduction of lead, microplastics, cysts, Class 1 particulate, and chlorine taste & odor
- Refrigeration: Non-refrigerated. Compatible with optional ER101Y Remote Chiller for chilled water
- Stations Served: 1

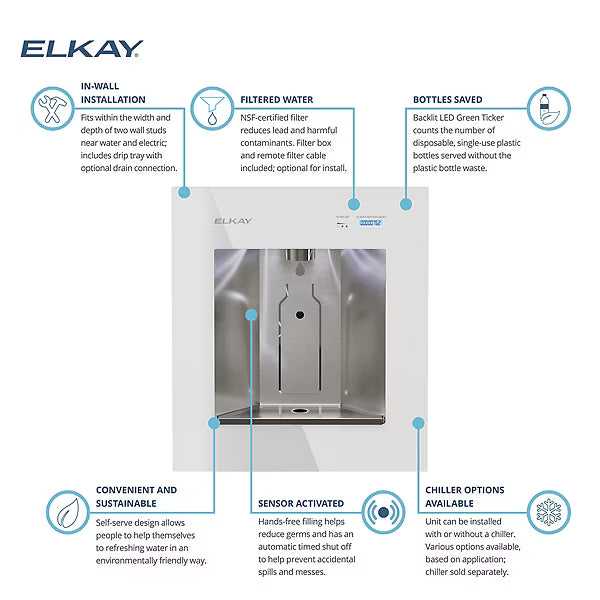

Features & Benefits:
- Advanced Filtration: 3,000-gallon WaterSentry® filter delivers cleaner, better-tasting water

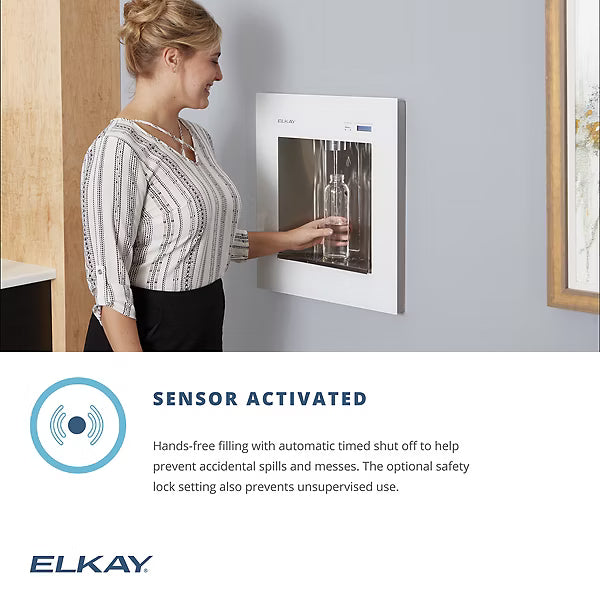

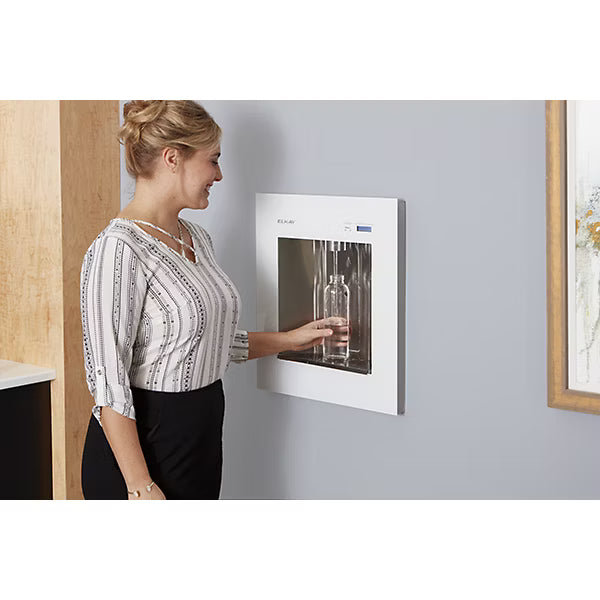

- Hands-Free Operation: Electronic sensor enables touchless bottle filling for hygienic use

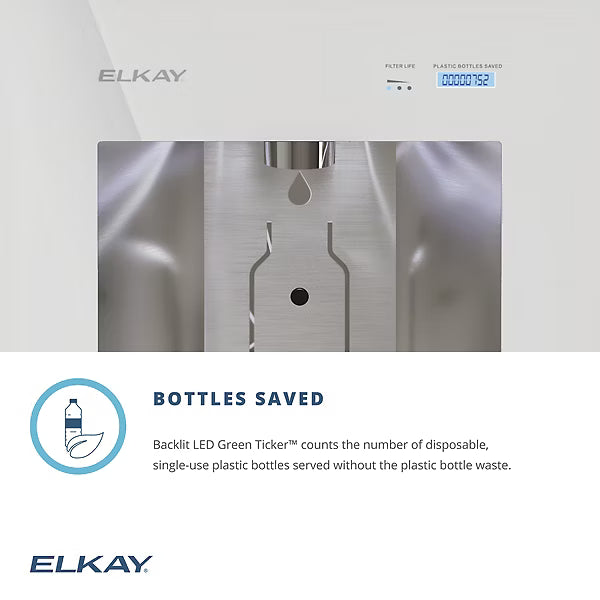

- Green Ticker™ Display: Tracks and shows the number of plastic bottles saved from landfill waste

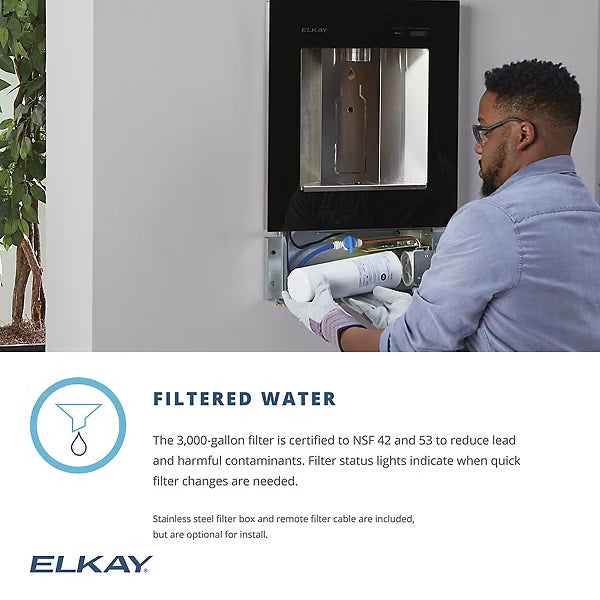

- Filter Status Indicator: LED monitor alerts when replacement is needed, with auto reset for easy maintenance
- ADA Compliant: Meets accessibility standards when properly installed
What's Included:
- LBWDC00WHC bottle filling station unit
- 51300C WaterSentry® 3,000-gallon filter
- Stainless steel filter box
- Remote filter cable
- Installation manual
FAQ
Q: Can the LBWDC00WHC Dispense Chilled Water?

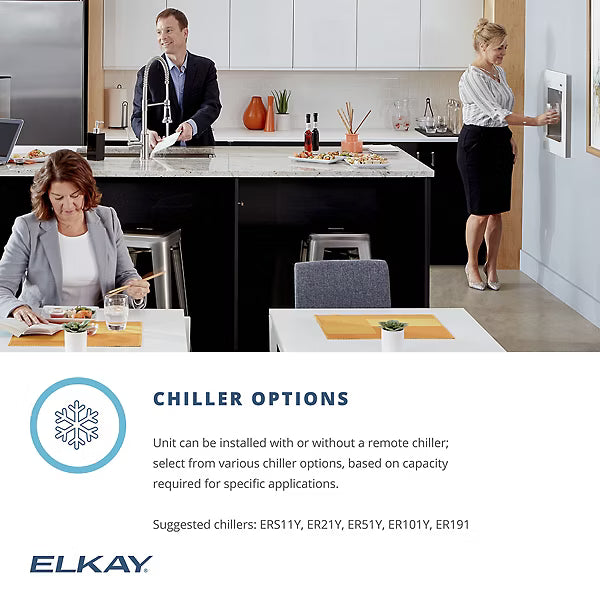

A: The LBWDC00WHC is non-refrigerated. It can be paired with the optional ER101Y Remote Chiller (10 GPH) to provide chilled water output. When installed with a remote chiller, the filter should also be installed remotely near the chiller.
Q: What Water Pressure is Required?
A: The LBWDC00WHC operates on 40–105 psi supply line pressure. The optimum pressure is 60 psi. A dedicated 15A Hospital Grade GFCI breaker is recommended for electrical connection.
Q: What Comes in the Box?
A: The unit ships complete with the dispenser, stainless steel filter box, remote filter cable, and a 3,000-gallon WaterSentry® filter — everything needed for installation.
Q: What Certifications does the LBWDC00WHC Meet?
A: It is certified to NSF/ANSI 42, 53, 61, 372, and 401, UL 399, and CAN/CSA C22.2 No. 120. It also complies with ADA & ICC A117.1 accessibility requirements.
Q: How is the Filter Monitored?
A: The unit includes a visual LED filter status indicator that alerts when replacement is needed. It also features automatic filter status reset for simplified maintenance.
Q: Are Accessories Available?
A: Yes. Elkay offers accessories such as the AP99 Access Panel for installation flexibility.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

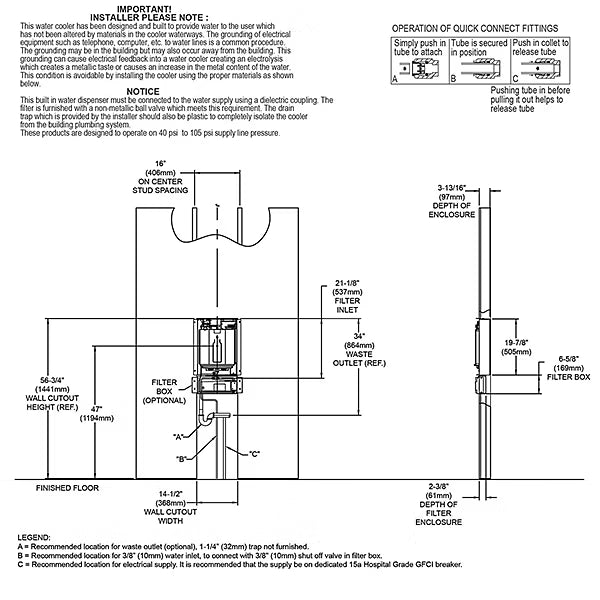

- Turn off the water supply and power before starting.

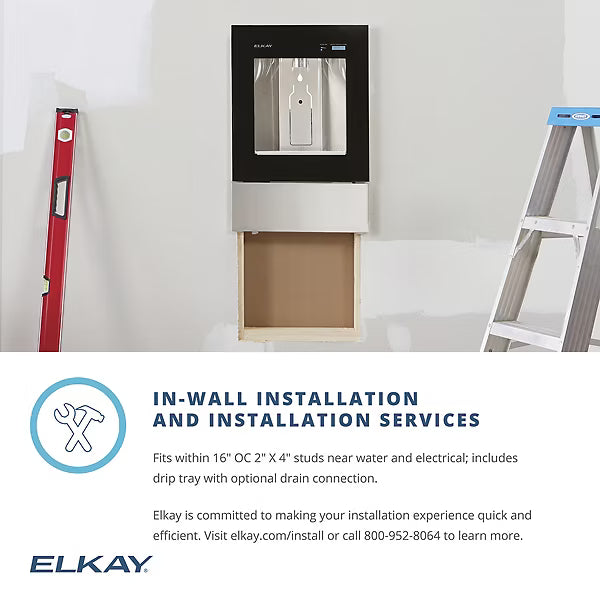

- Cut the wall opening to the recommended size and make sure the cavity is deep enough for the unit.
- Slide the dispenser into the wall opening and secure it with screws to the wall studs.
- Connect the water line to the shut‑off valve and then to the dispenser inlet.

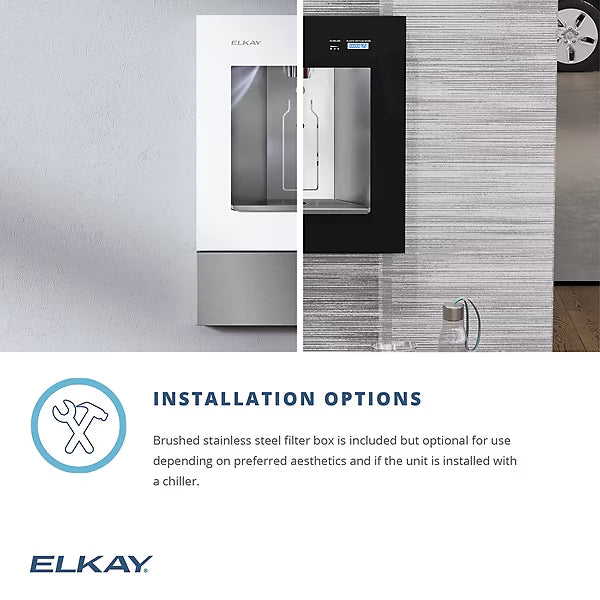

- If using the filter box, install it directly below the dispenser and connect the tubing.
- If using a remote filter or optional chiller, mount them nearby (within 15 feet) and connect with tubing.
- Connect the electrical wiring to a GFCI‑protected circuit as required by code.
- Turn the water back on, restore power, and test the dispenser for leaks and proper flow.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber/electrician.
- Replace the water filter when the indicator shows it’s time or at least once a year.
- Check tubing and connections regularly for leaks.
- Wipe the exterior with a soft cloth and mild cleaner.
- If water flow slows down, check the filter and replace if needed.
- For service or repairs, consult the manual or a licensed technician.
