Elkay AP99 | Access Panel 9" x 9" x 6" | Stainless S...
The Elkay AP99 Access Panel provides a durable stainless steel solution for accessing plumbing connections behind drinking fountains and bottle filling stations. Compact and easy to install, it ensures serviceability while maintaining a clean, finished appearance in commercial applications.
Key Specifications:
- Dimensions: 9" x 9" x 6"
- Finish: Stainless Steel
- Shipping Weight: 2 lbs.
- Application: Provides access to water supply and drain connections
- Installation: Fits into 8" x 8" wall opening, secured with clips and screws
Features & Benefits:
- Durable Construction: Stainless steel panel ensures long-lasting performance and resistance to corrosion.
- Easy Access: Designed to provide quick access to plumbing connections for maintenance and service.
- Compact Design: Fits neatly into standard wall openings with a flush or recessed finish.
- Simple Installation: Includes mounting holes and speed nuts; requires only basic tools.
- Versatile Use: Suitable for use with Elkay fountains and other plumbing applications.

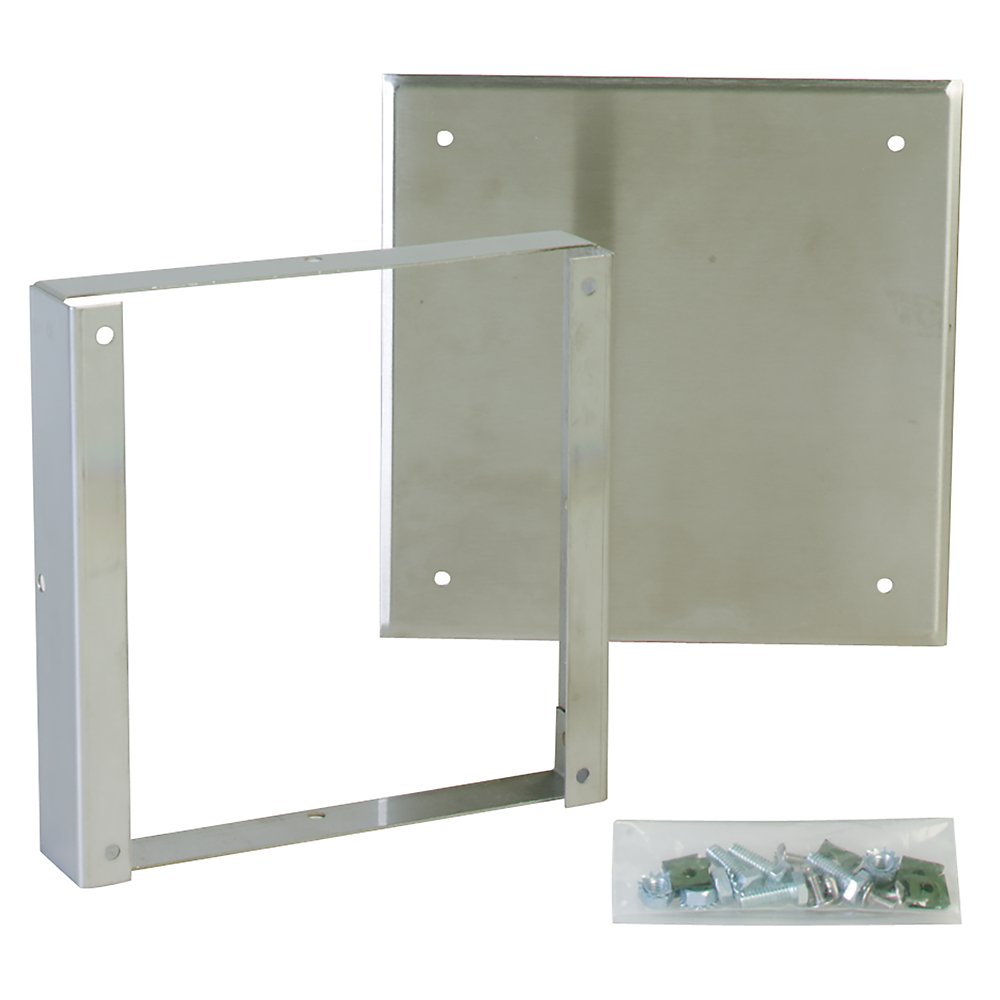

What's Included:
- AP99 Stainless Steel Access Panel
- Mounting frame
- Four hex socket screws (#8-32 × 1.50 stainless steel)
- Speed nuts
- Installation instructions
FAQ
Q: What is the purpose of the AP99 Access Panel?
A: It provides access to plumbing connections such as water supply and drain lines behind Elkay fountains.
Q: What are the dimensions of the AP99?
A: The panel measures 9" x 9" x 6" and fits into an 8" x 8" wall opening.
Q: How is the AP99 installed?
A: Position the frame into the wall opening, secure with clips and screws, then attach the panel using the provided hex socket screws.
Q: What tools are required for installation?
A: Basic tools including an Allen wrench (not furnished) are needed to secure the panel.
Q: Which Elkay products commonly use the AP99?

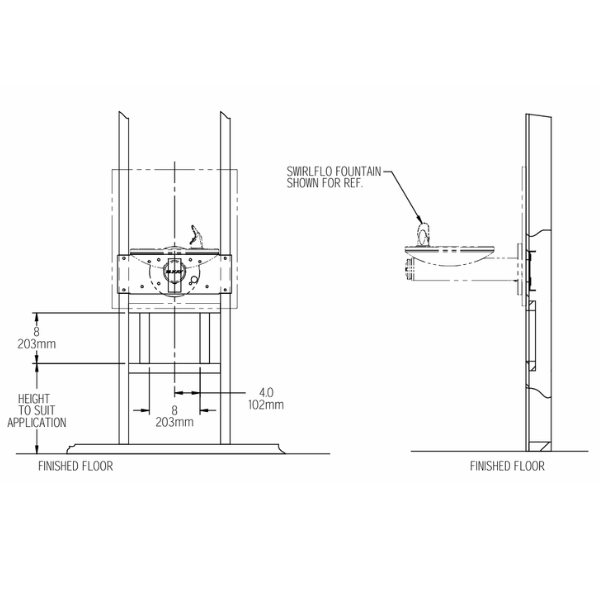

A: The AP99 is often paired with Elkay LBWDC00 drinking fountains and other in-wall fountain models to provide plumbing access.
NOTICE: Installation requires proper alignment and fastening. Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

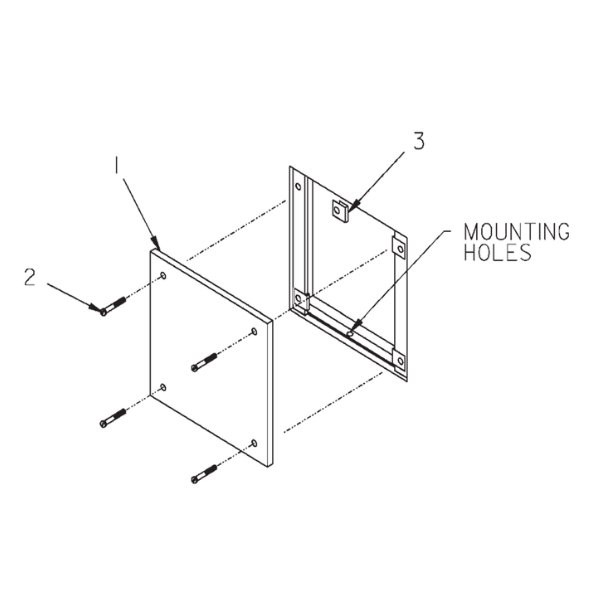

- Turn off the water supply before starting.
- Position the four clips on the frame flanges (flat side facing forward).
- Place the access panel frame into an 8" x 8" wall opening. Make sure the frame sits flush or no more than 7/8" behind the finished wall.
- Secure the frame to the wall through the mounting holes using appropriate fasteners (not included).
- Place the access panel over the frame and secure it with the four hex socket screws provided.
- Use an Allen wrench to tighten the screws (wrench not included).
- For detailed steps, refer to the installation manual provided in the package or contact a licensed installer.
- Check the panel regularly to ensure it remains secure and aligned.
- Clean the exterior with a soft cloth and mild cleaner.
- If the panel or screws become damaged, replace with genuine Elkay parts.
- For service or repairs, consult the manual or a licensed technician.
