Elkay  |  SKU: LZWS-EDFP217K

Elkay LZWS-EDFP217K | In-wall Bi-level Bottle Filling Station | Filtered, Non-Refrigerated, Soft-sides fountains

$ 3,741.60
Shipping calculated at checkout.

Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:

Requires a minimum of 8" of wall depth for installation.

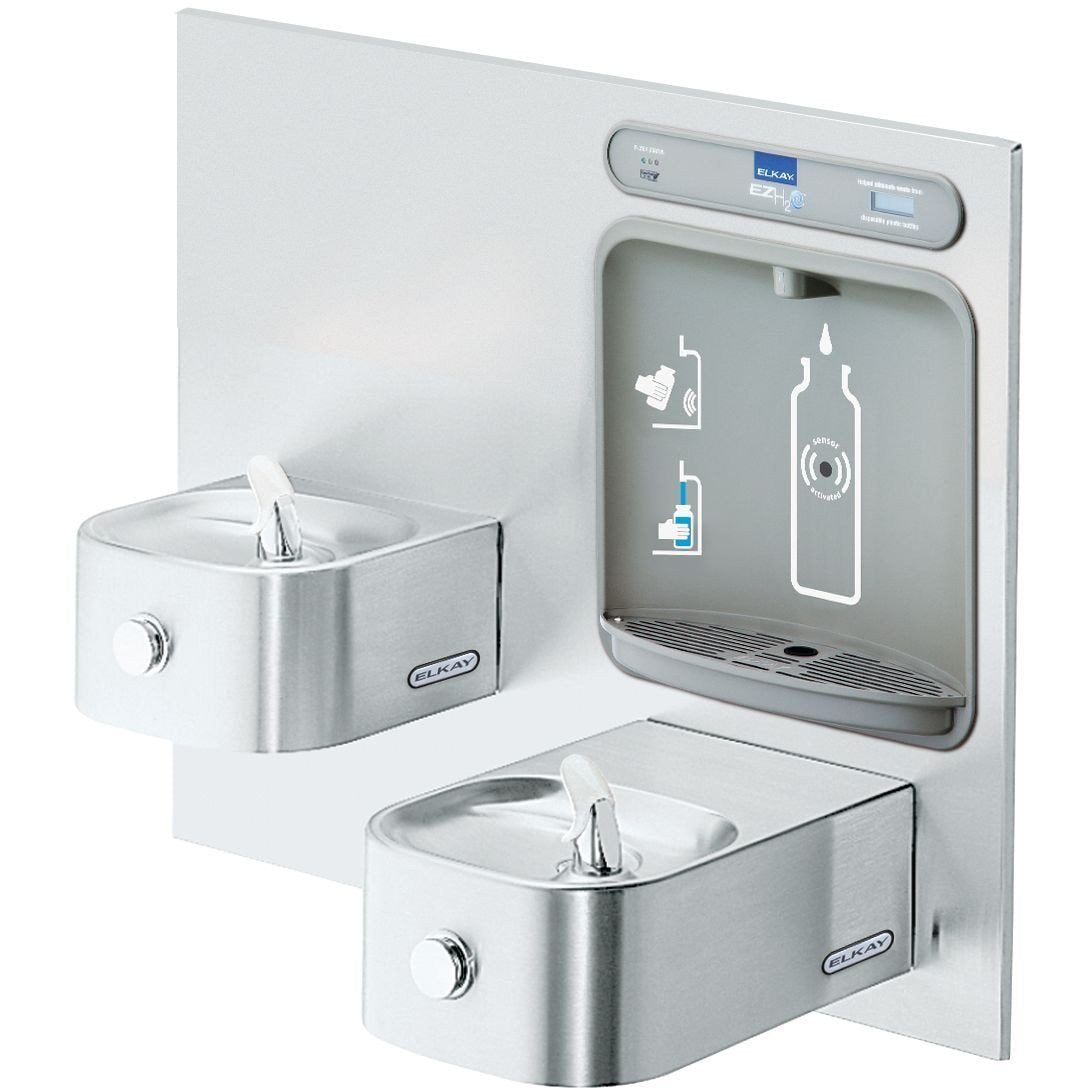

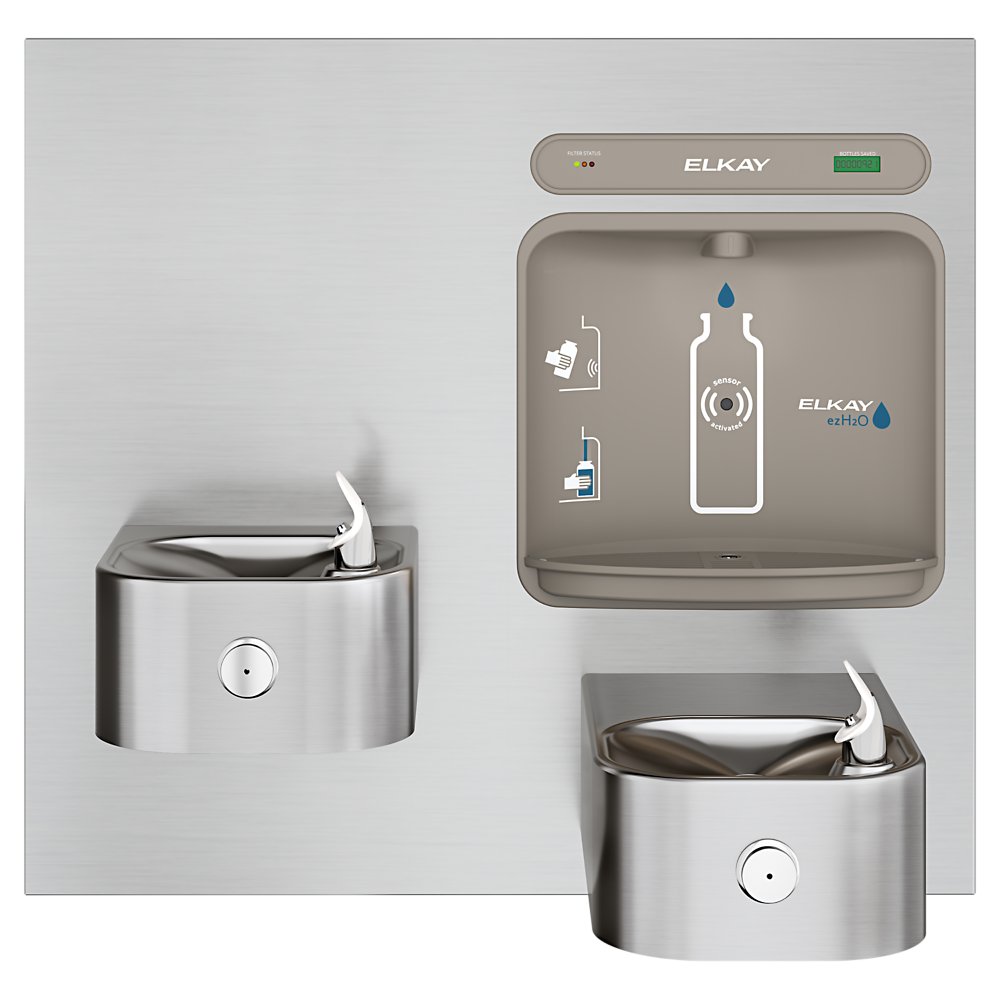

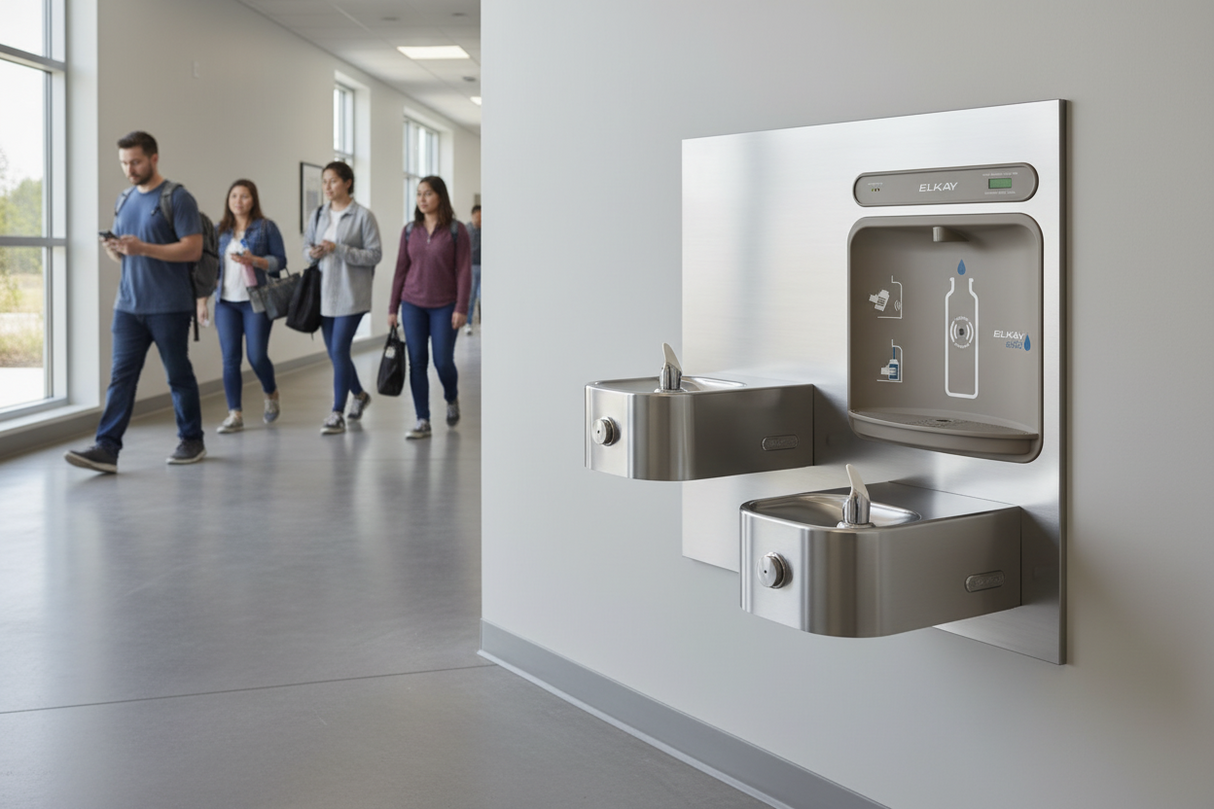

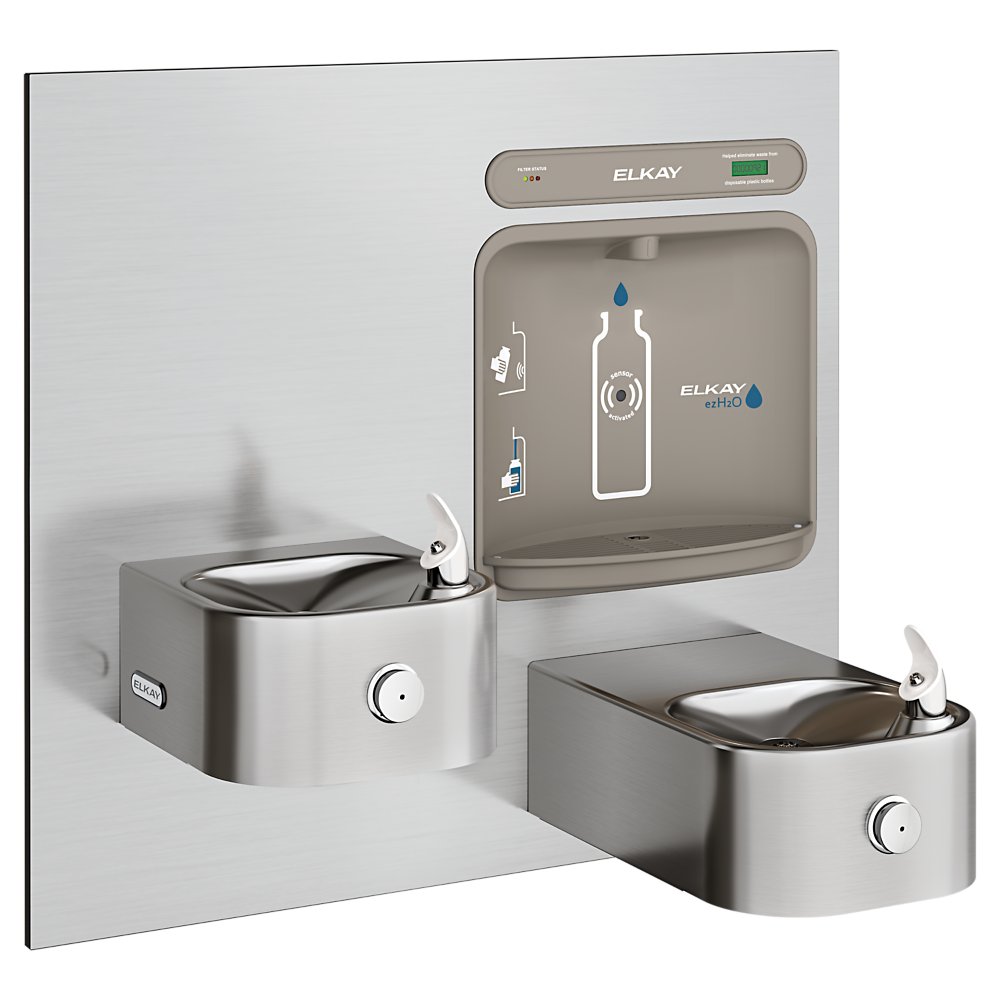

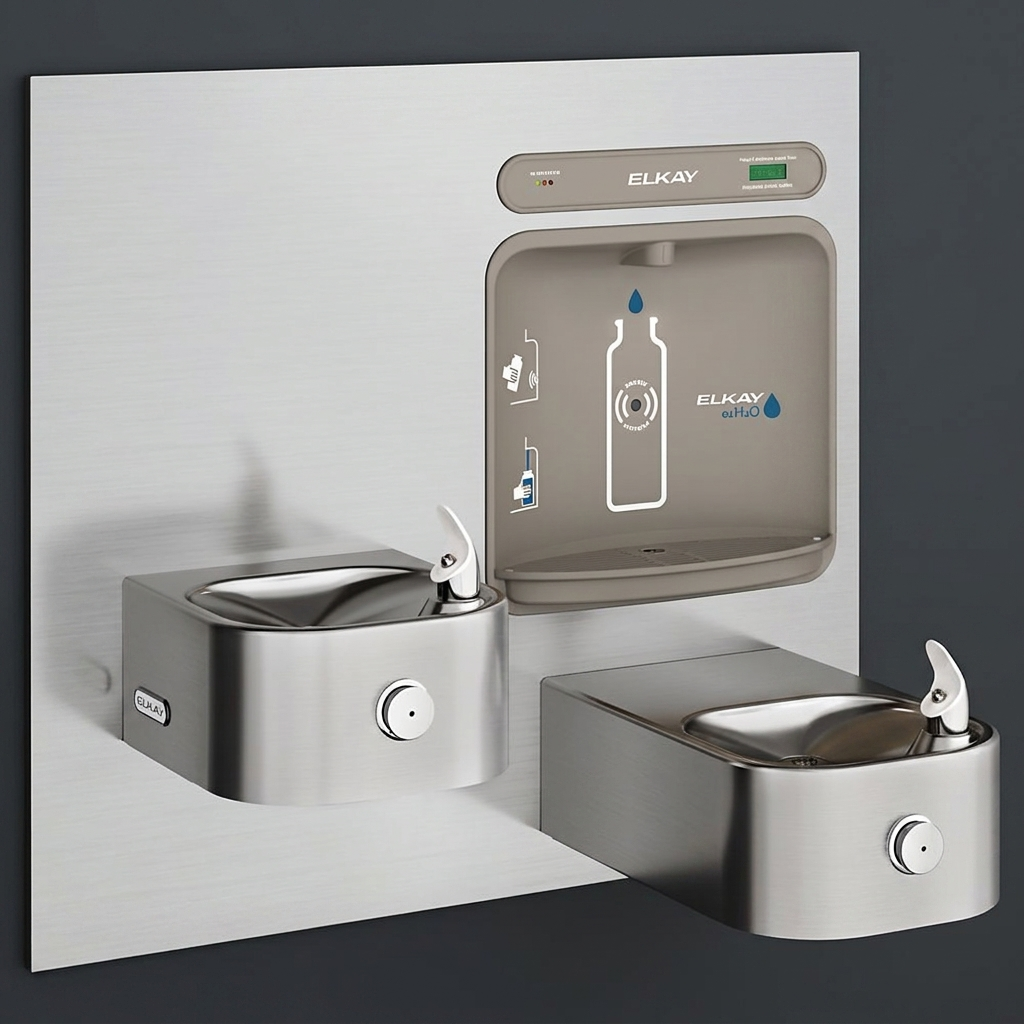

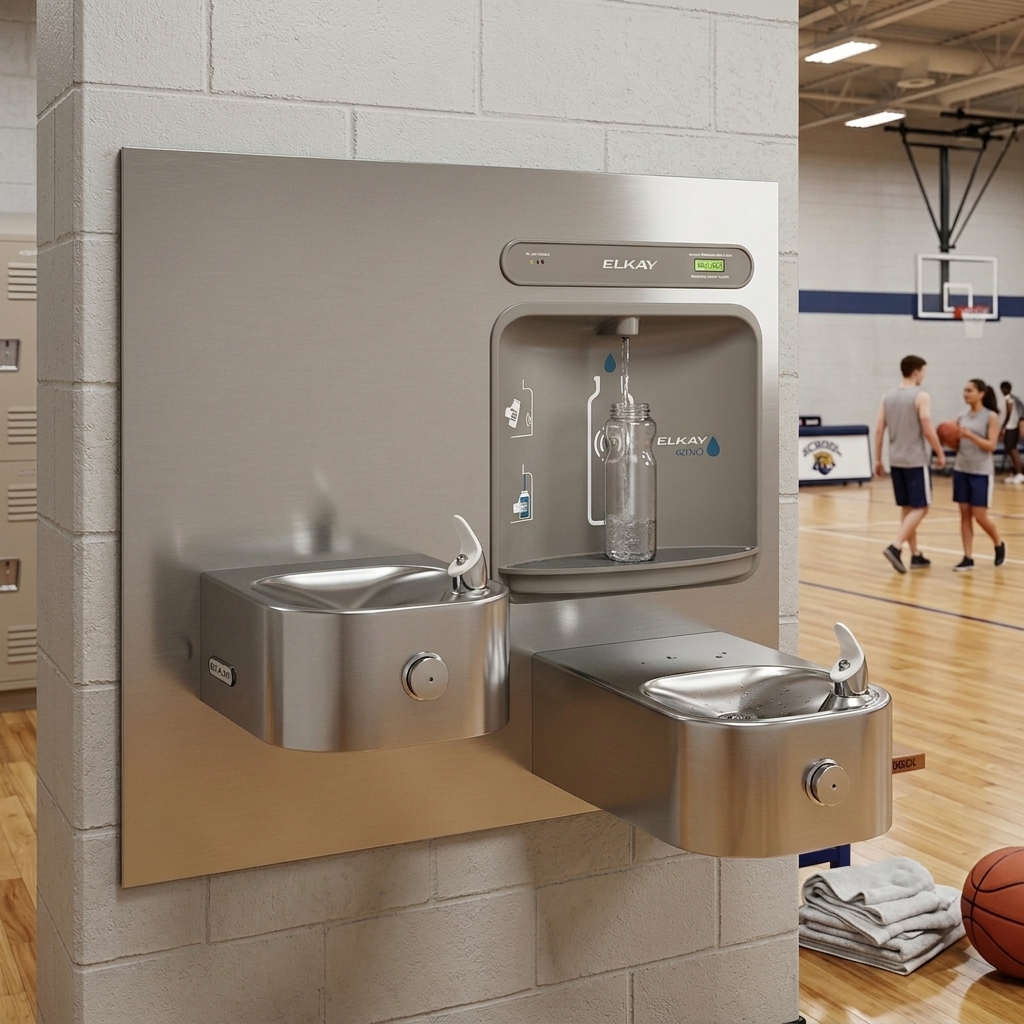

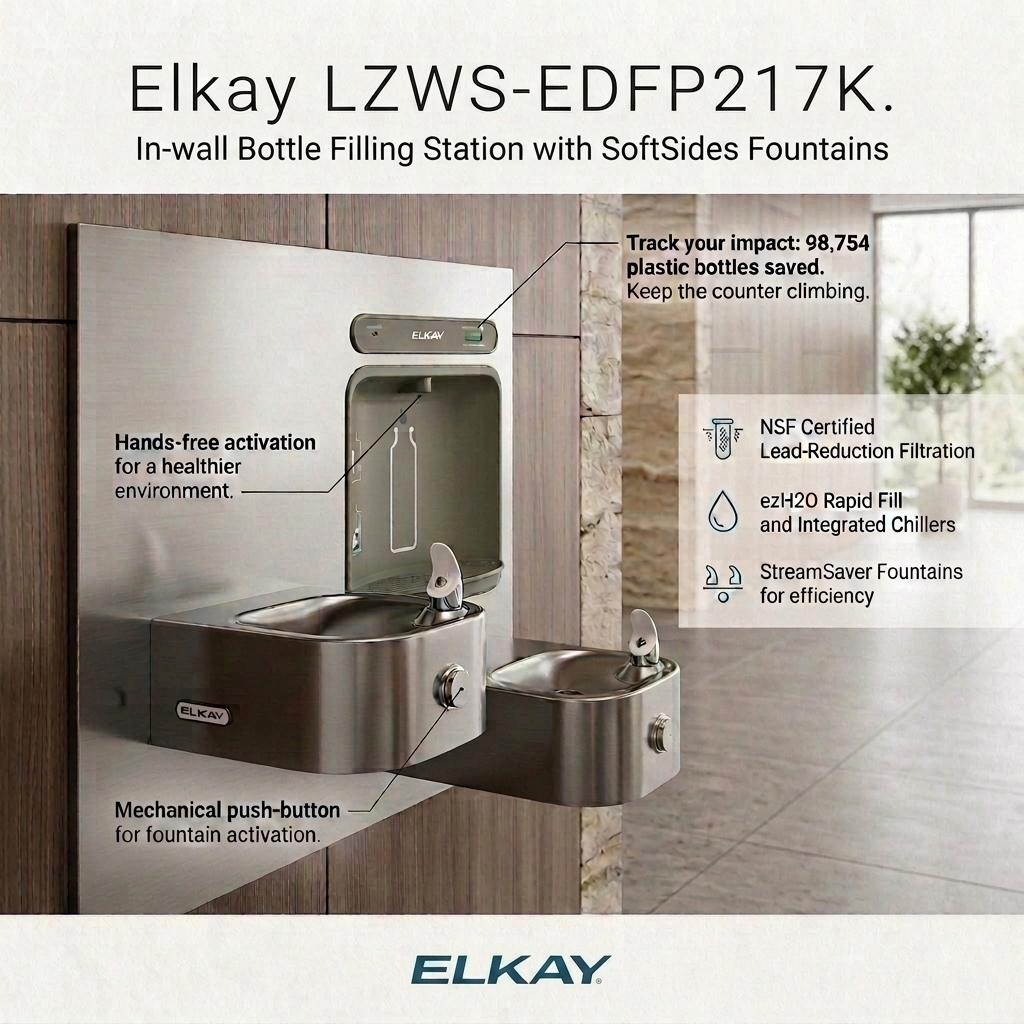

The Elkay LZWS-EDFP217K is an in-wall, filtered bottle filling station that includes a bottle filler and two 'soft-sides' drinking fountains. This Elkay in-wall bottle filler has a Stainless Steel color finish.

One of the most popular models, the Elkay LZWS-EDFP217K Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

  • ADA compliant design
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Quick fill rate of 1.5 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.
  • Filtered - 3000 gallon capacity WaterSentry® Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary

Elkay LZWS-EDFP217K Resources:

FILTERED?

Yes

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

BUBBLER OPTION

FlexiGuard Safety

MOUNTING DETAILS

Wall Mount (In-Wall)

CHILLING DETAILS

Not refrigerated

INSTALLATION LOCATION

INDOOR

NUMBER OF STATIONS

Two Stations (One bottle filler and two drinking fountains)

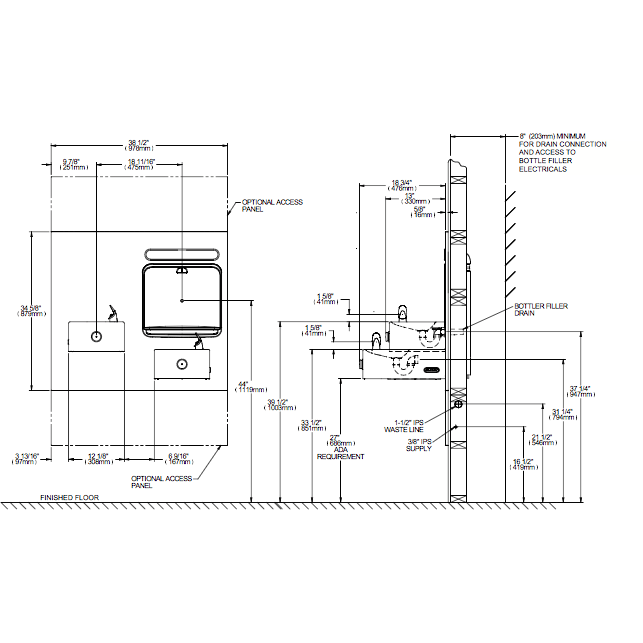

DIMENSIONS

L: 38-1/2"

W: 19-3/8"

H: 34-5/8"

SHIPPING WEIGHT

120 lbs

PRODUCT COMPLIANCE
  • ADA Compliant
  • UL 399
  • NSF 61
  • NSF 53
  • NSF 42
  • NSF 372 (lead free)
  • GreenSpec
  • CAN/CSA 22.2 120
  • Buy American Act
  • ASME A112.19.3/CSA B45.4

Elkay LZWS-EDFP217K Includes

  • Bottle Filler and fountains
  • Mounting frame

  • Filter kit

Warranty

Electrical Parts & Water System

Elkay LZWS-EDFP217K warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Elkay LZWS-EDFP217K requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay LZWS-EDFP217K MANUAL.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: How do I access the filter status and bottle counter button?

A: To access the program button, the lower panel of the unit must be must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.

*ASSEMBLED IN THE UNITED STATES.
