Elkay LBWDC00WHC | Liv Pro™ Filtered Water Dispenser | Aspen White

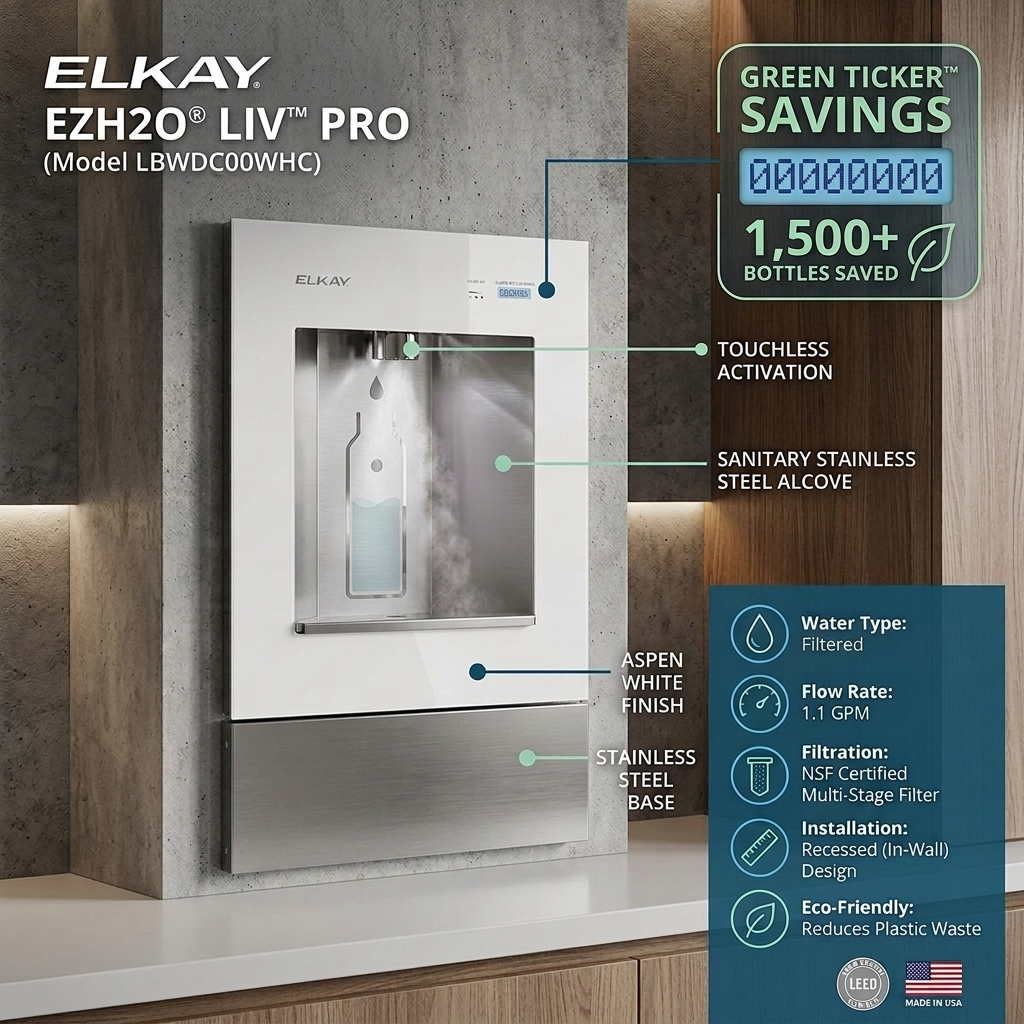

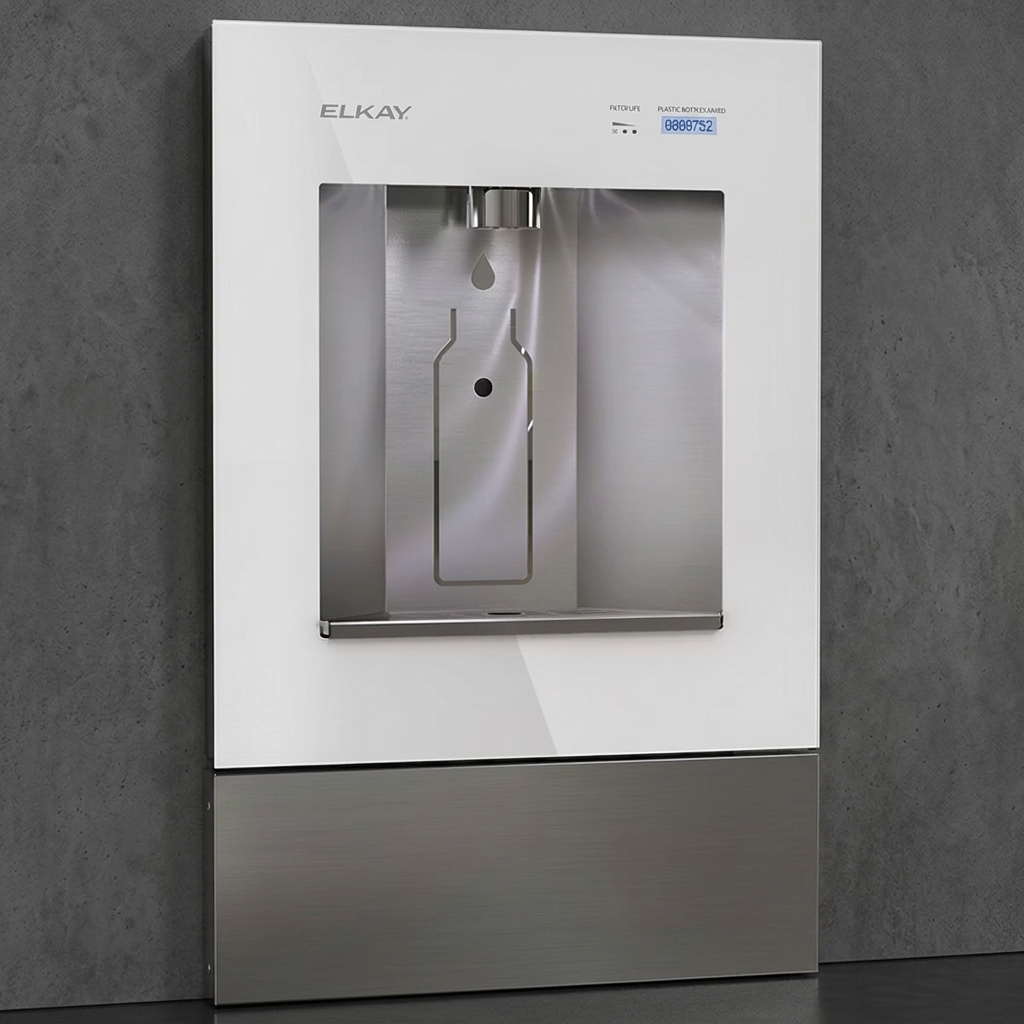

The Elkay LBWDC00WHC Liv Pro™ is a hands‑free commercial filtered bottle filling station in Aspen White. It delivers ambient filtered water with laminar flow, a Green Ticker™ sustainability display, and a 3,000‑gallon WaterSentry® filter for clean, reliable hydration in modern commercial spaces.
Key Specifications:
| Design | Wall‑mounted in‑wall bottle filling station with electronic sensor activation |
| Finish | Aspen White (also available in Midnight Black LBWDC00BKC) |
| Filtration | Includes 51300C WaterSentry® Filter, NSF/ANSI 42, 53, 372, and 401 certified; reduces lead, microplastics, cysts, particulates, chlorine taste & odor |
| Refrigeration | Non‑refrigerated; compatible with optional ER101Y Remote Chiller |
| Stations Served | 1 (bottle filler) |
Features & Benefits:
- Advanced Filtration: 3,000‑gallon WaterSentry® filter delivers cleaner, better‑tasting water.
- Hands‑Free Operation: Electronic sensor enables touchless bottle filling for hygienic use.
- Green Ticker™ Display: Tracks and shows the number of plastic bottles saved from landfill waste.
- Filter Status Indicator: LED monitor alerts when replacement is needed, with auto reset for easy maintenance.
- ADA Compliant: Meets accessibility standards when properly installed.
What's Included:
- LBWDC00WHC bottle filling station unit
- 51300C WaterSentry® 3,000‑gallon filter
- Stainless steel filter box
- Remote filter cable
- Installation manual
Comparison of Elkay Bottle Filling Stations:
| Feature | LBWDC00WHC | LZLMNSSM |
|---|---|---|
| Capacity | 3,000 gallons | 3,000 gallons |
| Best For | Commercial in‑wall installations with modern design | Surface‑mount installations in schools, gyms, and offices |
| Activation | Electronic sensor (hands‑free) | Mechanical push bar |
| Finish | Aspen White (also Midnight Black) | Stainless steel |
| Refrigeration | Non‑refrigerated; optional remote chiller | Non‑refrigerated |
| Compliance | NSF/ANSI 42, 53, 61, 372, 401; UL 399; ADA | NSF/ANSI 42, 53, 61, 372, 401; ADA |
How to Install the LBWDC00WHC:
- Prepare the wall cavity using recommended dimensions (14‑½" width x 28" height x 5‑⅛" depth).
- Shut off water supply and power before installation.
- Insert the dispenser unit into the wall opening and secure with screws to wall studs.
- Connect electrical wiring to a dedicated 15A GFCI breaker.
- Connect water supply line (40–105 psi) to the filter box or remote filter as required.
- Install optional accessories such as AP99 Access Panel or ER101Y Remote Chiller if needed.
- Flush the system for 3 minutes to remove carbon fines before use.
How to Maintain the LBWDC00WHC:
- Replace the filter every 3,000 gallons or 12 months using the 51300C WaterSentry® Filter.
- Monitor the LED filter status indicator for alerts on replacement timing.
- Clean the exterior surfaces regularly with non‑abrasive cleaners to maintain finish.
- Inspect connections periodically for leaks or wear.
- Test sensor activation to ensure hands‑free operation remains reliable.
FAQ
Q: Can the LBWDC00WHC Dispense Chilled Water?
A: The LBWDC00WHC is non‑refrigerated. It can be paired with the optional ER101Y Remote Chiller (10 GPH) to provide chilled water output. When installed with a remote chiller, the filter should also be installed remotely near the chiller.
Q: What Water Pressure Is Required?
A: The LBWDC00WHC operates on 40–105 psi supply line pressure. The optimum pressure is 60 psi. A dedicated 15A Hospital Grade GFCI breaker is recommended for electrical connection.
Q: What Comes in the Box?
A: The unit ships complete with the dispenser, stainless steel filter box, remote filter cable, and a 3,000‑gallon WaterSentry® filter — everything needed for installation.
Q: What Certifications Does the LBWDC00WHC Meet?
A: It is certified to NSF/ANSI 42, 53, 61, 372, and 401, UL 399, and CAN/CSA C22.2 No. 120. It also complies with ADA & ICC A117.1 accessibility requirements.
Q: How Is the Filter Monitored?
A: The unit includes a visual LED filter status indicator that alerts when replacement is needed. It also features automatic filter status reset for simplified maintenance.
Q: Are Accessories Available?
A: Yes. Elkay offers accessories such as the AP99 Access Panel for installation flexibility, and the optional ER101Y Remote Chiller for chilled water.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LBWDC00WHC (Aspen White) is part of the Liv Pro™ Series of filtered water dispensers. Designed for commercial use, they provide ambient filtered water with hands‑free sensor activation, Green Ticker™, and a sleek wall‑mount design.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier or support bracket
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz, single phase
- Maintain clearance for filter replacement and servicing
- Indoor installation only; not rated for outdoor use
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit is non‑refrigerated; optional remote chiller can be added if chilled water is required
- Stream height is factory set for 45–50 PSI; adjust if supply pressure varies
- Always depressurize system before servicing or replacing filter
- Use only genuine Elkay filters to maintain certification and performance
- Ensure ADA compliance by following proper installation height guidelines
Basic Installation Overview:
- Mount in‑wall carrier or bracket securely to wall
- Connect cold water supply line to inlet
- Connect drain line if applicable
- Wire electrical supply to 115V / 60Hz outlet
- Install filter cartridge into filter head and rotate clockwise until seated
- Turn on water supply and flush system for 5 minutes
- Test sensor activation and Green Ticker™ display for proper operation
For complete specifications and installation guidelines, download the official LBWDC00WHC Spec Sheet and the Liv Pro Installation & Maintenance Manual.
