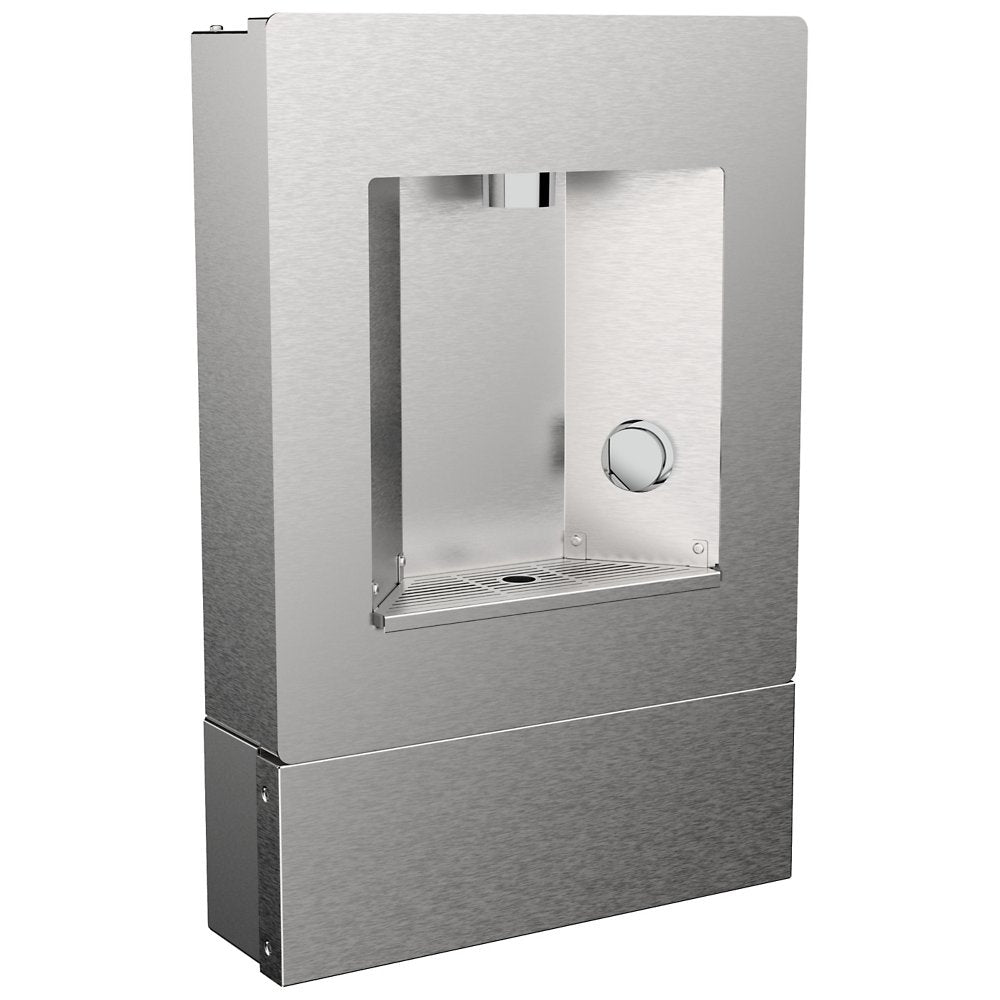

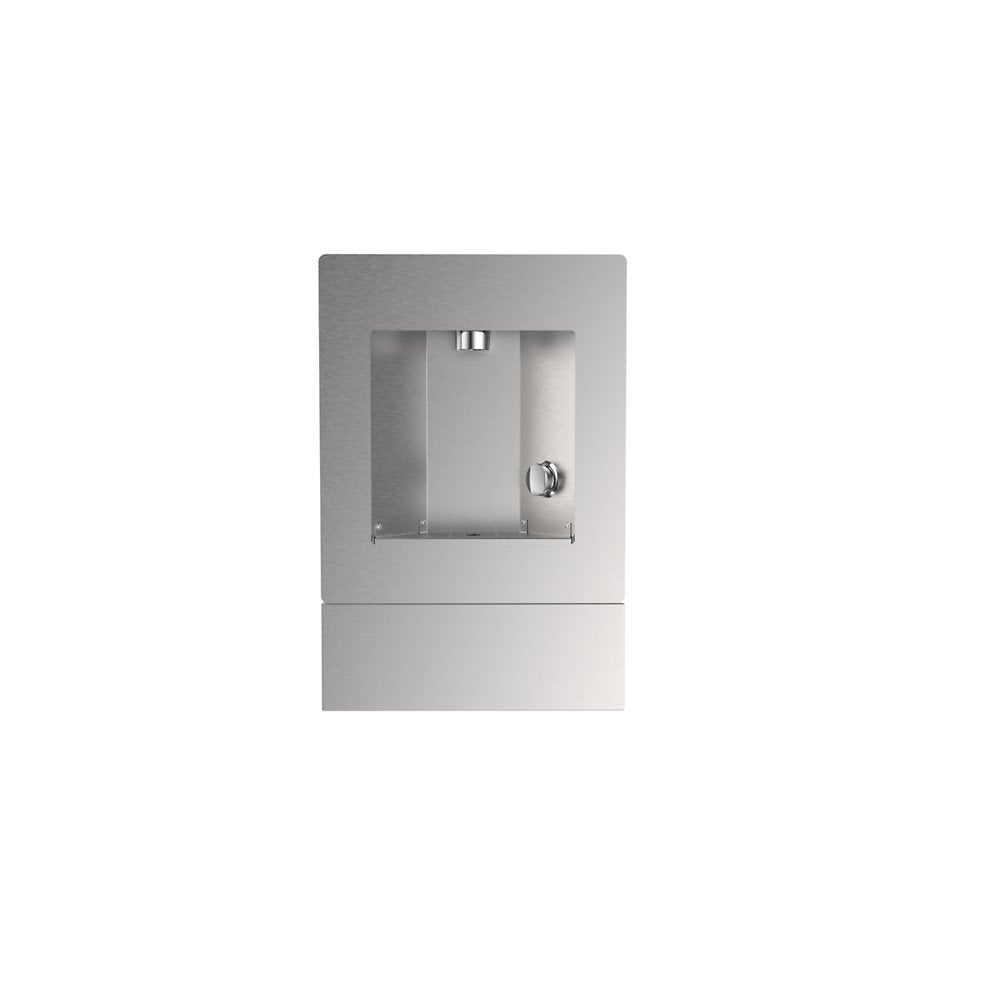

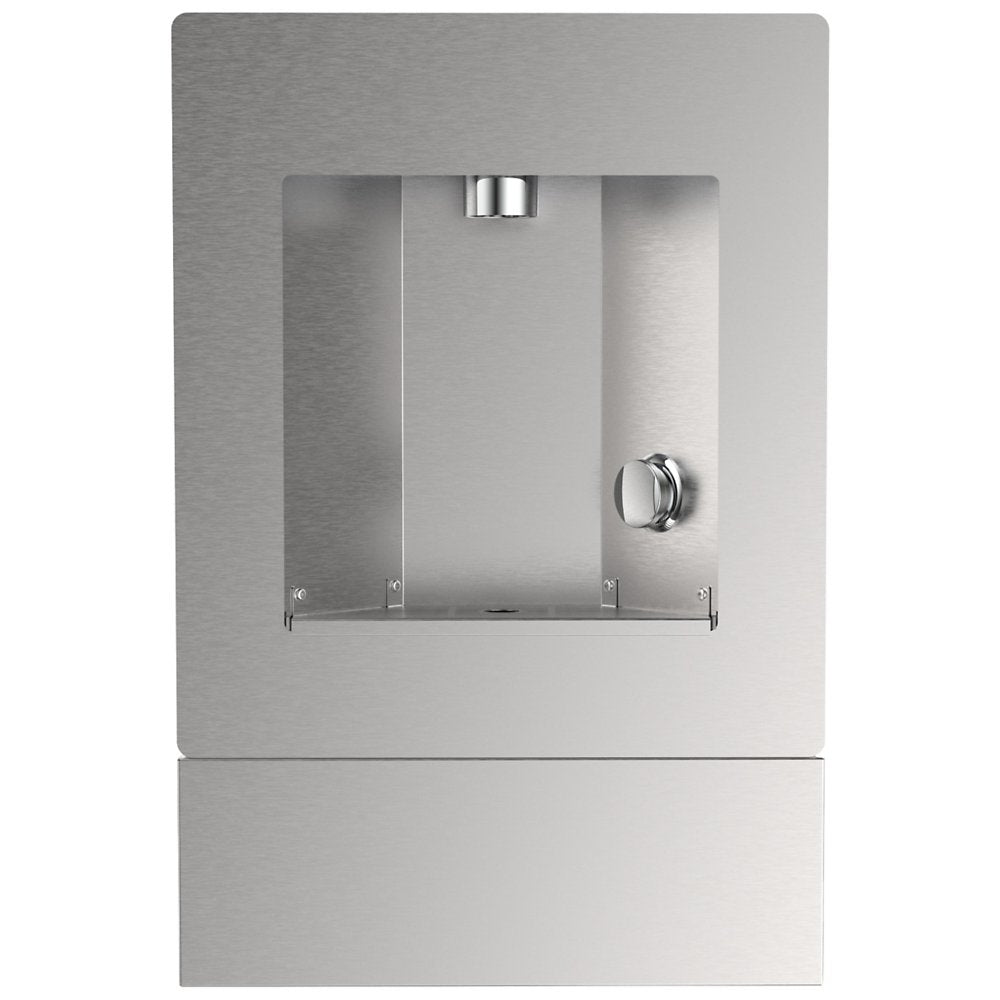

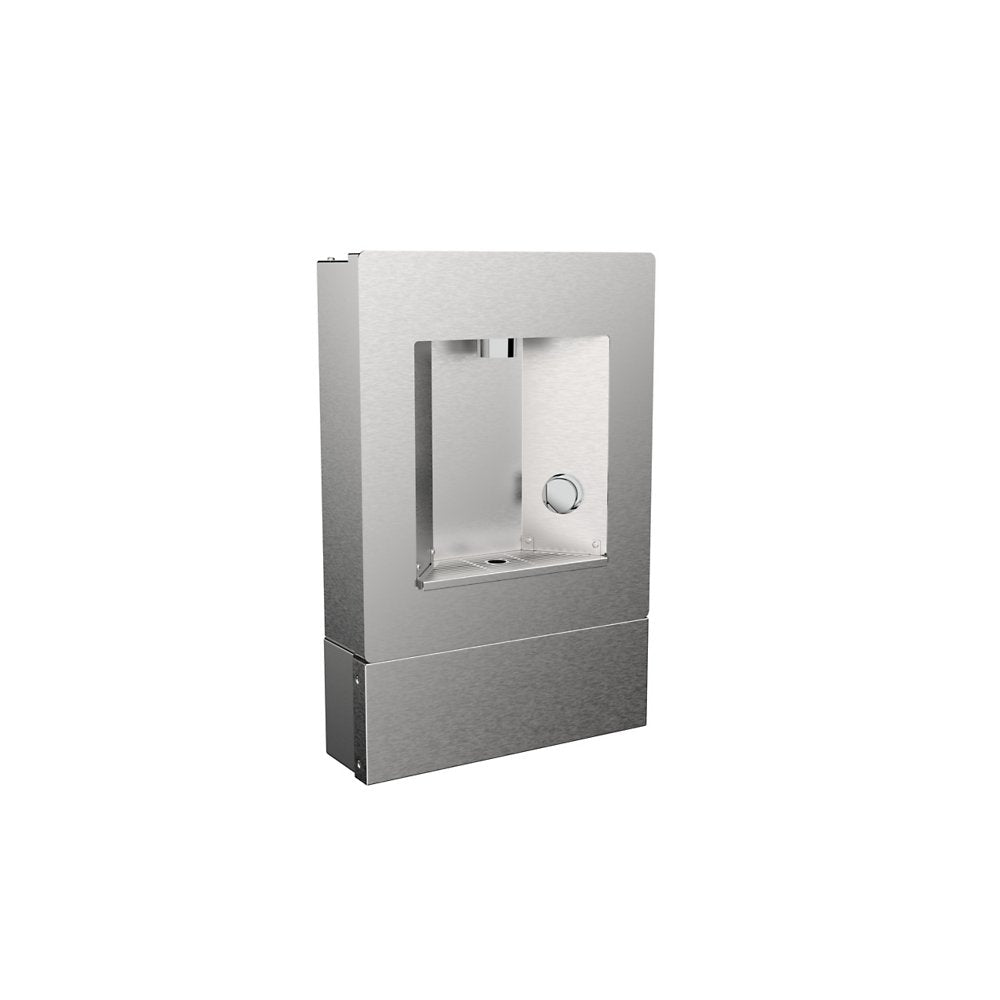

Elkay LZLMNSSM | ezH2O Surface Mount Mechanical Bottle Filling Station | Filtered, Non-Refrigerated, Stainless
Elkay LZLMNSSM | ezH2O Surface Mount Mechanical Bottle Filling Station | Filtered, Non-Refrigerated, Stainless is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
🚚✨ Free Shipping in the Continental U.S.
All Products. No Minimums.
Estimated Shipping Times:
Important Note on Delivery Times
All shipping estimates provided are approximate only. While we always strive to meet or exceed your delivery expectations, we cannot guarantee the exact delivery times listed.
For time-sensitive orders, please contact us directly so we can provide a more accurate lead time estimate based on your specific requirements.
Same Day Shipping
All in stock orders received before 3PM EST will ship the same day. Orders received after 3PM EST will ship the following business day.
Water Filters, Hand Dryers, & Indoor Bottle Fillers are our most popular in stock items.
Outdoor Tubular Drinking Fountains
Evergreen normally ships in 5-15 days. Black, Gray and Blue ship in 2-4 weeks.
Ice Machines
In stock units ship within 48 hours. Other units normally ship in 2-4 weeks.
Other
Orders that ship directly from a manufacturer normally have a firm shipping estimate but those dates are subject to change due to manufacturer production, inventory or shipping. We do our best to estimate ship dates but orders shipping directly from the manufacturer can have unexpected delays. We will confirm tracking information when orders ship directly from a manufacturer but may not have updates or estimates beyond the original estimate. Once your order is placed with the manufacturer, it may not be able to be cancelled even if it hasn't shipped yet.
Please contact support@bottlefillingstations.com to confirm delivery time for a specific product or quantity. Or to inquire about an existing order.
Special Case Shipping Rates
Please note that shipping rates are subject to change at any time. We reserve the right to charge an additional fee in addition to the regularly advertised shipping fee for shipping to remote areas not easily accessible by typical freight carrier means (i.e. islands only accessible by ferry). If your order falls into this category, you will be notified upon receipt of your order, and have the option to complete the purchase with additional fee or to cancel the order. Please note, these instances are very rare, as most locations are reachable by regular freight. If you have any questions, please contact us!
Key Terms & Conditions
Exceptions may apply to islands and other remote territories.
All orders shipped by the carrier of our choice.
Elkay LZLMNSSM | ezH2O Surface Mount Mechanical Bottle Filling Stat...
The Elkay LZLMNSSM ezH2O® Surface Mount Mechanical Bottle Filling Station is a filtered, non-refrigerated stainless steel unit. Designed for both indoor and outdoor applications, it combines vandal-resistant construction with laminar flow, mechanical activation, and advanced filtration, making it ideal for schools, parks, and public facilities.
Key Specifications:
- Design: Surface mount mechanical bottle filler with vandal-resistant features
- Finish: Stainless steel
- Filtration: Standard WaterSentry® Plus filter (Elkay 51300C), NSF/ANSI 42, 53, 372 & 401 certified, 3,000-Gal. capacity. Filters Lead, Microplastics, Chlorine, & more.
- Refrigeration: Non-refrigerated (ambient water)
- Stations Served: 1 (single station)
Features & Benefits:
- Filtered Water: Certified to NSF/ANSI 42, 53, 372, and 401 standards to reduce lead, microplastics, cysts, chlorine taste and odor, and particulates.
- Laminar Flow: Provides clean, splash-free fills for improved hygiene.
- Mechanical Activation: Simple push-button operation ensures reliability without electrical power.
- Vandal Resistant: Heavy-duty stainless steel construction designed for high-traffic and outdoor environments.
- Outdoor Ready: Can be installed outdoors when properly winterized and protected from extreme climates.
FAQ
Q: Is the LZLMNSSM ADA compliant?
A: Yes. When installed at the proper mounting height, the design meets ADA & ICC A117.1 accessibility standards.
Q: Which filter is included and what replacements are available?
A: The unit ships with a WaterSentry® Plus filter certified to NSF/ANSI 42, 53, 372, and 401. Replacement cartridges are available: 51300C WaterSentry® Replacement Filter.
Q: Can this unit be installed outdoors?
A: Yes. Non-refrigerated filtered models can be installed outdoors when adequately winterized and protected from extreme heat or cold.
Q: What contaminants does the filter reduce?
A: The filter reduces lead, microplastics, cysts, chlorine taste and odor, and Class 1 particulates, ensuring safe and clean drinking water.
Q: How often should the filter be replaced?
A: Replace every 3,000 gallons or 1 year, whichever comes first, to maintain optimal performance.
Detailed Features & Benefits
Advanced Filtration: Certified to NSF/ANSI 42, 53, 372, and 401 standards, the WaterSentry® Plus filter reduces lead, microplastics, cysts, chlorine taste, and odor. With a 3,000-gallon capacity, it ensures safe, clean drinking water for extended use. Replacement cartridges are available: 51300C Replacement Filter.
Durability & Safety: Stainless steel construction and vandal-resistant design provide long-lasting performance in demanding environments. Laminar flow technology ensures splash-free fills, while mechanical activation eliminates reliance on electrical components.
Outdoor Flexibility: Suitable for outdoor installation when properly winterized and protected, making it ideal for parks, campuses, and recreational facilities.
Accessibility & Compliance: ADA-compliant design ensures usability for all individuals. Certified to NSF/ANSI standards and GreenSpec®, the unit meets rigorous safety and environmental requirements.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

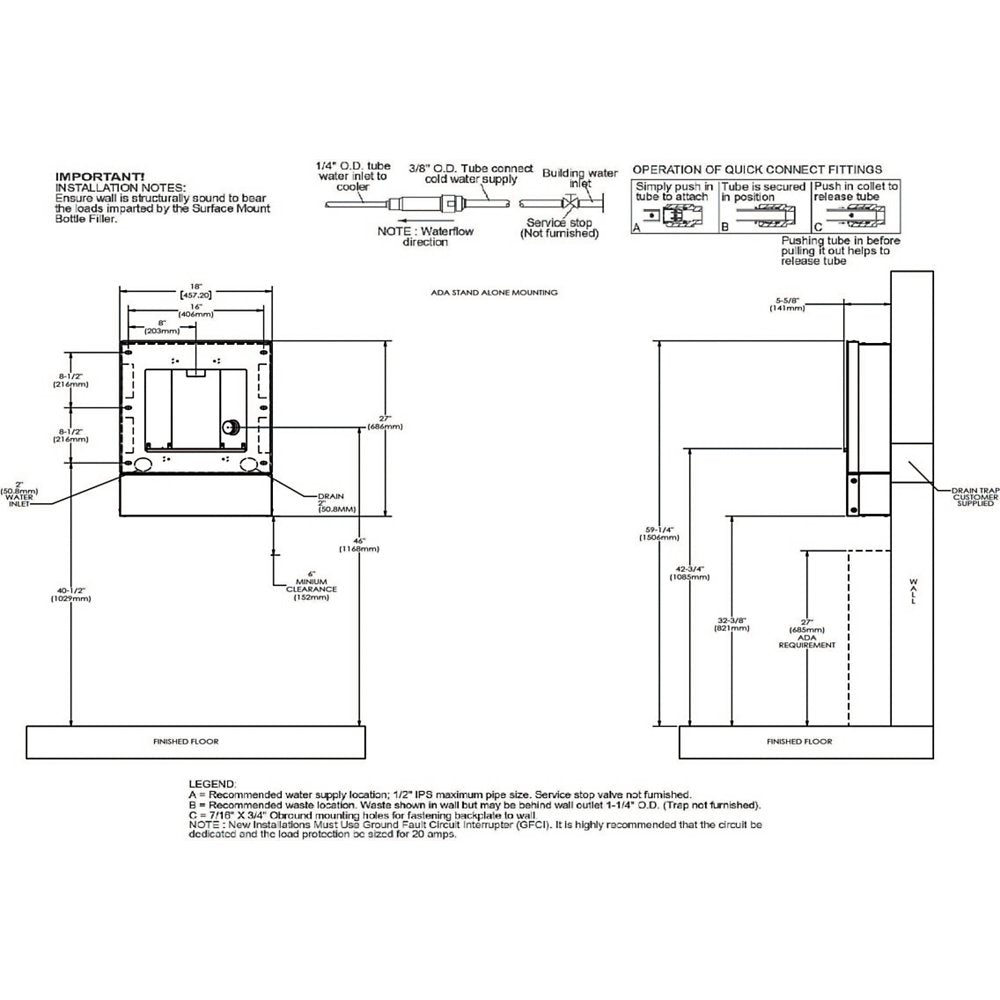

INSTALLATION.
- During a plumbing circuit inspection, be aware that the line might be grounded at a location away from the installation site, which could be outside the building or the area where the unit is being installed.
- It is essential to consult local plumbing codes before beginning installation.
MAINTENANCE
- Clean the entire unit, including the basin and bottle filler.
- Clean the condenser and louvers if the unit is refrigerated.
- Replace the filter if the unit is equipped with one.
- If the bubbler orifice is scaly, clean it carefully to ensure proper water flow.
- Inspect the height of the bubbler stream and adjust if needed. This task should be performed after changing the filter and cleaning the orifice.
- Ensure the refrigeration system is cycling correctly by verifying that both the compressor and the fan activate and deactivate as intended.
- Testing the activation of the bottle filler is essential to ensure it responds promptly and accurately when a bottle is placed for filling.
- Testing the 20-second timeout feature of the bottle filler is essential.
- Ensure that the water flow from the bottle filler is laminar, and clean, repair, or replace the nozzle as needed.
