Elkay ER101Y | 10 GPH Remote Chiller for Non-Refrigerated Drinking ...

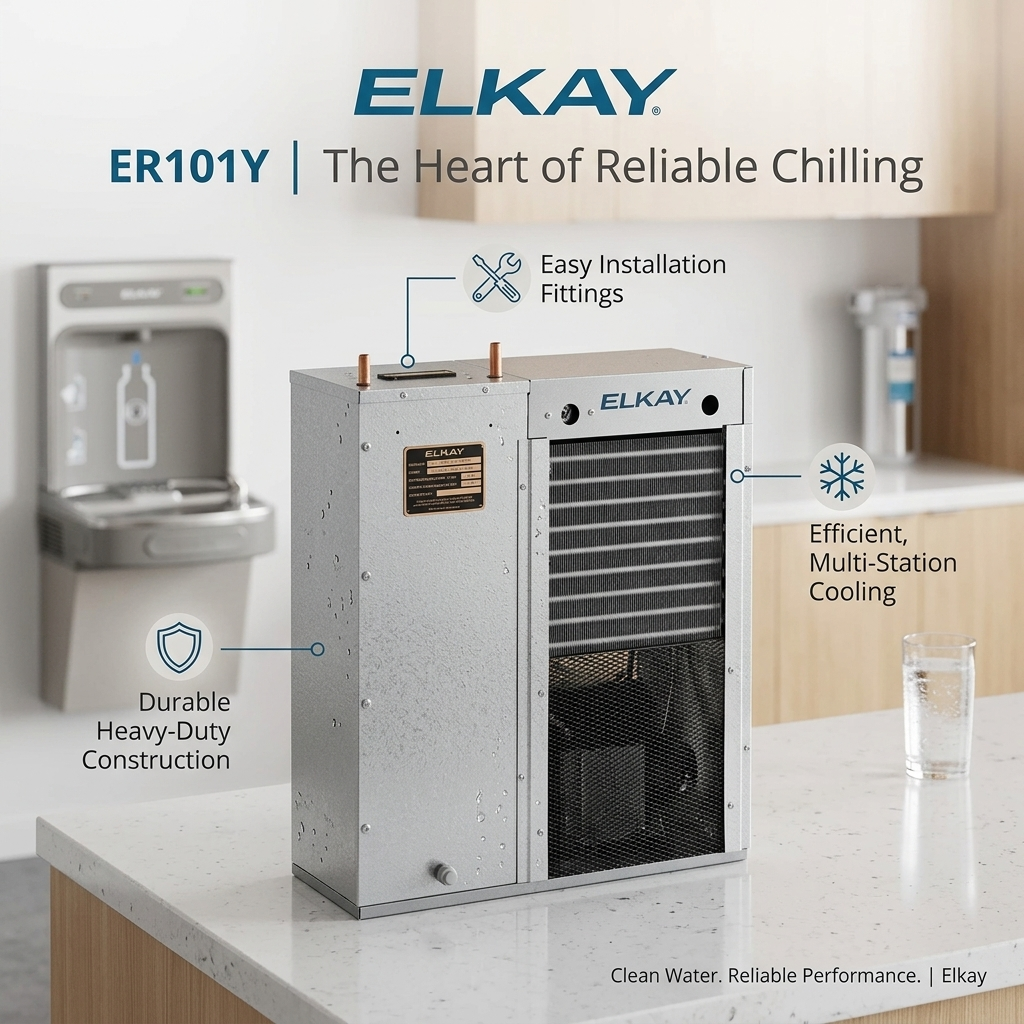

The Elkay ER101Y is a non‑filtered remote water chiller designed to convert non‑refrigerated Elkay drinking fountains and bottle filling stations into refrigerated coolers. Delivering up to 10 gallons per hour of chilled drinking water, it is compact and efficient, making it ideal for commercial installations that require reliable cooling capacity for multiple stations.
Key Specifications:
- Finish: Galvanized steel cabinet
- Power: 115V / 60Hz, single phase
- Chilling Capacity: 10.0 GPH at 50°F drinking water (based on 80°F inlet, 90°F ambient)
- Refrigeration: Hermetically‑sealed compressor, R‑134a refrigerant, fan‑cooled condenser
- Stations Served: Up to 2 remote outlets (within 15 feet recommended)
Features & Benefits:
- High Capacity Cooling: Provides 10 gallons per hour of chilled water for demanding applications
- Durable Construction: Rust‑resistant galvanized steel cabinet for long service life
- Efficient Cooling System: Copper tube/aluminum fin condenser with lifetime‑lubricated fan motor
- Compact Design: Installs under fountains or in service areas with minimal footprint
- Certified Compliance: UL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 61 & 372 (lead‑free)
What's Included:
- Elkay ER101Y Remote Chiller Unit
- Installation instructions (PDF)
- Warranty documentation
FAQ
Q: What Applications Are Best Suited for the ER101Y?
A: The ER101Y is ideal for commercial installations requiring chilled water for up to two stations, such as bottle filling stations, drinking fountains, or service areas.
Q: What Is the Recommended Operating Pressure?
A: The ER101Y operates best between 40–105 psi supply water pressure, ensuring consistent chilled water output.
Q: How Much Clearance Is Required for Installation?
A: Allow at least 6" clearance in front, 3" at the rear, and 1" on each side for proper ventilation. If installed in an enclosure, maintain these clearances for efficient cooling.
Q: What Accessories Are Available for the ER101Y?
A: Optional accessories include the EG3 louvered grill, PM3 on‑wall chiller shelf, and Elkay universal filtration kits (EWF172 and EWF3000).
Q: What Certifications Does the ER101Y Meet?
A: The ER101Y is certified to UL 399, CAN/CSA C22.2 No. 120, and NSF/ANSI 61 & 372 for lead‑free compliance.
Q: How Is the Water Temperature Controlled?
A: The ER101Y includes an enclosed adjustable thermostat, factory preset for 50°F ± 5°F chilled water, with adjustments available for altitude requirements.
Q: Which Drinking Fountains Can Use the ER101Y Remote Chiller?

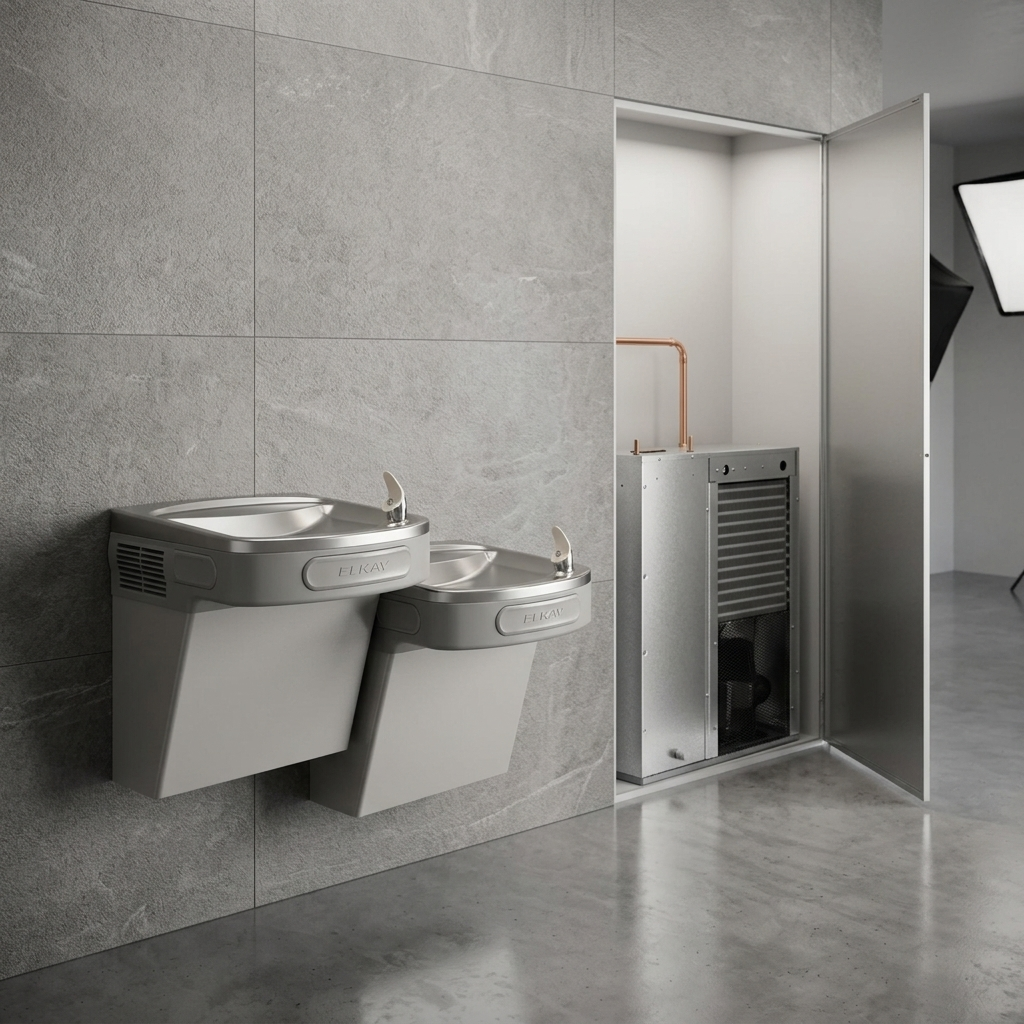

A: The ER101Y is designed for Elkay non‑refrigerated fountains and bottle fillers. Examples include the EZSTLDDLC and bi‑level soft sides models such as the EDFP217FPK. Its large tank capacity makes it especially effective for bi‑level units serving multiple users.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Position the Elkay ER101Y remote chiller in a permanent indoor location; do not install outdoors or in humid environments.
- Allow proper ventilation: maintain at least 6" clearance at the front, 1" at each side, and 3" at the rear above the unit. If recessed, use wall grille EG‑1 or EG‑2 and ensure 6" clearance beyond grille front.
- Level the unit on a firm foundation; handle carefully to avoid damage to exterior panels.
- Shut off water supply before installation; flush all supply lines to remove debris.

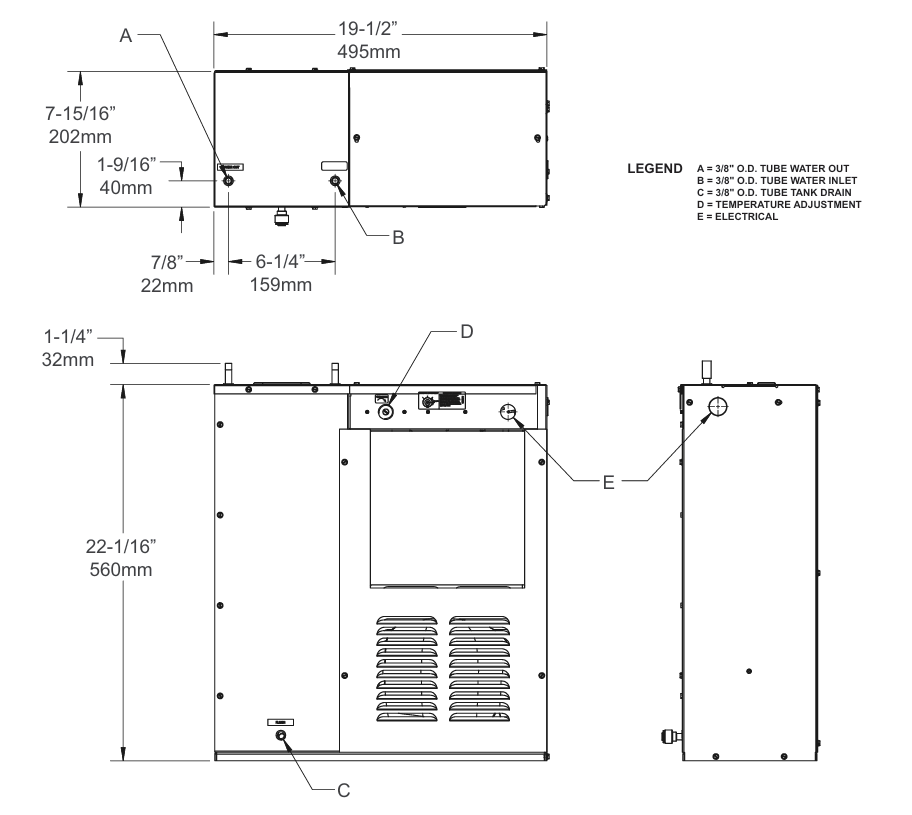

- Connect potable water supply to the 3/8" O.D. inlet tubing using a shut‑off valve and union connection; install strainer if required.
- Connect drain line to the 3/8" O.D. tank drain; maintain a 2" vertical air gap to the floor drain and slope horizontal runs 1/4" per foot.

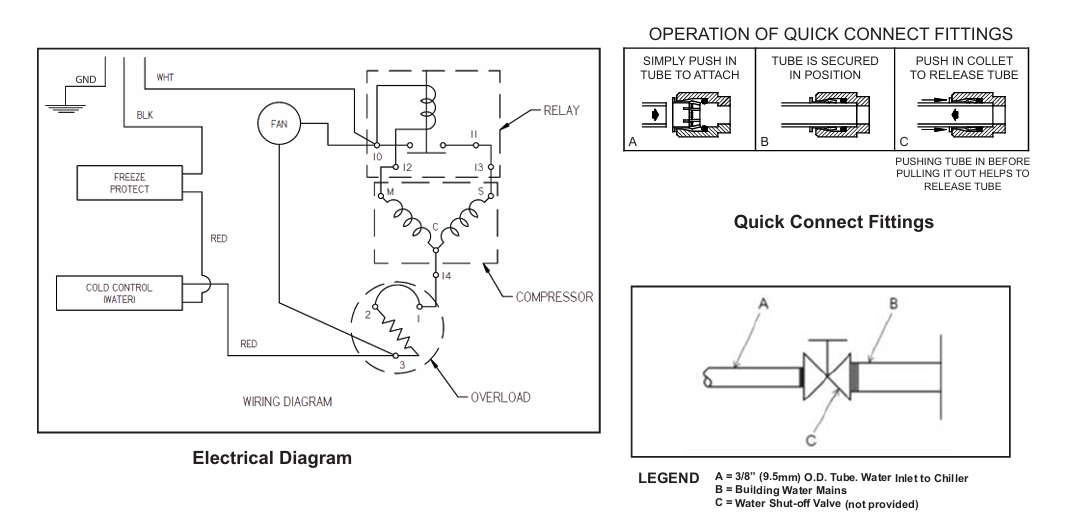

- Electrical connection: remove top cover, connect ground wire to ground screw, connect black wire to HOT and white wire to neutral. Use proper conduit connector and reinstall cover securely.
- Turn on water supply and purge air from lines by operating connected fixture until steady flow is achieved.
- Restore electrical supply and verify operation; factory set temperature is 50°F ± 5°F, adjustable via cold control screw.
- For detailed steps, refer to the Elkay ER101Y installation manual or contact a licensed plumber/electrician.
