Elkay  |  SKU: LZWSSM

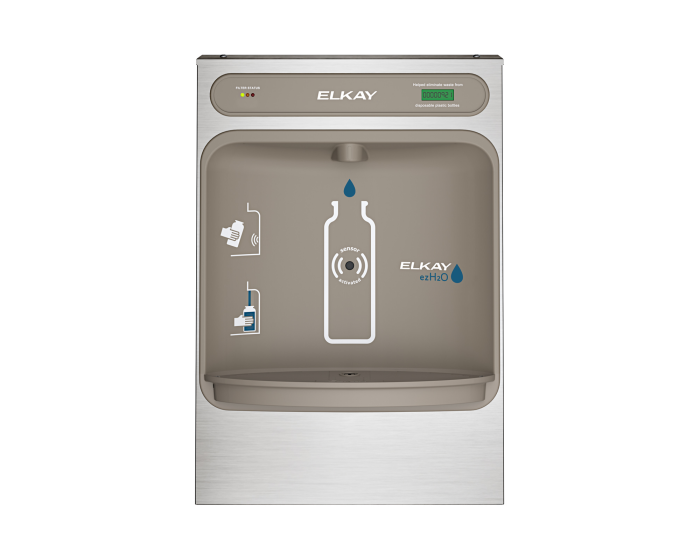

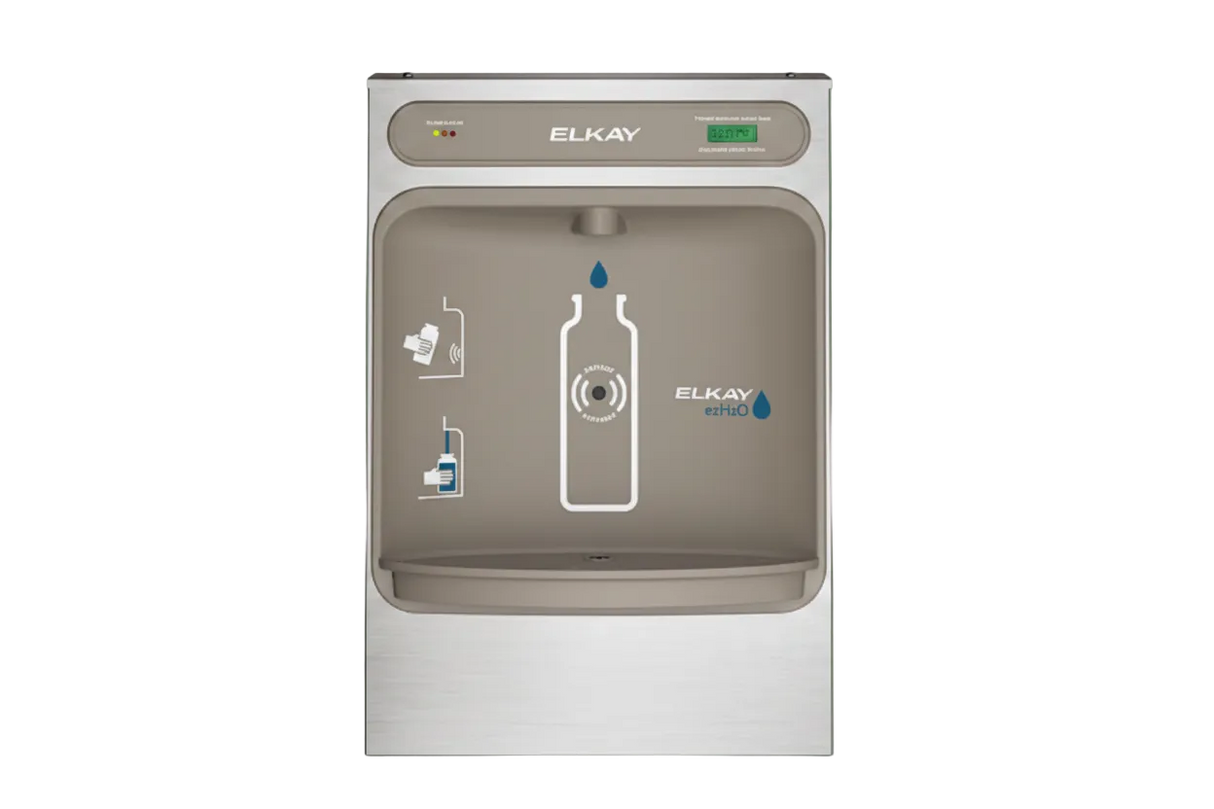

Elkay LZWSSM | Surface Mount Bottle Filler | Filtered, Non-refrigerated, Hands-free

$ 1,064.40
Shipping calculated at checkout.


Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:

The Elkay LZWSSM is a filtered sensor-activated Surface-mount bottle filler with a stainless steel color finish. Ideal for setups with limited wall depth, this Elkay surface-mount bottle filler makes drinking water more practical, safe, and appealing than ever before. See also our Elkay LMASMB bottle filler.

Being a ‘hands-free’ unit, the Elkay LZWSSM stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses.

  • Fully Automatic - Touchless, sensor-activated
  • ADA compliant design
  • Sanitary bottle fill created from recessed spout.
  • Filtered with 3000 Gallon WaterSentry filtration with LED that shows when replacement is necessary.
  • Green Ticker™ tracks the number of plastic bottles saved from waste.

Elkay LZWSSM Spec Sheet HERE

Elkay LZWSSM Installation manual HERE



You may also be interested in Elkay's LIV built-in bottle fillers!

FILTERED?

YES

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

BUBBLER OPTION

None

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

None

Elkay LZWSSM

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

No fountain (bottle filler only)

DIMENSIONS

L: 17-15/16"

W: 8-3/16"

H: 25-7/16"

SHIPPING WEIGHT

35 lbs

Elkay LZWSSM

PRODUCT COMPLIANCE

  • ADA Compliant
  • NSF 61
  • NSF 372, lead free

Elkay LZWSSM Includes

  • Bottle Filler
  • Filter

Warranty

Electrical Parts & Water System

Elkay LZWSSM warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Elkay LZWSSM requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay LZWSSM MANUAL.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: Does the Surface Mount Bottle Filler come with a chiller?

A: No. However, this system can utilize an existing or new remote chiller installed within 15 ft. Be sure to verify chiller’s GPH capacity.

Q: Does the Surface Mount Bottle Filling Station include drainage?

A: Yes, the Surface Mount comes with a drain system to eliminate standing water.

Q: Can someone without a bottle drink from the Surface Mount?

A: Unlike Water Bottle Filling Stations that contain a bubbler, like the LZS8WSLP, Surface Mount bottle fillers are only intended for users with reusable bottles, cups, or other personal liquid containers.



*MADE IN THE UNITED STATES.

Experience the benefits of the very popular Elkay LZWSSM Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
