Elkay LBWDM0SSBC | Liv EZ, Filtered Water Dispenser for Home | Batt...
The Elkay Liv EZT LBWDM0SSBC is a built‑in filtered water dispenser in Steel Gray. It delivers clean, sustainable hydration at home with mechanical activation and NSF‑certified filtration.
Key Specifications:
- Design: Built‑in, mechanically activated bottle filler with Green Ticker™ and laminar flow.

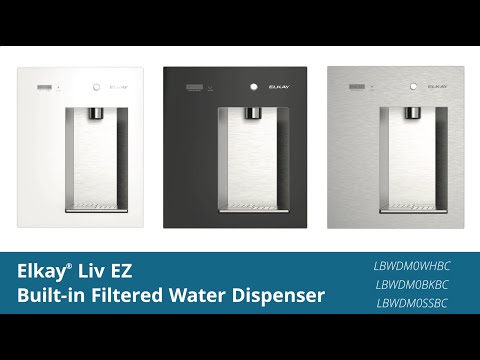

- Finish: Steel Gray (GRY). Also available in Aspen White and Midnight Black.
- Filtration: Equipped with the WaterSentry® 51300C filter (3,000‑gal. capacity) and the WaterSentry® 71300C PFAS filter (2,250‑gal. capacity). Both NSF/ANSI 42, 53, 372 & 401 certified.
- Refrigeration: Non‑refrigerated (ambient water). Compatible with the optional ERS11Y remote chiller or choose the factory‑chilled LBWDM06SSBC model.
- Stations Served: 1
Features & Benefits:
- Built‑in design fits seamlessly into wall cavities for a sleek, space‑saving installation.
- Battery‑powered operation (3 AA batteries) ensures water supply even during service disruptions.
- Green Ticker™ displays number of disposable plastic bottles saved.
- Laminar flow provides clean, splash‑free filling.
What's Included:
- Liv EZT LBWDM0SSBC water dispenser
- WaterSentry® 51300C filter
- WaterSentry® 71300C PFAS filter
- (3) AA batteries
- (4) Phillips head screws
FAQ
Q: How often should I replace the filters?
A: Replace the 51300C filter every 12 months or 3,000 gallons, and the 71300C PFAS filter every 12 months or 2,250 gallons.
Q: Can this dispenser provide chilled water?
A: Yes, when paired with the optional ERS11Y remote chiller or by selecting the LBWDM06SSBC chilled dispenser.
Q: What accessories are available?
A: Replacement filters (51300C and 71300C), remote chiller ERS11Y, and replacement glass panels in multiple finishes.
Q: Is the unit ADA compliant?
A: Yes, when installed at the proper push button height (48" from floor).
Q: How is the unit powered?
A: Operates on 3 AA batteries, lasting up to one year.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
To install your Elkay LIV EZ Built-in Filtered Water Dispenser, ensure you have a water line available. A qualified plumber should perform the installation if you're unsure about making these connections.
- Cut a wall opening measuring 19-1/2"H x 14-1/2"W at approximately 59-2/5" from the floor.
- Verify the wall cavity depth is at least 3-1/2" (89 mm) to accommodate the unit.
- Route the 3/8" water line through the opening at the base of the dispenser.
- Level the unit and secure it to wall studs using 4 screws (not included).
- Install the 3 AA batteries in the battery compartment.
- Insert the filter into the filter head and turn clockwise to lock in place.
- Connect the water line to the shutoff valve at the filter's inlet.
- Open the water supply and check for leaks.
- Flush the system by dispensing at least one gallon of water before regular use.
- Attach the glass front cover using the included Phillips head screws.
Maintenance
To keep your Elkay LIV EZ in optimal condition:
- Replace the filter and batteries annually.
- Monitor the filter status light - pulsing red indicates 91.6% capacity used, solid red means immediate replacement needed.
- Remove the front panel screws when replacing the filter.
- Turn off the water supply before filter replacement.
- Rotate old filter counterclockwise to remove it.
- Install new filter by turning clockwise until locked.
- Turn water supply back on after filter replacement.
- Press the reset button above the battery compartment to reset the filter light.
- Maintain water pressure between 40-105 psi (60 psi optimal).
- Regularly check for leaks around connections.
- Clean exterior with mild detergent and soft cloth as needed.
Refer to the product manual for detailed installation and maintenance information.
