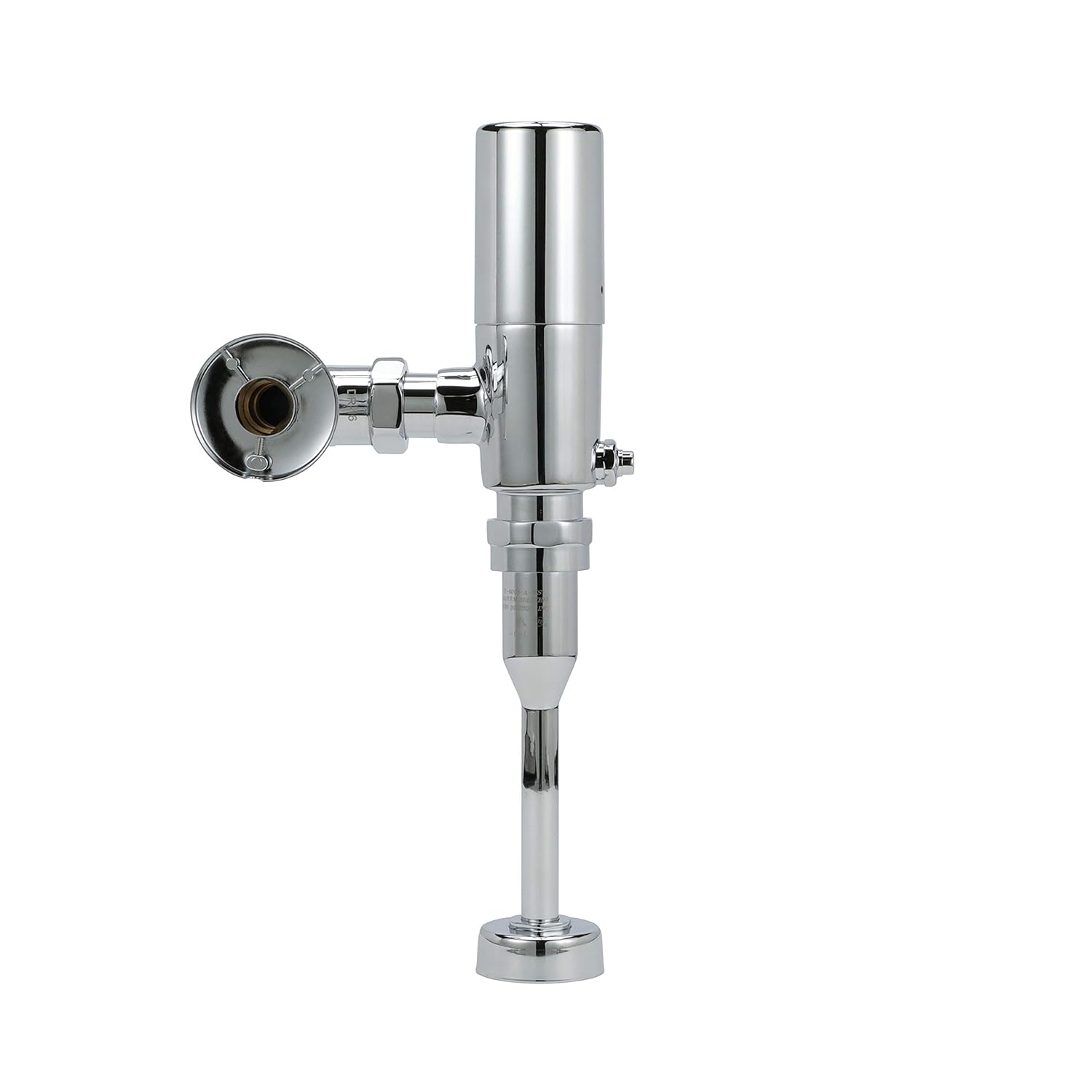

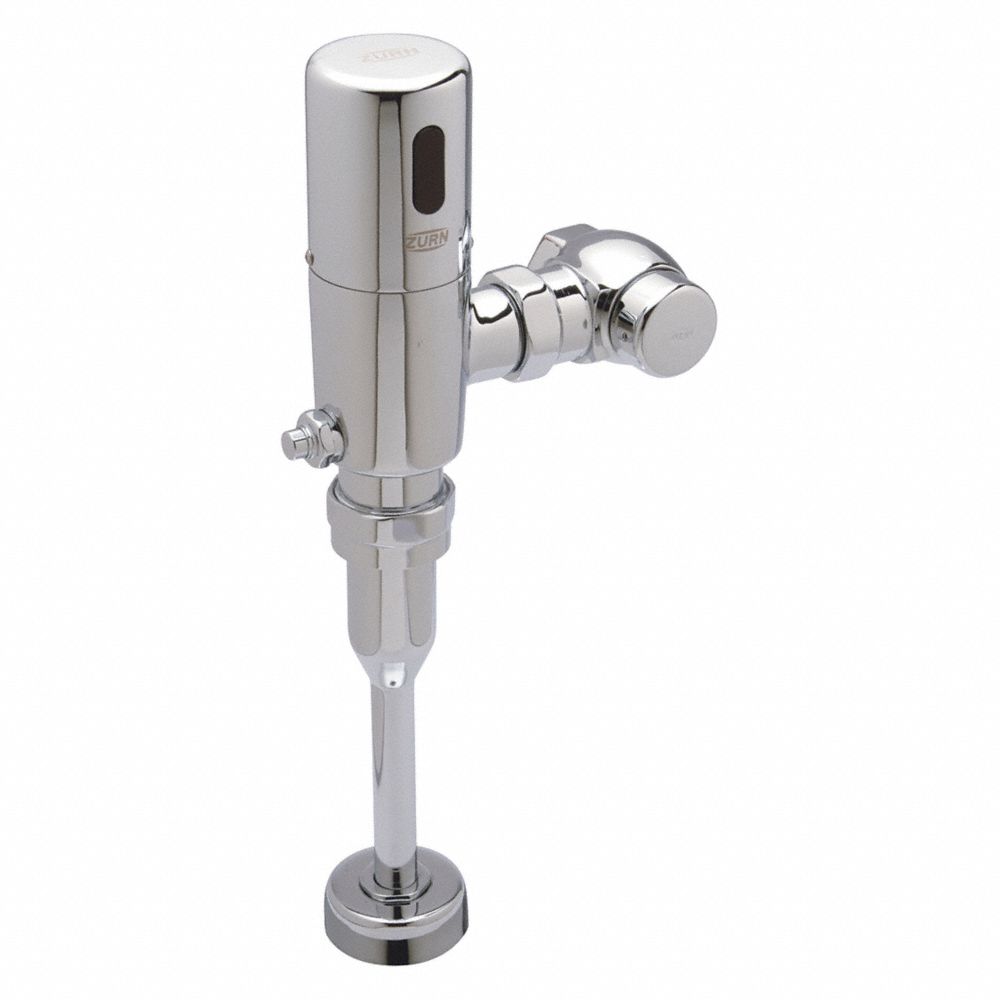

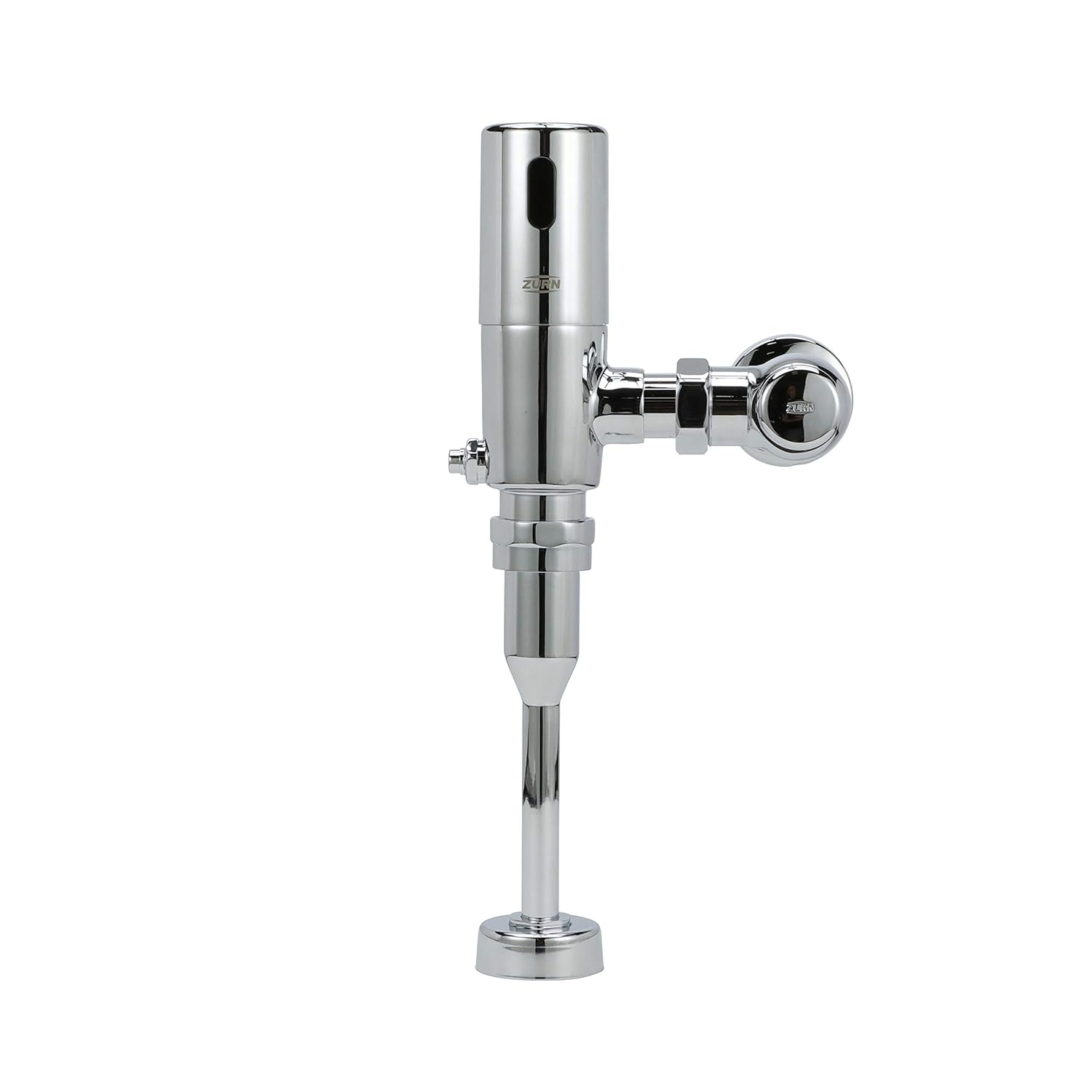

Zurn ZTR6203-ULF-X | Top Spud Sensor Flush Valve, 0.125 GPF, Chrome

The ZTR6203-ULF-X delivers reliable, water-conserving performance with advanced sensor technology and top spud configuration for commercial urinals. Its durable AquaSense® technology combines with polished chrome-plated brass construction, making it an ideal solution for facilities with specialized plumbing layouts where standard rear spud connections aren't optimal.

Key Specifications:

• Flow Rate: 0.125 gallons per flush (Ultra Low Flush)
• Operation: Battery-powered sensor with manual override button
• Construction: Dezincification resistant low lead brass alloy
• Compliance: ADA compliant and WaterSense certified

Features & Benefits:

• Top Spud Configuration: Specially designed "X" variant with top spud connection for installations where standard rear spud layouts aren't feasible, offering greater installation flexibility.
• Water Conservation: The ultra-low 0.125 gpf performance reduces water consumption by up to 92% compared to standard 1.5 gpf flush valves while providing effective fixture cleaning.
• Hands-Free Operation: Infrared sensor with robust vandal-resistant metal cover eliminates the need to touch the flush valve, reducing cross-contamination in public restrooms.
• Durable Piston Technology: Piston valve with filtered bypass delivers reliable performance in demanding commercial environments, even with varying water quality conditions.
• Smart Technology: Customizable sensor range with courtesy flush feature ensures hygienic fixture conditions even during periods of low use.

What's Included:

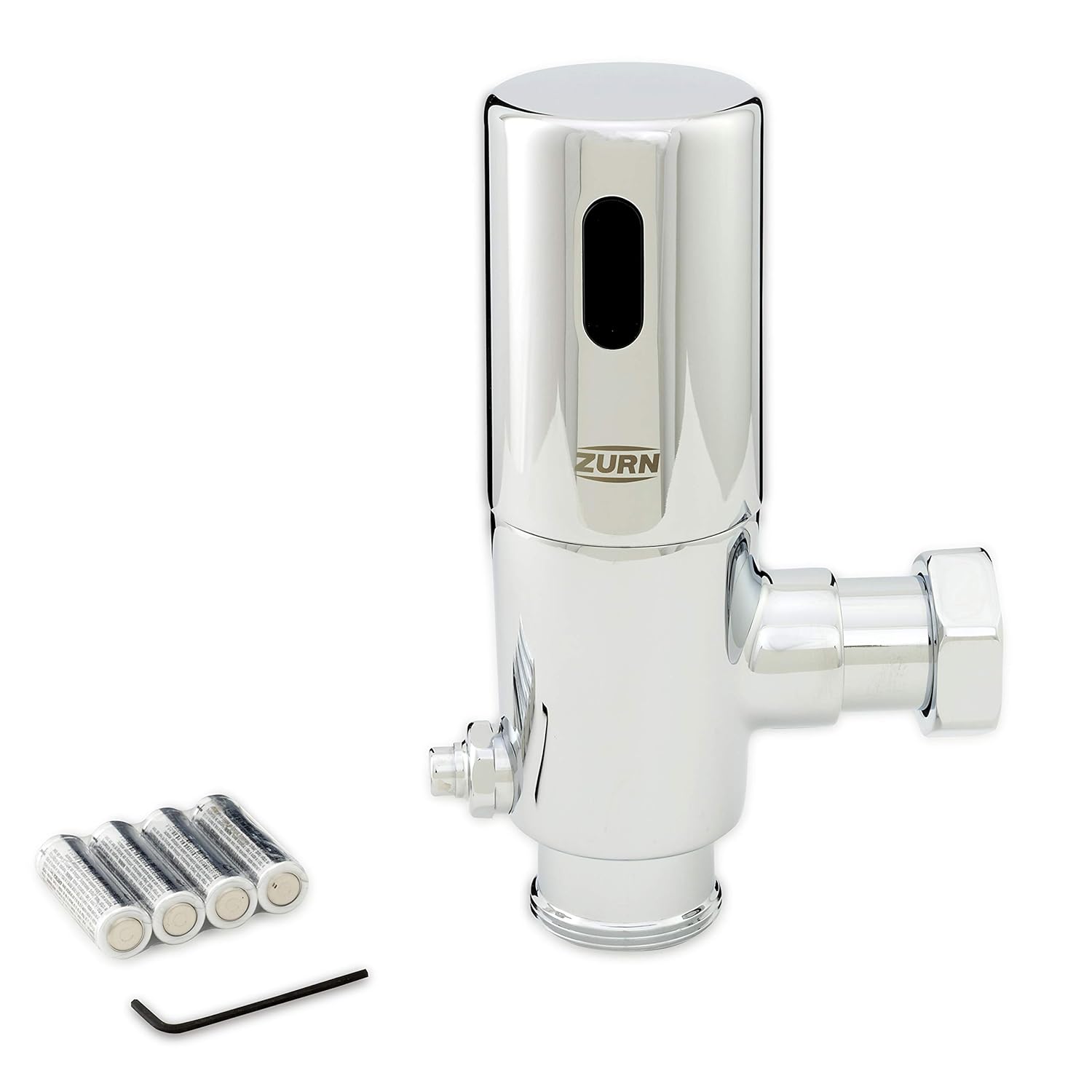

• 1 x ZTR6203-ULF-X AquaSense® Urinal Flush Valve with Top Spud Configuration
• 1 x Control Stop with Internal Siphon-Guard Protection
• 1 x High Back Pressure Vacuum Breaker
• 1 x Adjustable Tailpiece
• 1 x Spud Coupling and Flange for Top Spud Connection
• 4 x AA Alkaline Batteries
• 1 x Mounting Hardware Kit
• 1 x 3/32" Allen Wrench for Installation

Options Available:

• ZTR6203-ULF: Standard model powered by 4 "AA" batteries with approximately 3 years of life under normal conditions (48,000 activations per year).
• ZTR6203-ULF-LL: Long-life battery option featuring specialized lithium batteries that provide up to 10 years of battery life for reduced maintenance requirements.
• ZTR6203-ULF-HW: Hardwired version utilizing 7.6 VDC power supply input for continuous operation without battery replacement in high-traffic facilities.

FAQ

Q: What does the X designation indicate in this model?

A: The X designation indicates that this model features a specialized top spud configuration, designed for plumbing layouts where standard rear spud connections aren't optimal. This provides greater installation flexibility for unique facility requirements.

Q: Can the sensor range be adjusted for different bathroom layouts?

A: Yes, the ZTR6203-ULF-X features easily adjustable sensor range. Simply use the included Magic Magnet (available as optional accessory P6900-AT-MAG) to enter calibration mode, then place a target at the desired detection distance to set the new range.

Detailed Features & Benefits

Advanced Piston Technology: The ZTR6203-ULF-X utilizes a sophisticated piston design with filtered bypass that delivers consistent, reliable flush performance even in demanding commercial environments. Unlike diaphragm-type valves, this piston mechanism handles varying water quality conditions with minimal maintenance, while the specially engineered 0.125 gpf flow rate ensures effective fixture cleaning with minimal water usage.

Professional Grade Construction: The dezincification resistant low lead brass alloy with polished chrome finish provides superior durability in commercial environments. The robust vandal-resistant metal cover protects the sensor and electronic components, while the internal components are designed for years of reliable service even in high-traffic facilities.

Flexible Installation Options: The X-variant's top spud configuration offers installation flexibility for facilities with unique plumbing requirements. Whether retrofitting existing bathrooms or designing new construction, this specialized configuration allows for proper flush valve installation where standard rear spud connections aren't feasible, expanding your design possibilities without compromising performance.

NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
