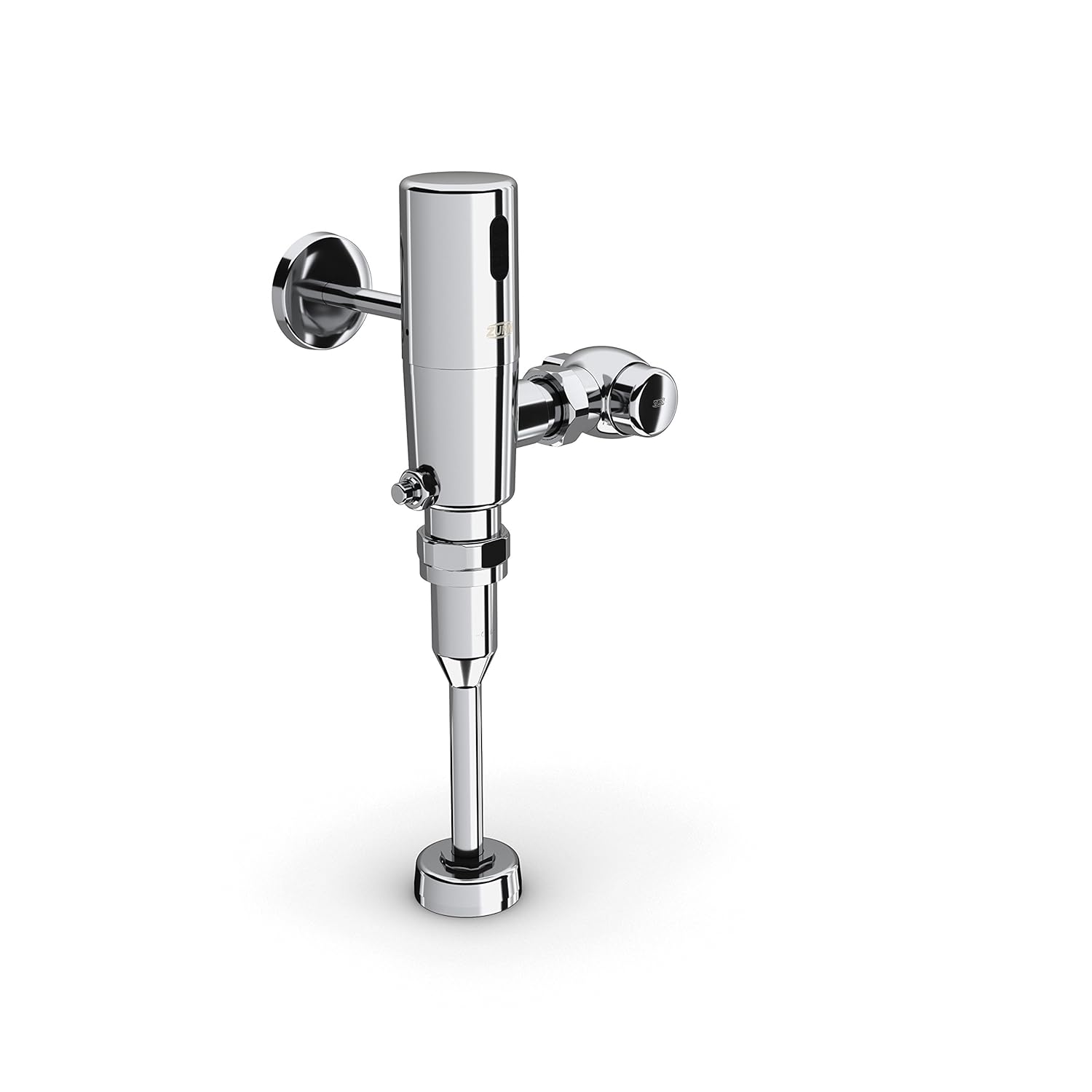

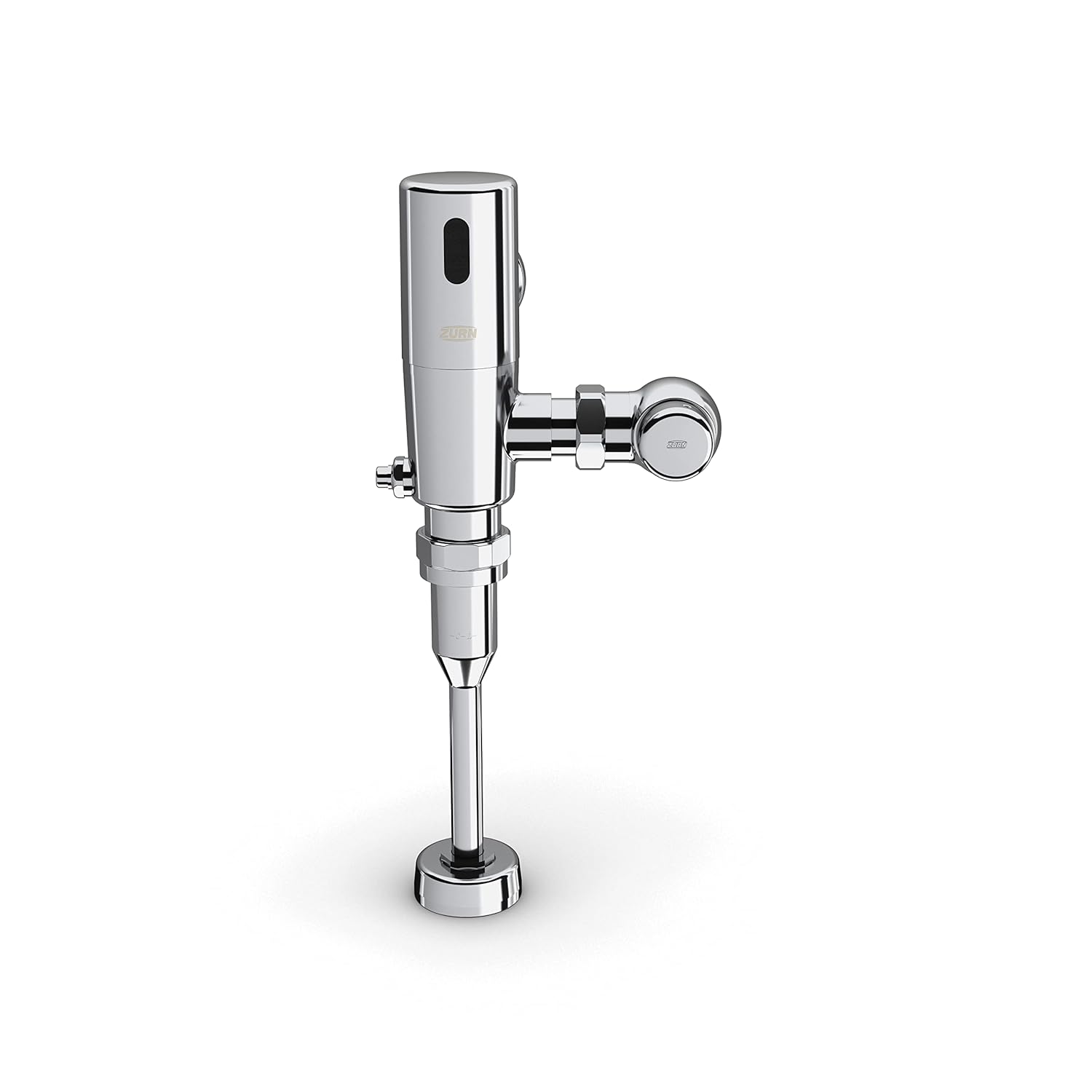

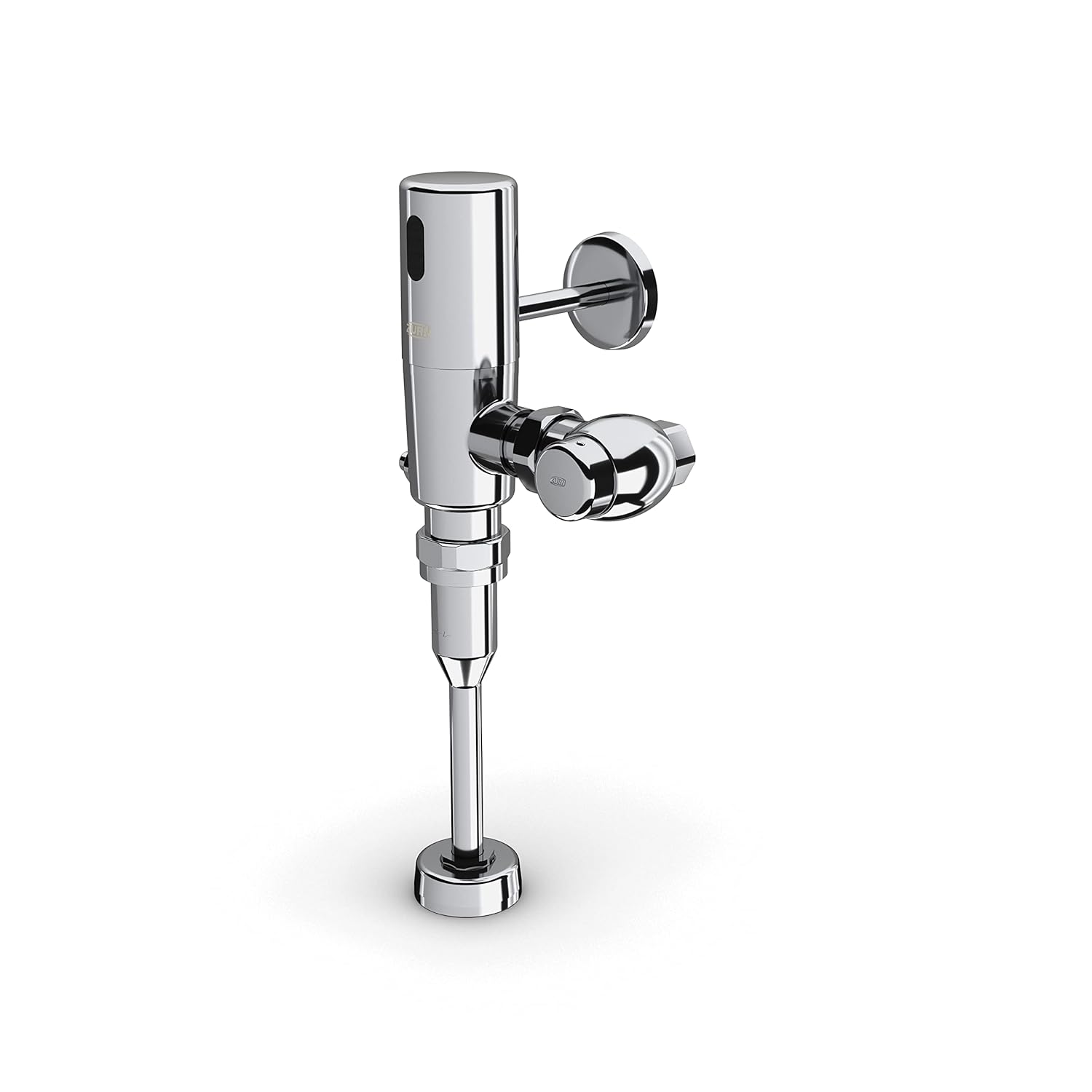

Zurn ZTR6203-ULF-HW | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 0.125 GPF, Hardwire Connection, Chrome
Zurn ZTR6203-ULF-HW | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 0.125 GPF, Hardwire Connection, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZTR6203-ULF-HW | EcoVantage ZTR Exposed Sensor Piston Flush Va...
The ZTR6203-ULF-HW is a hardwired, sensor-operated flush valve designed for ultra-low flow urinals at just 0.125 gallons per flush. Built with Zurn’s AquaSense® piston technology and a vandal-resistant metal sensor cap, it delivers reliable, touchless performance in high-traffic commercial restrooms while maximizing water efficiency.
Key Specifications:
- Flow Rate: 0.125 gallons per flush (ULF designation).
- Operation: Hardwired sensor activation with mechanical override button (MOB).
- Construction: Chrome-plated brass body with chloramine-resistant internal seals.
- Dimensions: 11-1/2" valve height; top spud connection.
Features & Benefits:
- Ultra-Low Flush Efficiency: At 0.125 gpf, this valve supports WaterSense compliance and LEED credits when paired with compatible urinals. Ideal for facilities focused on aggressive water conservation.
- Touchless Hygiene: The integrated sensor provides hands-free operation, reducing the spread of germs. Manual override button allows maintenance flushing without removing the actuator.
- Durable Design: Vandal-resistant metal sensor cap, filtered piston kit, and dezincification-resistant brass body ensure long-term reliability in public environments.
What's Included:
- 1 x ZTR6203-ULF-HW Exposed Urinal Flush Valve
- 1 x Hardwired Sensor Cap Assembly with Manual Override
- 1 x High Back Pressure Vacuum Breaker with One-Piece Hex Coupling Nut
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit
- 1 x Cast Wall Flange with Set Screw
- 1 x Installation Hardware
Options Available:
- ZTR6203-ULF: Battery-powered version with standard sensor cap
- ZTR6203-ULF-LL: Long Life battery version with 10-year lithium cell
- ZTR6203-ULF-X: Custom suffix option for extended configurations (consult spec sheet)
FAQ
Q: Is this valve compatible with all urinals?
A: The ZTR6203-ULF-HW is designed for 3/4" top spud urinals rated for 0.125 gpf. Always confirm fixture compatibility before installation.
Q: What power source is required?
A: This valve must be powered by Zurn’s HW6 regulated power converter. Using non-Zurn power supplies may result in malfunction or damage to the sensor system.
Detailed Features & Benefits
Sensor Accuracy: The 6VDC solenoid actuator uses infrared sensing with adjustable range settings. Courtesy flush intervals can be configured via DIP switches inside the sensor cap.
Commercial Durability: Engineered for high-use environments, the valve includes a vandal-resistant metal cover, filtered piston kit, and chloramine-resistant seals for long-term reliability.
Water Conservation: The ultra-low flush volume supports aggressive sustainability goals in restrooms with high daily traffic. Ideal for airports, schools, and LEED-certified buildings.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained. Decorative finishes warranted for one year.
