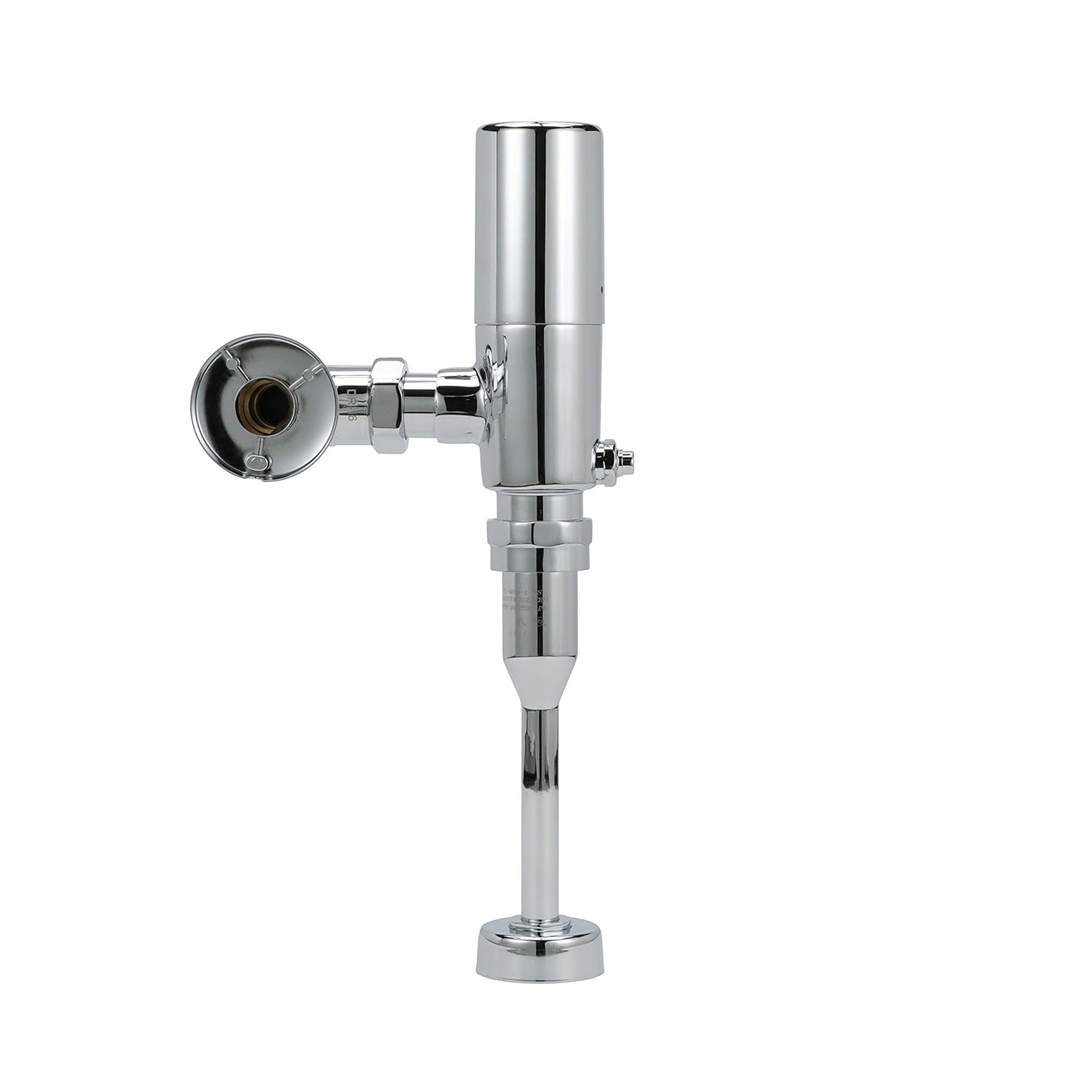

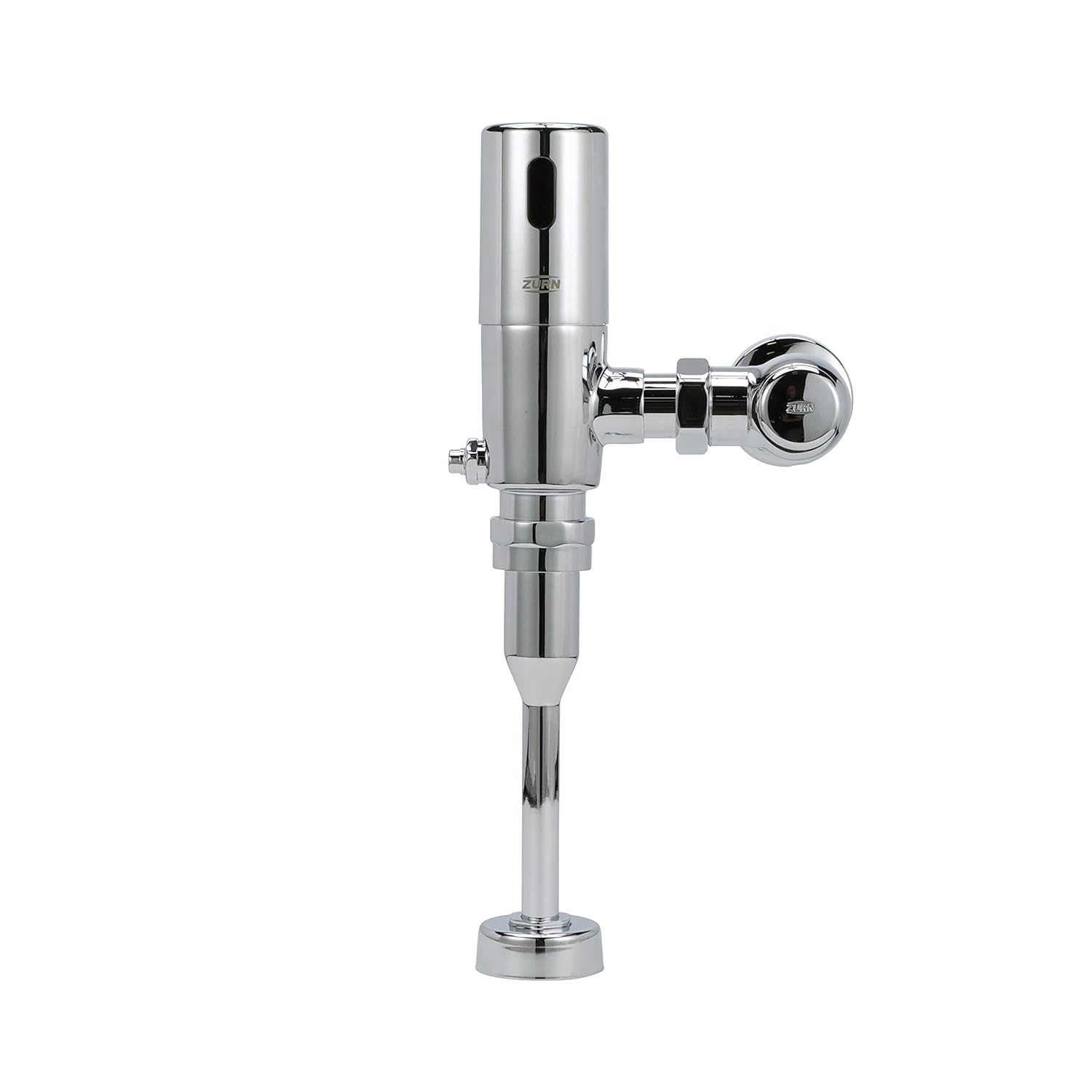

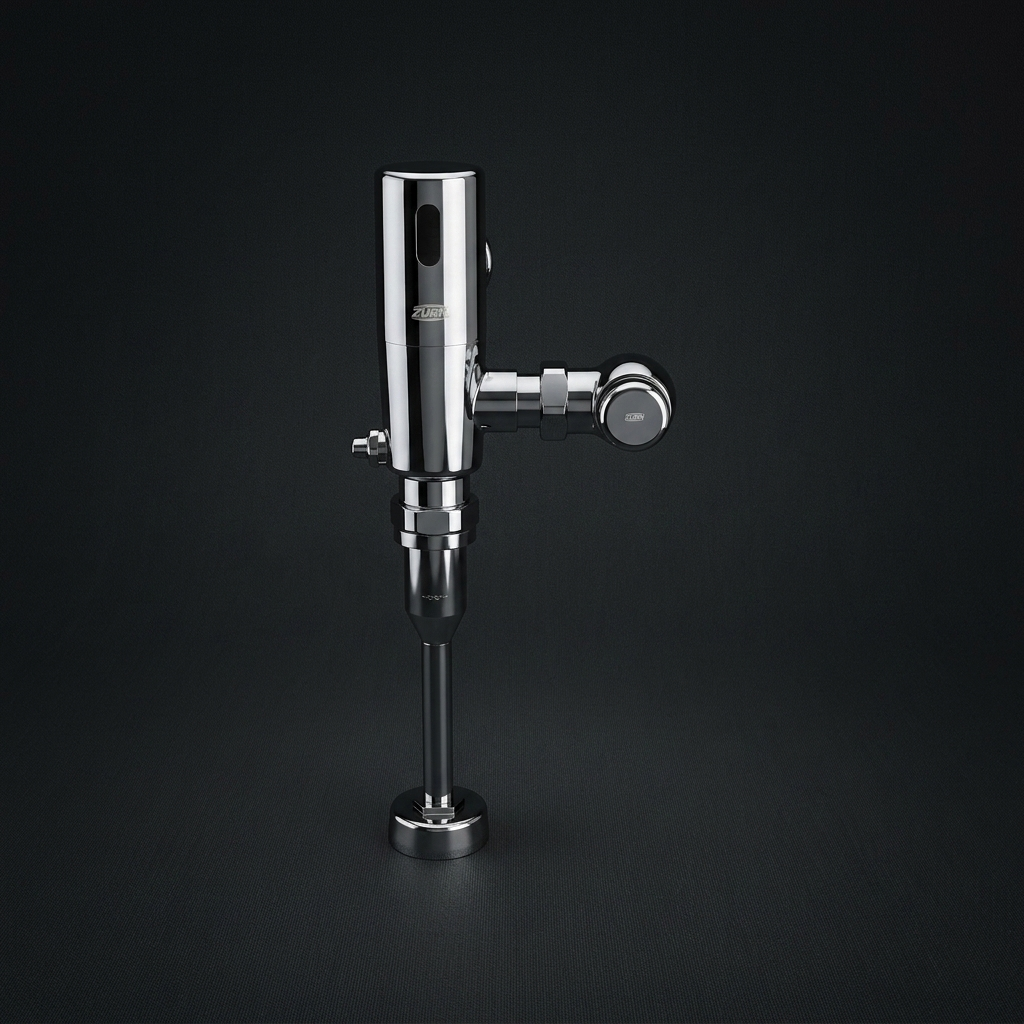

Zurn ZTR6203-ULF | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 0.125 GPF, Chrome

The Zurn ZTR6203-ULF Sensor Operated Urinal Flush Valve delivers reliable hands-free operation with water-saving efficiency for commercial restrooms. Its ultra-low flow 0.125 gpf design combines advanced sensor technology with durable construction, making it an ideal solution for modern commercial facilities focused on water conservation.

Key Specifications:

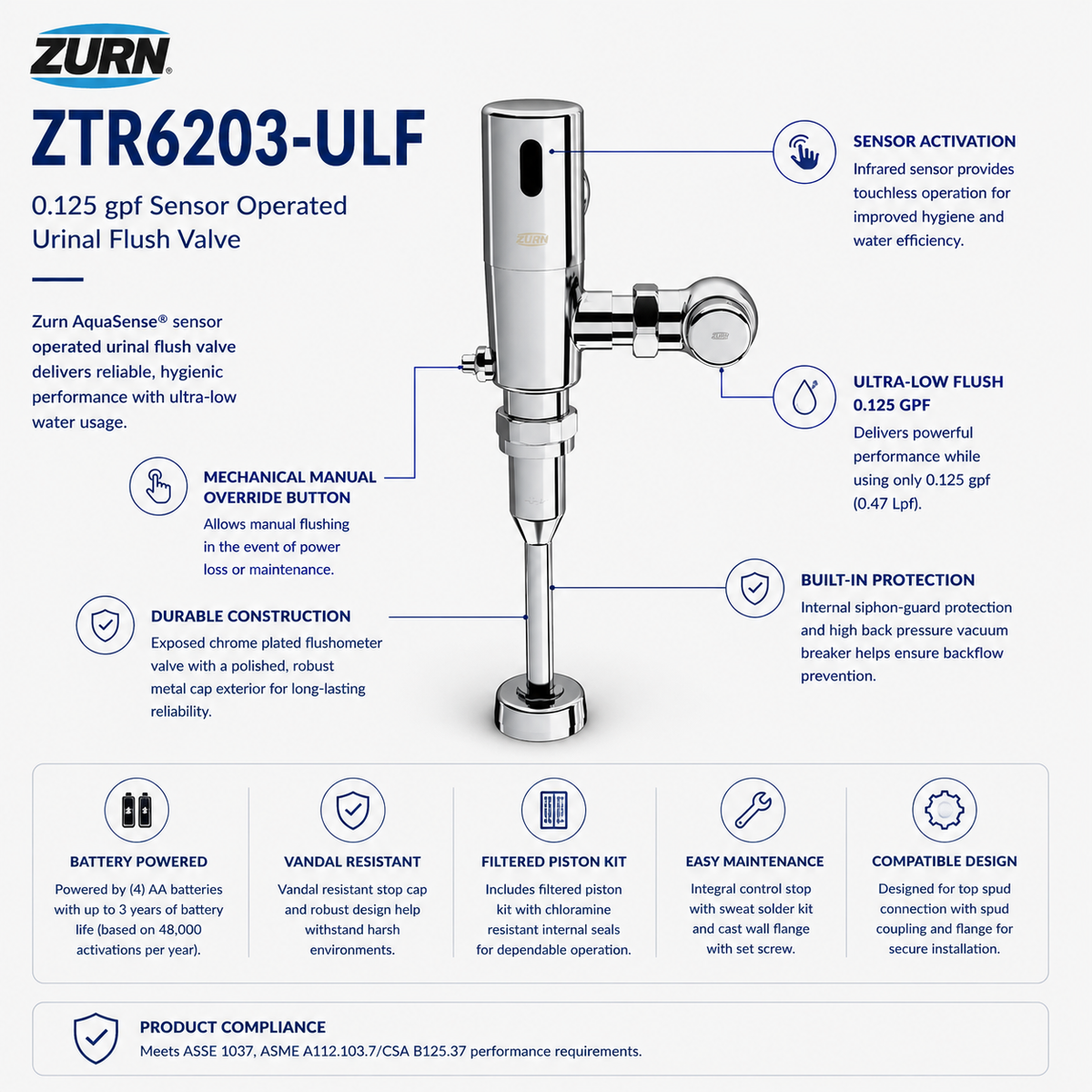

Features & Benefits:

• Touchless Operation: Advanced sensor technology eliminates cross-contamination in public restrooms.
• Ultra Water Conservation: 0.125 gpf ultra-low flow design reduces water consumption while maintaining effective flushing performance.
• Durable Construction: Chrome-plated brass body with dezincification-resistant low lead brass alloy ensures long-term reliability.
• Filtered Piston Technology: Chloramine-resistant components prevent clogging and extend service life.
• Manual Override: Mechanical override button provides backup operation when needed.

Options Available:

• ZTR6203-ULF: Standard model powered by 4 "AA" batteries with approximately 3 years of life under normal conditions (48,000 activations per year).

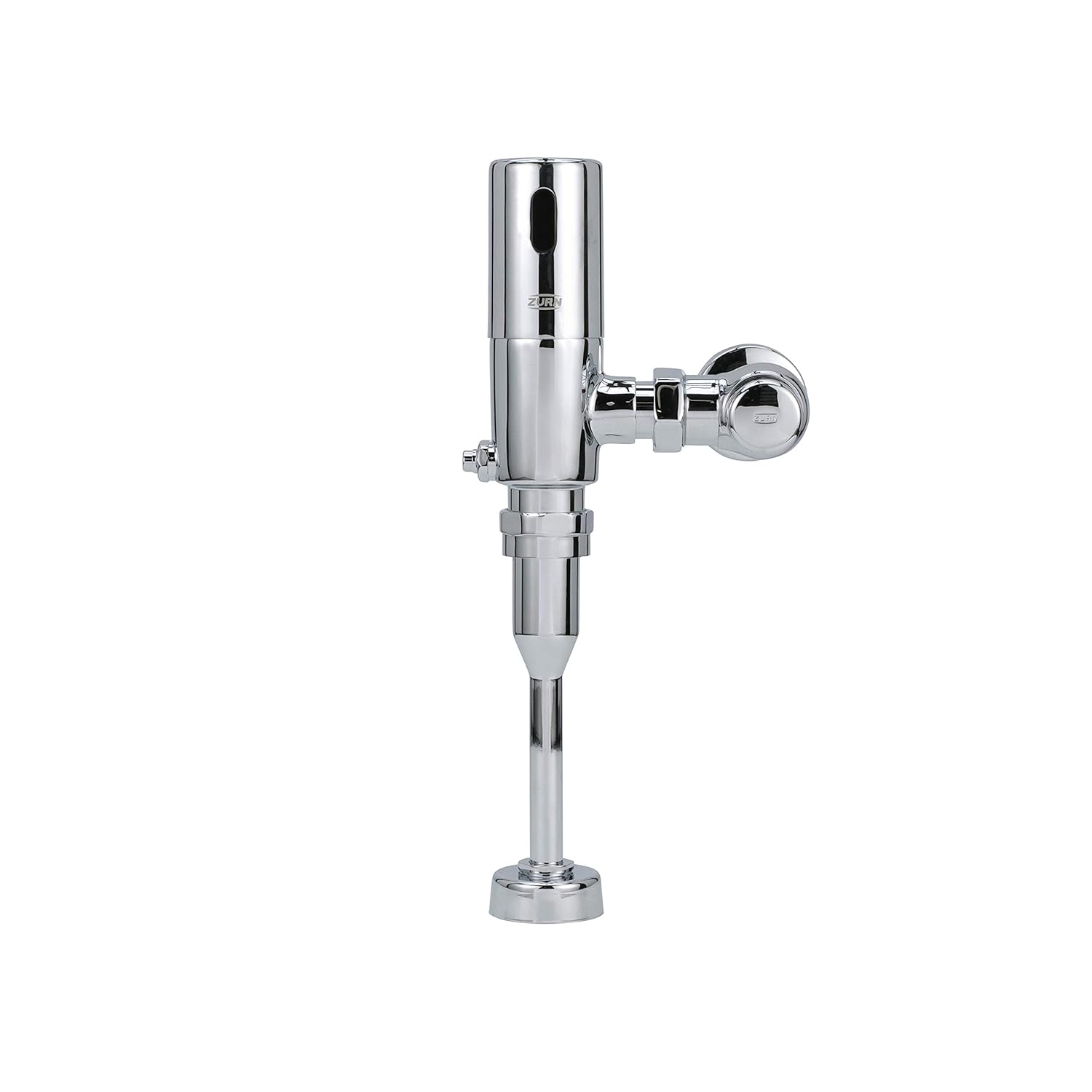

• ZTR6203-ULF-LL: Long-life battery option featuring specialized lithium batteries that provide up to 10 years of battery life.

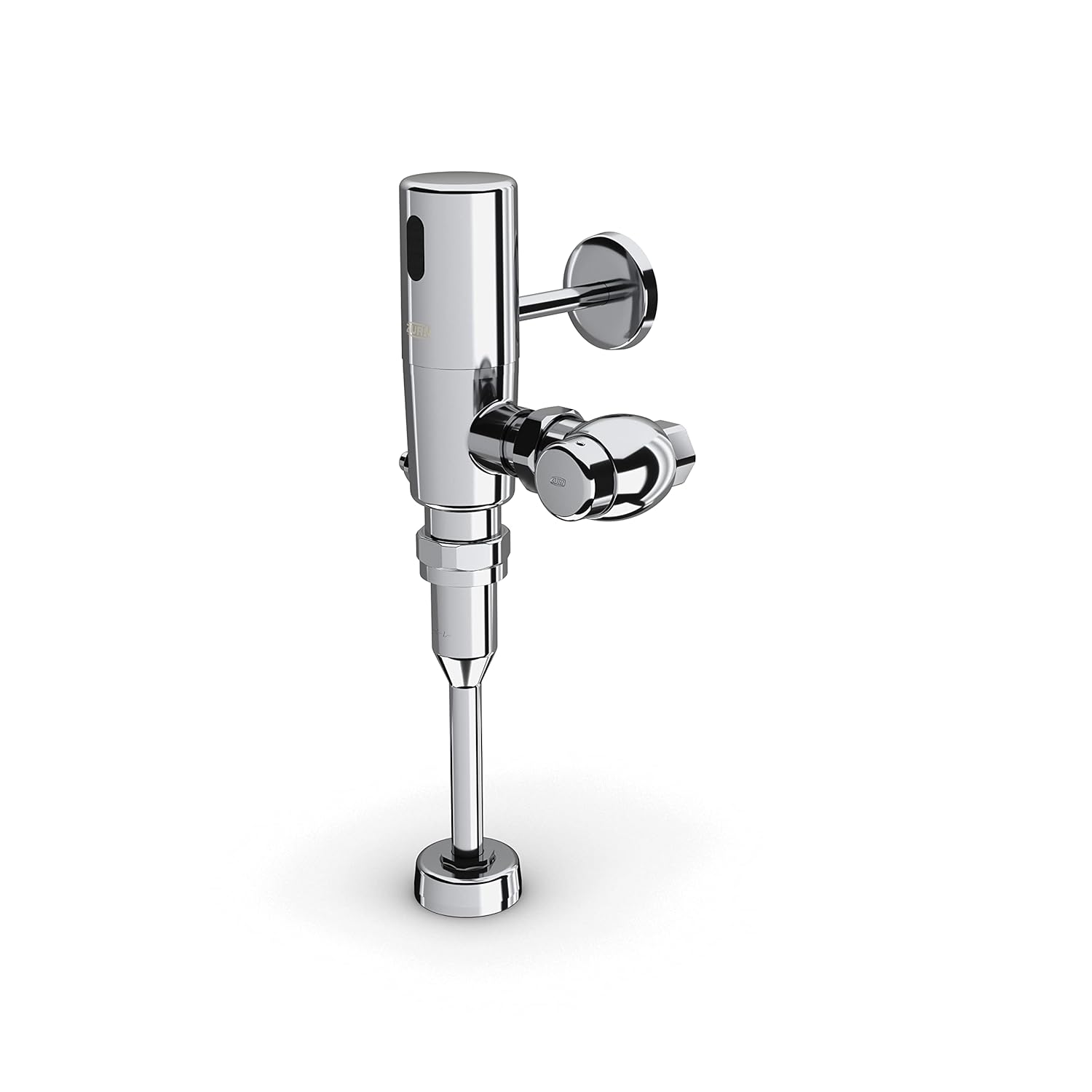

• ZTR6203-ULF-HW: Hardwired version utilizing 7.6 VDC power supply input for continuous operation without battery replacement.

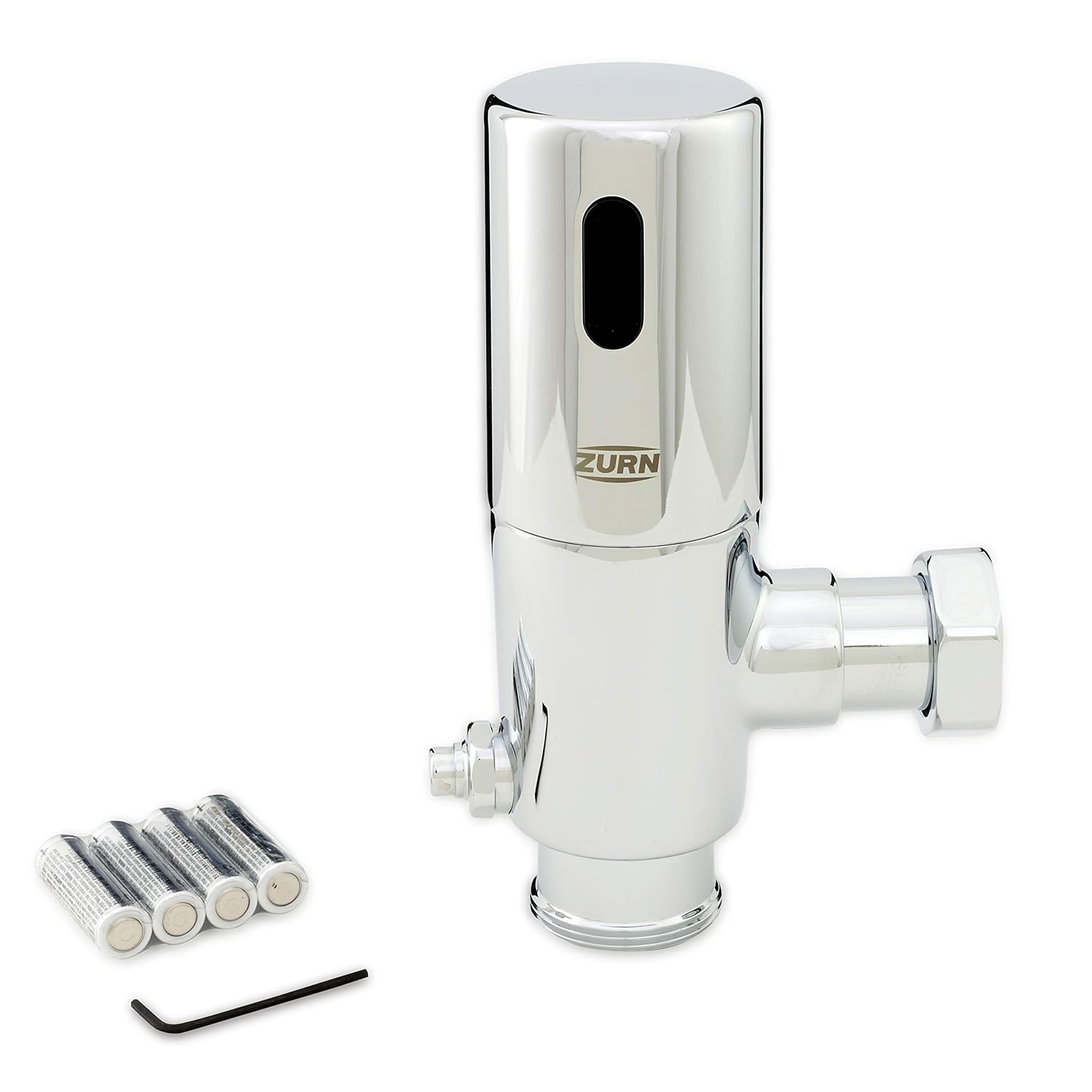

• ZTR6203-ULF-X: Top spud configuration option designed for specific plumbing layouts.

What's Included:

• 1 x Zurn ZTR6203-ULF Sensor Flush Valve
• 1 x Filtered Piston Kit
• 1 x High Back Pressure Vacuum Breaker
• 1 x Adjustable Tailpiece
• 1 x Spud Coupling and Flange
• 1 x Sweat Solder Kit with Cast Wall Flange
• 1 x Vandal Resistant Stop Cap
• 4 x "AA" Batteries (Standard and -LL versions)
• 1 x Installation Hardware

How to Install Zurn ZTR6203-ULF:

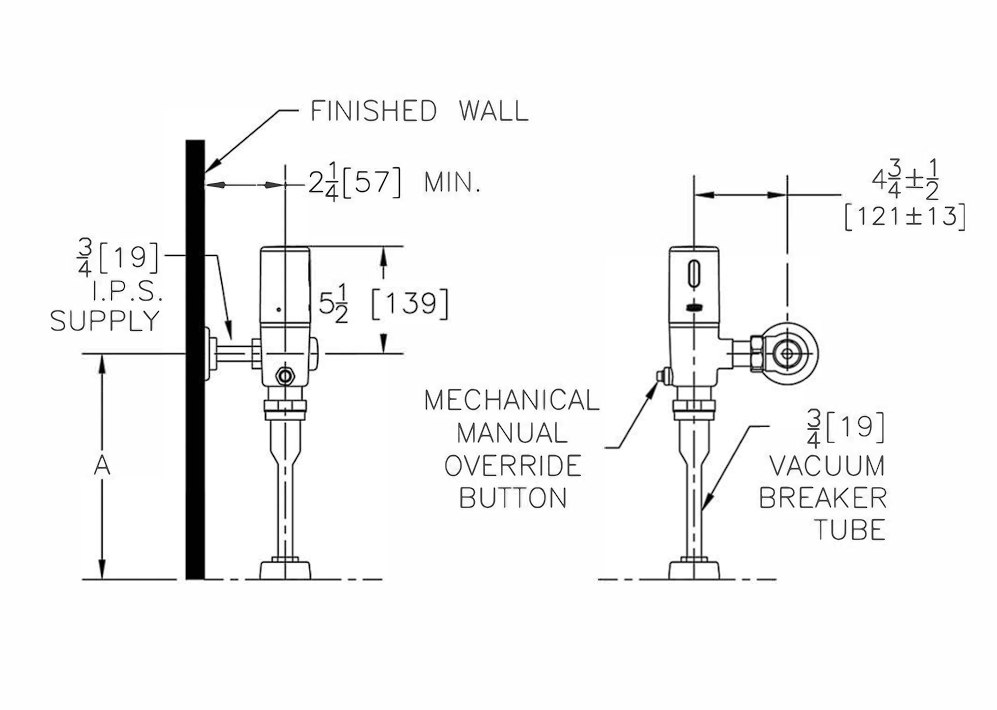

1. Shut off water supply and prepare wall according to rough‑in dimensions.
2. Mount the flush valve body to the urinal spud and secure with coupling nut and flange.
3. Attach the vacuum breaker tube and connect the control stop with wall flange.
4. Insert the filtered piston kit, seals, and install the vandal‑resistant stop cap.
5. Install batteries (or connect hardwire option), turn on water supply, and test sensor activation.

FAQ

Q: How Does Zurn ZTR6203-ULF Contribute to Water Conservation?
A: It operates at just 0.125 gpf, saving up to 88% more water compared to traditional 1.0 gpf models, with sensor activation preventing unnecessary flushes.

Q: What Are the Benefits of Each Power Option for Zurn ZTR6203-ULF?
A: Standard uses 4 "AA" batteries (3 years life), -LL uses lithium batteries (up to 10 years), and -HW is hardwired for continuous operation without battery replacement.

Q: Is Zurn ZTR6203-ULF ADA Compliant?
A: Yes. It is designed to meet ADA requirements with sensor activation and a manual override button for accessibility.

Q: How Is Maintenance Simplified on Zurn ZTR6203-ULF?
A: Front-accessible valve cartridge, chloramine-resistant seals, and filtered piston technology reduce clogging and make servicing easier.

Q: Can Zurn ZTR6203-ULF Be Used With Other Manufacturers’ Fixtures?
A: Performance is guaranteed with Zurn EcoVantage® fixtures; consult Zurn Technical Services for compatibility with other brands.

Q: What Warranty Comes With Zurn ZTR6203-ULF?
A: It includes a limited three-year warranty on materials and workmanship, with decorative finishes warranted for one year.

NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
