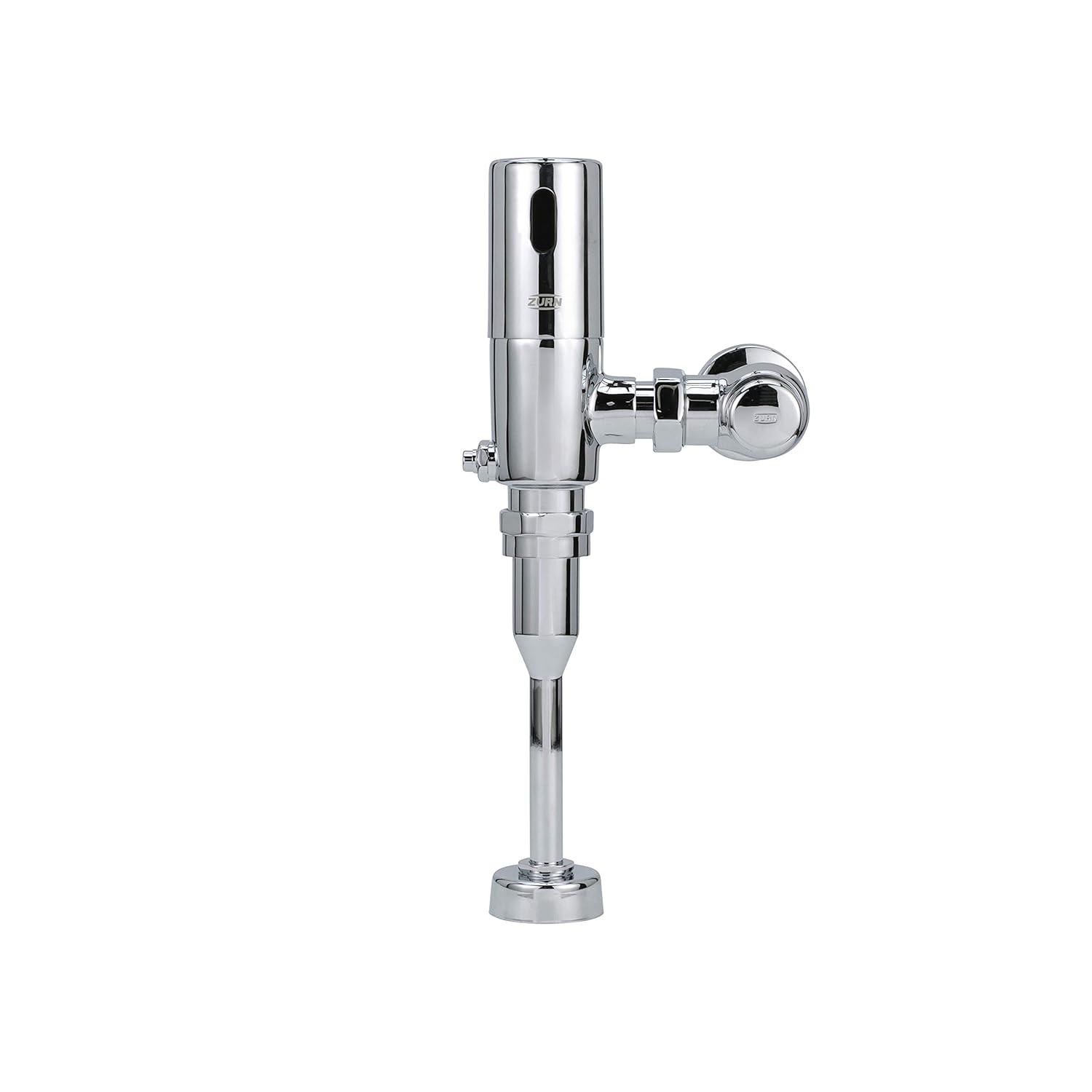

Zurn ZTR6203-ULF-LL | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 0.125 GPF, Long Life Battery, Chrome
Zurn ZTR6203-ULF-LL | EcoVantage ZTR Exposed Sensor Piston Flush Valve, 0.125 GPF, Long Life Battery, Chrome is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZTR6203-ULF-LL | EcoVantage ZTR Exposed Sensor Piston Flush Va...
The ZURN ZTR6203-ULF-LL delivers exceptional water conservation with reliable performance for urinals in commercial restrooms. Its sensor-operated technology combines with ultra-low flow design, making it an ideal solution for facilities seeking maximum water efficiency with dependable operation.
Key Specifications:
- Flow Rate: Ultra-low flow 0.125 gpf for maximum water savings.
- Sensor Operation: Automatic flush with 10-year battery life.
- Construction: Chrome-plated brass with vandal-resistant features.
- Compliance: ADA and WaterSense certified.
Features & Benefits:
- Water Conservation: The 0.125 gpf flow rate dramatically reduces water consumption by up to 90% compared to standard 1.0 gpf urinal flush valves.
- Long Battery Life: 10-year battery life with 4 "AA" long-life batteries ensures minimal maintenance and reliable operation.
- Vandal Resistant: Internal siphon-guard protection and vandal-resistant stop cap provide security in public restrooms.
- Sensor Reliability: Advanced sensor technology prevents false activations while ensuring proper flushing after each use.
- Easy Maintenance: Adjustable tailpiece and serviceable components simplify routine maintenance and adjustments.
Options Available:
- ZTR6203-ULF: Standard battery-powered ultra-low flow model at 0.125 gallons per flush with 4 AA batteries.
- ZTR6203-ULF-HW: Hardwired version powered by 7.6 VDC power supply input, ideal for high-traffic facilities seeking to eliminate battery replacement.
What's Included:
- 1 x ZTR6203-ULF-LL Sensor Operated Urinal Flush Valve
- 1 x Long Life Battery Pack
- 1 x Filtered Piston Kit
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit with Cast Wall Flange
- 1 x Vandal Resistant Stop Cap
- 1 x Installation Hardware
FAQ
Q: Will this flush valve work with my existing urinal fixture?
A: The ZTR6203-ULF-LL is designed to work with fixtures rated for 0.125 gpf operation. Performance is guaranteed with Zurn EcoVantage fixtures. For other manufacturers' fixtures, it's recommended to consult Zurn Technical Services. The valve operates optimally between 25 and 80 psi water pressure. If your fixture requires more flushing power, consider the ZTR6203-WS1 model which provides 1.0 gpf.
Q: How much water can I save by switching to this flush valve?
A: The ZTR6203-ULF-LL operates at just 0.125 gallons per flush, which can reduce water consumption by up to 90% compared to standard 1.0 gpf models and up to 95% compared to older 3.0 gpf models. In a typical commercial setting with 100 uses per day, this can translate to savings of approximately 32,000 gallons of water annually when replacing a standard 1.0 gpf valve.
Detailed Features & Benefits
Advanced Sensor Technology: The ZTR6203-ULF-LL utilizes Zurn's AquaSense sensor technology powered by long-life batteries that provide up to 10 years of reliable operation. The sensor is factory-set for optimal detection but can be easily adjusted in the field if needed. A mechanical override button provides backup flush capability in case of power loss.
Precision Engineered Water Delivery: The 0.125 gpf flow rate is precisely calibrated to provide effective bowl cleaning while conserving water. The high back pressure vacuum breaker with one-piece hex coupling nut ensures reliable operation and prevents backflow contamination. The filtered piston kit includes a special orifice designed specifically for ultra-low flow operation.
Durable, Vandal-Resistant Design: Constructed from proprietary dezincification-resistant low lead brass alloy, the ZTR6203-ULF-LL is built to withstand the rigors of commercial restroom environments. The vandal-resistant stop cap prevents unauthorized adjustments, while the ADA-compliant sensor ensures reliable operation for all users. The polished chrome finish provides an attractive appearance with excellent resistance to corrosion and wear.
NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
