Zurn  |  SKU: ZER6003AV-WS1-CPM

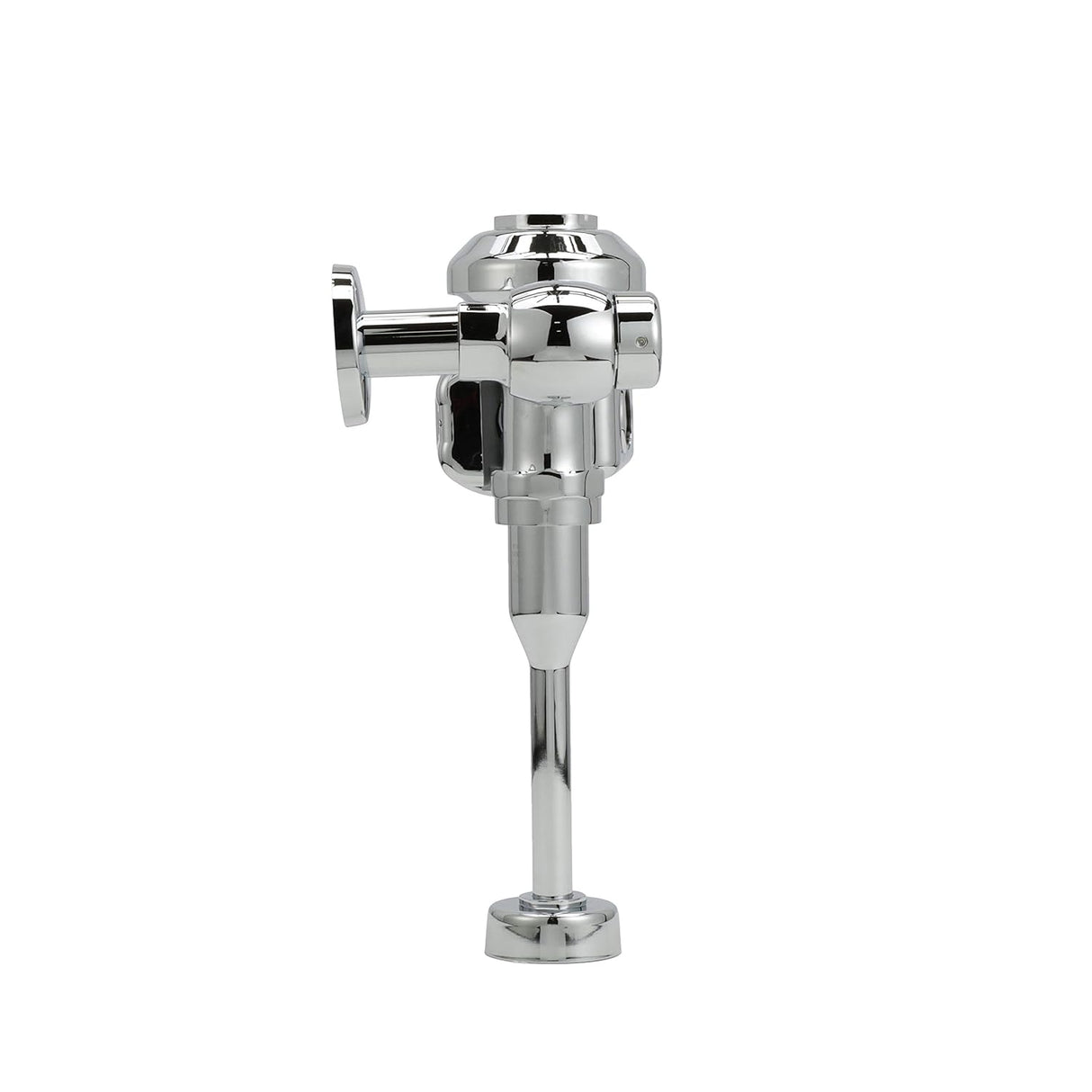

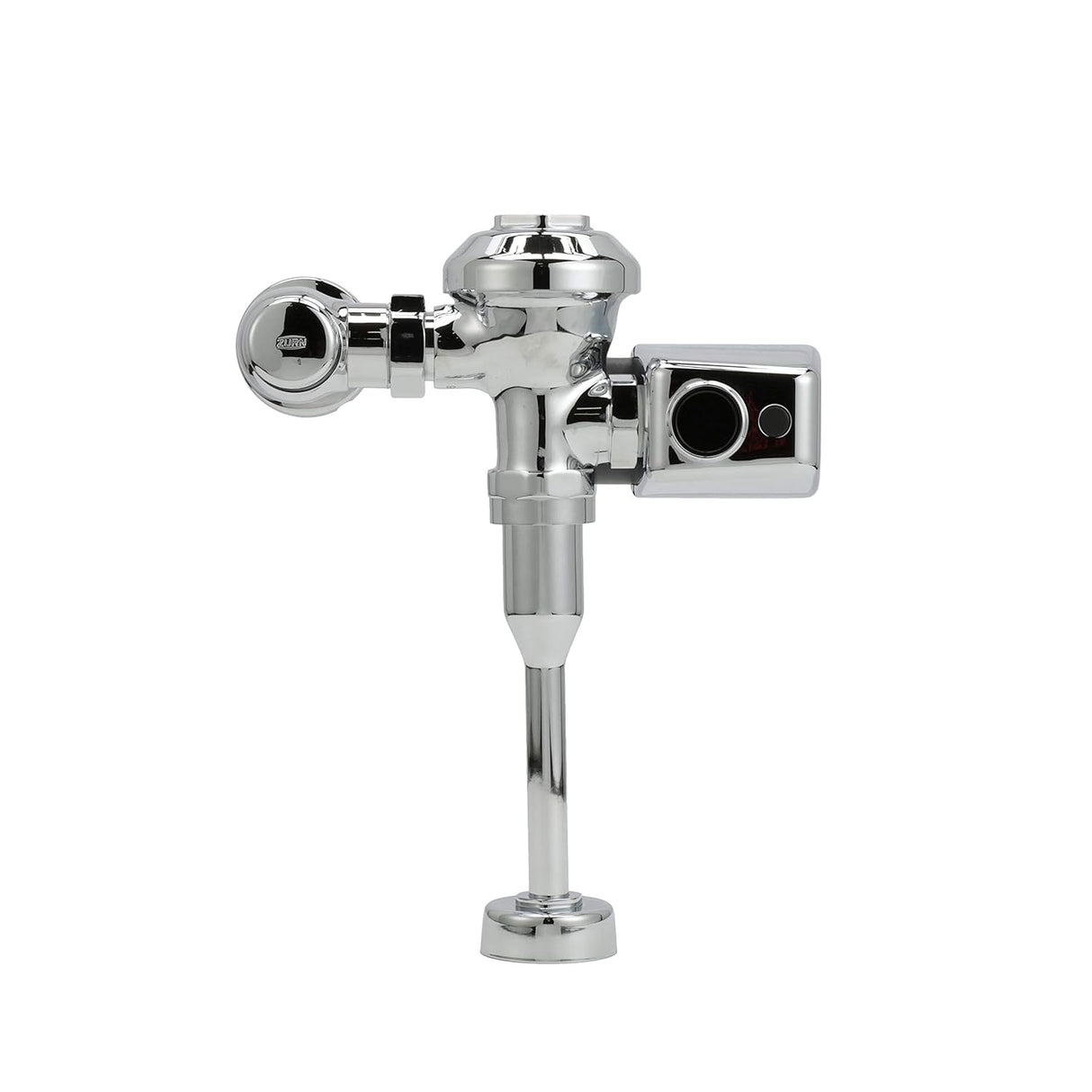

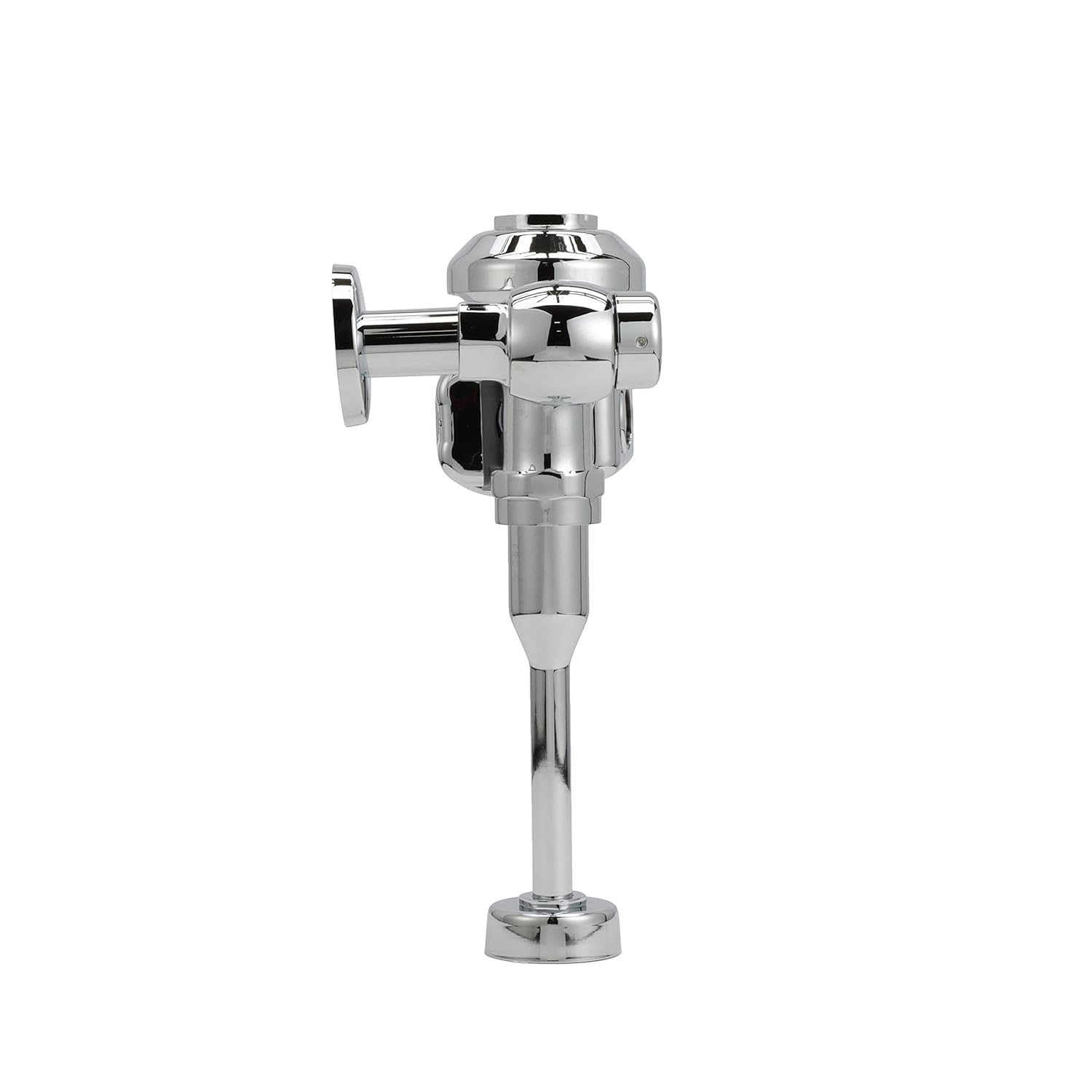

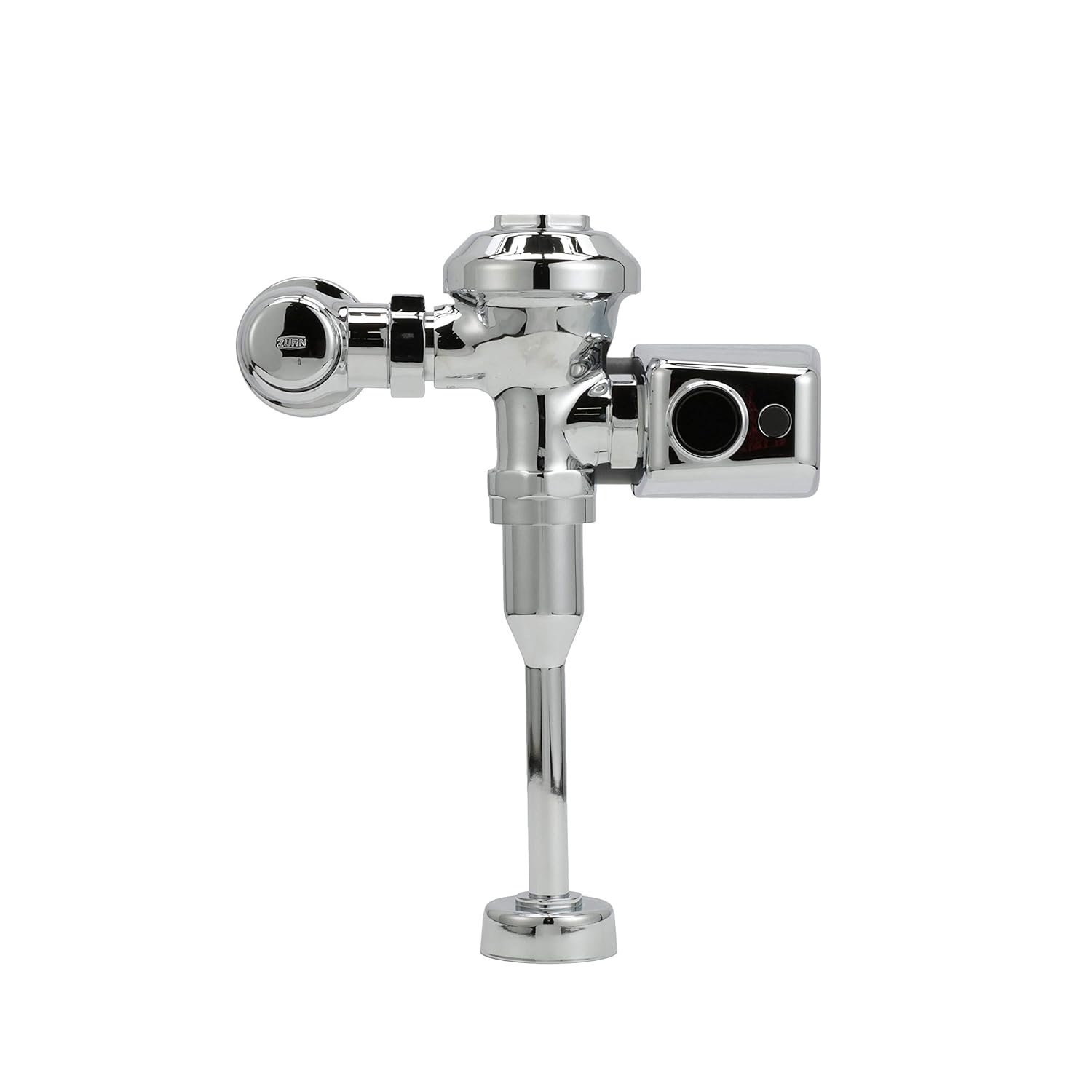

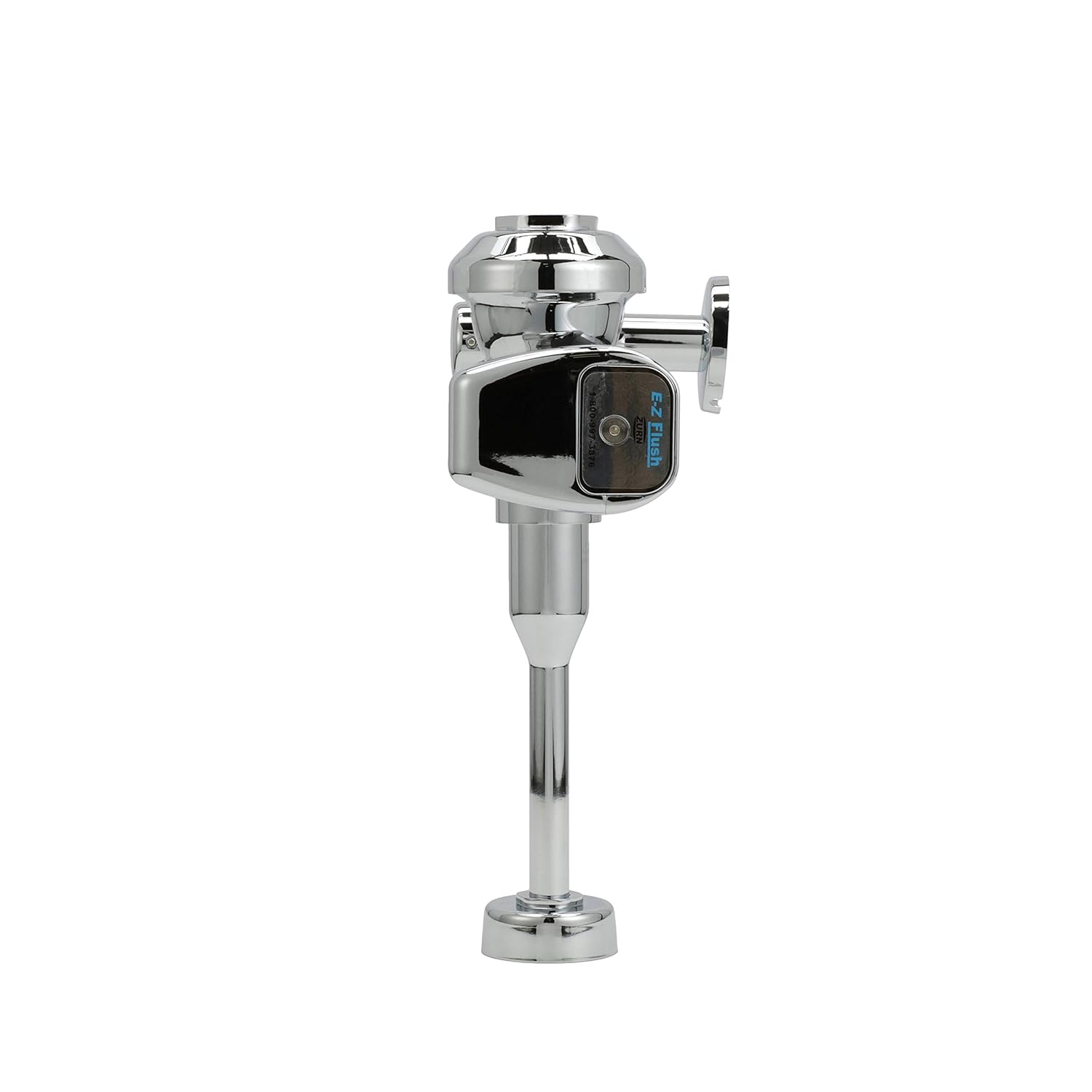

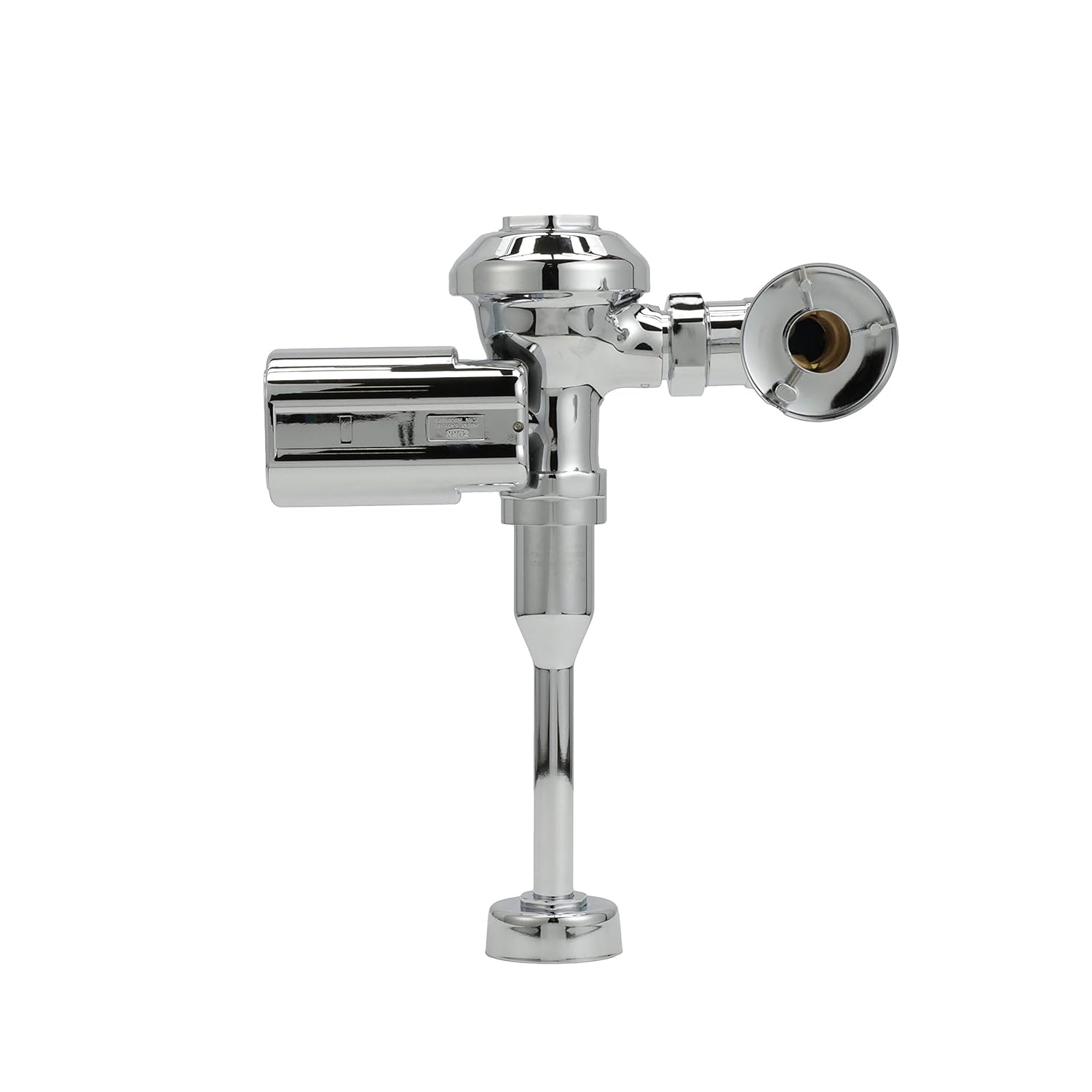

Zurn ZER6003AV-WS1-CPM | AquaSense AV Series Sensor Flush Valve | Battery-Powered, 1.0 gpf

$ 413.99
Shipping calculated at checkout.


Product Care Information

Installation
  • All plumbing is to be installed according to state and local codes and regulations.
  • Water supply lines need to allow proper water flow for each fixture.
  • Flush all lines of any debris before making connections.
  • Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.

The Zurn ZER6003AV-WS1-CPM is a cutting-edge, sensor-operated battery-powered flush valve designed for urinals in commercial settings. This AquaVantage model combines advanced technology with water efficiency, offering a 1.0 gpf flow rate, hands-free operation, and robust construction. Its standout features include a 6VDC motor actuator, integral infrared sensor, and manual override capability, making it an ideal solution for modern, high-traffic restrooms seeking reliability, hygiene, and water conservation.


Key Specifications:

  • Flow Rate: Water-saving 1.0 gallons per flush (WS1) for optimal conservation in urinal applications.
  • Power Source: Battery-powered 6VDC motor actuator for cord-free, reliable operation.
  • Sensor Technology: Integral infrared convergence-type proximity sensor with manual override.
  • Diaphragm: Zurn's AquaVantage TPE, chloramine-resistant, dual seal with a clog-resistant by-pass.
  • Construction: Chrome plated flushometer valve with a polished exterior for durability and aesthetics.
  • Material: Proprietary dezincification-resistant low lead brass alloy for enhanced longevity.
  • Vacuum Breaker: High back pressure type with one-piece hex coupling nut for reliable protection.
  • Sensor Housing: High impact-resistant polycarbonate with chrome-plated plastic cover.


Features & Benefits:

  • Water Conservation: The 1.0 gpf design significantly reduces water consumption compared to standard models, leading to substantial cost savings and environmental benefits.
  • Hygienic Operation: Touchless sensor activation minimizes cross-contamination in public restrooms, promoting better hygiene standards.
  • Reliable Performance: Battery-powered operation ensures functionality even during power outages, with long-lasting battery life.
  • Flexible Installation: Battery power eliminates the need for electrical wiring, simplifying installation in both new and retrofit applications.
  • User-Friendly Design: Manual sensor override with capacitive sensing push button provides a backup option for flushing when needed.
  • Low Maintenance: Clog-resistant by-pass and durable components reduce the frequency of servicing and maintenance costs.
  • Vandal Resistance: Robust construction and vandal-resistant features make it suitable for high-traffic public restrooms.


What's Included:

  • ZER6003AV-WS1-CPM Flush Valve


FAQ


Q: Is the ZER6003AV-WS1-CPM compatible with existing plumbing systems?

A: Absolutely! The ZER6003AV-WS1-CPM is designed for versatile installation, making it suitable for both new construction and retrofit applications. It features a standard top spud connection and comes with an adjustable tailpiece, allowing it to adapt to various plumbing configurations. The exposed design simplifies installation and maintenance. However, when retrofitting, it's important to ensure that the existing urinal fixture is compatible with the 1.0 gpf flow rate. For optimal performance and to ensure compliance with local codes, we recommend consulting with a professional plumber, especially when retrofitting this valve into an existing system.

Q: How long do the batteries typically last, and what type of batteries does it use?

A: The ZER6003AV-WS1-CPM is designed for long-lasting, efficient operation. While the exact battery life can vary depending on usage frequency, you can typically expect the batteries to last 2-3 years under normal use conditions. The flush valve uses standard alkaline batteries, which are easily replaceable when needed. This long battery life, combined with the ease of replacement, ensures minimal maintenance interruptions and consistent performance in busy commercial restroom environments.


Detailed Features & Benefits


Advanced Sensor Technology: The ZER6003AV-WS1-CPM utilizes cutting-edge sensor technology that offers several key advantages:

  • The integral infrared convergence-type proximity sensor ensures accurate user detection, minimizing false activations and unnecessary flushes.
  • The 10-degree angled sensor design optimizes detection range and accuracy, improving user experience in various restroom layouts.
  • The manual sensor override with capacitive sensing push button provides a reliable backup option, ensuring functionality even in case of sensor malfunction or battery depletion.
  • This combination of touchless operation and manual override provides the perfect balance of hygiene, water conservation, and reliability.
  • The sensor's design is optimized to prevent false activations, further conserving water and extending battery life.

Water-Efficient Performance: The 1.0 gpf flow rate of the ZER6003AV-WS1-CPM offers significant water savings without compromising on performance:

  • Reduces water consumption by up to 50% compared to standard 2.0 gpf urinal flush valves, resulting in substantial cost savings for high-traffic facilities.
  • Helps buildings meet or exceed water conservation regulations and green building standards.
  • The AquaVantage TPE diaphragm with clog-resistant by-pass ensures effective flushing despite the reduced water volume.
  • Ideal for facilities looking to balance water conservation efforts with reliable performance in high-use environments.
  • Compatible with WaterSense labeled fixtures, potentially contributing to LEED certification points in the water efficiency category.


NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
