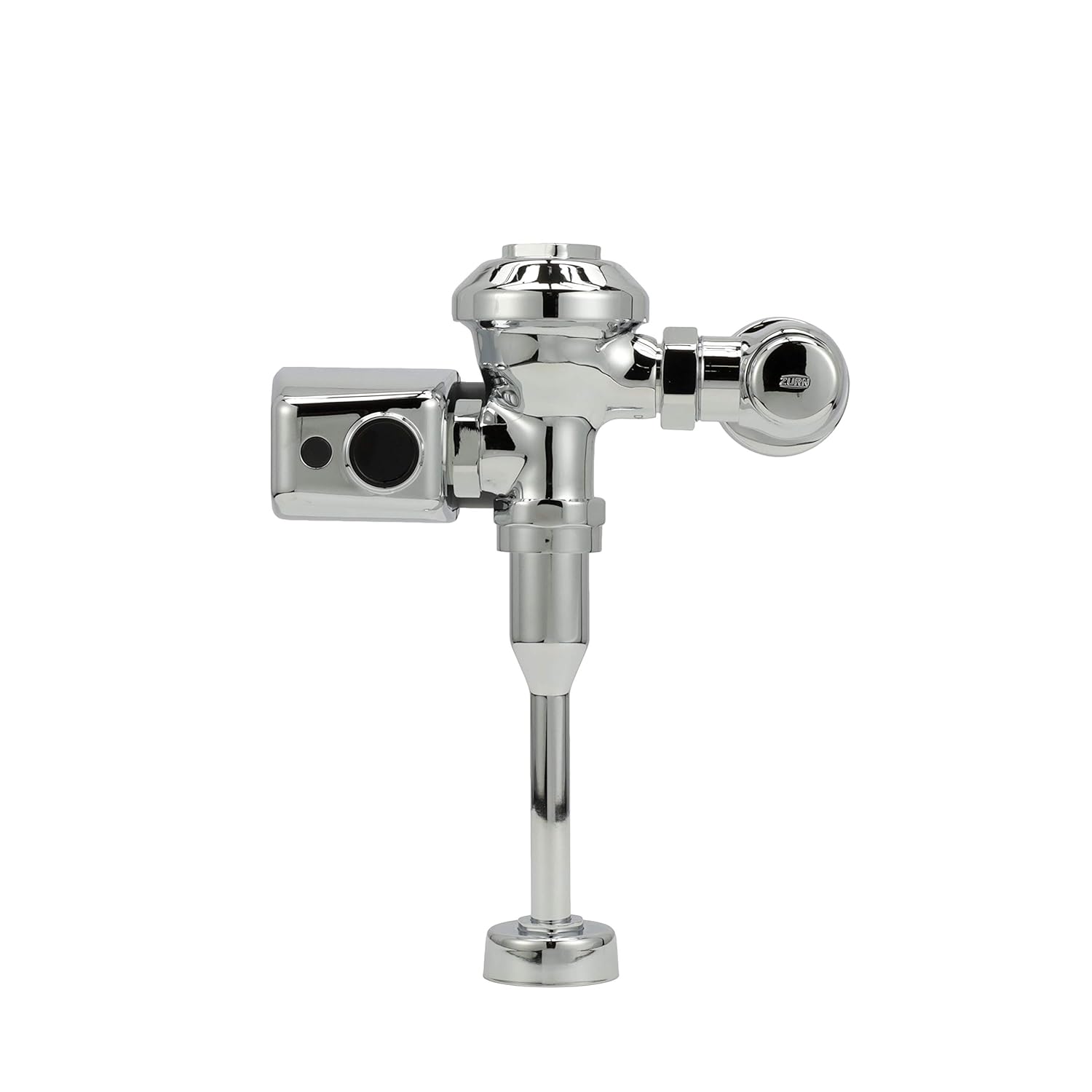

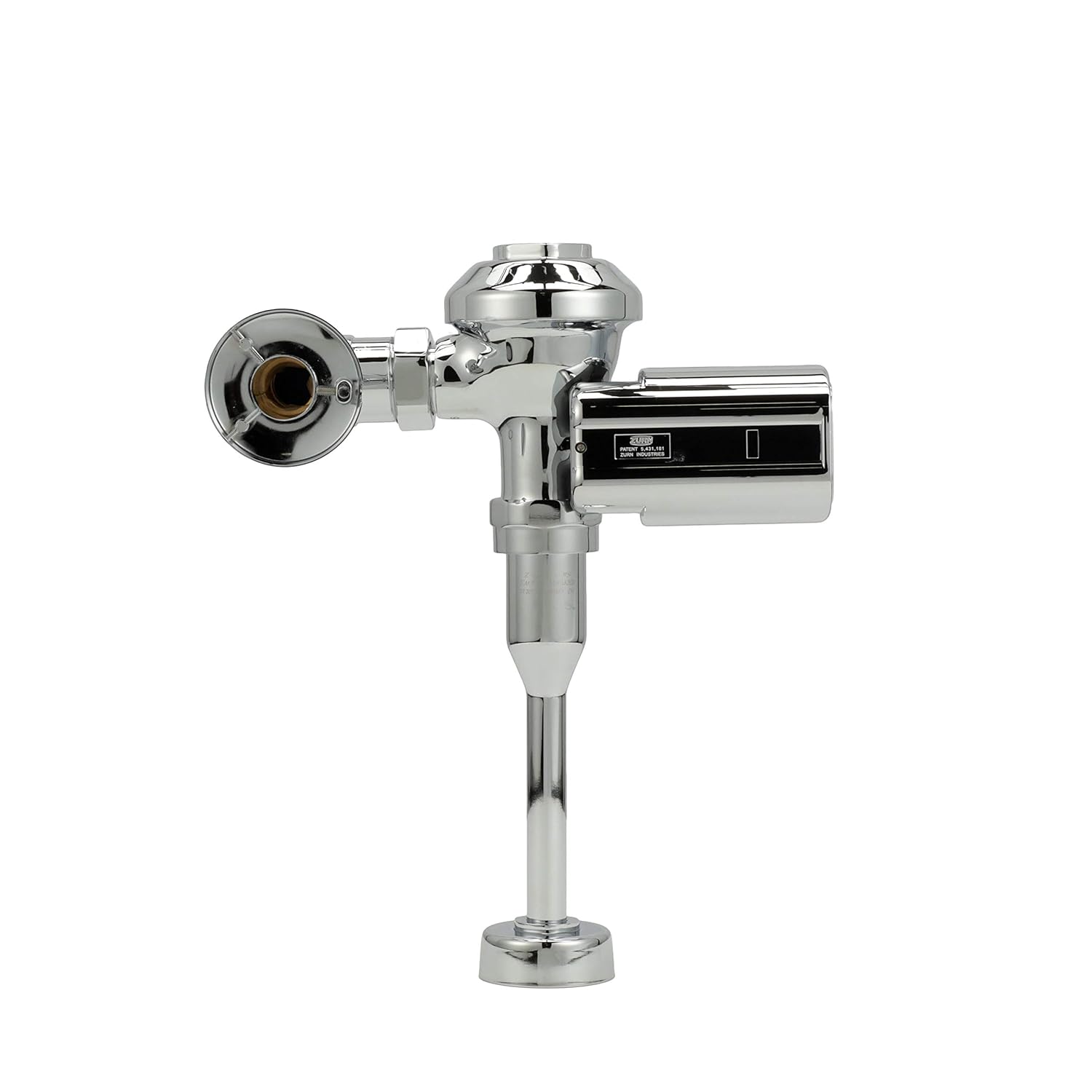

Zurn ZER6003AV-EWS-CPM | AquaSense AV Series Sensor Flush Valve | Battery-Powered, 0.5 gpf
Zurn ZER6003AV-EWS-CPM | AquaSense AV Series Sensor Flush Valve | Battery-Powered, 0.5 gpf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
- All plumbing is to be installed according to state and local codes and regulations.
- Water supply lines need to allow proper water flow for each fixture.
- Flush all lines of any debris before making connections.
- Do not use pipe sealant or plumbing grease on any fitting other then the control stop inlet.
Zurn ZER6003AV-EWS-CPM | AquaSense AV Series Sensor Flush Valve | B...
The Zurn ZER6003AV-EWS-CPM delivers exceptional water efficiency with reliable sensor-operated performance for urinals in commercial restrooms. This Extra Water Saver model features a 0.5 GPF flow rate and battery-powered operation, complemented by Zurn's AquaVantage technology for dependable, hands-free flushing that maximizes hygiene while minimizing water consumption.
Key Specifications:
- Flow Rate: 0.5 GPF WaterSense certified for optimal water conservation.
- Power: Battery-powered 6VDC motor actuator with 4 "C" batteries included.
- Construction: Chrome-plated brass with vandal-resistant features.
- Sensor: Infrared proximity with a 10-degree angle and a manual override button.
Features & Benefits:
- Water Conservation: WaterSense certified 0.5 GPF design significantly reduces water usage, leading to substantial cost savings and environmental benefits.
- Hygienic Operation: Touchless sensor activation minimizes the spread of germs, promoting better restroom hygiene.
- AquaVantage Technology: Incorporates a TPE, chloramine-resistant, dual seal diaphragm for consistent and reliable performance.
- Vandal Protection: Control stop has internal siphon-guard protection and vandal resistant stop cap for high-traffic installations.
- Durable Design: Constructed from proprietary dezincification-resistant low lead brass alloy for extended service life in aggressive water conditions.
What's Included:
- 1 x ZER6003AV-EWS-CPM Sensor Operated Battery Powered Urinal Flush Valve
- 1 x AquaVantage TPE Diaphragm
- 1 x High Back Pressure Vacuum Breaker
- 1 x Adjustable Tailpiece
- 1 x Spud Coupling and Flange for Top Spud Connection
- 1 x Sweat Solder Kit with Cast Wall Flange
- 1 x Vandal Resistant Stop Cap
- 1 x Installation Hardware
- 4 x "C" Size Batteries
Options Available:
- ZER6003AV-ULF-CPM: Ultra Low Flow model at 0.125 gallons per flush for maximum water conservation with WaterSense certification.
- ZER6003AV-CPM: Standard model with 1.5 gallons per flush for traditional water usage applications.
- ZER6003AV-WS1-CPM: Water Saver model at 1.0 gallon per flush for standard efficiency applications.
FAQ
Q: What is the battery life for this flush valve?
A: The ZER6003AV-EWS-CPM is designed for long-term operation with four standard C-cell batteries (included). Under normal usage conditions in commercial settings, the battery pack typically provides multiple years of reliable service. A convenient battery indicator LED flashes red when batteries need replacement, ensuring proactive maintenance without unexpected downtime.
Q: How does the sensor range adjustment work?
A: The flush valve comes with a fully configurable sensor that allows for range adjustment. Using the included sensor adjustment tool, facility managers can fine-tune the detection range by accessing the distance adjustment screw. This feature prevents false activations from stall doors or reflective surfaces while ensuring optimal performance for various restroom layouts and user patterns.
Detailed Features & Benefits
Advanced Sensor Technology: The ZER6003AV-EWS-CPM utilizes an integral infrared convergence-type proximity sensor with a 10-degree angled design for optimal user detection. The system includes a 5-second delay to prevent unnecessary flushes when someone briefly walks by, and the visual indicator with LED lights provides feedback on system status. The capacitive sensing push button allows for manual activation when needed.
Water-Efficient Operation: With a 0.5 gallons per flush rate, this WaterSense certified model helps facilities significantly reduce water consumption while maintaining excellent performance. In high-traffic settings, this can save thousands of gallons annually per fixture compared to standard 1.5 GPF models. The chloramine-resistant components ensure consistent water delivery with each flush, even in chemically treated water systems.
ADA Compliant Design: Built to meet accessibility standards, the ZER6003AV-EWS-CPM complies with ADA requirements for commercial restrooms. The touchless operation benefits all users while the compliance with ASSE 1037/ASME A112.1037/CSA B125.37 standards ensures reliable performance across a wide range of installation conditions (20-80 psi water pressure range).
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
