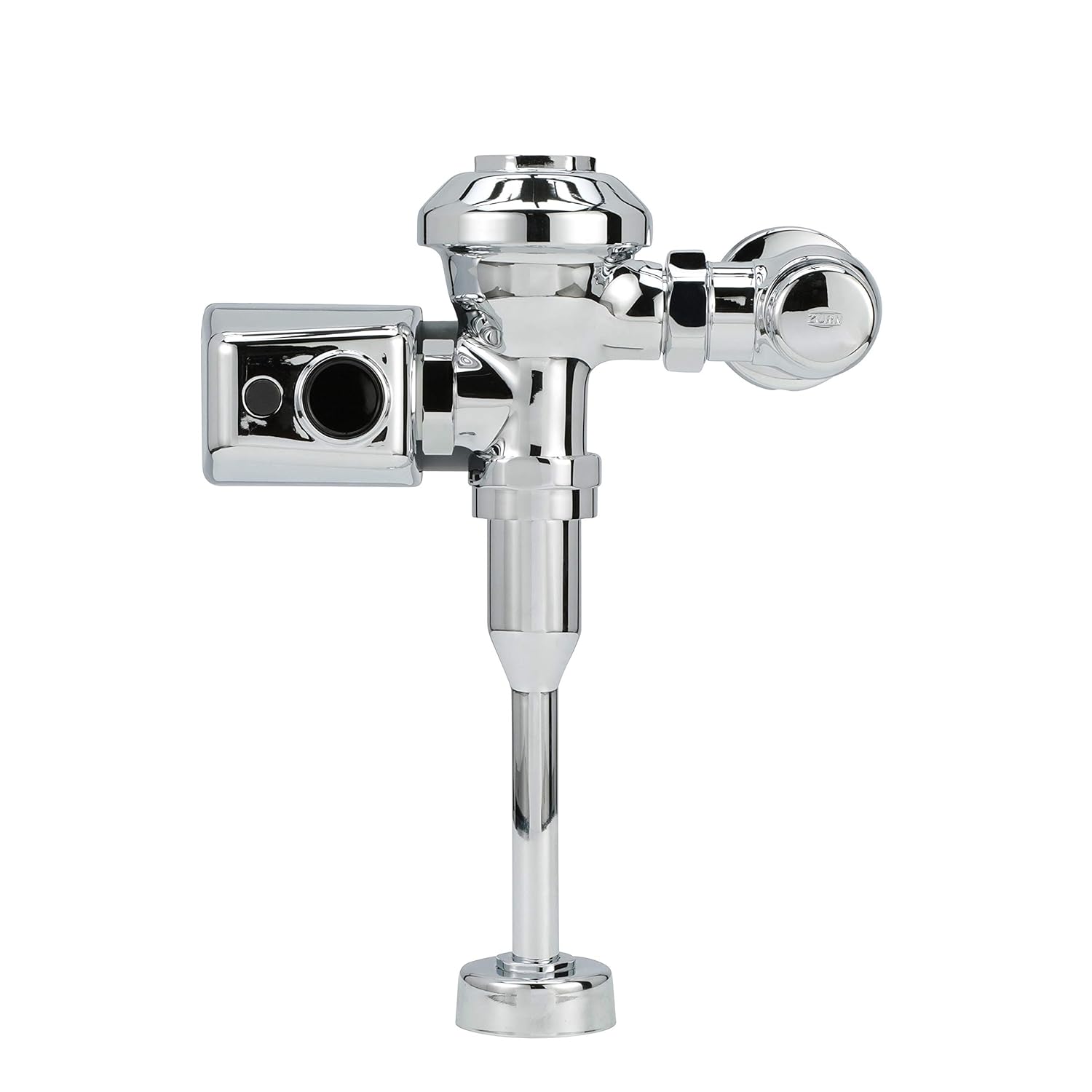

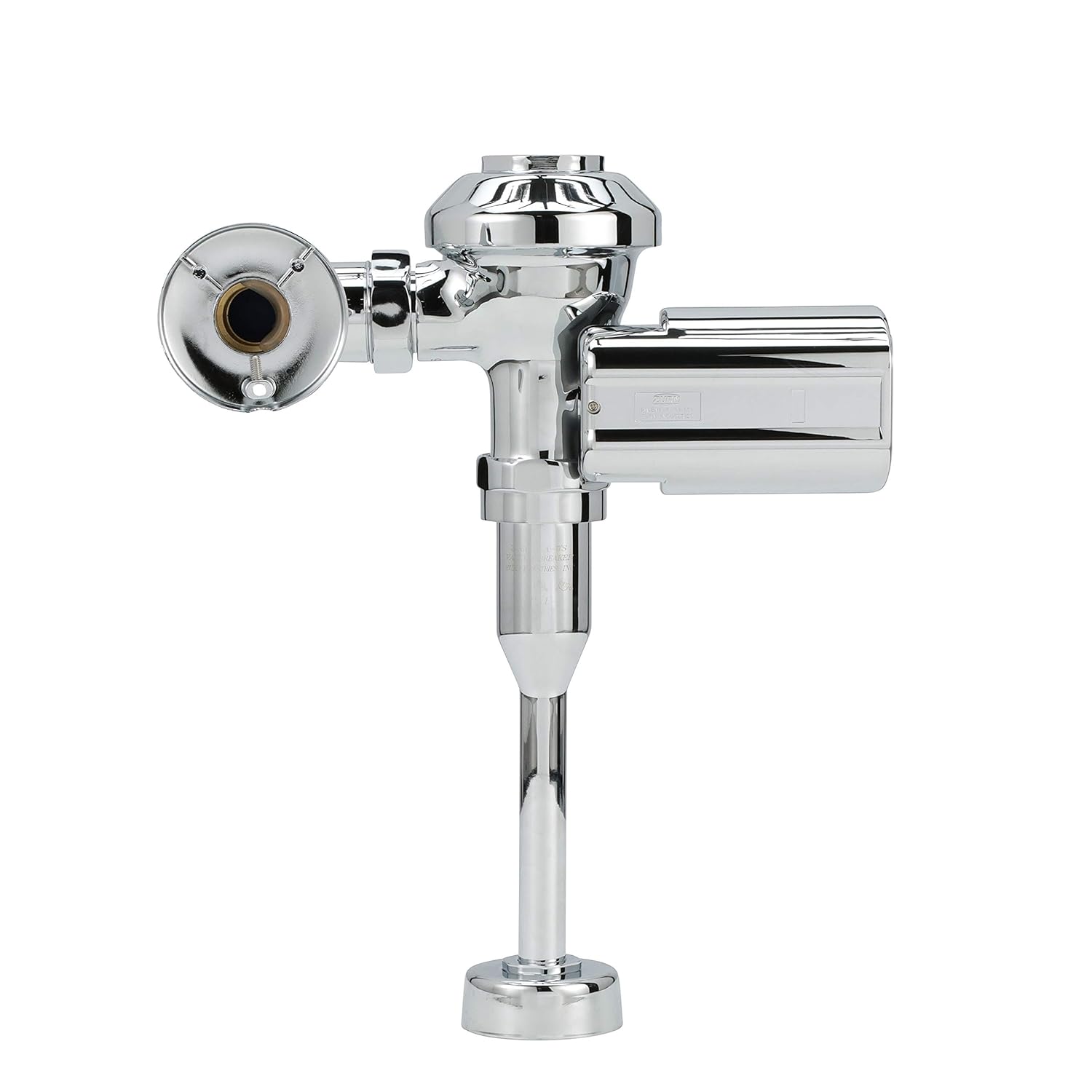

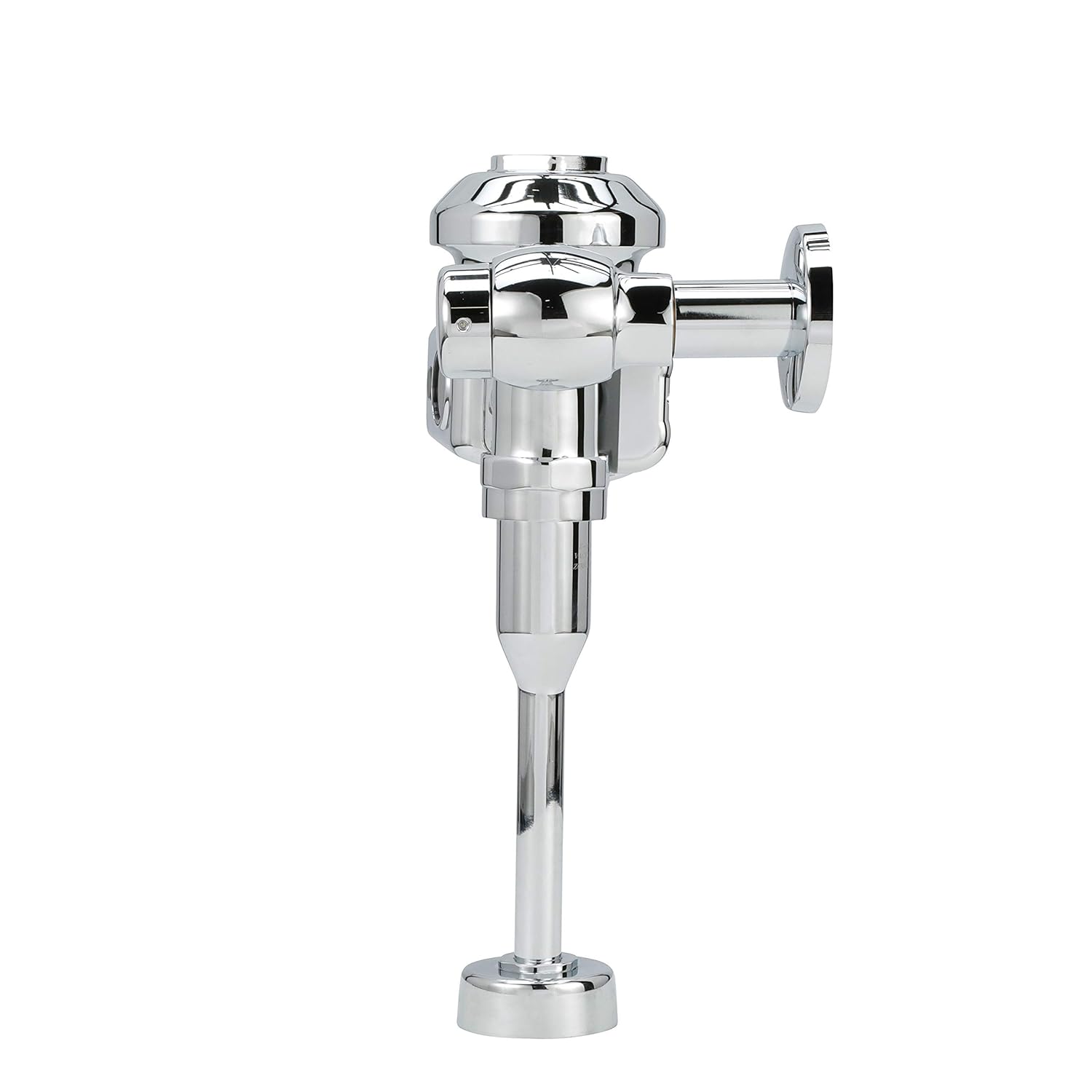

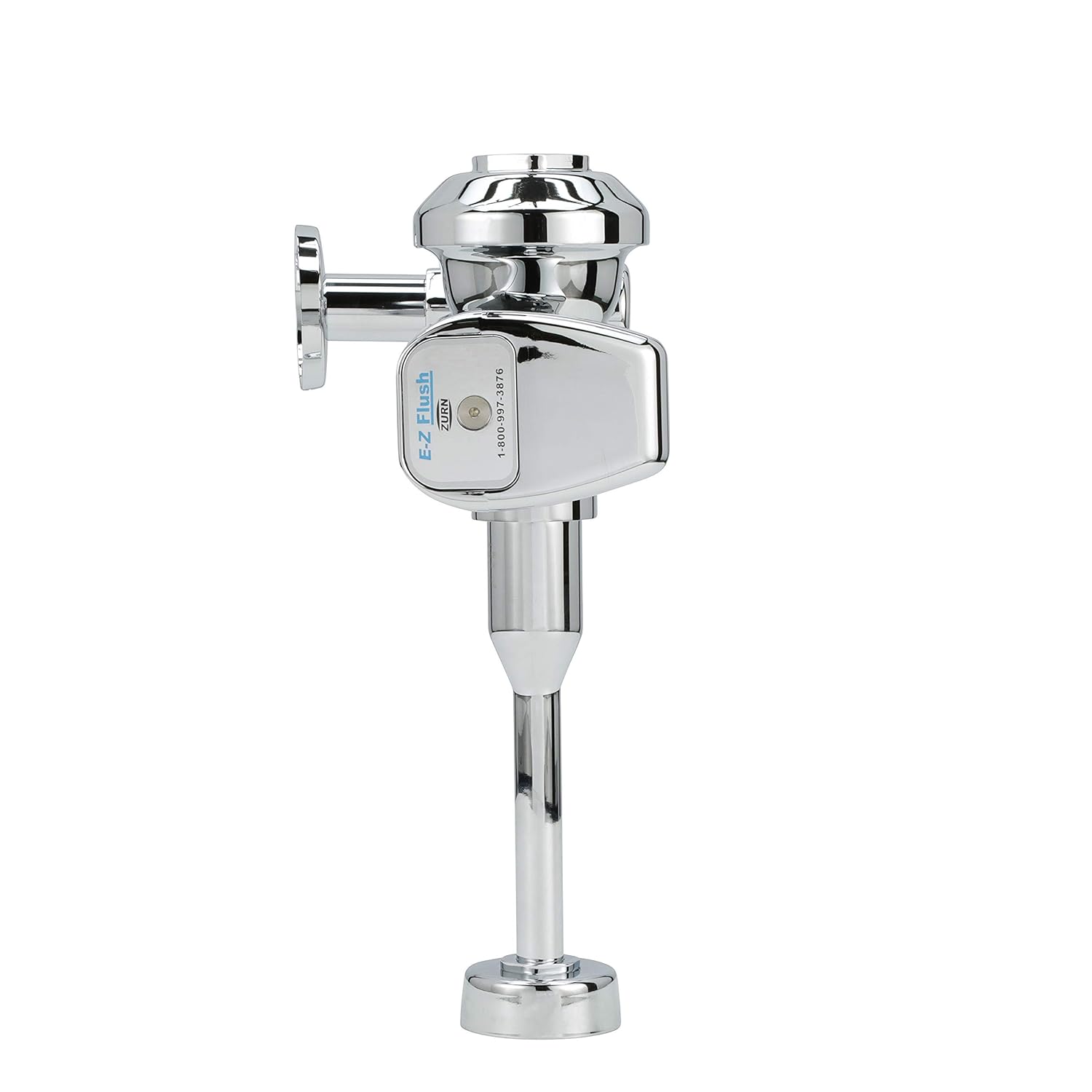

Zurn ZER6003AV-ULF-CPM | ZER Series Sensor Flush Valve | 0.125 gpf

The ZER6003AV-ULF-CPM delivers reliable sensor-operated performance with exceptional water conservation for urinals in commercial restrooms. Its ultra-low flow operation combines with Zurn's AquaVantage technology for dependable hands-free flushing that maximizes water savings and hygiene while minimizing maintenance.

Key Specifications:

• Flow Rate: Ultra-Low Flow 0.125 gpf for maximum water conservation.
• Operation: Sensor activated with 6VDC motor actuator and battery power.
• Construction: Chrome-plated brass with polished exterior and vandal-resistant features.
• Technology: Chloramine resistant, dual seal AquaVantage TPE diaphragm with clog-resistant by-pass.

Features & Benefits:

• Extreme Water Conservation: The ultra-low 0.125 gpf significantly reduces water consumption, leading to substantial cost savings and environmental benefits.
• Hands-Free Operation: The infrared convergence-type proximity sensor eliminates the need for physical contact, improving restroom hygiene.
• Manual Override: Includes a manual sensor with capacitive sensing push button for emergency operation when needed.
• Vandal Protection: Control stop has internal siphon-guard protection and vandal resistant stop cap for high-traffic installations.
• Durable Design: Constructed from proprietary dezincification-resistant low lead brass alloy for extended service life in aggressive water conditions.

Options Available:

• ZER6003AV-CPM: Standard model for traditional applications.
• ZER6003AV-EWS-CPM: Extra Water Saver model at 0.5 gallons per flush for balanced water efficiency with WaterSense certification.
• ZER6003AV-WS1-CPM: Water Saver model at 1.0 gallon per flush for standard efficiency applications.

What's Included:

• 1 x ZER6003AV-ULF-CPM Sensor Operated Battery Powered Urinal Flush Valve
• 1 x AquaVantage TPE Diaphragm
• 1 x High Back Pressure Vacuum Breaker
• 1 x Adjustable Tailpiece
• 1 x Spud Coupling and Flange for Top Spud Connection
• 1 x Sweat Solder Kit with Cast Wall Flange
• 1 x Vandal Resistant Stop Cap
• 1 x Installation Hardware
• 1 x Battery Compartment with Batteries

FAQ

Q: How does the ZER6003AV-ULF-CPM contribute to water conservation efforts?

A: The ZER6003AV-ULF-CPM operates at just 0.125 gallons per flush, representing a significant reduction in water usage compared to standard 1.0 GPF or even 0.5 GPF urinal models. In high-traffic commercial settings, this can translate to tens of thousands of gallons of water saved annually per fixture. The sensor operation also helps prevent unnecessary flushes, further conserving water. Despite the minimal water volume, the AquaVantage technology ensures effective flushing performance, maintaining hygiene standards while dramatically reducing water consumption and associated costs.

Q: Is this flush valve compatible with existing urinal fixtures?

A: Yes, the ZER6003AV-ULF-CPM is designed for 3/4" urinals, making it compatible with most standard urinal fixtures. It features a standard top spud connection and comes with an adjustable tailpiece, allowing it to adapt to various plumbing configurations. However, when retrofitting, it's important to ensure that the existing urinal fixture is compatible with the ultra-low 0.125 GPF flow rate. Some older urinal designs may require modification or replacement to function effectively with such a low water volume. For optimal performance and to ensure compliance with local codes, we recommend consulting with a professional plumber, especially when retrofitting this valve into an existing system.

Detailed Features & Benefits

Advanced Sensor Technology: The ZER6003AV-ULF-CPM utilizes an integral infrared convergence-type proximity sensor with a 10-degree angled design for optimal user detection. The system includes a delay feature to prevent unnecessary flushes when someone briefly walks by, and a visual indicator system with LED lights provides feedback on system status. The battery-powered operation ensures continuous functionality, even during power outages, while the manual override button provides a backup option ensuring the restroom remains functional in all scenarios.

Ultra-Low Flow Technology: At just 0.125 GPF, this model reduces water usage by up to 87.5% compared to standard urinal flush valves. This dramatic efficiency helps facilities meet the most stringent water conservation regulations while contributing substantially to LEED certification points in the water efficiency category. Despite the minimal water volume, the AquaVantage TPE diaphragm with clog-resistant by-pass ensures effective flushing, maintaining hygiene standards while dramatically reducing water consumption and operational costs.

Robust Construction: Built specifically for demanding public restroom environments, the ZER6003AV-ULF-CPM features a chrome-plated brass body with a polished exterior and impact-resistant polycarbonate housing. The proprietary dezincification-resistant low lead brass alloy provides enhanced longevity even in aggressive water conditions. The unit operates effectively with water pressure from 20 to 80 psi, providing reliable performance across a wide range of installation conditions, making it ideal for schools, stadiums, and other high-traffic commercial facilities.

NOTICE: All products come with a limited three-year warranty on materials and workmanship when properly installed and maintained according to instructions. Decorative finishes warranted for one year.
