Haws 1011HSA.8 | RIVIVE Chilled Recessed Bottle Filler & Hi-Lo ...

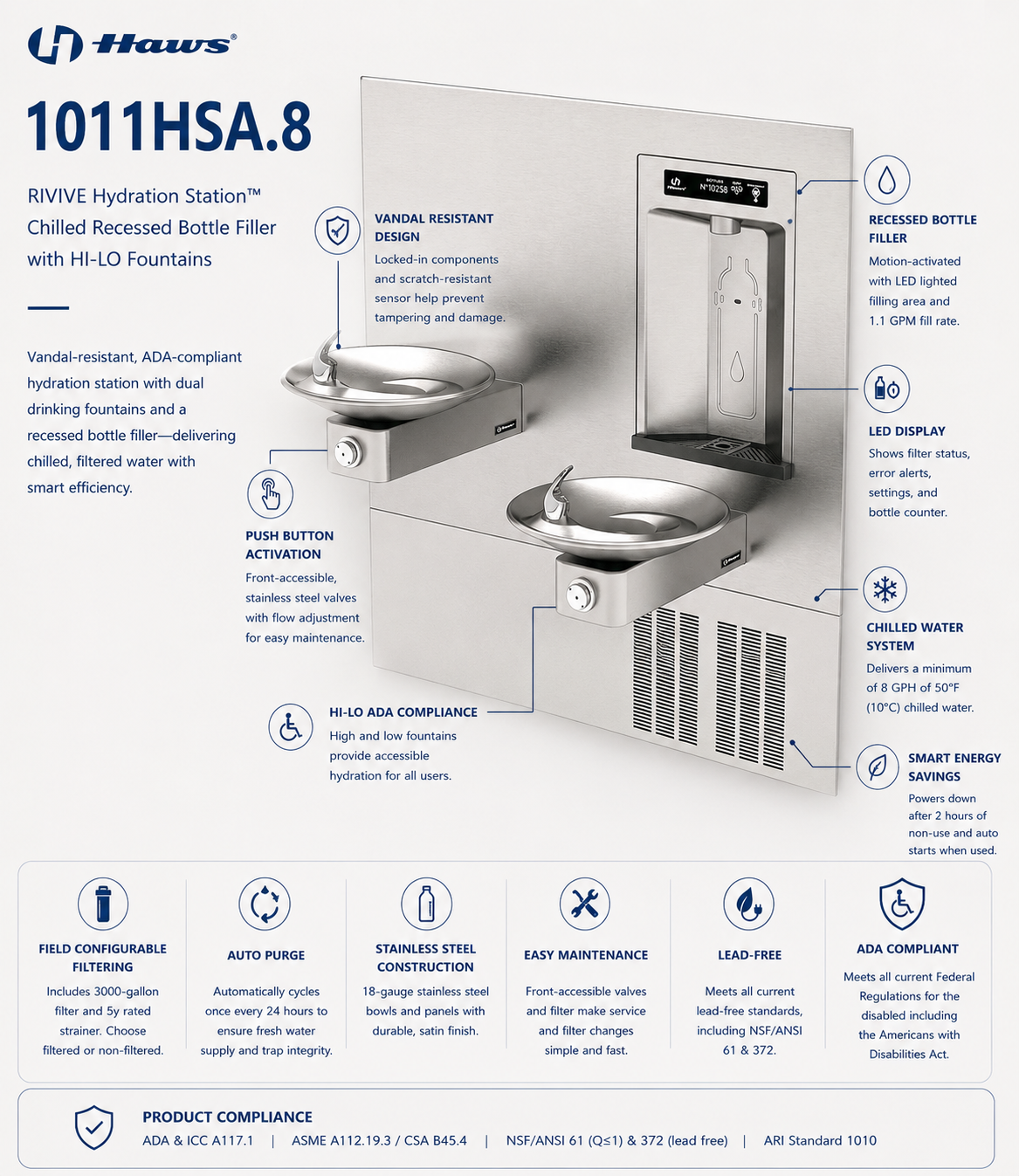

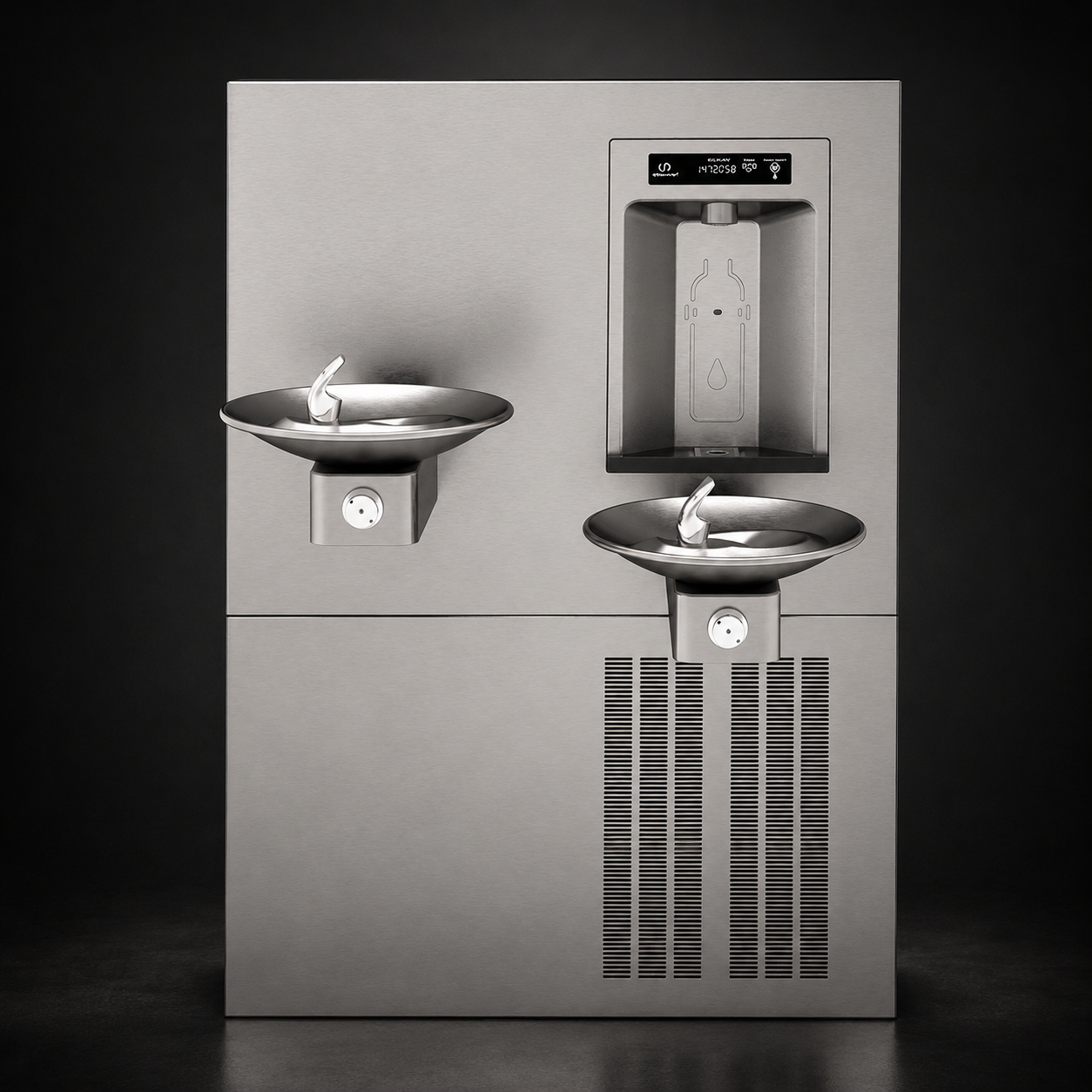

The Haws 1011HSA.8 is a recessed, chilled hydration station combining a sensor‑activated bottle filler with dual hi‑lo drinking fountains in one vandal‑resistant, stainless steel unit. Designed for high‑traffic indoor environments, it delivers reliable chilled water with advanced energy‑saving and safety features.
Key Specifications:
| Design | Recessed hi‑lo fountains with motion‑activated bottle filler |
| Finish | Type 304 Stainless Steel, Satin Finish |
| Filtration | Includes 6428 Carbon Block Replacement Filter, 3,000 gallon capacity |
| Refrigeration | 8 GPH chilled water, hermetically sealed chiller |
| Stations Served | 2 (dual hi‑lo fountains + bottle filler) |
Features & Benefits:
- Versatile Hydration Access: Combines dual hi‑lo fountains with a recessed bottle filler in one vandal‑resistant unit.
- Smart Energy Efficiency: Auto powers down refrigeration after 2 hours of non‑use, restarting when activated.
- Water Freshness: Auto purge cycles water every 24 hours to maintain freshness and trap integrity.
- Low Maintenance: Front‑accessible valve cartridge, flow adjustment, and filter replacement simplify upkeep.
- Digital LED Display: Tracks bottle count, filter life, sensor settings, and provides error readouts.
Other Related Variants:
- 1011HS: Non‑chilled RIVIVE recessed bottle filler with hi‑lo fountains
- 1011HSA: Non‑chilled RIVIVE recessed bottle filler with hi‑lo fountains
- 1011.8S: Hi‑lo with motion‑activated bottle filler, chiller, and mounting frame
- 1011.8SF: Hi‑lo filtered with motion‑activated bottle filler, chiller, and mounting frame
- 1011HO2: Hi‑lo touchless stainless steel with in‑wall mounting plate
Comparison of Haws Hydration Stations:
| Feature | 1011HSA.8 (This Model) | 1212SFV Series | 1119FRP |
|---|---|---|---|
| Design | Recessed hi‑lo fountains with bottle filler | Wall‑mount filtered fountain with bottle filler | Freeze‑resistant dual fountain with bottle filler |
| Refrigeration | 8 GPH chilled water | Chilled water capacity varies by model | Non‑refrigerated, freeze‑resistant system |
| Best For | Indoor high‑traffic facilities needing chilled hydration | Indoor facilities needing filtered, vandal‑resistant units | Outdoor or cold climate facilities needing freeze‑resistant fountains |
FAQ
Q: Does Haws 1011HSA.8 Include Filtration?
A: Yes. It includes a 3,000‑gallon Electronic Lifecycle Control filter cartridge (6428 Carbon Block Replacement Filter), field configurable for filtered or non‑filtered use.
Q: What Electrical Connection Is Required for Haws 1011HSA.8?
A: Operates at 115V, 60Hz, 370W, 5 amps. Requires a 120VAC/60Hz, 15‑amp GFCI‑protected circuit for the bottle filler and a separate 5‑amp GFCI‑protected circuit for the chiller (or both on one 15‑amp circuit).
Q: Can Haws 1011HSA.8 Be Installed Outdoors?
A: No. It is designed for indoor use only; outdoor installation or chlorine exposure may void the warranty.
Q: What Accessories Are Available for Haws 1011HSA.8?
A: Recommended accessories include the SK3 Fountain Skirt for ADA compliance and the 6434 Replacement Water Strainer for ongoing maintenance.
Q: How Does the Auto Purge Feature Work on Haws 1011HSA.8?
A: The unit automatically cycles water every 24 hours to maintain freshness and trap integrity.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

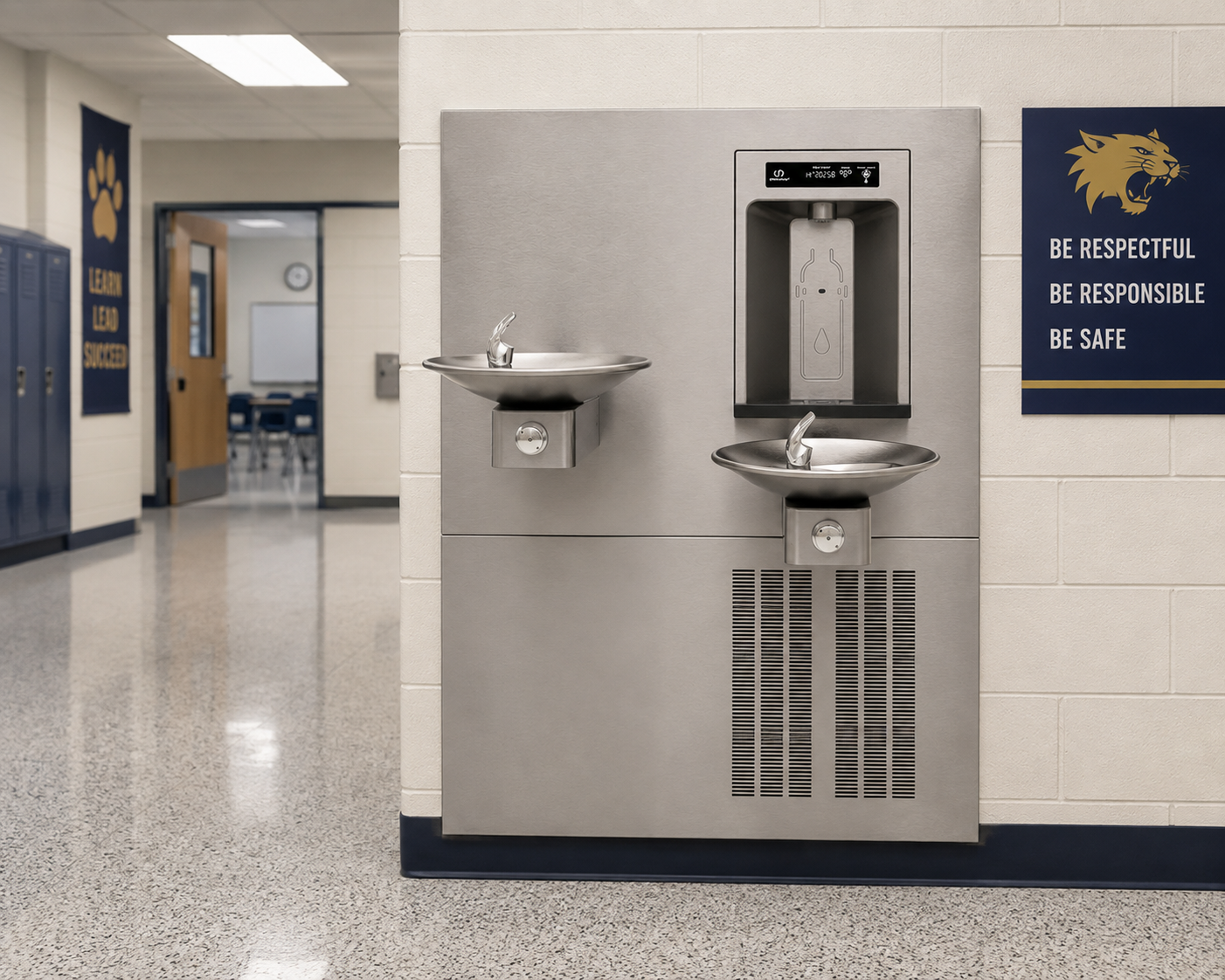

The Haws 1011HSA.8 is a recessed, chilled hydration station combining a sensor‑activated bottle filler with dual hi‑lo drinking fountains in one vandal‑resistant stainless steel unit. Designed for schools, offices, and public facilities, it provides versatile hydration access in a compact wall‑mounted design.

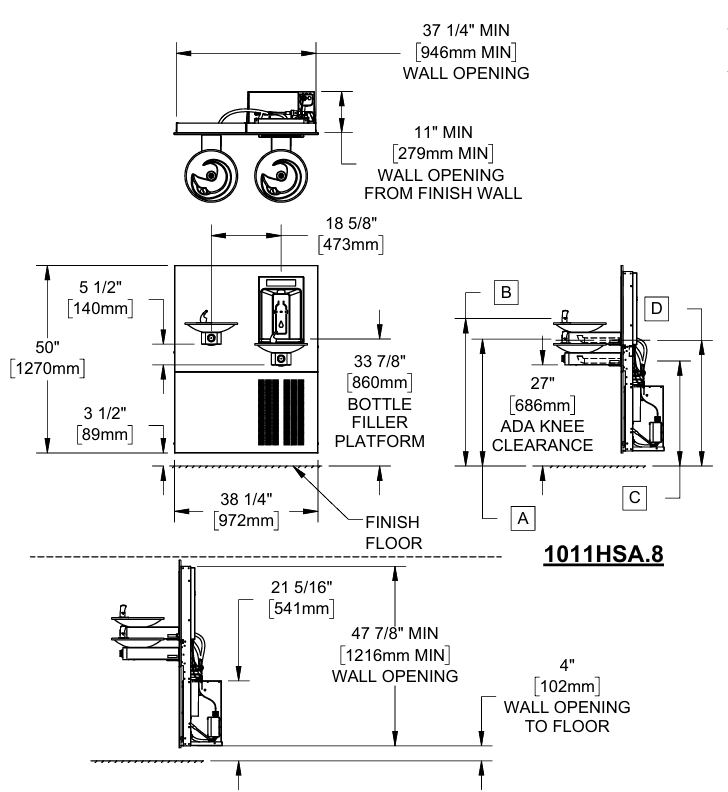

Key Installation Requirements:
- Recessed wall installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for servicing refrigeration and filter components
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit includes a 3,000‑gallon Electronic Lifecycle Control filter cartridge
- Always depressurize water line before servicing or replacing filter
- Provide adequate ventilation clearance around refrigeration louvers
- Outdoor installation not recommended — warranty may be voided
- Secure fountains firmly to wall structure to meet vandal‑resistant requirements
Basic Installation Overview:
- Install in‑wall carrier securely to support recessed unit weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Mount recessed bottle filler and fountain assembly into wall opening
- Connect drain lines from both coolers and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify refrigeration system powers on
- Pressurize system slowly and check for leaks
- Test sensor activation for bottle filler and bubbler stream height; adjust regulator if needed
- Install trim panels and finish plates
For complete specifications and installation guidelines, download the official 1011HSA.8 Spec Sheet and the Installation Manual.
