Elkay LZSTLDDWSLK | Wall-mount Versatile Bi-Level Bottle Filling St...

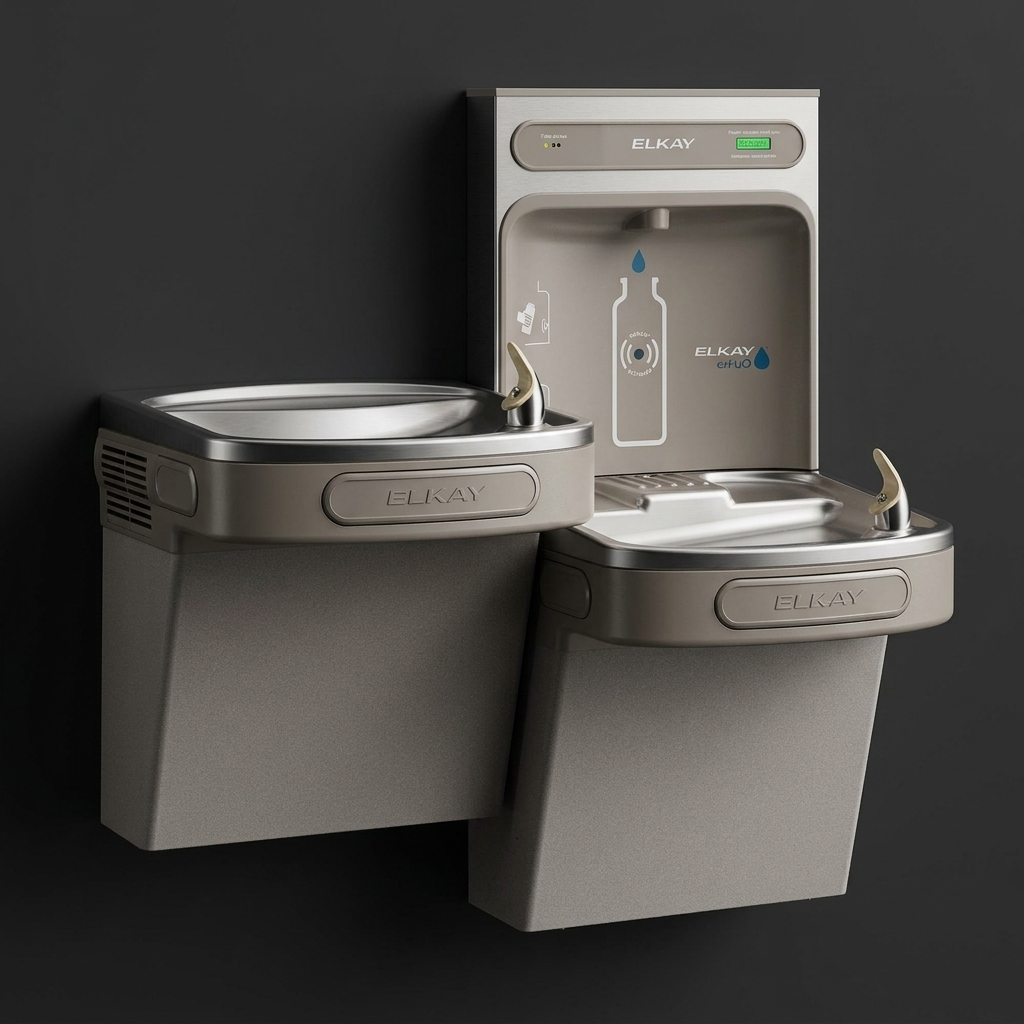

The Elkay LZSTLDDWSLK is a filtered, non‑refrigerated bi‑level ADA cooler with integrated bottle filler. Designed for indoor use, it combines accessibility, durability, and Elkay’s Green Ticker™ technology to promote sustainable hydration.
Key Specifications:
| Design | Bi‑level ADA cooler with integrated bottle filler, wall‑mount installation |
| Finish | Light Gray Granite. For Stainless Steel option, choose the LZSTLDDWSSK. |
| Filtration | Standard WaterSentry® Plus filter (Elkay 51300C), NSF/ANSI 42, 53, 372 & 401 certified, 3,000‑gal. capacity |
| Refrigeration | Non‑refrigerated. For refrigerated option, choose the LZSTL8WSLK. |
| Stations Served | 2 (bi‑level coolers + bottle filler) |

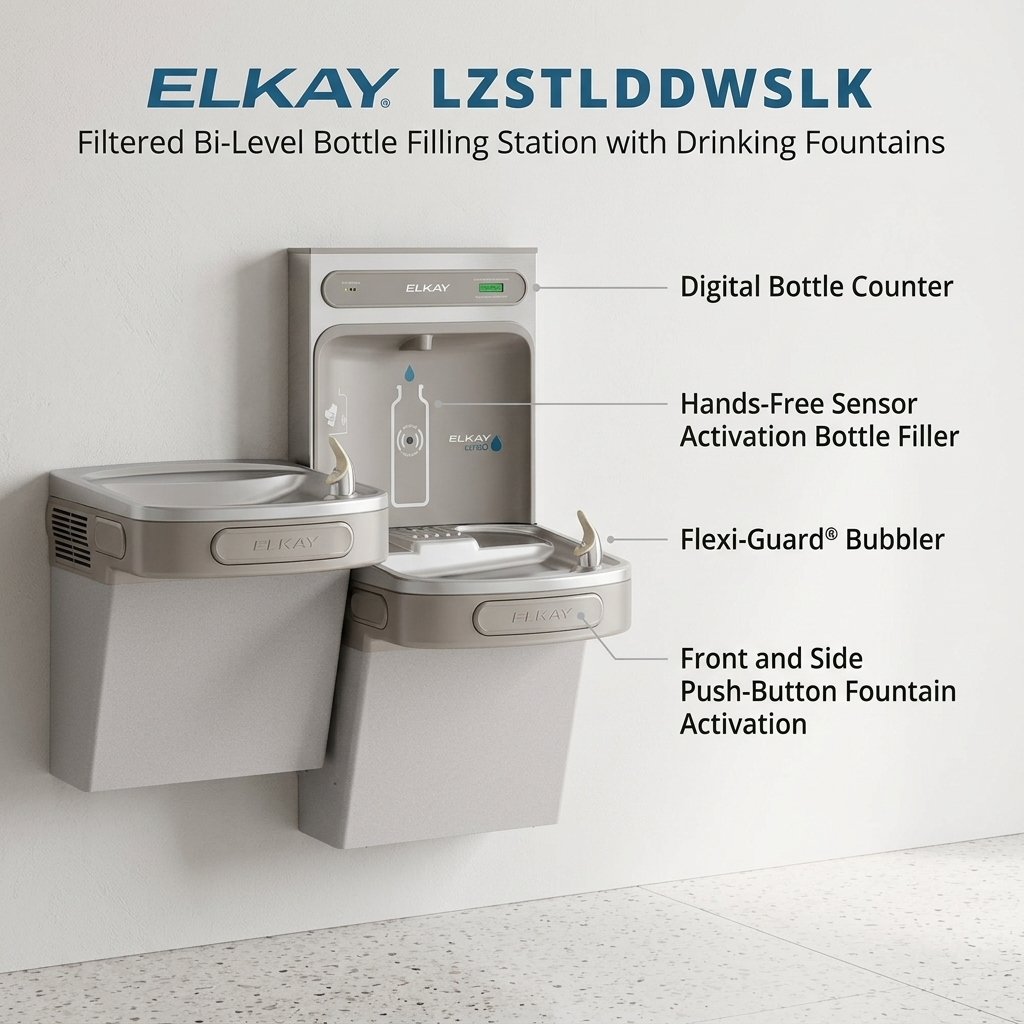

Features & Benefits:
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Flexi‑Guard® Safety Bubbler: Antimicrobial mouth guard reduces risk of injury and resists microorganisms.
- Laminar Flow: Provides a clean fill with minimal splash.
- Real Drain System: Eliminates standing water for improved hygiene.
What's Included:
- LZSTLDDWSLK Bottle Filling Station & Bi‑Level Cooler unit
- Flexi‑Guard® Safety Bubbler
- Standard WaterSentry® Plus filter (51300C)
- Hanger brackets for installation
- Installation instructions and user manual
Comparison of Elkay Bottle Filling Stations:
| Feature | LZSTLDDWSLK | LZSTLG8WSSK | LZSTLDWSSPRO |
|---|---|---|---|
| Design | Bi‑level ADA cooler with integrated bottle filler | Bi‑level ADA cooler with integrated bottle filler, high‑efficiency design | Bi‑level ADA cooler with integrated bottle filler, Pro Filtration system |
| Finish | Light Gray Granite | Stainless Steel | Stainless Steel |
| Filtration | Standard WaterSentry® Plus filter (3,000‑gal. capacity) | Standard WaterSentry® Plus filter (3,000‑gal. capacity) | FL10 Pro Filtration system with enhanced contaminant reduction |
| Refrigeration | Non‑refrigerated | Refrigerated, 8.0 GPH chilled water | Refrigerated, 8.0 GPH chilled water |
| Stations Served | 2 | 2 | 2 |
| Best For | Indoor facilities needing filtered hydration without refrigeration | Indoor facilities requiring high‑efficiency refrigerated hydration | Facilities needing advanced Pro Filtration with refrigerated hydration |
FAQ
Q: What Is Included with the Elkay LZSTLDDWSLK?
A: The Elkay LZSTLDDWSLK includes the bi‑level cooler, integrated bottle filler, Flexi‑Guard® Safety Bubbler, and a standard WaterSentry® Plus filter (51300C). Components ship in separate boxes.
Q: Does the Elkay LZSTLDDWSLK Ship with All Installation Parts?
A: No. A plumber must provide a shut‑off valve and a 1‑1/4” trap, which are not furnished.
Q: What Accessories Are Compatible with the Elkay LZSTLDDWSLK?
A: Recommended accessories include the Elkay MLP200 In‑Wall Carrier for secure installation, the Elkay LKAPREZL Cane Apron for ADA compliance, and the Elkay 98551C WaterSentry® Filter Mounting Cover for filter protection.
Q: Does the Elkay LZSTLDDWSLK Have Higher Performance Options?
A: Yes. Facilities requiring advanced contaminant reduction can choose the Elkay LZSTLDWSSPRO with Pro Filtration.
Q: Can the Elkay LZSTLDDWSLK Be Installed Outdoors?
A: No. The Elkay LZSTLDDWSLK is designed for indoor use only and must be installed in compliance with local plumbing and electrical codes.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay LZSTLDDWSLK is a bi‑level bottle filling station with integrated filtered coolers. Designed for high‑traffic indoor environments, it delivers chilled, filtered water with hands‑free sensor activation and ADA‑compliant dual fountain access.

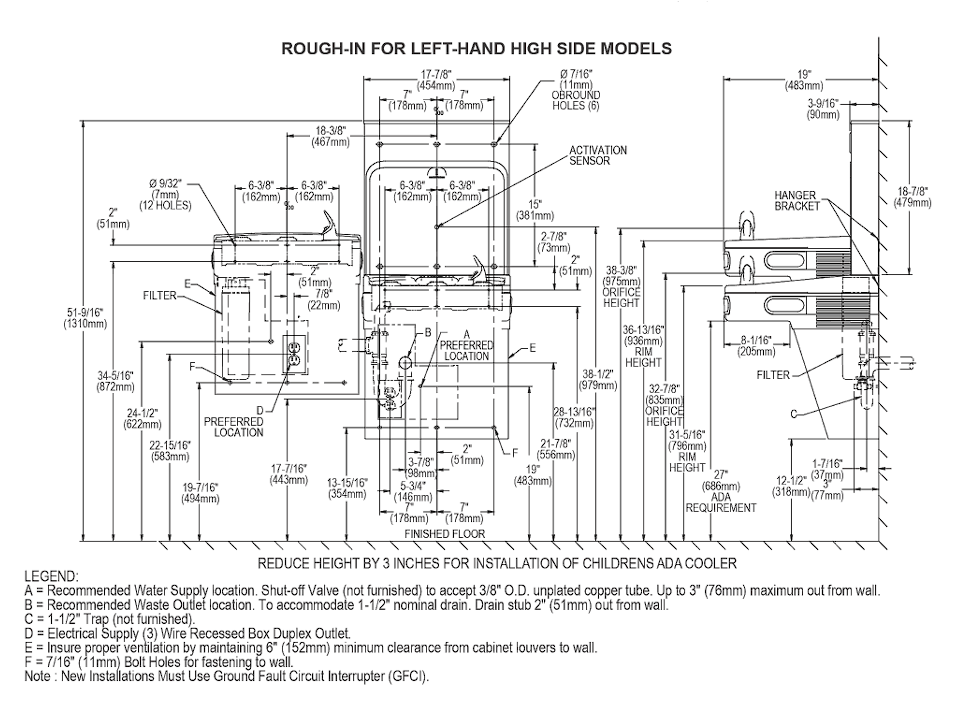

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lenses are unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to meet bi‑level and vandal‑resistant requirements
Basic Installation Overview:
- Install mounting frame securely to support dual cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Hang main panel on frame, ensuring wires and tubing are not pinched
- Connect drain lines from both coolers and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LZSTLDDWSLK Spec Sheet and the Installation & Maintenance Manual.
