Elkay LZSTLDDWSSK | Wall-mount Versatile Bi-Level Bottle Filling St...

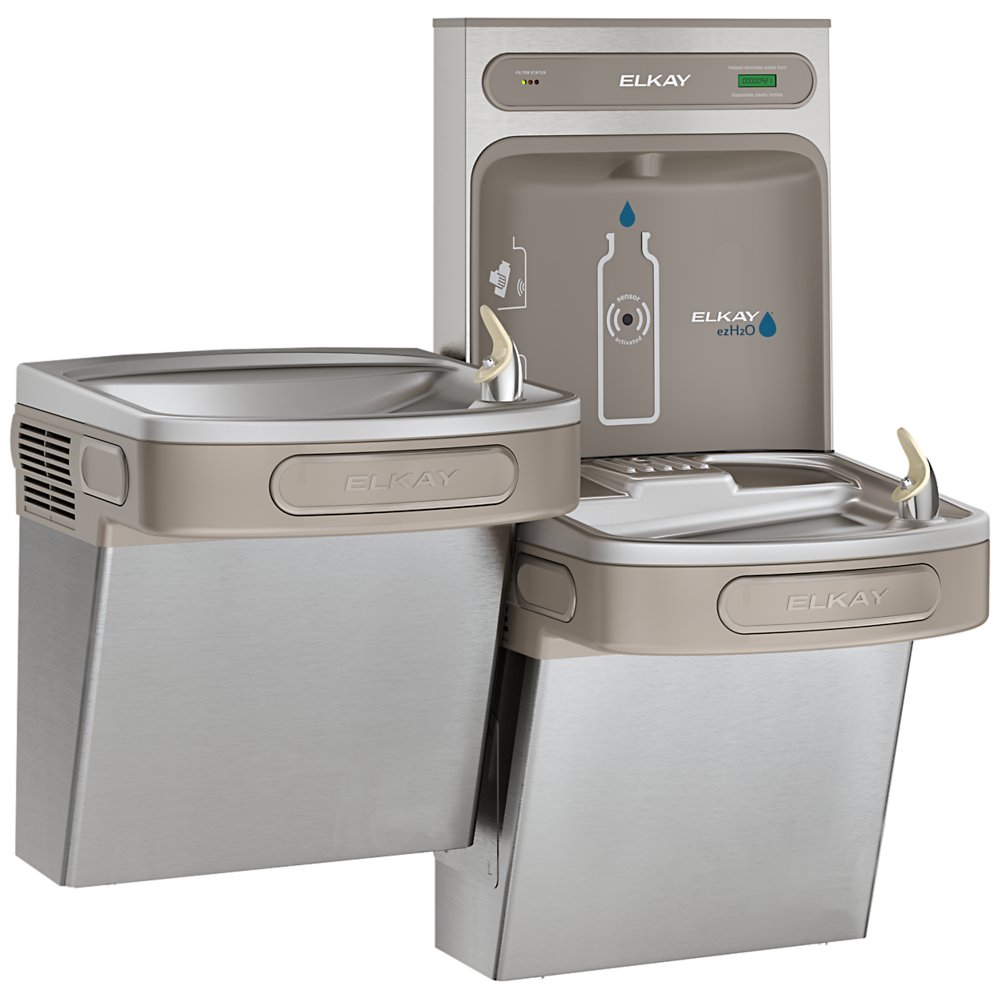

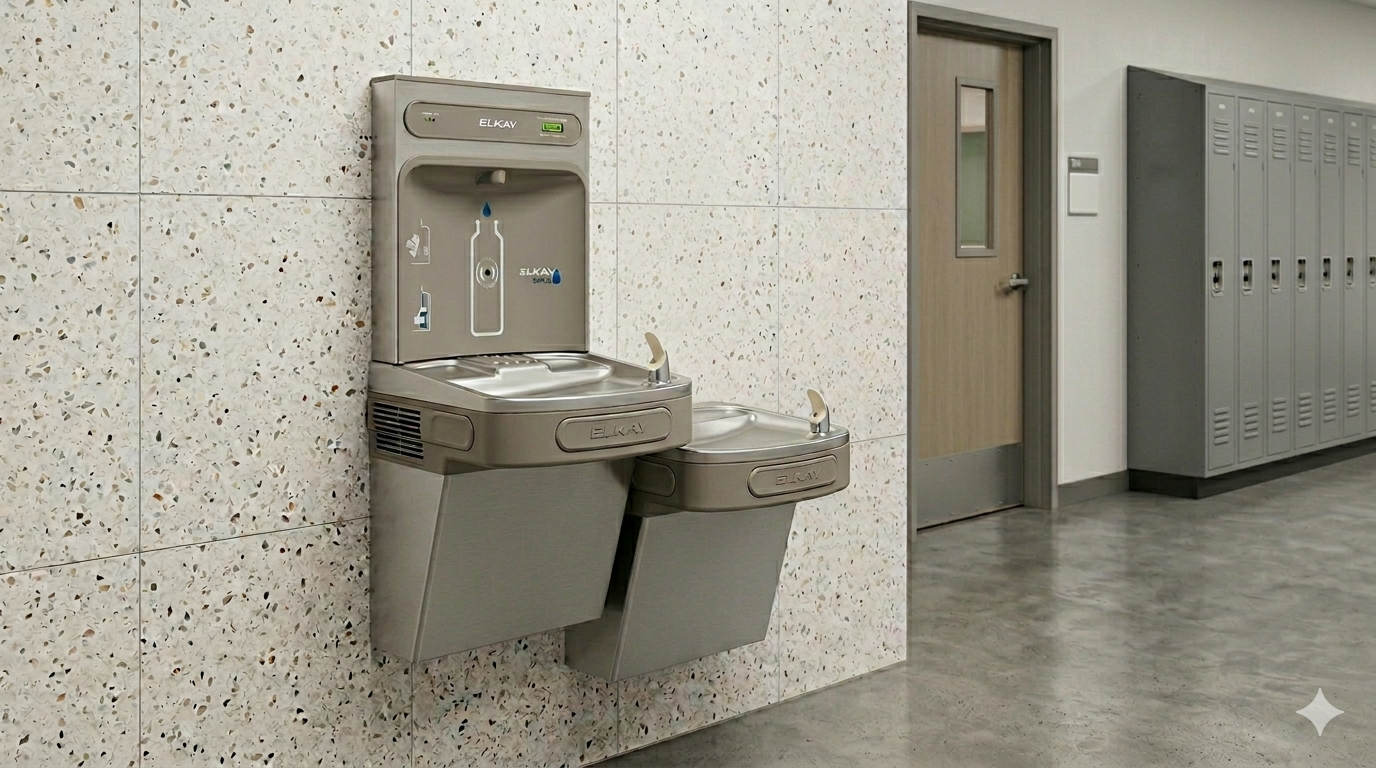

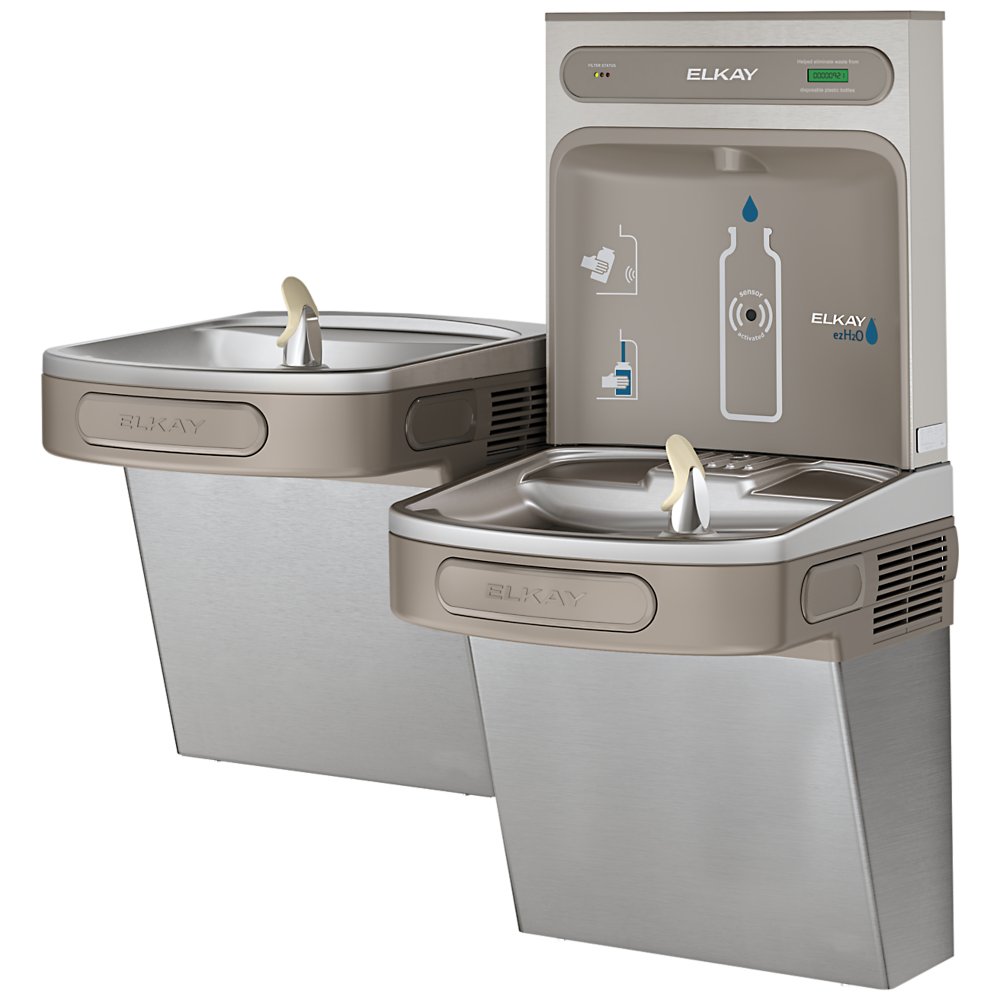

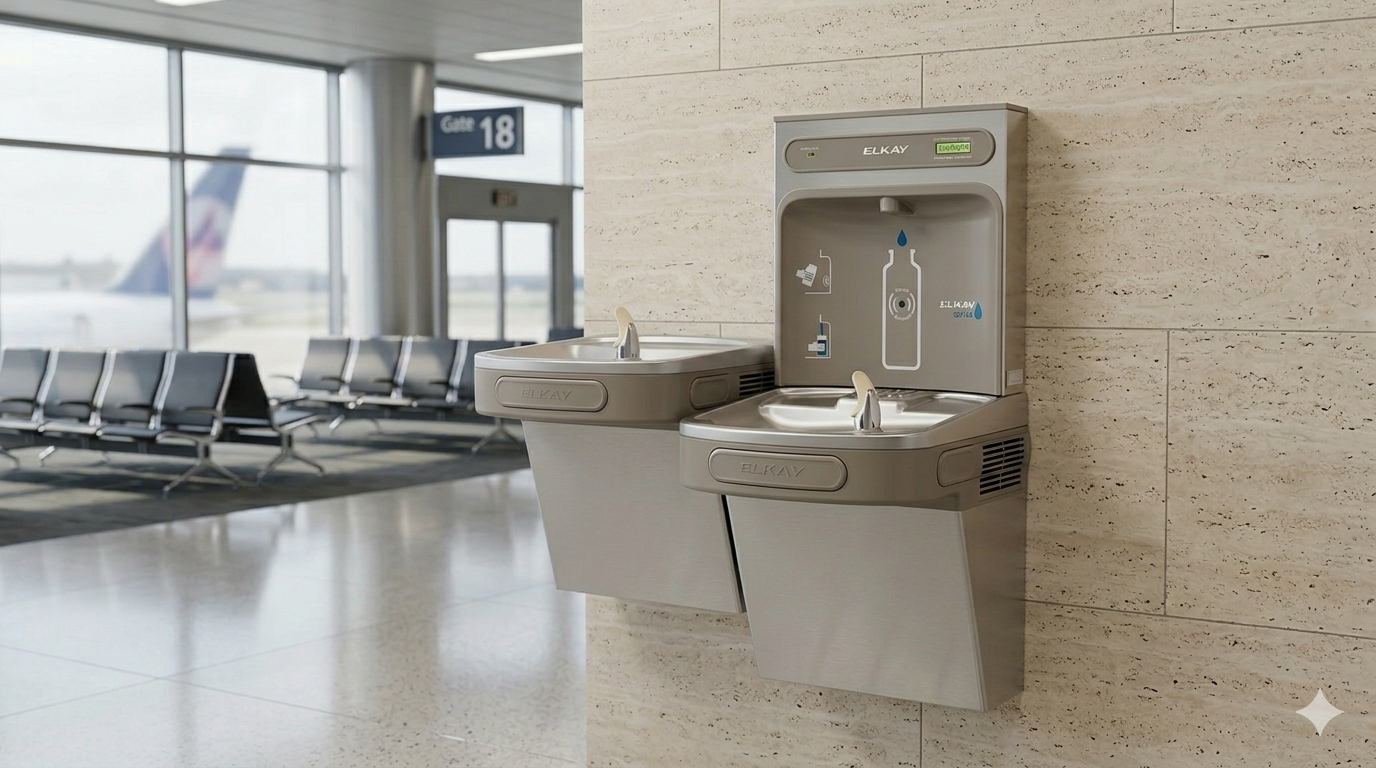

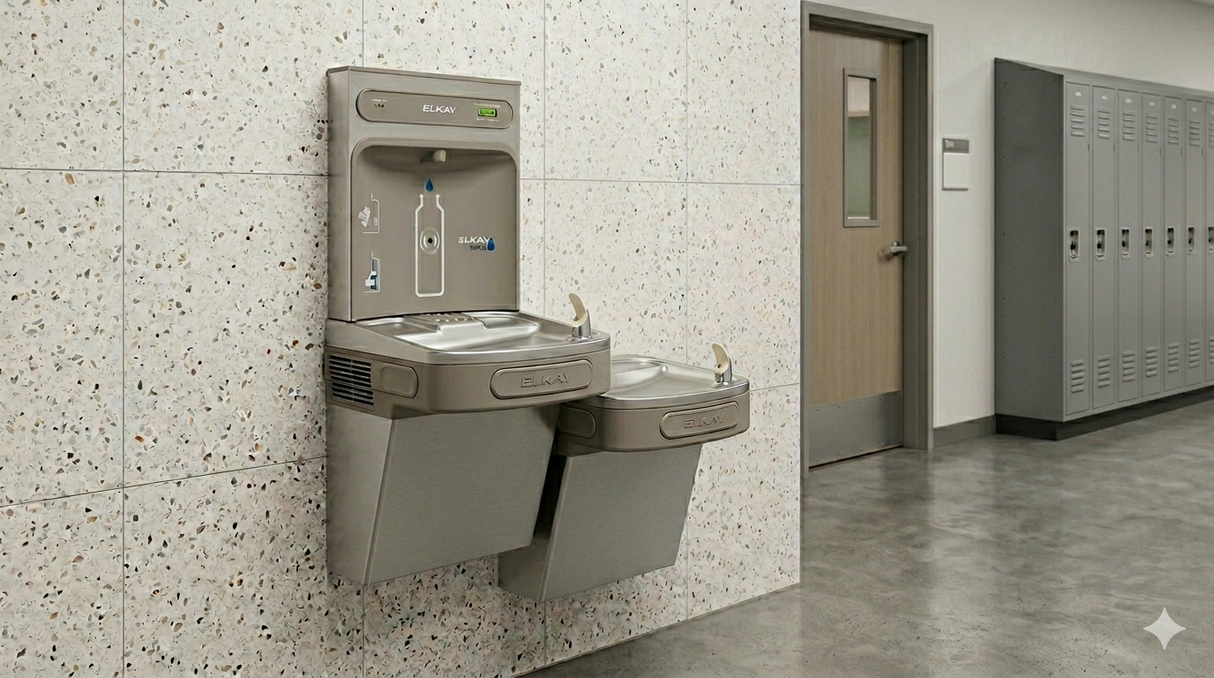

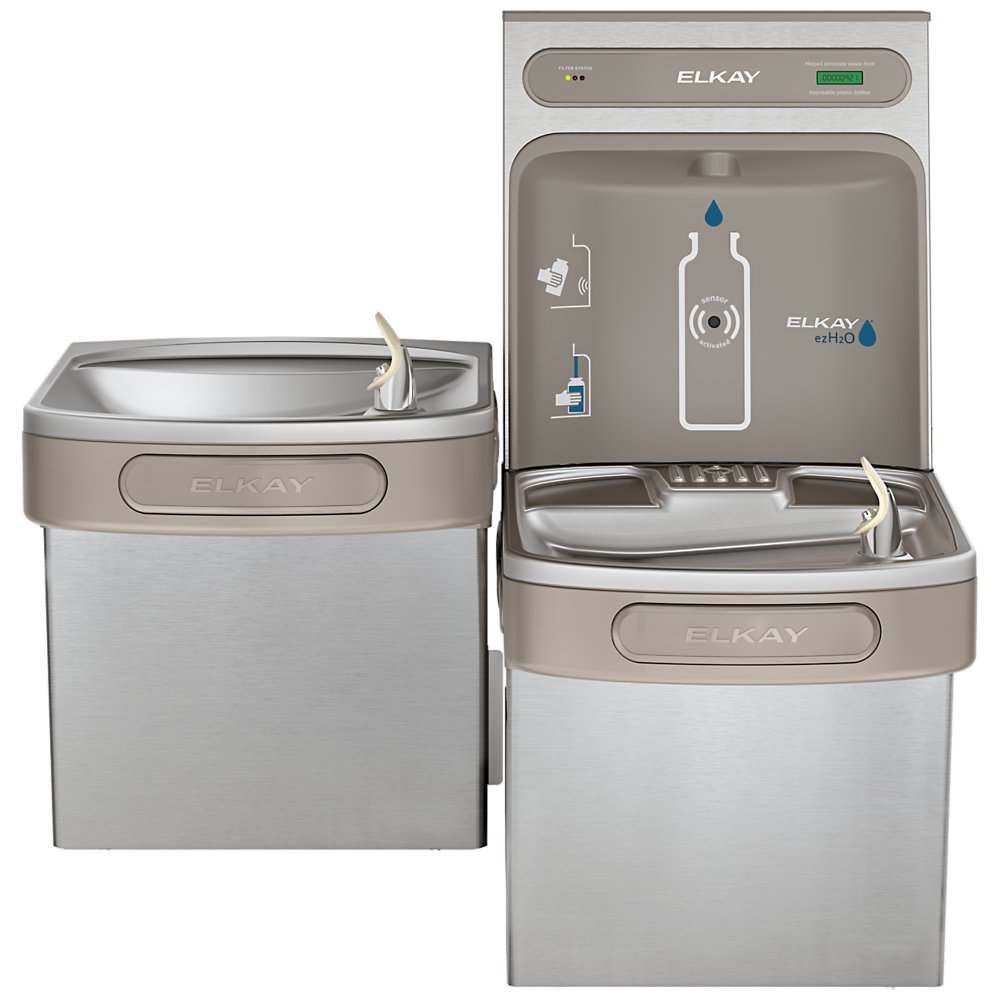

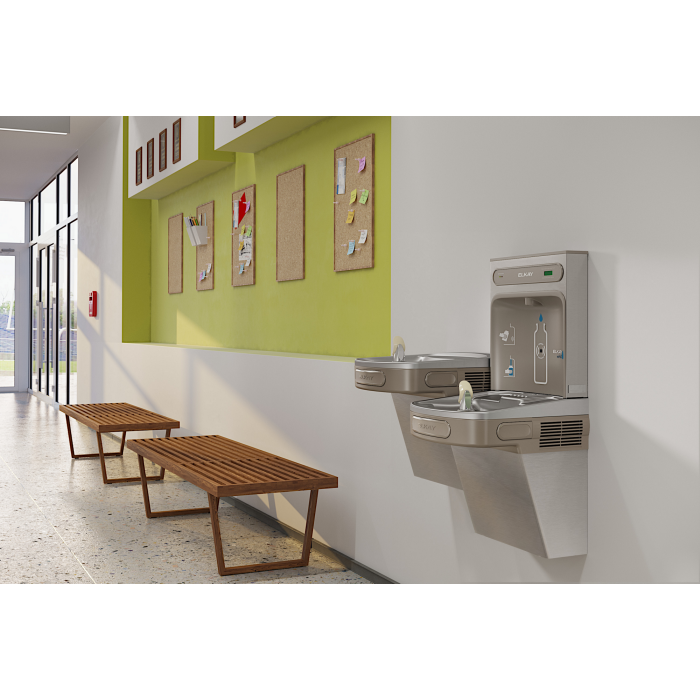

The Elkay LZSTLDDWSSK ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler is a filtered, non-refrigerated stainless steel unit. Designed for indoor wall-mount applications, it combines hands-free bottle filling with dual ADA-compliant coolers, antimicrobial protection, and advanced filtration, making it ideal for schools, offices, and public facilities.
Key Specifications:
- Design: Versatile bi-level ADA cooler with electronic sensor activation and Flexi-Guard® Safety Bubbler
- Finish: Stainless steel
- Filtration: Standard WaterSentry® Plus filter (Elkay 51300C), NSF/ANSI 42, 53, 372 & 401 certified, 3,000-gallon capacity. Filters Lead, Microplastics, Chlorine, & more.
- Refrigeration: Non-refrigerated (ambient water). For refrigerated option: Elkay LZSTL8WSSK.
- Stations Served: 2 (bi-level ADA cooler)
Features & Benefits:
- Hands-Free Bottle Filling: Electronic sensor activation provides hygienic, touchless operation.
- Green Ticker™: Displays bottles saved from waste, encouraging reusable bottle use.
- Visual Filter Monitor: LED alerts indicate when filter replacement is needed.
- Laminar Flow: Provides clean, splash-free fills for improved hygiene.
- Antimicrobial Protection: Key plastic components manufactured with silver ion antimicrobial agent for cleaner surfaces.
- Real Drain System: Eliminates standing water to reduce maintenance.
FAQ
Q: Is the LZSTLDDWSSK ADA compliant?
A: Yes. When installed at the proper mounting height, the bi-level design meets ADA & ICC A117.1 accessibility standards.
Q: Which filters are compatible with the LZSTLDDWSSK?
A: The station ships with a WaterSentry® Plus filter tested to NSF/ANSI 42, 53, 372, and 401. It is compatible with the 51300C WaterSentry® Replacement Filter and other WaterSentry® models depending on your filtration needs.
Q: What contaminants can the LZSTLDDWSSK filter reduce?
A: The included filter reduces lead, microplastics, cysts, chlorine taste and odor, and particulates. Some Elkay models also support enhanced filters for PFAS, PFOA, and PFOS reduction. Always check filter specifications for your unit.
Q: What accessories are available for the LZSTLDDWSSK?
A: Optional accessories include the LKAPREZL Cane Apron for ADA compliance and the MLP200 In‑wall Carrier for secure installation.
Q: Is there Bottle Filler Available with a Higher Capacity & Performance?
A: Yes. For facilities looking for higher performance and capacity filtration options, visit the Elkay Pro Filtration Collection
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
