Elkay  |  SKU: LZSTL8WSLK

Elkay LZSTL8WSLK | Wall-mount Bi-level Bottle Filling Station | Filtered, Refrigerated, EZ-style fountain, Granite Gray

$ 1,784.99
Shipping calculated at checkout.


In Stock
Free Shipping
_____________________________________
_____________________________________

Product Care Information

Installation

  • Elkay Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

Maintenance

Cleaning

It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.



Video on Cleaning



Video on Fil Mat

Filter Replacement

When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

Video on Filter Change

Ships within 24 hours

One of the most popular models, the Elkay LZSTL8WSLK bi-level drinking fountain with bottle filler makes drinking water more practical, safe, and appealing than ever before.

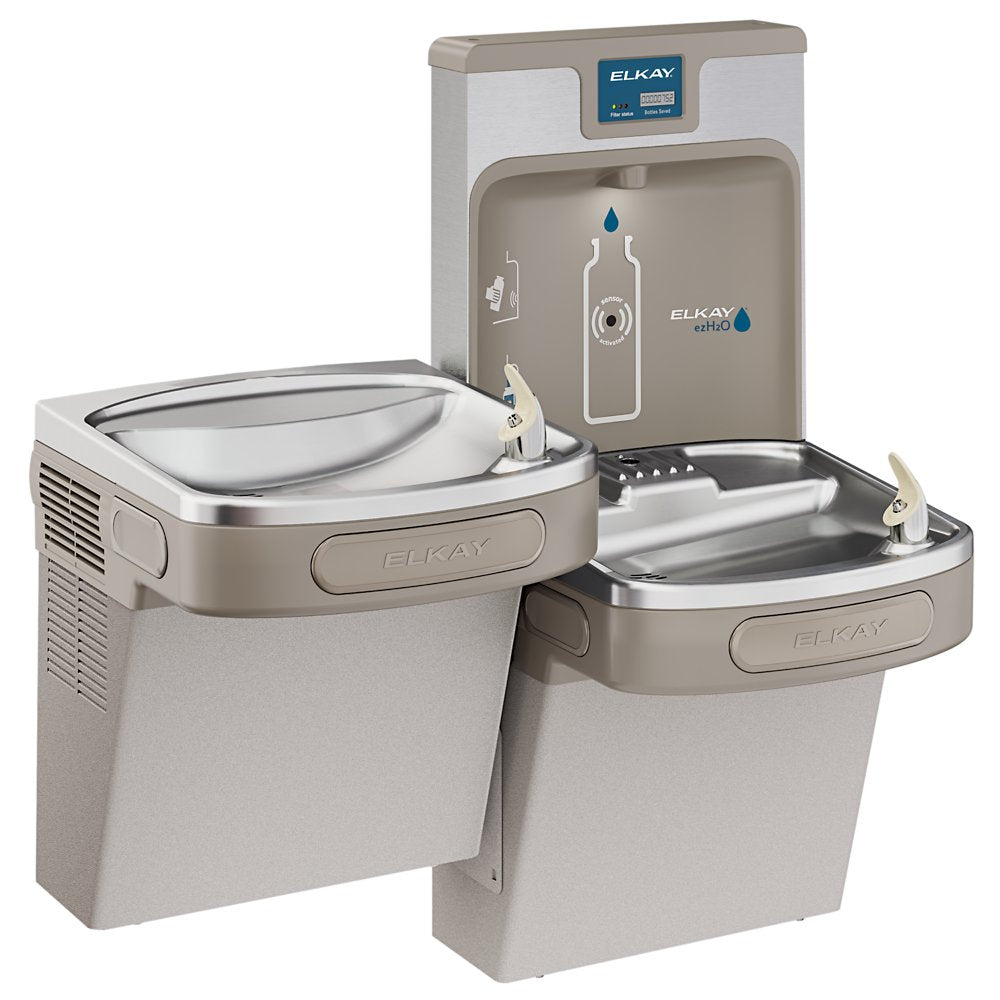

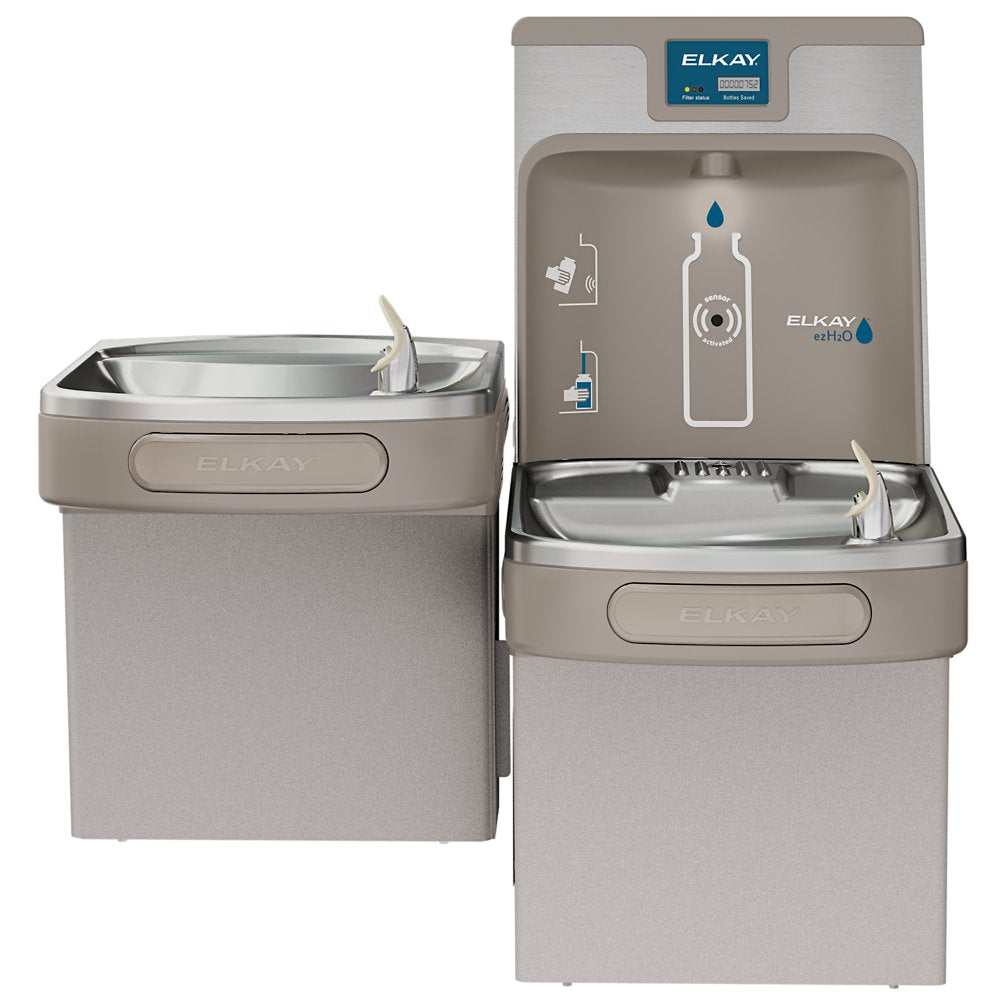

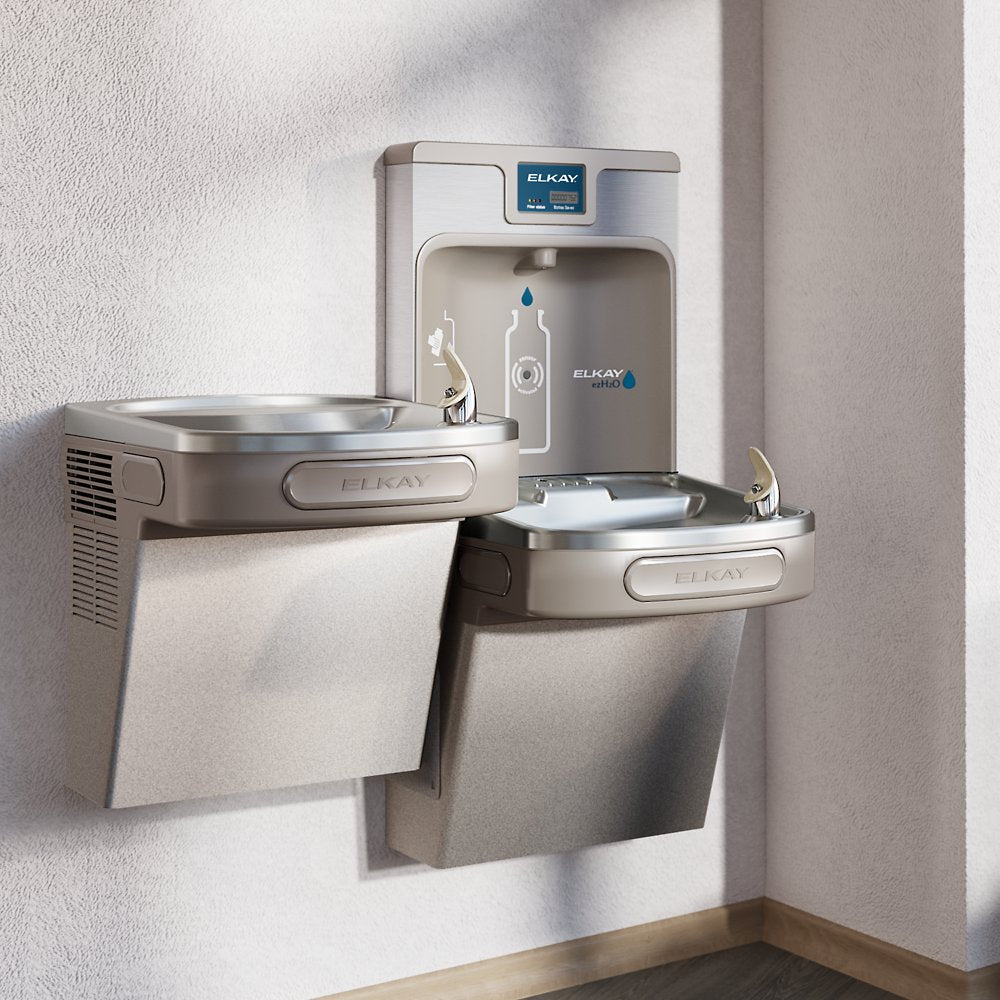

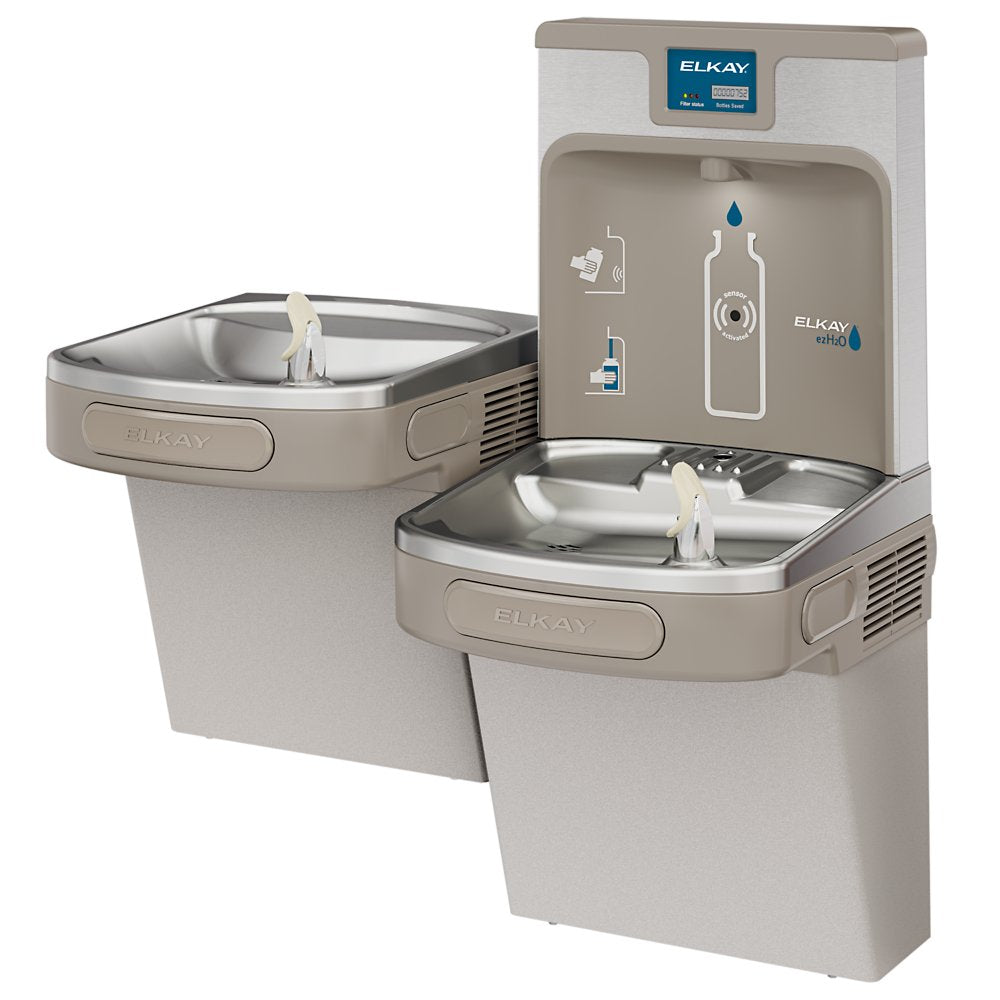

The Elkay LZSTL8WSLK is a wall-mounted, filtered, refrigerated unit that includes a bottle filler and two drinking fountains. This model has a Granite Gray color finish.

The LZSTL8WSLK's drinking fountain features a Flexi-Guard bubbler protected by a flexible antimicrobial mouth guard that helps to protect against injury and microorganisms.



The LZSTL8WSLK is a versatile model. You can choose which of the left or right fountains you want to be the higher, and which of the two will carry the bottle filler allowing greater installation flexibility. For a similar model, see the Elkay LMABFTL8WSLK Filtered Water Station.

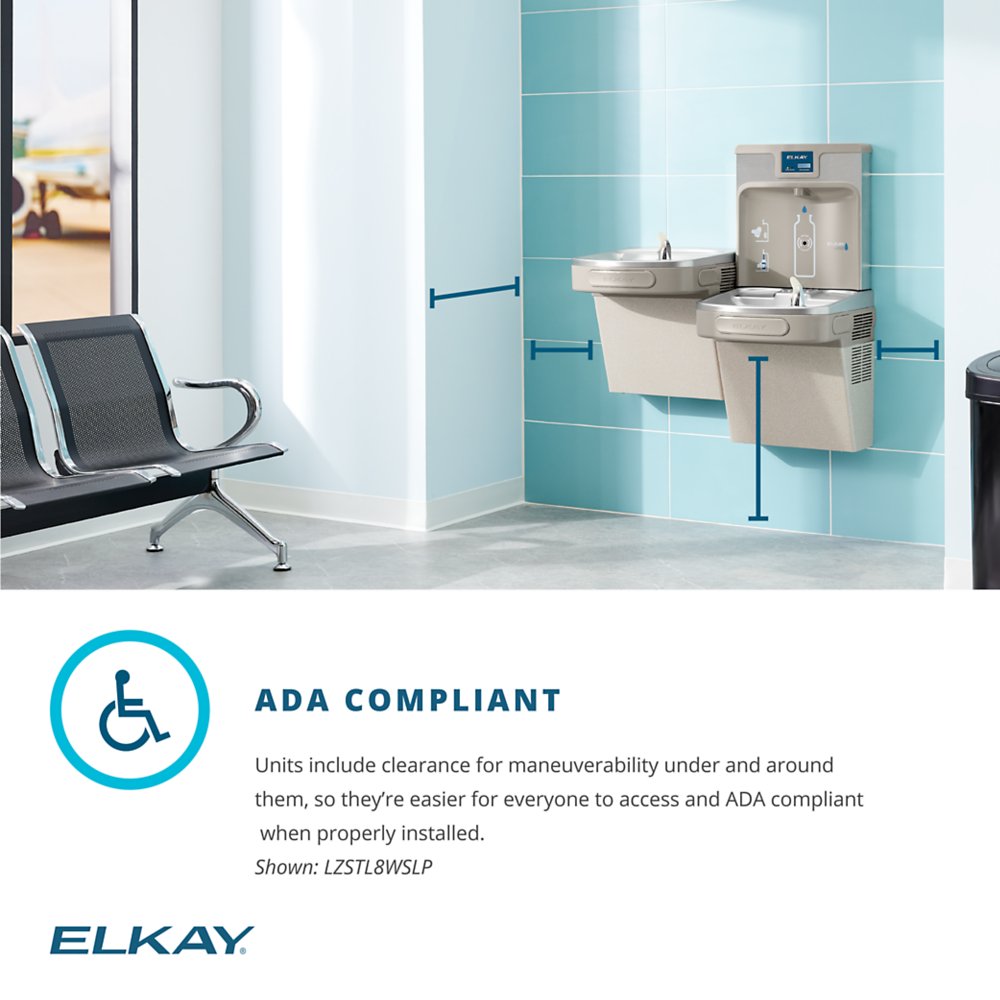

  • ADA compliant design
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Quick fill rate of 1.1 Gallons Per Minute
  • Green Ticker™ tracks number of plastic bottles saved from waste.
  • Filtered with 3000-gallon capacity WaterSentry



Elkay LZSTL8WSLK resources:

Elkay LZSTL8WSLK





Elkay LZSTL8WSLK Videos:



Elkay EZH2o installation:

Elkay EZH2o Filter change:

 Elkay EZH2o Care & Cleaning:





FILTERED?

Yes

COOLER CABINET FINISH

Light Gray Granite Vinyl Clad Steel

POWER

115V/60Hz

BUBBLER OPTION

FlexiGuard StreamSaver

MOUNTING DETAILS

Wall Mount (On-Wall)

CHILLING DETAILS

8 GPH

REFRIGERANT

R134a

TEMPERATURE CAPACITY

50°F drinking water

Elkay LZSTL8WSLK

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

Two fountains

DIMENSIONS

L: 36-3/4"

W: 19"

H: 39-1/16"

SHIPPING WEIGHT

92 lbs

Elkay LZSTL8WSLK

PRODUCT COMPLIANCE

  • GreenSpec
  • ADA Compliant
  • CAN/CSA 22.2 120
  • ASME A112.19.3/CSA B45.4
  • Buy American Act
  • UL 399
  • NSF 61
  • NSF 372 (no lead)
  • NSF 53
  • NSF 42

Elkay LZSTL8WSLK Includes

  • Water Cooler
  • Water Sentry Filter
  • Water Bottle Filling Station

Warranty

Refrigeration System (IF APPLICABLE)

Elkay LZSTL8WSLK refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay LZSTL8WSLK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here

Installation Notes

  • Elkay LZSTL8WSLK requires installation from licensed plumber.  Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay LZSTL8WSLK MANUAL.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.



Read GUIDES on how to REPLACE an Elkay EZH20 Filter and MAINTAIN an EZH2O Bottle Filler

FAQ

Q: What is included in the Cooler Combo?

A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.

Q: Does the shipment include everything for the installation? Does plumber need anything else?

A:  Does not include:

  • Shut-off Valve (not furnished)
  • 1-1/4” Trap (not furnished).

Q: Does this product come with a Mounting Frame?

A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame (MLP200) can be ordered separately. Please find further details on Spec Sheet and/or Installation Instructions.

Q: Is there a better, more updated model series available?

A: Yes, the latest model series is the Enhanced line, which includes improvements such as easier maintenance. View the Enhanced line HERE.

Q: Does the Cooler Combo come with filter?

A: Yes, each Cooler Combo comes with one (1) 51300C Replacement Filter, which has a capacity of 3000 Gallons.



Q: Is this unit available in 220V/50-60Hz?

A: Yes, please contact us for a custom quote for 220v unit(s).



*MADE IN THE UNITED STATES.
