Elkay LZSTL8WSSK | Bi-Level ezH2O Bottle Filler | Filtered, Refrige...

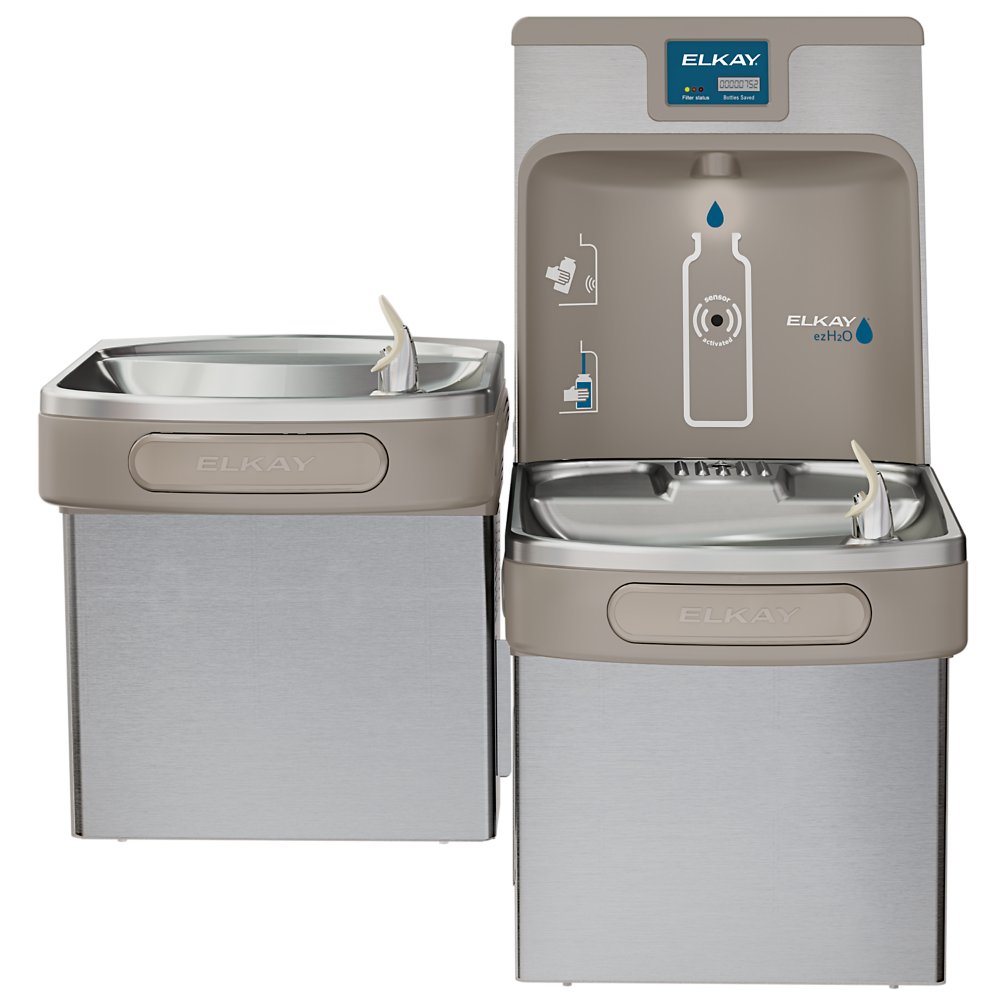

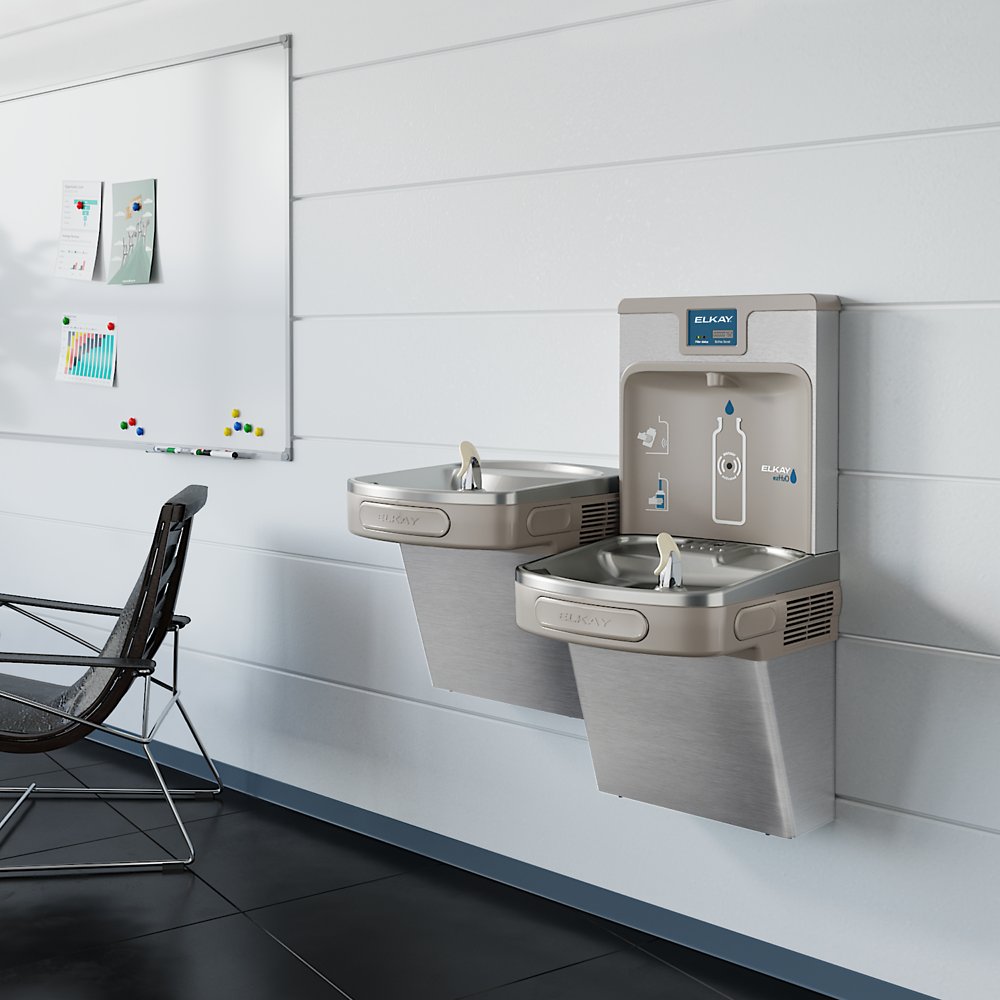

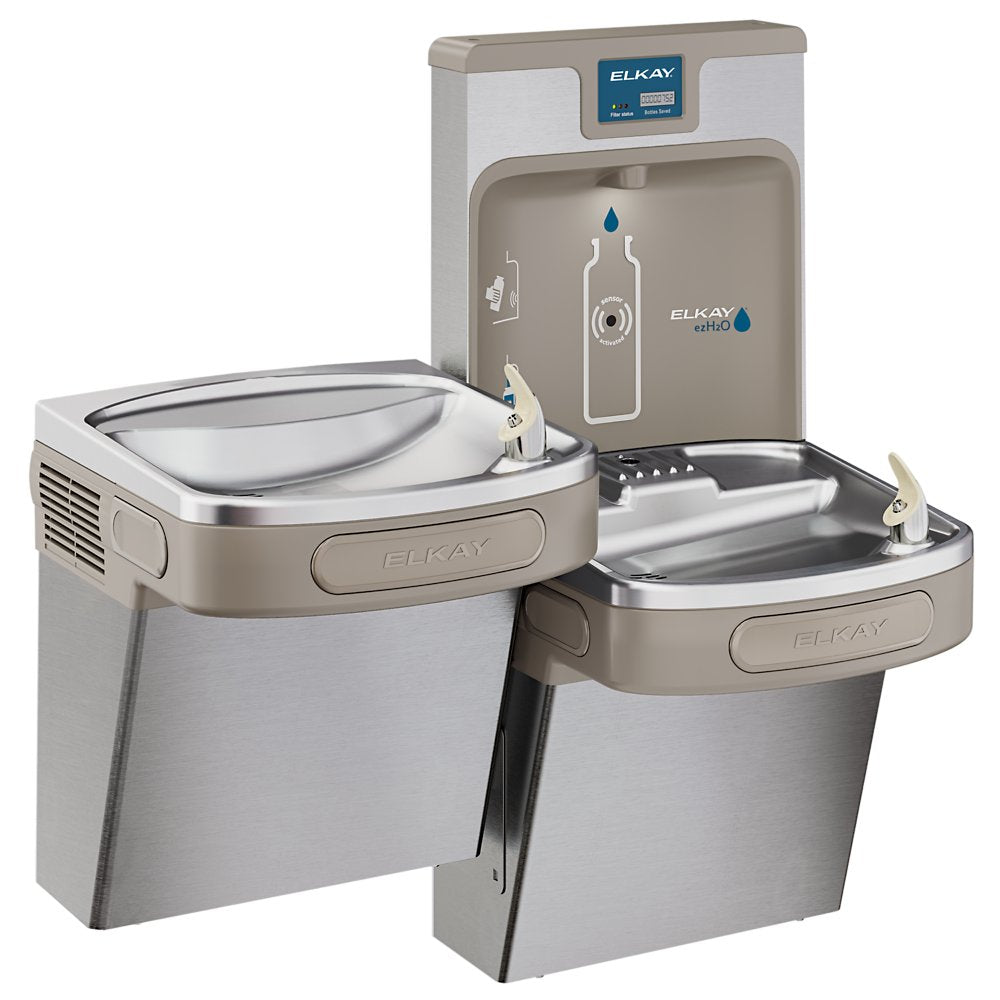

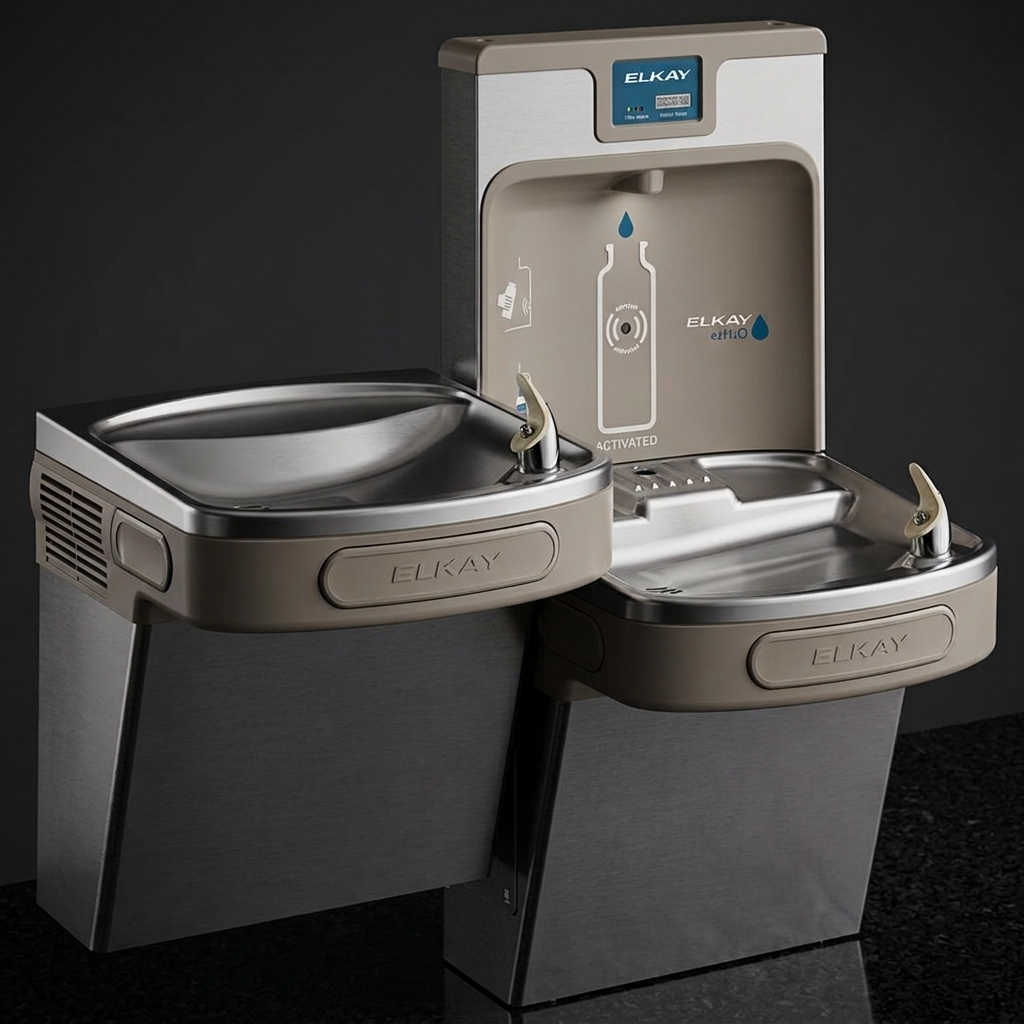

The Elkay LZSTL8WSSK ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler delivers filtered, refrigerated hydration in a durable stainless steel design. Featuring quick filter change access, automatic filter status reset, and LED lighting, this model is ideal for high-traffic indoor environments such as schools, offices, and public facilities.

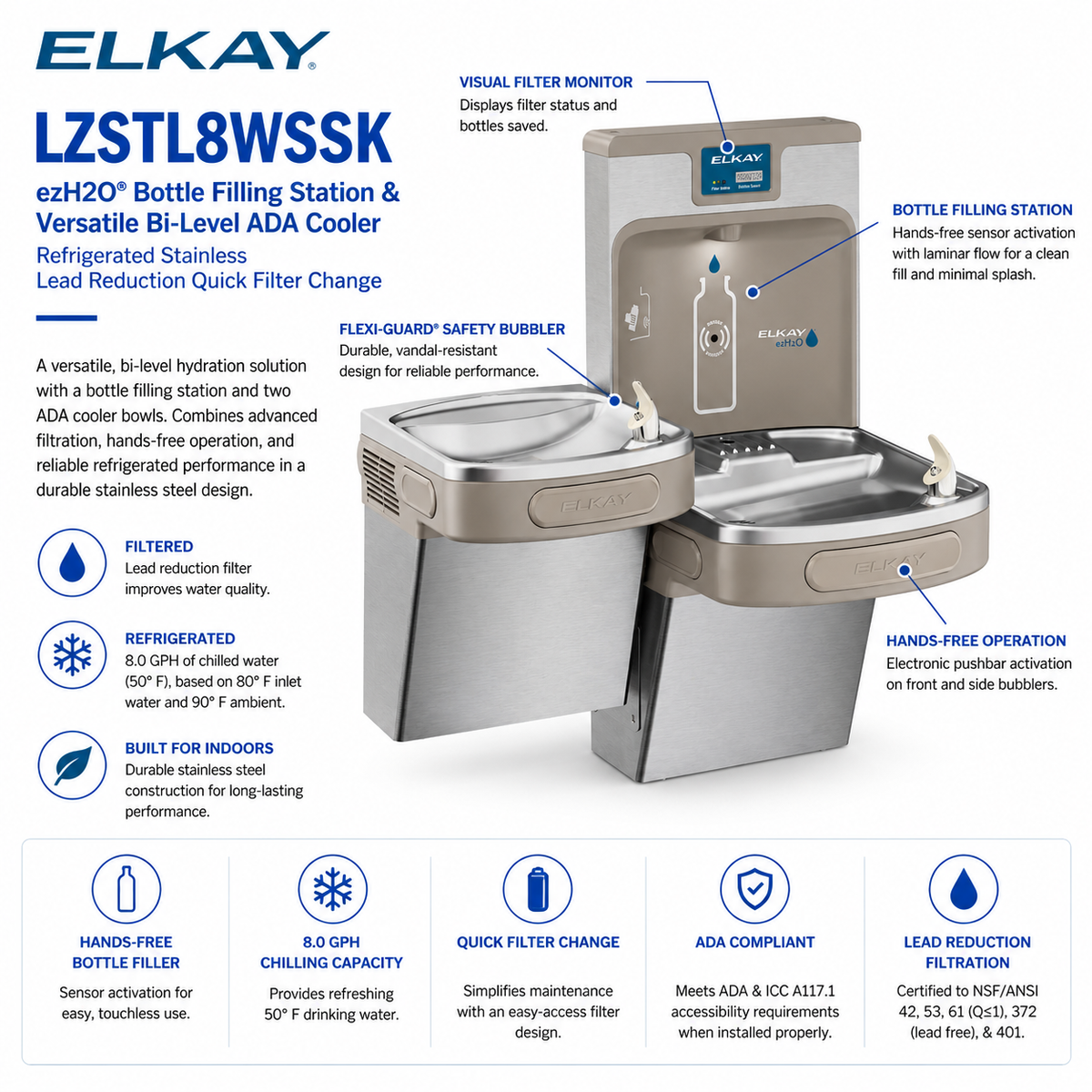

Key Specifications:
| Design | Versatile bi-level ADA cooler with integral bottle filler, electronic sensor activation, and pushbar bubblers |
| Finish | Stainless Steel. Also available in granite gray. |
| Filtration | Includes 51600C WaterSentry® Plus Filter, NSF 42/53/401 certified, 6,000-gallon capacity |
| Refrigeration | Provides 8.0 GPH of 50°F chilled water using R-134a refrigerant |
| Stations Served | 2 stations (bi-level ADA cooler plus bottle filler) |

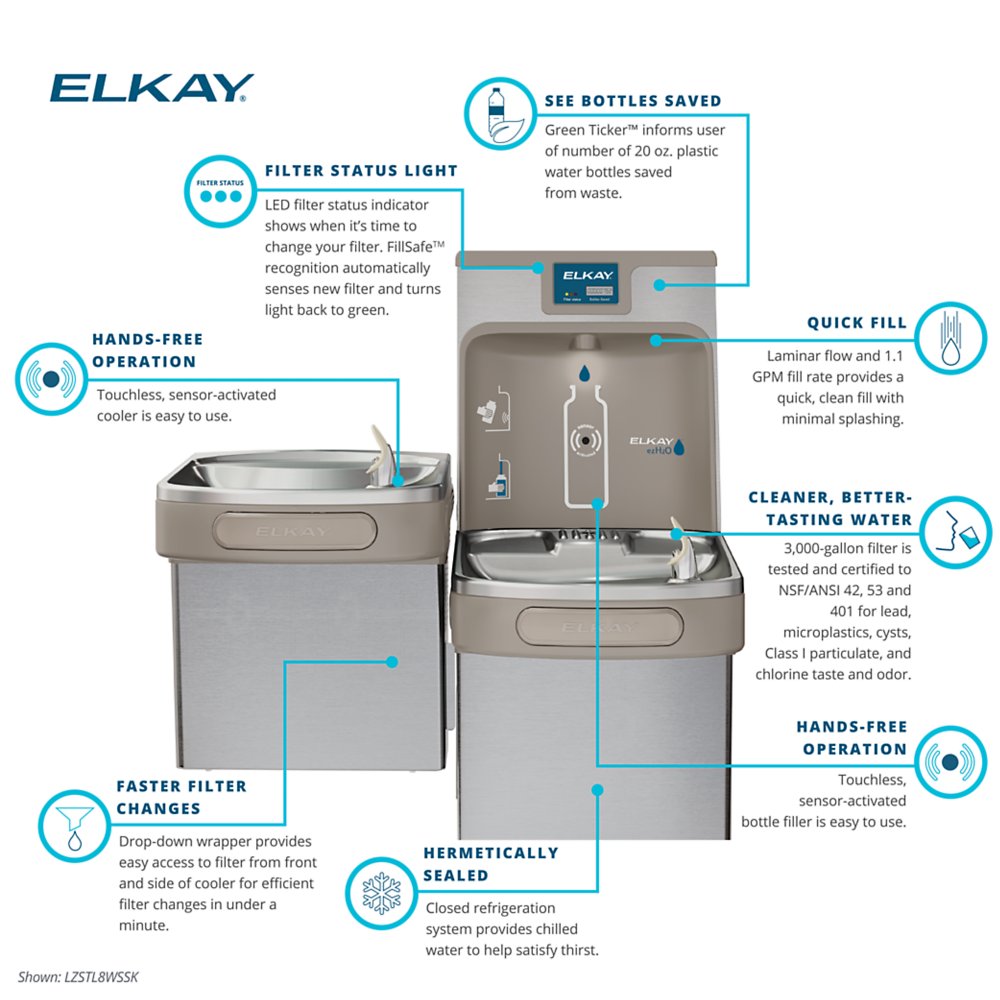

Features & Benefits:

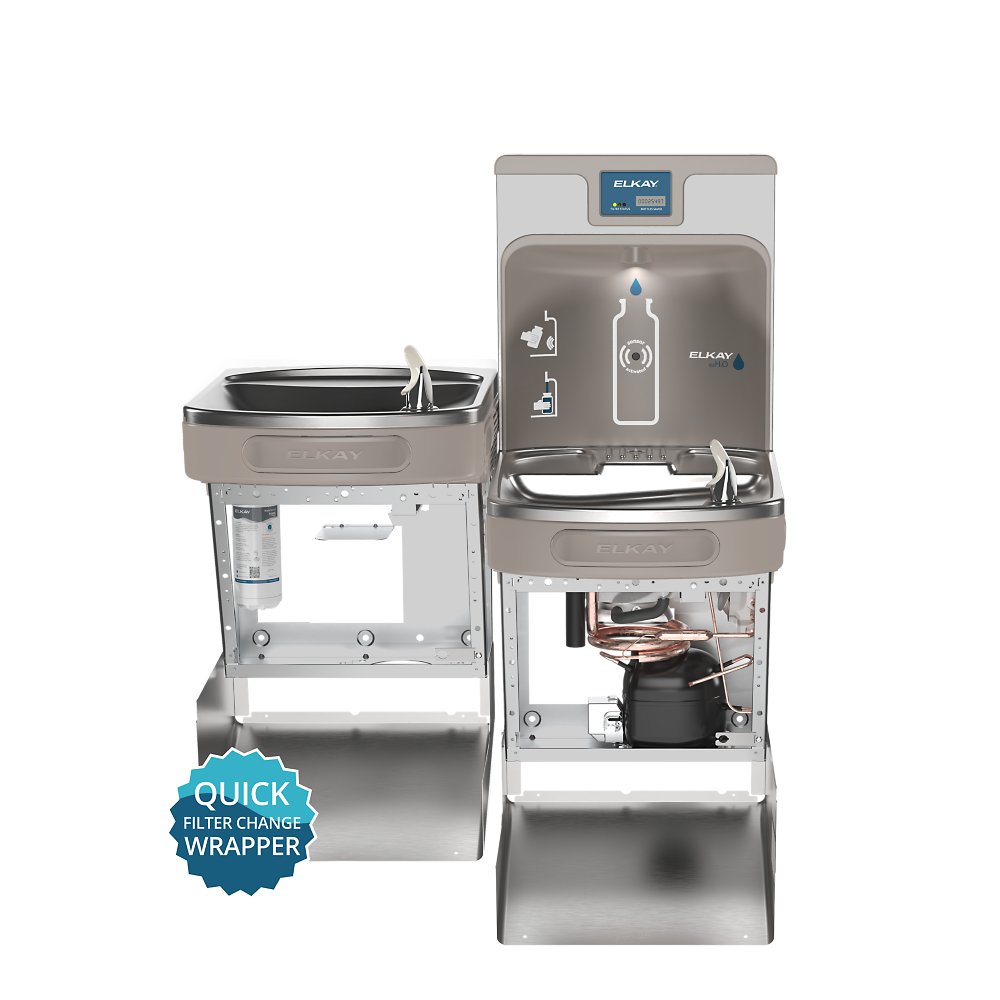

- Quick Filter Change: Wrapper design allows filter replacement in under a minute
- Automatic Filter Status Reset: System recognizes new filter and updates LED monitor
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
- Green Ticker™: Displays the number of plastic bottles saved from waste
- Antimicrobial Protection: Key plastic components resist odors and enhance cleanliness
- Real Drain System: Eliminates standing water for improved hygiene
- LED Lighting: Low-energy illumination assists with filling in dark spaces
What's Included:
- LZSTL8WSSK Bottle Filling Station & Bi-Level Cooler unit
- 51600C WaterSentry® Plus Filter
- Flexi-Guard® Safety Bubblers
- Installation hardware and guide
Comparison of Elkay Bottle Filling Stations:
| Feature | LZSTL8WSSK (This Model) | LZSTL8WSBPRO |
|---|---|---|
| Design | Versatile bi-level ADA cooler with electronic sensor activation and pushbar bubblers | Bi-level ADA cooler with electronic sensor activation and pushbar bubblers |
| Finish | Stainless Steel | Black Stainless Steel |
| Filtration | 51600C WaterSentry® Plus Filter, 6,000-gallon capacity | FL10 Pro Filtration Ultra-Capacity Filter, 10,000-gallon capacity |
| Best For | Facilities needing reliable filtration and quick filter change access | High-traffic facilities needing ultra-capacity filtration, LCD filter gauge, and smart monitoring |
How to Maintain Elkay LZSTL8WSSK:
- Clean stainless steel panels with mild soap and water; avoid abrasive cleaners
- Inspect and sanitize bubblers and bottle filler alcove regularly
- Replace the 51600C Filter every 6,000 gallons or 12 months
- Check LED filter monitor and reset automatically after filter replacement
- Vacuum condenser coils periodically to maintain refrigeration efficiency
FAQ
Q: How Often Should The Filter Be Replaced On The Elkay LZSTL8WSSK?
A: The Elkay LZSTL8WSSK includes one 51600C Filter. It should be replaced every 6,000 gallons or 12 months, whichever comes first.
Q: Is The Elkay LZSTL8WSSK ADA Compliant?
A: Yes. The bi-level design meets ADA accessibility requirements when installed according to standards.
Q: What Accessories Are Available For The Elkay LZSTL8WSSK?
A: Optional accessories include the LKAPREZL Cane Apron, the MLP200 In-Wall Carrier, and the STLBFUP Universal Back Panel.
Q: How Do I Know When To Change The Filter On The Elkay LZSTL8WSSK?
A: The built-in Visual Filter Monitor uses an LED indicator to alert you when it’s time to replace the filter. Automatic recognition ensures accurate tracking after replacement.
Q: Can The Elkay LZSTL8WSSK Be Connected For Smart Monitoring?
A: Yes. It can be paired with retrofit solutions such as the PLZSRK-W1 Connected Retrofit Kit, enabling cloud-connected monitoring and enhanced maintenance tracking.
Q: What Warranty Coverage Is Included For The Elkay LZSTL8WSSK?
A: Elkay provides a 5-year limited warranty on the refrigeration system and 12 months on electrical components and water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us
The Elkay LZSTL8WSSK is a bi‑level, filtered bottle filling station with integrated coolers. Designed for high‑traffic indoor environments, it delivers chilled, cleaner water with dual ADA‑compliant access points and hands‑free sensor activation.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lenses are unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to resist vandalism
Basic Installation Overview:
- Install in‑wall carrier securely to support dual cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Mount cooler and bottle filler assembly to carrier, ensuring wires and tubing are not pinched
- Connect drain lines from both coolers and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LZSTL8WSSK Spec Sheet and the Installation Manual.
