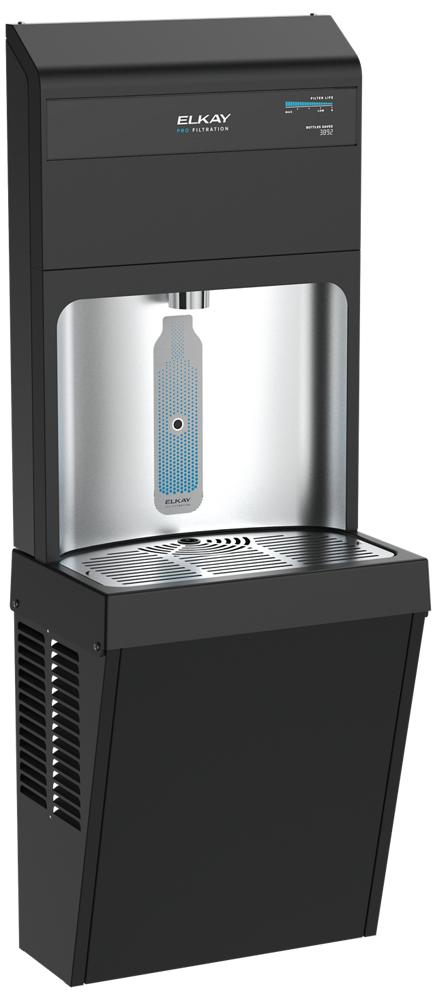

Elkay LZ8WSBPRO | Pro Filtration Bottle Filler, Wall Mount | 8.0 GPH
The Elkay LZ8WSBPRO delivers filtered, chilled drinking water via a wall-mounted bottle filler with smart connected filtration.
Key Specifications:
| Finish | Black Stainless |
| Filter Performance | Reduces Lead, Microplastics, Copper, Asbestos & More |
| Filter Capacity | 10,000 Gal. (FL10 Ultra-Capacity Filter) |
| Refrigeration | 8.0 GPH Water Chiller Included |
| Power | 115V/60Hz, 15 Rated Watts, 5 Full Load Amps |
Features & Benefits:

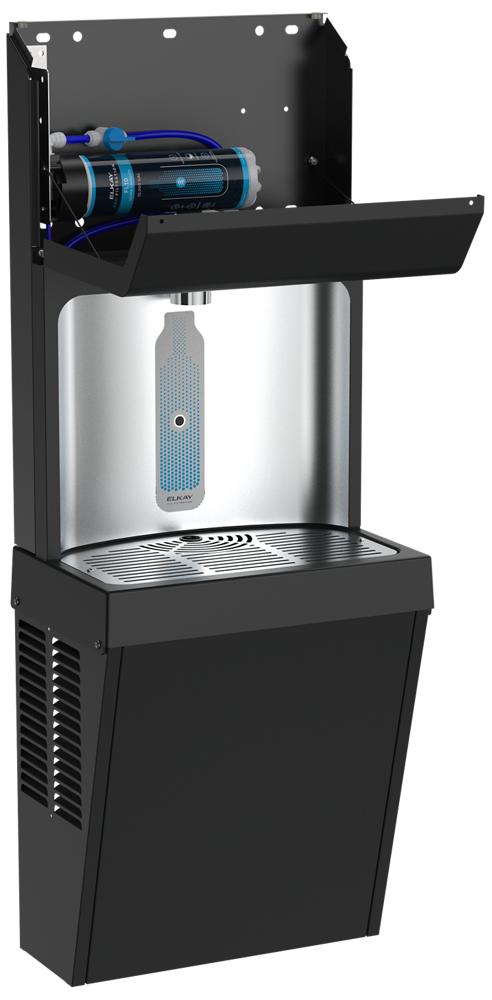

- Top-Access Filter Replacement: The Elkay LZ8WSBPRO allows filter changes from the top in seconds, minimizing maintenance time and system disruption.
- Smart Connected Monitoring: Remotely track filter status, anticipate maintenance, flush the unit, and monitor bottles saved for sustainability insights.
- High-Capacity Filtration: The included FL10 filter delivers 10,000 gallons of certified filtration, extending uptime and reducing filter changeouts.
- Interactive Display: A blue LCD display shows remaining filter capacity and bottles saved, helping teams stay ahead of maintenance needs.
FAQ
Q: What contaminants does the Elkay LZ8WSBPRO filter reduce?
A: The included FL10 filter is certified to NSF/ANSI 42, 53 & 401 to reduce lead, microplastics, copper, asbestos, and more.
Q: Does the Elkay LZ8WSBPRO require any special equipment for remote monitoring?
A: Yes, cloud connectivity requires a plumbSMART Gateway and Account for remote filter status tracking and flushing.
Q: How is the unit installed and what space does it require?
A: The Elkay LZ8WSBPRO is designed for indoor wall mount installation, serving 1 station, with dimensions of 18" x 11-15/16" x 48-9/16".
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us

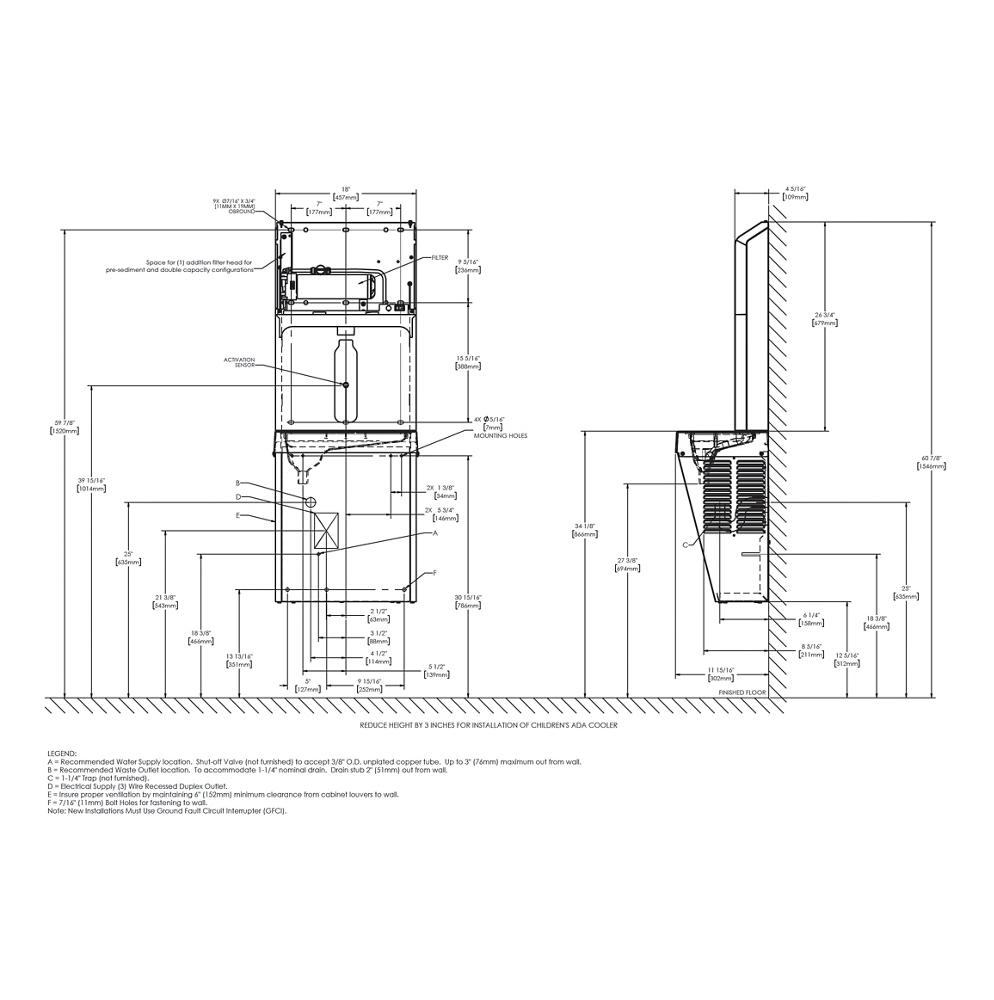

Installation
To install your Elkay Pro Filtration Bottle Filler (Single or Bi-Level), follow the steps carefully. This unit requires plumbing and electrical work, so if you're unsure or unqualified, please contact a licensed plumber or professional installer.
- Confirm your installation location is indoors and has proper clearance for ventilation and service access.
- Ensure water supply pressure is between 40–105 psi (50 psi recommended).
- Install a 3/8" O.D. copper water line and a shutoff valve (installer-supplied).
- Attach the hanger bracket to the wall studs using appropriate anchors and screws.
- Mount the cooler and connect the water supply and 1-1/4" waste drain (installer-supplied).
- Connect the unit to a GFCI-protected 115V power outlet on a dedicated 20A circuit.
- Ensure all tubing and fittings are properly connected and free of leaks.
- Flush at least 1 gallon of water through the filter before first use.
Important: Avoid drilling into areas with hidden plumbing or electrical lines. Use proper tools and personal protective equipment. Improper installation may void warranty and cause damage or injury.
Maintenance
Regular maintenance ensures your Elkay Pro Filtration unit continues to operate safely and efficiently:
- Check the filter status light regularly. Solid red indicates the filter must be replaced immediately.
- Before replacing the filter, unplug the unit and turn off the water supply.

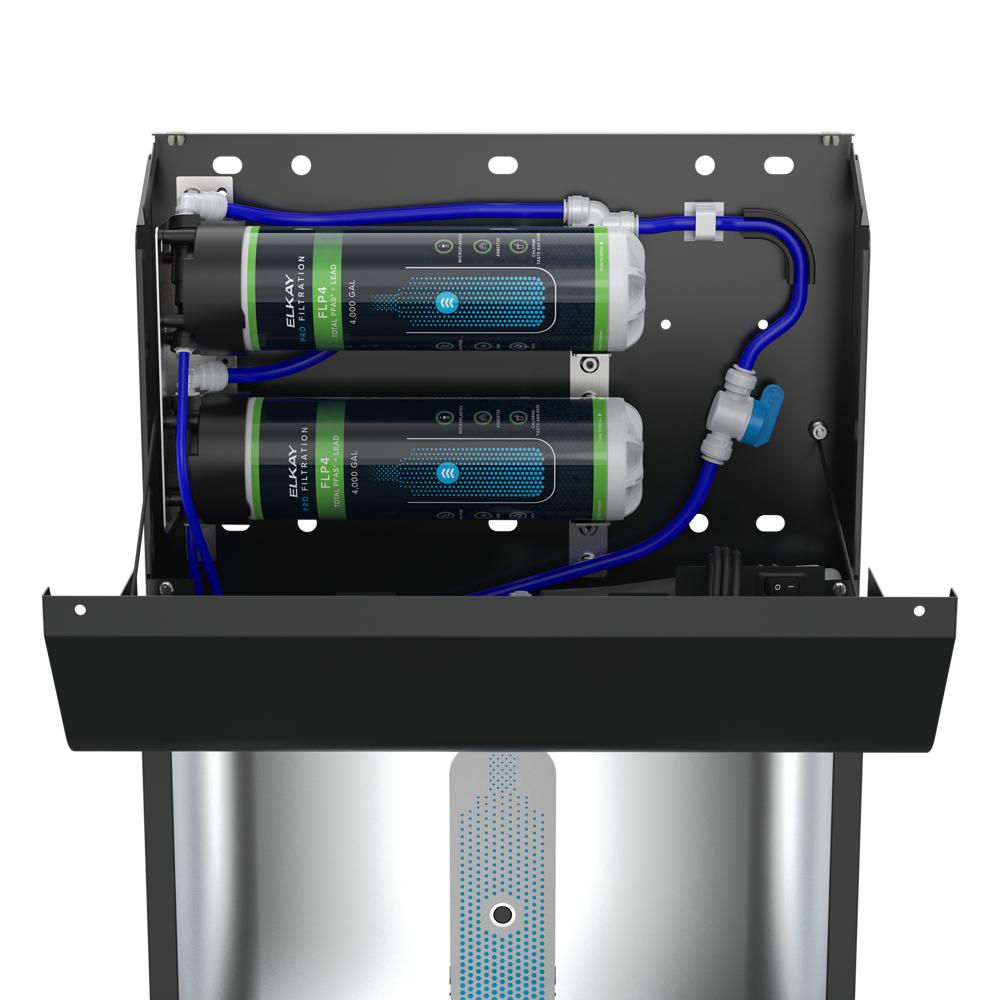

- Open the access panel using a T25 screwdriver and remove the old filter by turning it counterclockwise.
- Insert the new filter and turn clockwise until it locks into place.
- Restore water supply and power, then press the filter reset button to clear the status indicator.
- Maintain water pressure within the specified range (40–105 psi).
- Clean the exterior surfaces using a soft cloth and mild detergent. Avoid abrasive cleaners.
- Periodically inspect tubing, connectors, and the drain line for signs of wear or leaks.
Tip: For safety and convenience, consider having a plumber perform annual service or filter changes if you're unsure.
Refer to the full product manual for model-specific maintenance details, error codes, and filter part numbers.
