Elkay LZSTL8WSVRLK | Wall-mount Versatile Bi-Level Bottle Filling S...

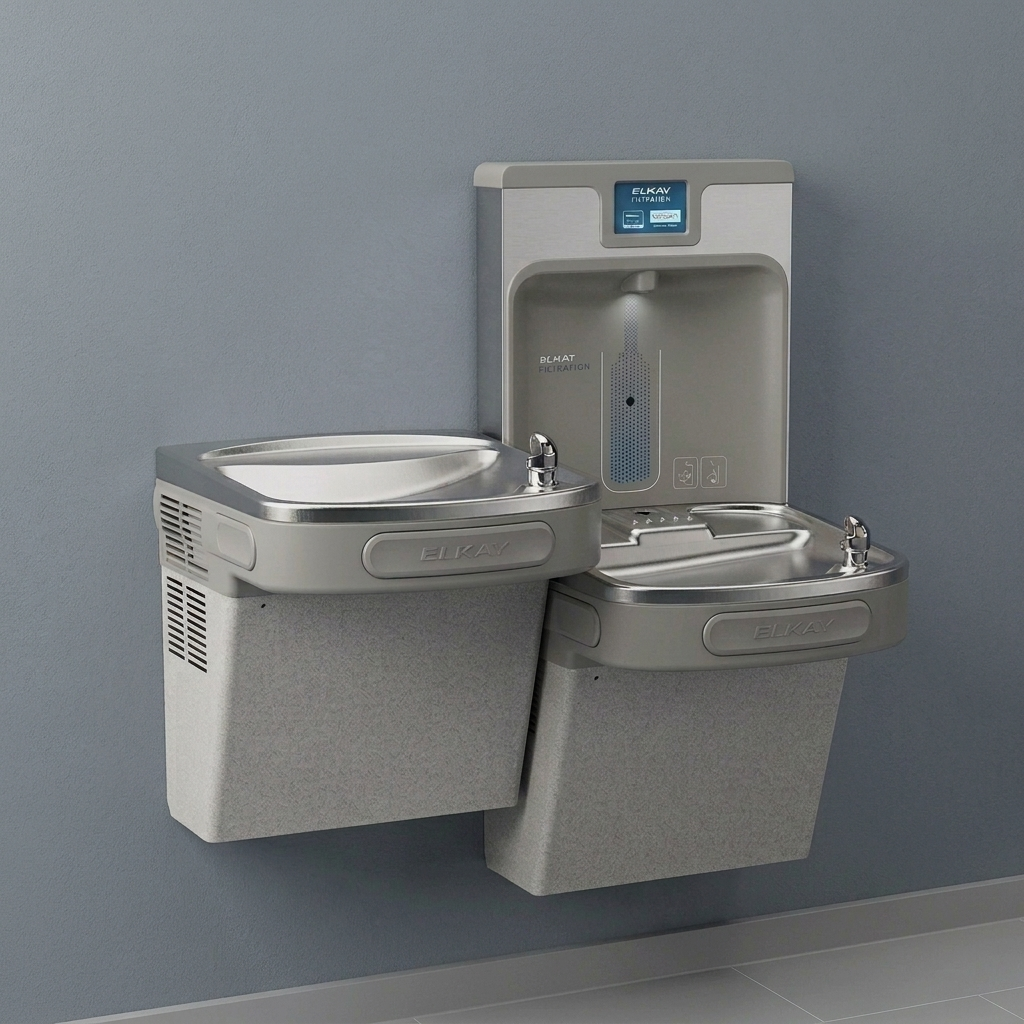

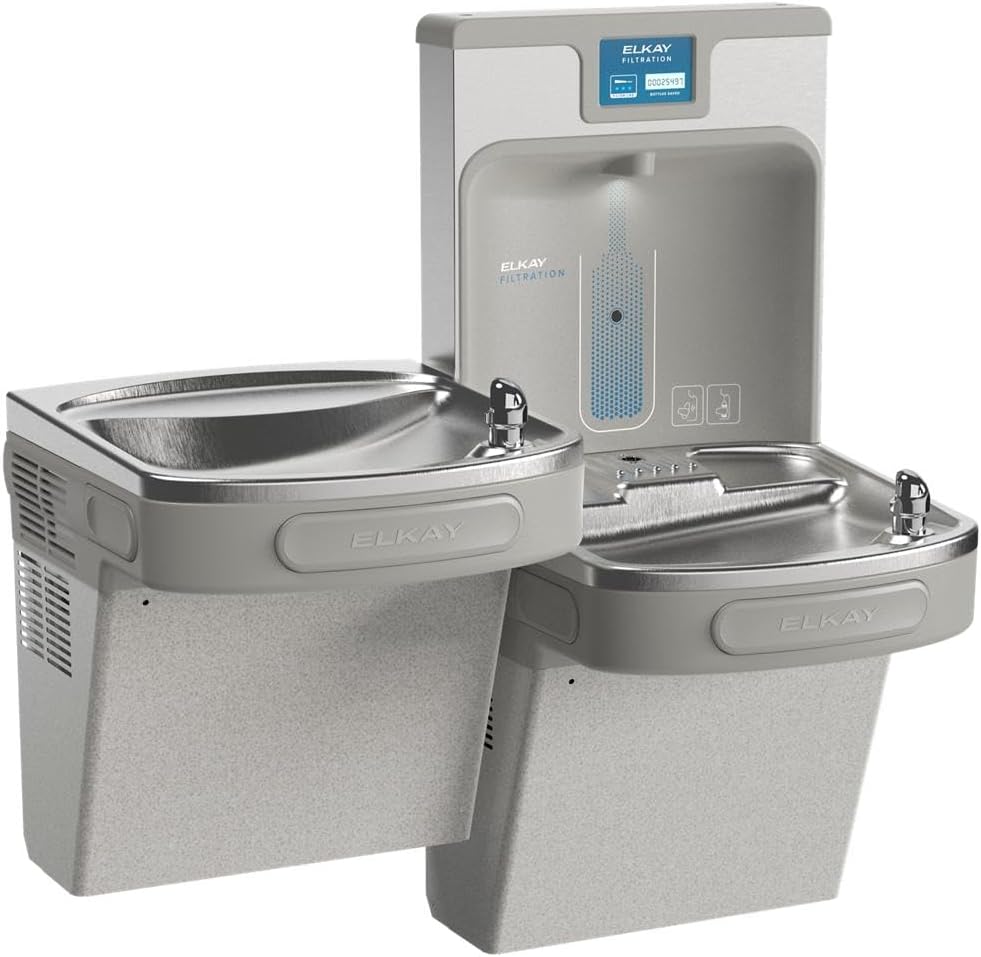

The Elkay LZSTL8WSVRLK is an ezH2O® Bottle Filling Station with Versatile Bi‑Level ADA Cooler, filtered and refrigerated. Finished in Light Gray Granite, it combines vandal‑resistant durability with advanced filtration, antimicrobial protection, and hands‑free bottle filling, making it ideal for secure, high‑traffic indoor environments.
Key Specifications:
| Design | Versatile bi‑level ADA cooler with integrated bottle filler, electronic sensor activation, and vandal‑resistant bubblers |
| Finish | Light Gray Granite (L). Also available in Stainless Steel (LZSTL8WSVRSK) |
| Filtration | Standard WaterSentry® Plus filter (51300C), NSF/ANSI 42, 53, 372 & 401 certified, 3,000‑gallon capacity |
| Refrigeration | 8.0 GPH chilled water capacity at 50°F, based on 80°F inlet water and 90°F ambient temperature |
| Stations Served | 2 fountains + 1 bottle filler |

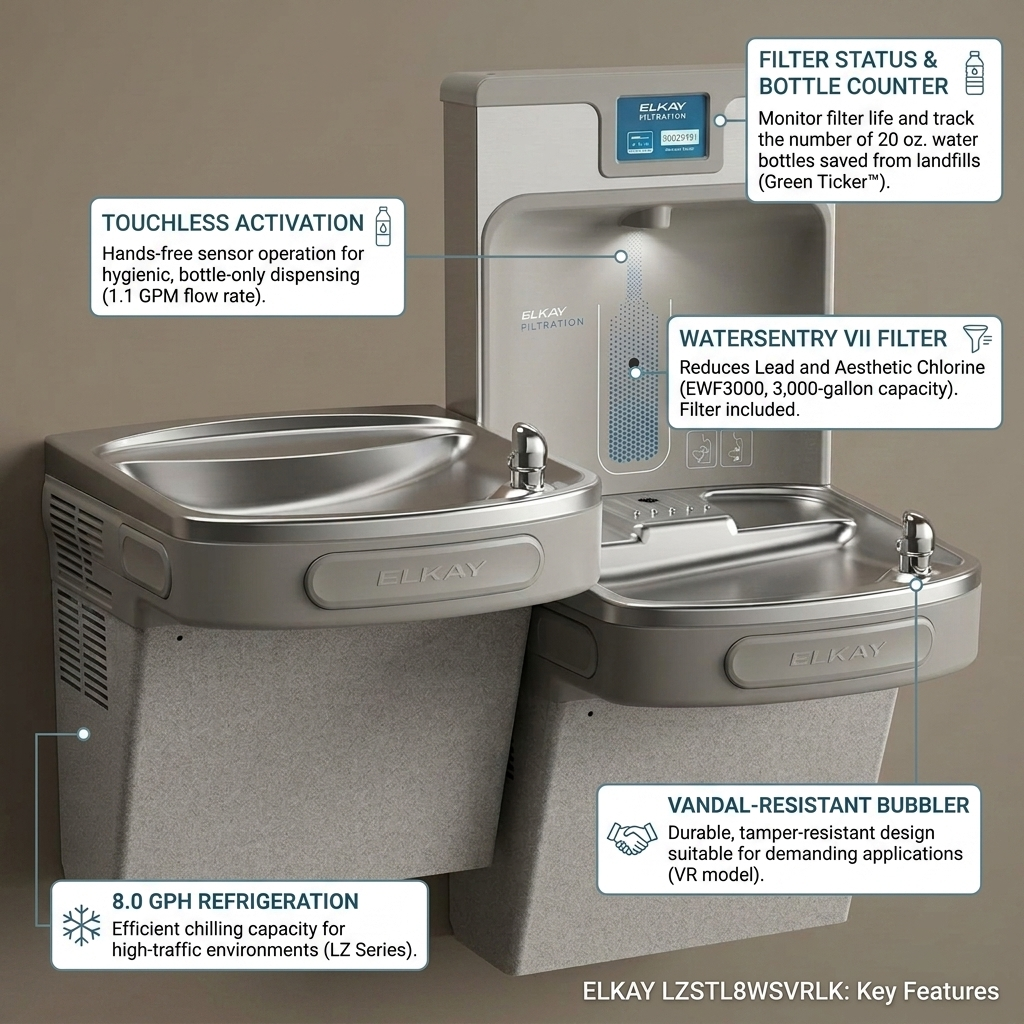

Features & Benefits:
- Vandal‑Resistant Design: Bubblers and panels engineered for durability in secure environments
- Filtered Hydration: Provides cleaner, safer water with NSF/ANSI certified filtration
- Hands‑Free Bottle Filler: Electronic sensor activation with laminar flow for splash‑free filling
- Antimicrobial Protection: Key plastic components resist odors and staining
- Real Drain System: Eliminates standing water for improved hygiene
What's Included:
- LZSTL8WSVRLK Bottle Filling Station & Versatile Bi‑Level ADA Cooler
- WaterSentry® Plus Filter (51300C)
- Vandal‑Resistant Bubblers
- Installation instructions
- Warranty documentation
Comparison of Bi‑Level Bottle Filling Stations:
| Feature | LZSTL8WSVRLK | LZSTL8WSLK | LZSTL8WSSP |
|---|---|---|---|
| Finish | Light Gray Granite | Stainless Steel | Stainless Steel |
| Filtration | WaterSentry® Plus Filter (51300C), NSF/ANSI 42, 53, 372, 401 | WaterSentry® Plus Filter (51300C), NSF/ANSI 42, 53, 372, 401 | WaterSentry® Plus Filter (51300C), NSF/ANSI 42, 53, 372, 401 |
| Special Features | Vandal‑Resistant bubblers and panels, antimicrobial protection | Standard bi‑level design with stainless steel finish | High‑Efficiency chiller system, compact fountain + bottle filler combo |
| Best For | Secure, high‑traffic indoor environments needing vandal‑resistant design | Commercial or institutional spaces preferring stainless steel finish | Schools, offices, or smaller facilities needing a compact fountain + bottle filler combo |
How to Install the LZSTL8WSVRLK:
- Prepare Wall Opening: Ensure proper cutout dimensions and structural support for bi‑level installation.
- Mount Frame: Secure the in‑wall carrier or mounting frame to support the fountain and bottle filler.
- Position Unit: Align the cooler and bottle filler assembly with the frame and fasten securely.
- Connect Plumbing: Attach water supply (20–105 PSI) and waste line; flush supply before connection.
- Install Filter: Insert WaterSentry® Plus filter into the filter head assembly.
- Make Electrical Connections: Connect to grounded 115V/60Hz supply with GFCI protection.
- Test Operation: Verify bubbler stream height and bottle filler sensor activation; adjust regulator if needed.
How to Maintain the LZSTL8WSVRLK:
- Filter Replacement: Replace the WaterSentry® Plus filter every 3,000 gallons or annually.
- Cleaning: Wipe stainless steel and granite surfaces with mild detergent; avoid harsh chemicals.
- Stream Adjustment: Periodically check bubbler stream height and adjust regulator screw if supply pressure changes.
- Prevent Corrosion: Do not store bleach or chloride cleaners beneath the unit.
- Routine Inspection: Check for leaks, ensure compressor fan is unobstructed, and verify cooling performance.
FAQ
Q: What Contaminants Does The Elkay LZSTL8WSVRLK Filter Reduce?
A: The 51300C WaterSentry® Plus Filter reduces lead, microplastics, chlorine taste and odor, cysts, and particulates. It is NSF/ANSI 42, 53, 372, and 401 certified for safer drinking water.
Q: Is The Elkay LZSTL8WSVRLK Refrigerated?
A: Yes. The Elkay LZSTL8WSVRLK provides 8.0 gallons per hour of 50°F chilled water, based on 80°F inlet water and 90°F ambient temperature.
Q: Is The Elkay LZSTL8WSVRLK ADA Compliant?
A: Yes. The versatile bi‑level design of the Elkay LZSTL8WSVRLK meets ADA and ICC A117.1 accessibility requirements when installed correctly.
Q: How Often Should The Elkay LZSTL8WSVRLK Filter Be Replaced?
A: The WaterSentry® Plus filter in the Elkay LZSTL8WSVRLK should be replaced every 3,000 gallons or annually, depending on usage and water quality.
Q: What Accessories Are Available For The Elkay LZSTL8WSVRLK?
A: Recommended accessories include the LKAPREZL Cane Apron for ADA compliance, the MLP200 In‑Wall Carrier for added structural support, and STLBFUP universal back panel universal kit.
Q: Is There A Higher Capacity Bottle Filler Option Than The Elkay LZSTL8WSVRLK?
A: Yes. For facilities requiring higher performance filtration and capacity than the Elkay LZSTL8WSVRLK, see the Elkay Pro Filtration Collection.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact Us
The Elkay LZSTL8WSVRLK is a vandal‑resistant bi‑level bottle filling station and drinking fountain. Designed for high‑traffic public areas, it delivers filtered, chilled water with ADA compliance and heavy‑duty construction for durability.
Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet
- Drain connection required for both fountain basins and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Unit must be installed indoors or in protected environments
- Always depressurize water line before servicing or replacing filter
- Provide adequate ventilation clearance around louvers
- Use only genuine Elkay filters to maintain certification and performance
- Ensure proper drainage to avoid water damage from spillage
- Vandal‑resistant design requires secure anchoring to wall structure

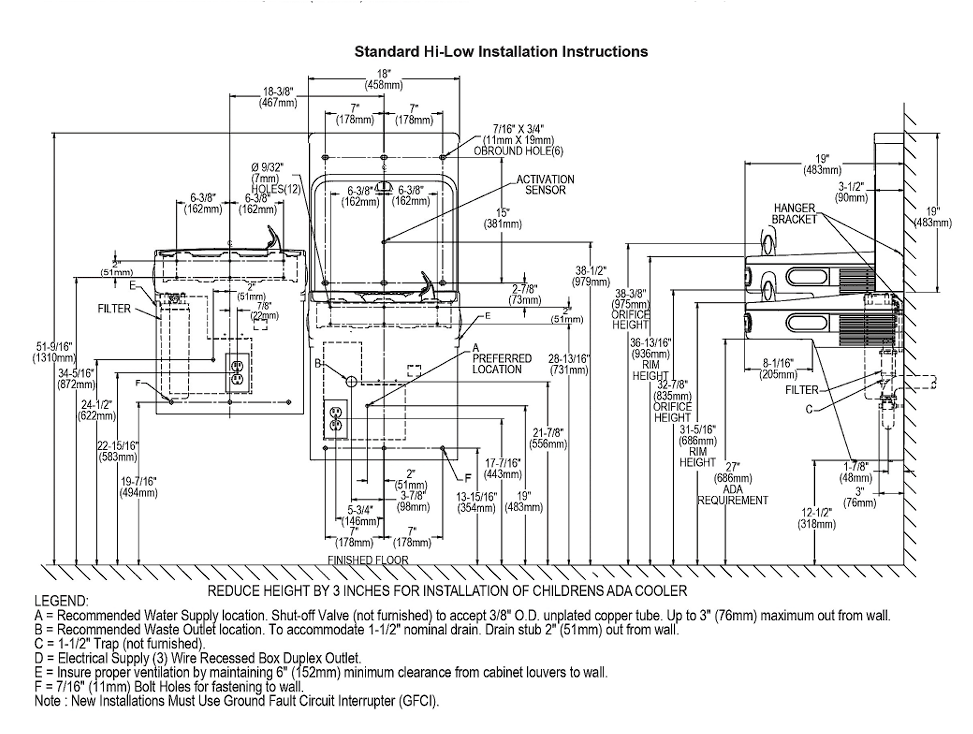

Basic Installation Overview:
- Mount in‑wall carrier securely to support dual fountain and bottle filler weight
- Position fountain and bottle filler assembly, secure to wall structure
- Connect cold water supply line to inlet
- Connect drain lines from both basins and bottle filler to building drain system
- Wire electrical supply to grounded 115V outlet
- Install filter cartridge into filter head and rotate clockwise until seated
- Turn on water supply and flush system for 5 minutes
- Test both fountain stations and bottle filler for proper flow, cooling, and sensor activation
For complete specifications and installation guidelines, download the official LZSTL8WSVRLK Spec Sheet and the Installation & Maintenance Manual.
