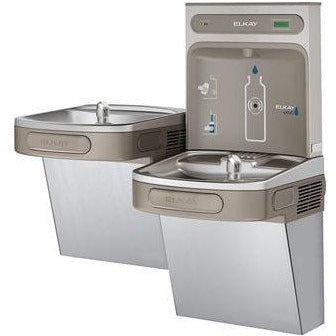

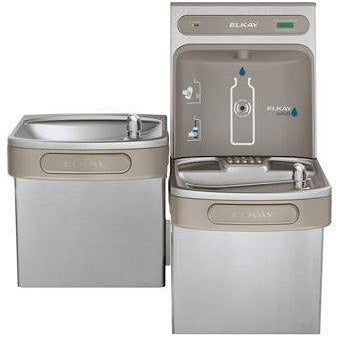

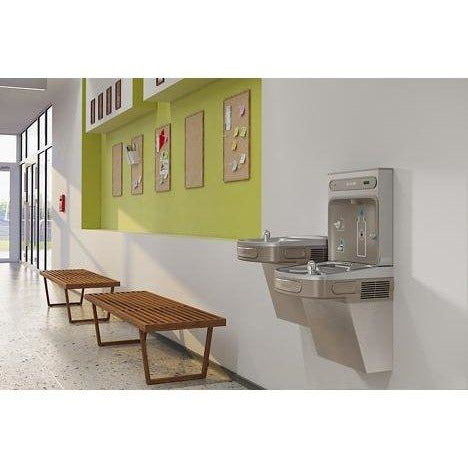

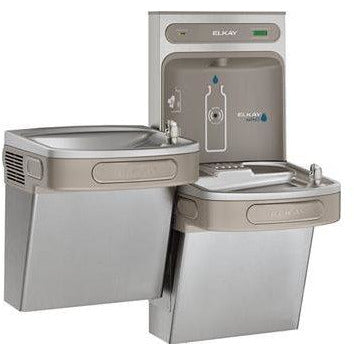

Elkay LZSTL8WSVRSK | Wall-mount Bi-Level Versatile Bottle Filling Station | Filtered, Refrigerated, EZ-style Fountains, Vandal-resistant bubblers, Stainless Steel
Elkay LZSTL8WSVRSK | Wall-mount Bi-Level Versatile Bottle Filling Station | Filtered, Refrigerated, EZ-style Fountains, Vandal-resistant bubblers, Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LZSTL8WSVRSK | Wall-mount Bi-Level Versatile Bottle Filling S...
One of the most popular models, the Elkay LZSTL8WSVRSK Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
- ADA compliant design
- Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
- Filtered with 3000 gallon capacity WaterSentry
- Quick fill rate of 1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
VIEW SPEC SHEET HERE: Elkay LZSTL8WSVRSK
|
FILTERED? |
Yes |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
Vandal-Resistant |
|
MOUNTING DETAILS |
Wall Mount (On-Wall) |
|
CHILLING DETAILS |
8 GPH |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF STATIONS |
Two Station |
|
DIMENSIONS |
L: 36-3/4" W: 19" H: 39-1/16" |
|
SHIPPING WEIGHT |
94 lbs |
|
Elkay LZSTL8WSVRSK PRODUCT COMPLIANCE |
● GreenSpec ● ADA Compliant ● CAN/CSA 22.2 120 ● ASME A112.19.3/CSA B45.4 ● Buy American Act ● UL 399 ● NSF 61 ● NSF 53 ● NSF 42 ● NSF 372 (no lead) |
WARRANTY
Refrigeration System (IF APPLICABLE)
Elkay LZSTL8WSVRSK refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay LZSTL8WSVRSK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here.
INSTALLATION NOTES
- Elkay LZSTL8WSVRSK requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
- View detailed Elkay LZSTL8WSVRSK INSTALLATION INSTRUCTIONS.
MAINTENANCE
Cleaning
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
FAQ
Q: Why is this Bottle Filling Station considered Vandal Resistant?
A: This Water Bottle Filling Station is considered Vandal Resistant due to the following Made in the U.S.A. construction specs:
- Vandal-resistant pushbutton
- Stainless steel construction bottle filler
- Stainless steel cooler panel
- Stainless steel constructed Cooler cabinet
- Heavy-duty, one-piece, Chrome plated bubble
Q: Do the Vandal Resistant Bottle Fillers include the Bottle Counter?
A: Yes.
Q: Do the Vandal Resistant Bottle Fillers include the sensor-activated, automatic bottle fill feature?
A: No. The Vandal Resistant Bottle Fillers offer a vandal-resistant pushbutton activation as opposed to sensor activation.
*MADE IN THE UNITED STATES.
