Elkay LMABFTL8WSLK | Wall-mount Bi-level Bottle Filling Station | F...

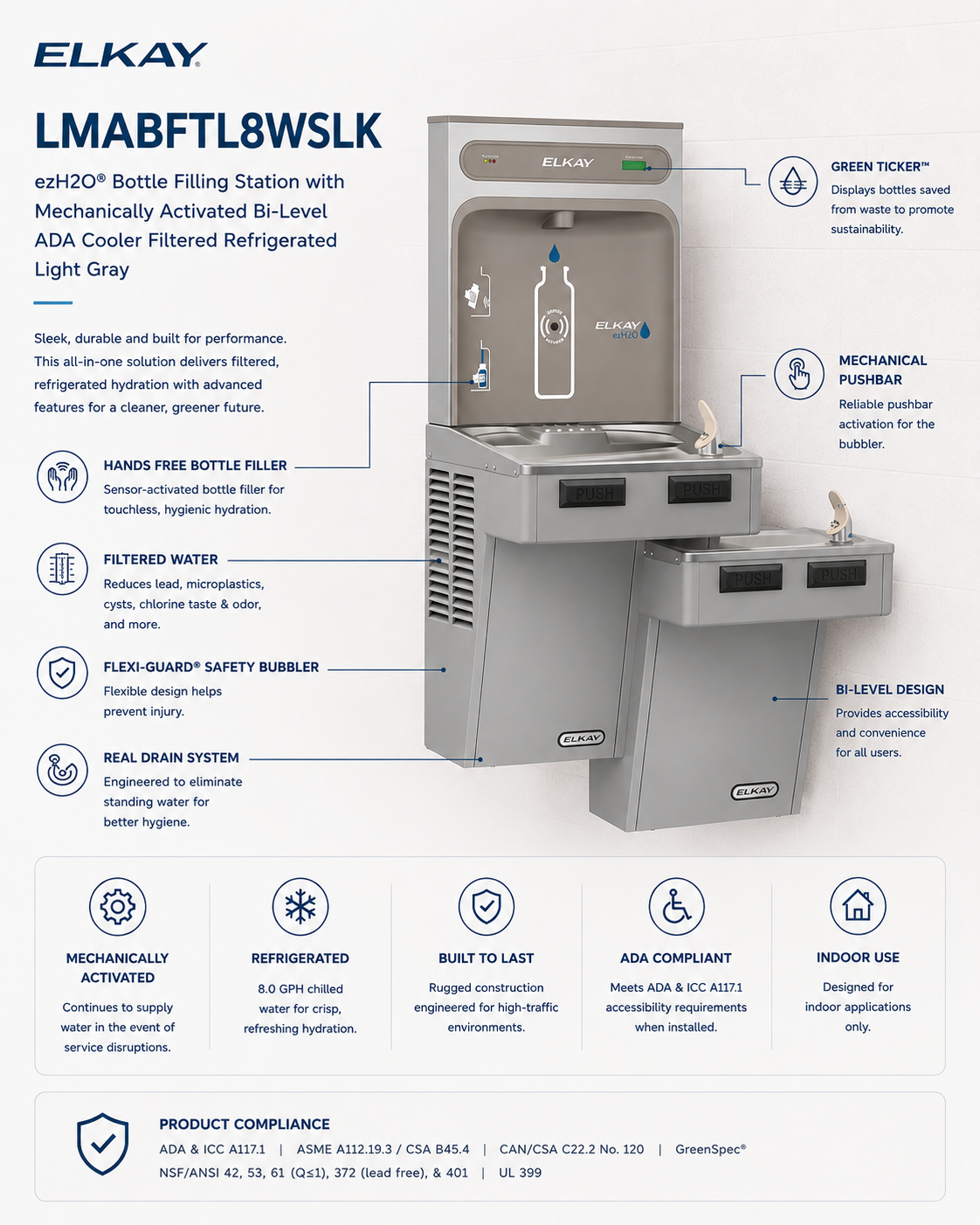

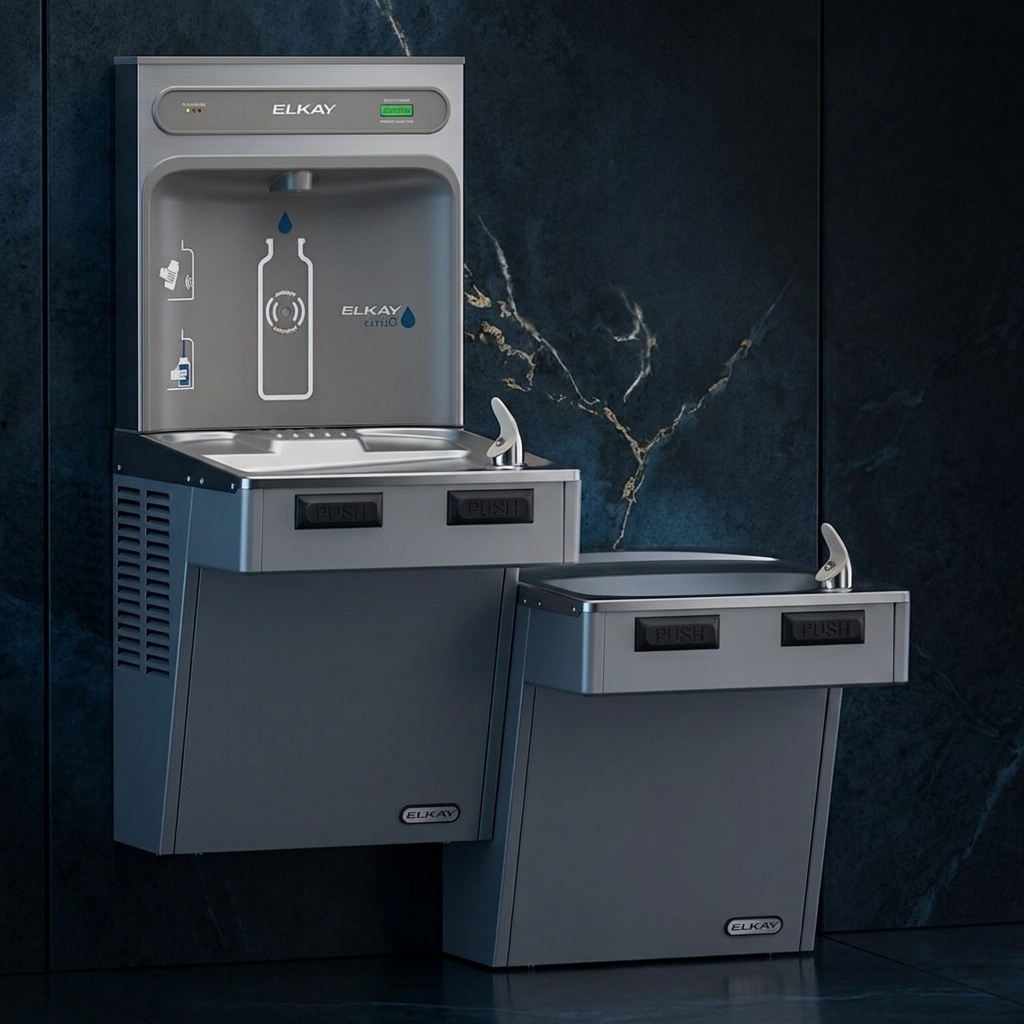

The Elkay LMABFTL8WSLK ezH2O® Bottle Filling Station combines a filtered refrigerated bi‑level ADA cooler with a hands‑free bottle filler. Designed for high‑traffic indoor environments, it delivers chilled, clean hydration with antimicrobial surfaces, Green Ticker™ bottle savings display, and a visual filter monitor for easy maintenance.
Key Specifications:
| Design | Bi‑level ADA wall‑mount cooler with integrated bottle filler |
| Finish | Light Gray Granite. Also available in Stainless Steel |
| Filtration | Includes 51300C WaterSentry® Filter, NSF/ANSI 42, 53, 372, 401 certified, 3,000 gallon capacity |
| Refrigeration | 8.0 GPH chilled water capacity, 115V/60Hz, 370 watts |
| Stations Served | 2 (coolers + bottle filler) |
Features & Benefits:
- Filtered Hydration: Certified to reduce lead, chlorine, particulates, cysts, and microplastics
- Hands‑Free Bottle Filler: Electronic sensor activation with laminar flow for clean filling
- ADA Compliant: Meets ADA & ICC A117.1 accessibility requirements when installed properly
- Antimicrobial Protection: Key plastic components manufactured with silver ion antimicrobial agent
- Green Ticker™: Displays number of plastic bottles saved from waste
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
What's Included:
- LMABFTL8WSLK Bi‑Level ADA Cooler with Bottle Filler
- Flexi‑Guard® Safety Bubblers
- WaterSentry® 51300C Filter Cartridge
- Installation instructions (PDF)
- Warranty documentation
Comparison of Elkay Bi‑Level Bottle Filling Stations:
| Feature | LMABFTL8WSLK (This Model) | LZSTL8WSLK | LVRCTLDWSPRO |
|---|---|---|---|
| Design | Bi‑level ADA cooler with integrated bottle filler | Bi‑level ADA cooler with integrated bottle filler | Bi‑level ADA cooler with integrated bottle filler, vandal‑resistant |
| Finish | Light Gray Granite | Stainless Steel | Stainless Steel, vandal‑resistant design |
| Filtration | Includes 51300C, NSF/ANSI 42, 53, 372, 401 | Includes 51600C, NSF/ANSI 42, 53 | FL10 Pro Filtration system, NSF/ANSI 42, 53, 401 |
| Best For | Schools, offices, public facilities needing filtered ADA compliance | High‑traffic areas requiring stainless steel durability | Environments needing vandal‑resistant features with advanced filtration |
FAQ

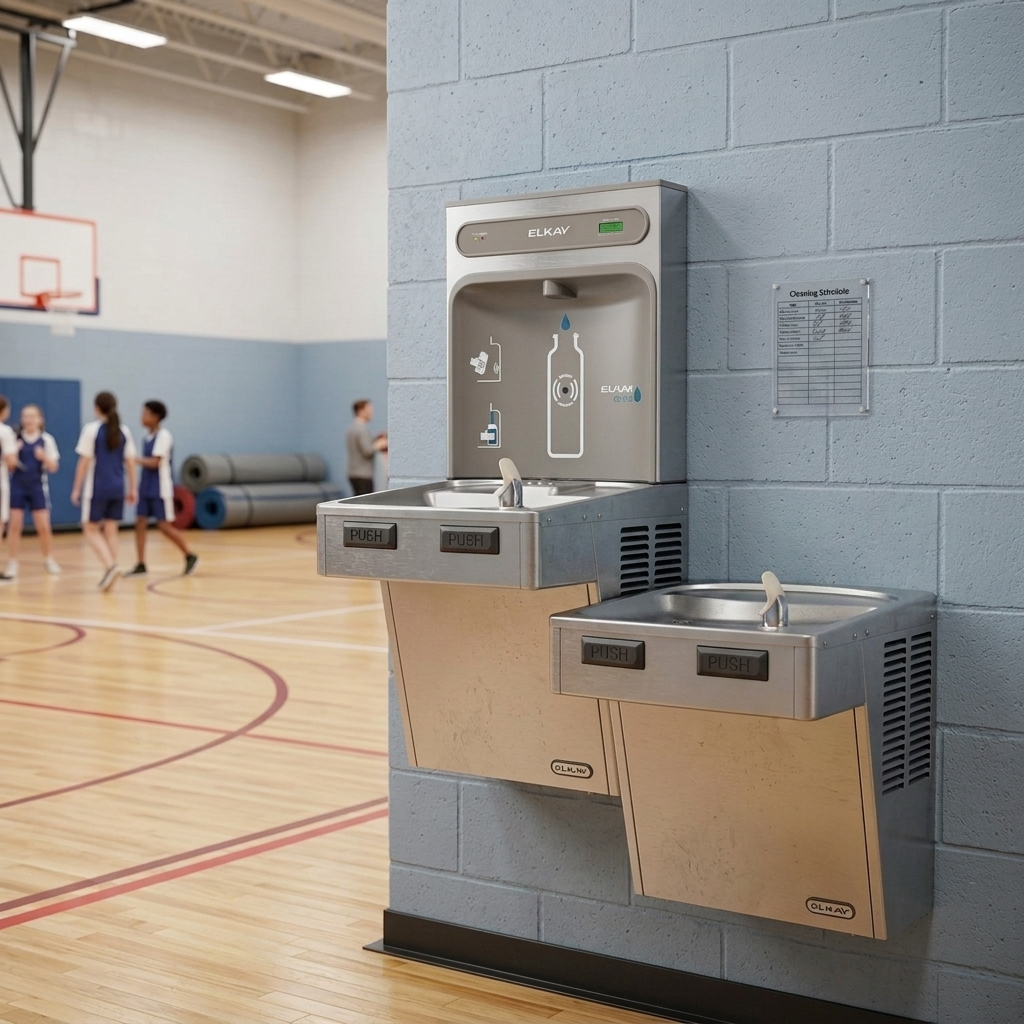

Q: What Applications Are Best Suited for the LMABFTL8WSLK?
A: This unit is ideal for schools, offices, and public facilities needing a durable, filtered, refrigerated bi‑level ADA compliant hydration solution.
Q: What Accessories Are Available?
A: Optional accessories include the MLP200 In‑Wall Carrier, 98313C Cane Apron, and 36292C Power Block.
Q: How Often Should I Replace the Filter?
A: Replace the included 51300C filter every 3,000 gallons or annually, whichever comes first, to maintain optimal performance.
Q: Is the LMABFTL8WSLK ADA Compliant?
A: Yes. It complies with ADA & ICC A117.1 accessibility standards when installed according to guidelines.
Q: Can the LMABFTL8WSLK Be Installed Outdoors?
A: No. This model is designed for indoor installations only.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
The Elkay LMABFTL8WSLK is a bi‑level bottle filling station with integrated filtered coolers. Designed for high‑traffic indoor environments, it delivers chilled, filtered water with dual ADA‑compliant access points and hands‑free sensor activation.

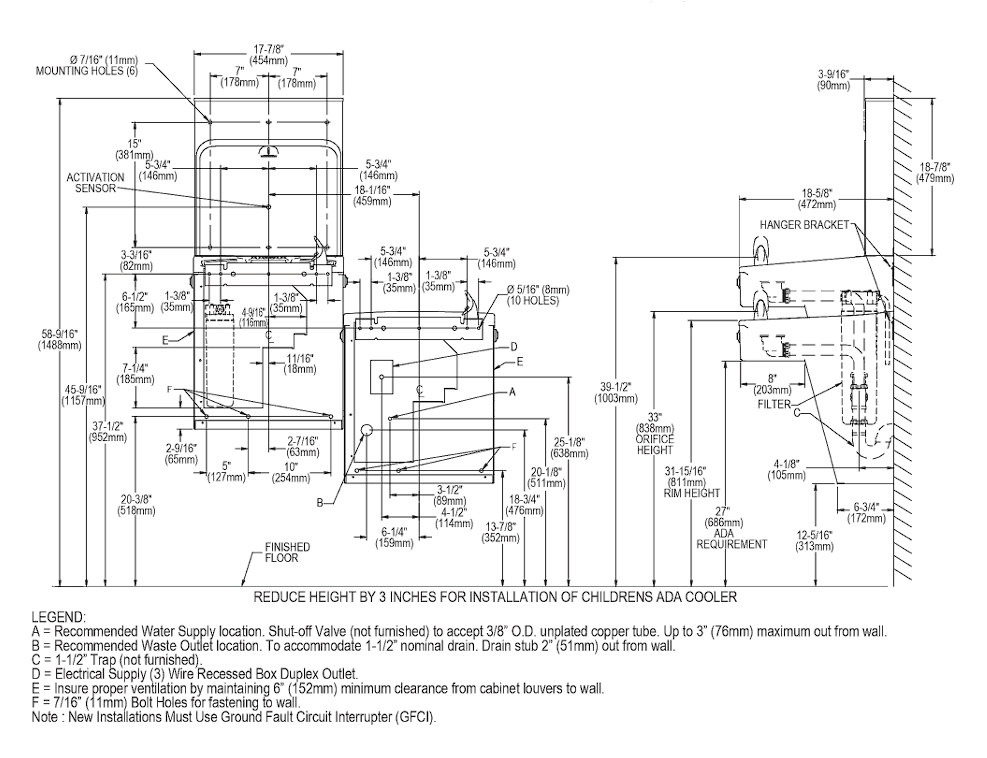

Key Installation Requirements:
- Wall‑mounted installation with in‑wall carrier support
- Cold water line only (40–100°F operating temperature)
- Electrical supply: 115V / 60Hz grounded outlet with GFCI protection
- Drain connections required for both cooler basins and bottle filler
- Maintain clearance for filter replacement and servicing
- Follow ADA guidelines for installation height and accessibility
Important Notes Before Installing:
- Do not connect to hot water lines
- Always depressurize water line before servicing or replacing filter
- Ensure sensor lenses are unobstructed for accurate activation
- Use only genuine Elkay filters to maintain certification and performance
- Provide adequate ventilation clearance around louvers
- Secure unit firmly to wall structure to meet bi‑level and vandal‑resistant requirements
Basic Installation Overview:
- Install in‑wall carrier securely to support dual cooler and bottle filler weight
- Plumb water supply with service stop and union connection; flush line thoroughly
- Install filter head and cartridge into bracket, connect tubing per routing diagram
- Mount cooler and bottle filler assembly to carrier, ensuring wires and tubing are not pinched
- Connect drain lines from both coolers and bottle filler to building drain system
- Wire electrical supply to grounded outlet; verify LCD bottle counter illuminates
- Test bottle filler sensor activation and bubbler stream height; adjust regulator if needed
- Install bottom cover plates and tighten back panel screws
For complete specifications and installation guidelines, download the official LMABFTL8WSLK Spec Sheet and the Installation Manual.
