Elkay LMABFTL8WSSK | Wall-mount Bi-Level Bottle Filling Station | Filtered, Refrigerated, EMAB-style fountain, Stainless Steel
Elkay LMABFTL8WSSK | Wall-mount Bi-Level Bottle Filling Station | Filtered, Refrigerated, EMAB-style fountain, Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay LMABFTL8WSSK | Wall-mount Bi-Level Bottle Filling Station | F...

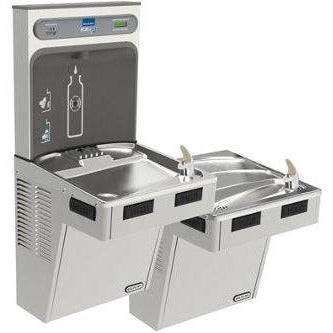

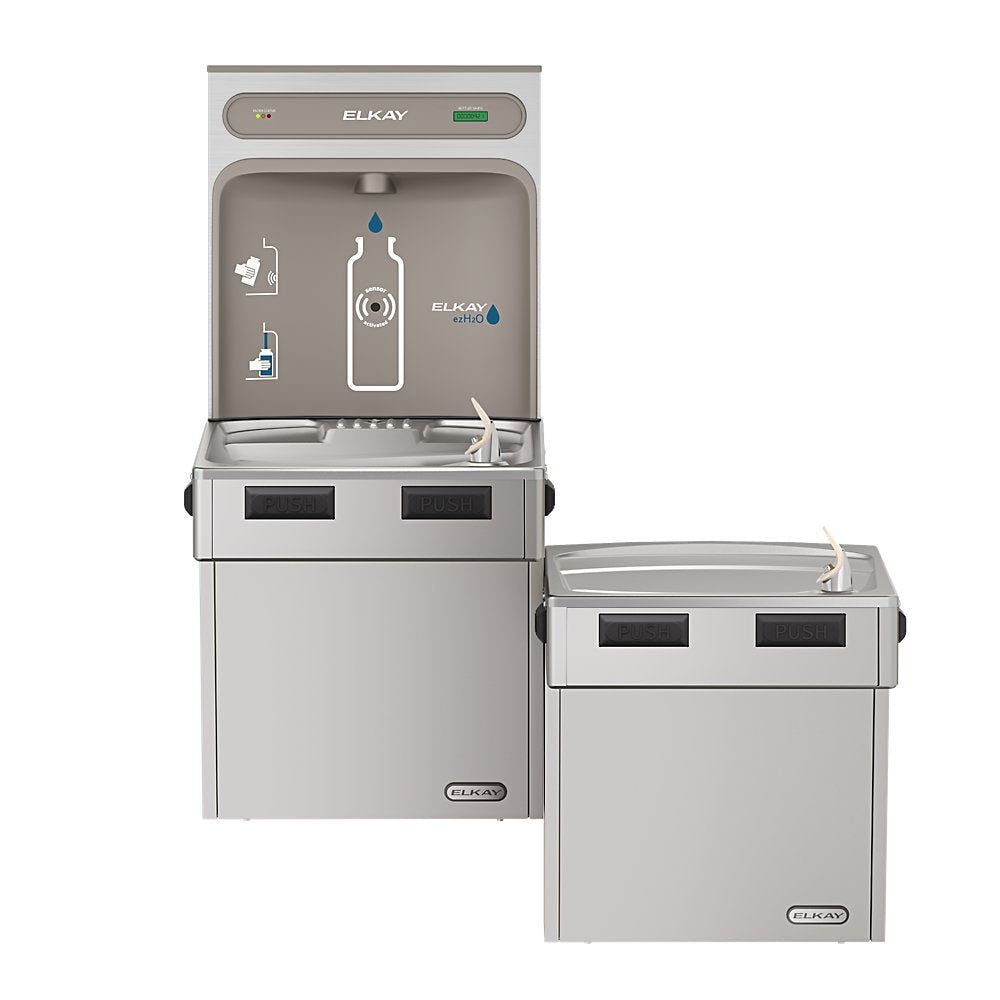

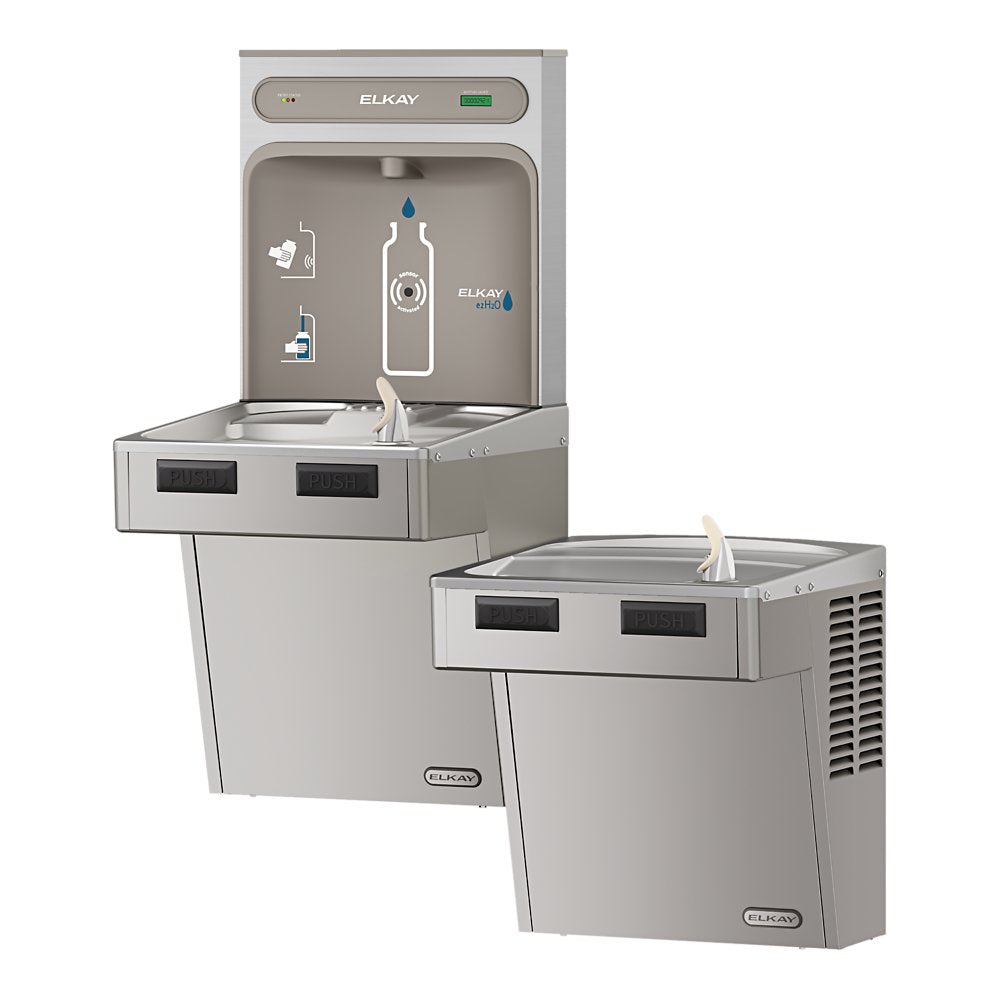

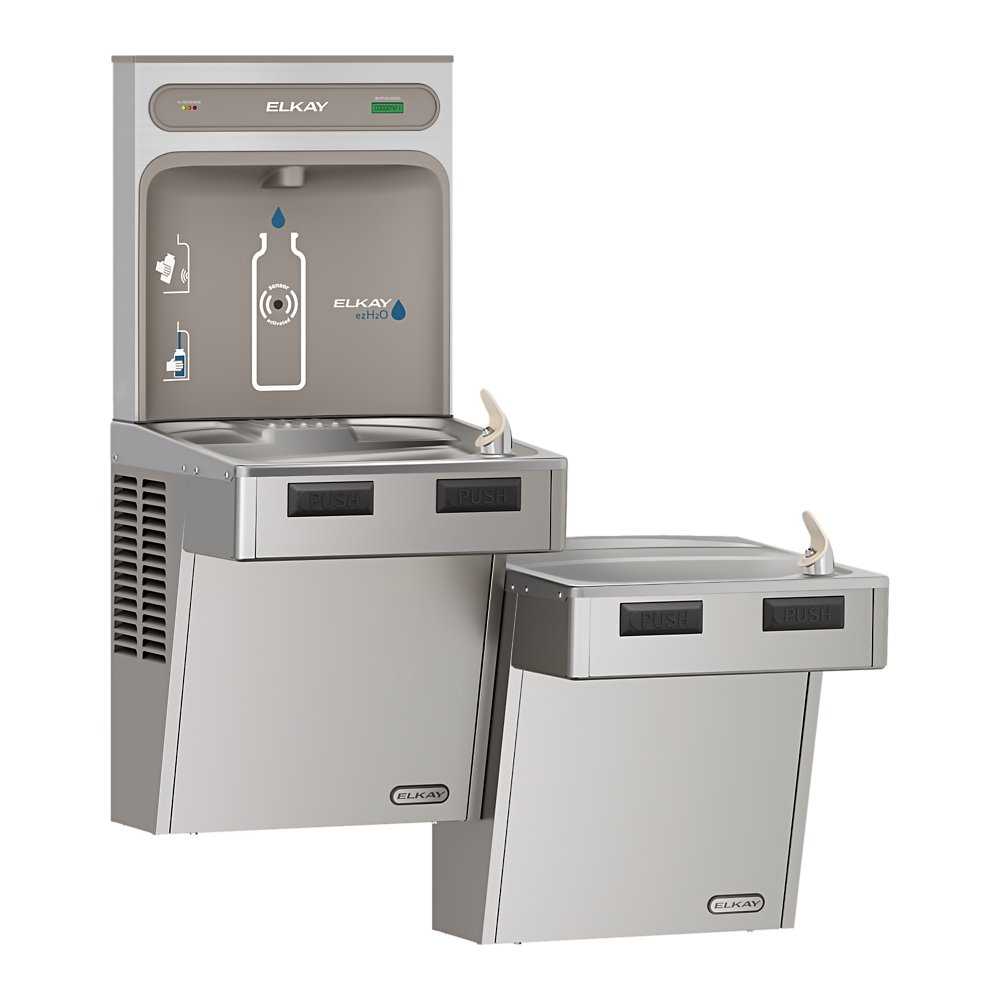

The Elkay LMABFTL8WSSK is a filtered, refrigerated ezH2O® Bottle Filling Station combined with a bi-level ADA cooler. Built in stainless steel, this wall-mounted unit delivers sustainable hydration with advanced filtration, hands-free bottle filling, and vandal-resistant Flexi-Guard® bubblers for reliable performance in high-traffic indoor environments.
Key Specifications:
- Finish: Stainless Steel. Also available in Light Gray (LMABFTL8WSLK).
- Filtration: Includes 51300C WaterSentry® Plus filter, NSF/ANSI 42, 53, 372, and 401 certified for lead, microplastics, particulates, cysts, chlorine taste, and odor. 3,000-gallon capacity or 1 year after installation.
- Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient, ASHRAE 18 tested).
- Refrigeration: Hermetically sealed compressor, fan-cooled condenser, copper tube/aluminum fin system with EPS foam insulation. Uses R-134a refrigerant.
- Power Requirements: 115V/60Hz, 370W, 6 full load amps.
- Dimensions: 36-1/4" L × 18-5/8" W × 46-1/4" H.
- Stations Served: 2.
- Compliance: ADA & ICC A117.1, UL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 42, 53, 61, 372 (lead-free), 401.
Features & Benefits:
- Hands-Free Bottle Fill: Sensor-activated with laminar flow for hygienic, splash-free filling.
- Bi-Level Design: Two ADA-compliant coolers plus bottle filler serve multiple users simultaneously.
- Flexi-Guard® Safety Bubblers: Vandal-resistant bubblers protect against injury and contamination.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste, promoting sustainability.
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- Real Drain System: Eliminates standing water for improved hygiene.

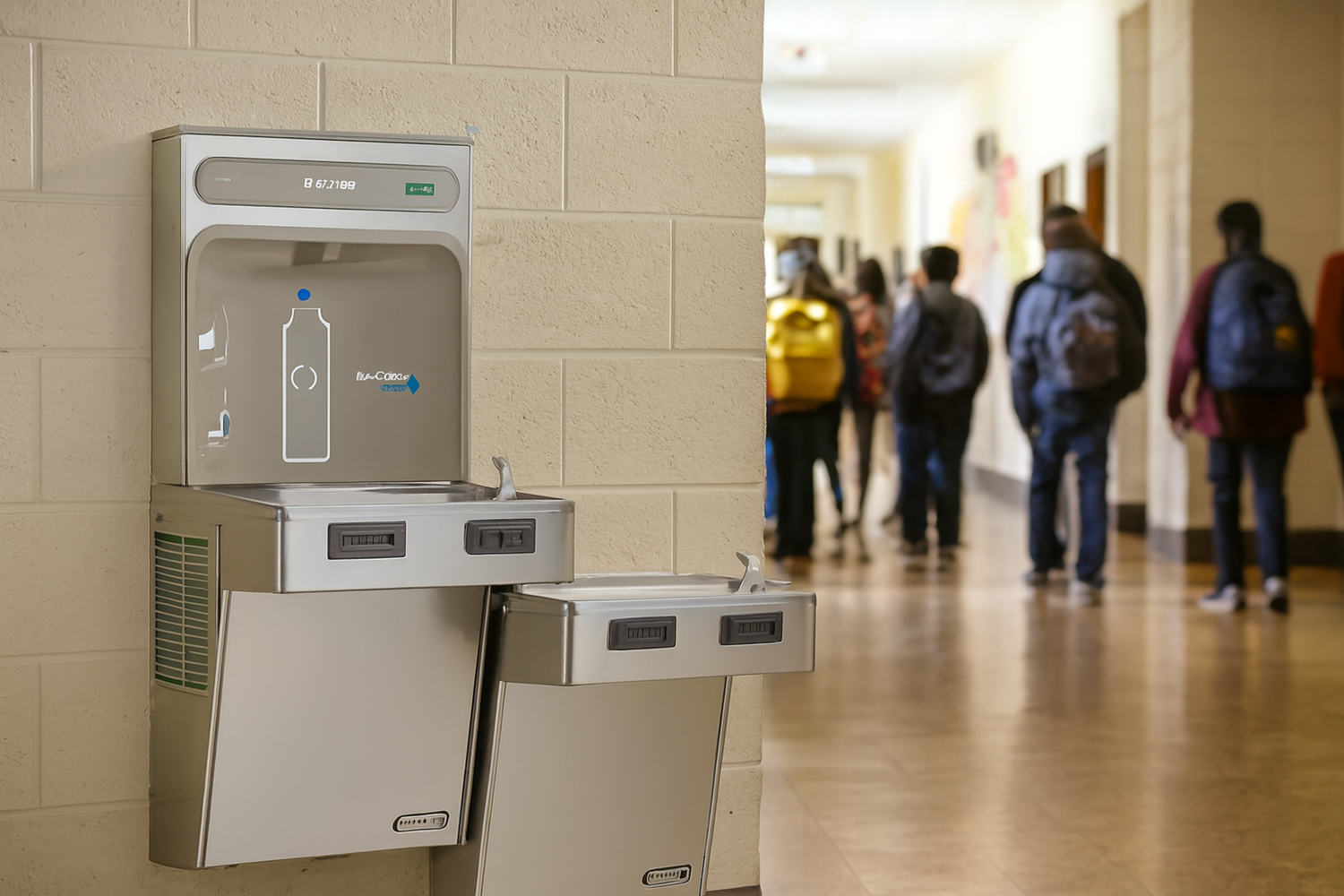

- Durability: Stainless steel construction resists wear and tampering, ideal for schools, offices, and public spaces.
What's Included:
- LMABFTL8WSSK Bottle Filling Station + bi-level ADA cooler (ships in multiple boxes)
- WaterSentry® Plus 51300C filter
- Flexi-Guard® safety bubblers
- Mounting frame and hanger brackets
- Installation hardware and instructions
- Owner’s manual and warranty guide
FAQ
Q: What filter does the LMABFTL8WSSK use?
A: This model uses the Elkay WaterSentry® Plus 51300C filter, certified to NSF/ANSI 42, 53, 372, and 401 standards. Replace every 3,000 gallons or 12 months, whichever comes first.
Q: Is the LMABFTL8WSSK refrigerated?
A: Yes, this model is refrigerated with an 8.0 GPH chilling capacity.
Q: What is the difference between LMABFTL8WSSK and LMABFTL8WSLK?
A: Both are filtered, refrigerated bi-level models. The LMABFTL8WSSK has a Stainless Steel finish, while the LMABFTL8WSLK has a Light Gray finish.
Q: What warranty is included?
A: The LMABFTL8WSSK comes with a 5-year limited warranty on the refrigeration system and a 1-year warranty on electrical components and water system (drinking water applications only).
Detailed Features & Benefits
Cooling System: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, and EPS foam insulation for efficient chilled water delivery. Refrigerant R-134a controlled by calibrated capillary tube.
Accessibility: ADA-compliant bi-level design ensures inclusive access when installed according to ADA & ICC A117.1 standards.
Sustainability: Green Ticker™ encourages reusable bottle use, reducing single-use plastic waste.
Maintenance: Visual filter monitor and accessible program button simplify filter replacement and system resets.
Warranty: 5-year limited warranty on refrigeration system; 1-year warranty on electrical components and water system.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
