Elkay LMABFTL8WSSK | Wall-mount Bi-Level Bottle Filling Station | F...
The Elkay LMABFTL8WSSK is a filtered, refrigerated ezH2O® bottle filling station combined with a bi-level ADA cooler. This stainless steel unit delivers 8.0 GPH of chilled drinking water with advanced filtration and durable construction for high-traffic indoor environments.
Key Specifications:
| Design | Bi-level bottle filling station with ADA cooler |
| Finish | Stainless Steel. Also available in Light Gray (LMABFTL8WSLK) |
| Filtration | Includes 51300C WaterSentry® Plus Filter, NSF/ANSI 42, 53, 372, and 401 certified. 3,000-gallon capacity or 1 year after installation |
| Refrigeration | 8.0 GPH chilled water capacity, hermetically sealed compressor, R-134a refrigerant |
| Stations Served | 2 (bi-level coolers and bottle filler) |
Features & Benefits:
- Hands-Free Bottle Fill: Sensor-activated laminar flow for hygienic filling
- Bi-Level Design: Two ADA-compliant coolers plus bottle filler serve multiple users
- Flexi-Guard® Bubblers: Vandal-resistant safety bubblers protect against injury
- Green Ticker™: Displays bottles saved from waste
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed
What's Included:
- LMABFTL8WSSK Bottle Filling Station + bi-level ADA cooler (ships in multiple boxes)
- WaterSentry® Plus 51300C filter
- Flexi-Guard® safety bubblers
- Mounting frame and hanger brackets
- Installation hardware and instructions
- Owner’s manual and warranty guide
Comparison With Other Bottle Filling Station Models:
| LMABFTL8WSSK | LZSTL8WSLK | LVRCTL8WSPRO | |
|---|---|---|---|
| Finish | Stainless Steel | Light Gray Granite | Stainless Steel |
| Filtration | 51300C WaterSentry® Plus Filter, 3,000 gal | 51300C WaterSentry® Plus Filter, 3,000 gal | FL10 Pro Filtration™ Ultra-Capacity Filter, up to 10,000 gal |
| Features | Mechanically activated bubbler continues water supply during service disruptions | Electronic front and side pushbar activation; Versatile kit option to move bottle filler | Cloud-connected monitoring, interactive LCD display, top-access quick filter change, vandal-resistant design |
FAQ
Q: What Filter Does the LMABFTL8WSSK Use?
A: It uses the Elkay WaterSentry® Plus 51300C filter, certified to NSF/ANSI 42, 53, 372, and 401. Replace every 3,000 gallons or 12 months.
Q: Is the LMABFTL8WSSK Refrigerated?
A: Yes. It provides 8.0 GPH of chilled drinking water with a hermetically sealed compressor.
Q: What Is the Difference Between LMABFTL8WSSK and LMABFTL8WSLK?
A: Both are filtered, refrigerated bi-level models. The LMABFTL8WSSK has a stainless steel finish, while the LMABFTL8WSLK has a light gray finish.
Q: What Accessories Are Available?
A: Options include the MLP200 In-Wall Carrier, 98324C Cane Apron, and 36292C Power Block.
Q: What Warranty Is Included?
A: Elkay provides a 5-year limited warranty on the refrigeration system and a 1-year warranty on electrical and water system components.
Q: How Does the Visual Filter Monitor Work?
A: The LED indicator changes color to signal when the filter needs replacement, ensuring safe and clean water.
Q: What Maintenance Is Required?
A: Routine cleaning of surfaces, checking for leaks, and timely filter replacement. The Green Ticker™ helps track usage.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

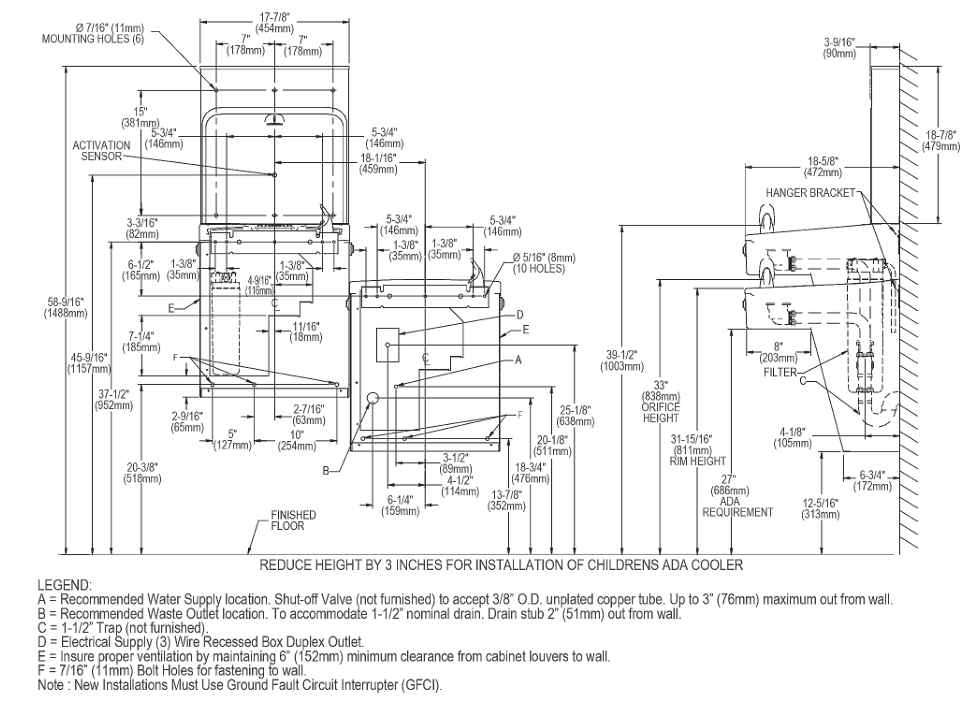

- Prepare wall framing and hanger bracket per rough‑in dimensions provided in the package manual.
- Mount hanger bracket securely using all designated holes; add support carrier if wall will not provide adequate support.
- Hang cooler on bracket, ensuring proper engagement with slots on the back panel.
- Remove front panel to access connections; connect water inlet line and install trap on waste outlet.
- If available, connect filter assembly and ensure proper orientation.
- If available, connect refrigeration components and verify ventilation clearance.
- Reconnect panel after plumbing is complete and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice and regulator periodically; clean or adjust if flow is irregular.
- Check quick‑connect fittings and tubing for leaks; reseat if necessary.
- Clean basin and exterior surfaces with mild, non‑abrasive cleaner.
- If available, replace filter at recommended intervals.
- If available, service refrigeration components as required.
- For service or repairs, consult the manual or a licensed technician.
