Elkay  |  SKU: EZWS-EDFPBM117K

Elkay EZWS-EDFPBM117K | In-wall Bi-Level Bottle Filling Station | Filterless, Non-refrigerated, SwirlFlo fountains, Stainless Steel (Comes with Mounting frame)

$ 4,260.00
Shipping calculated at checkout.


In Stock
Free Shipping

Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:

Requires a minimum of 12" of wall depth for installation.

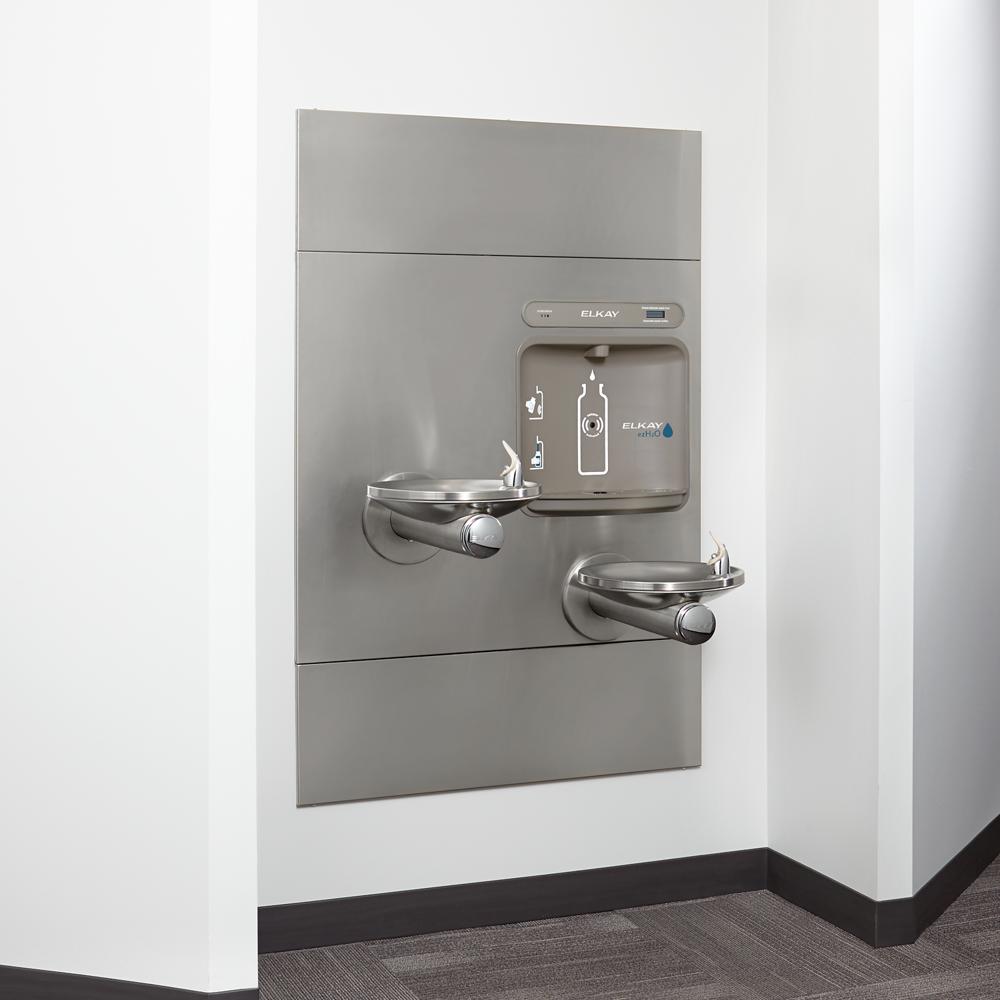

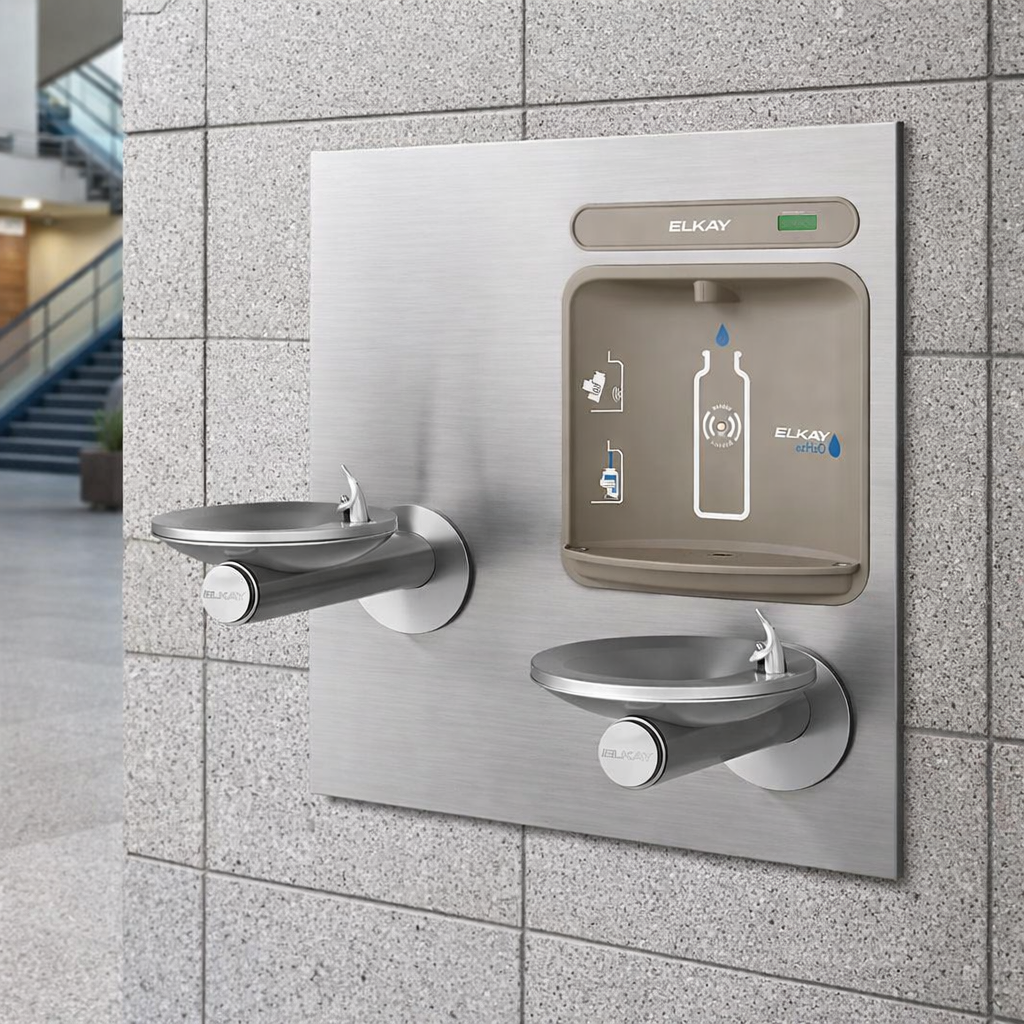

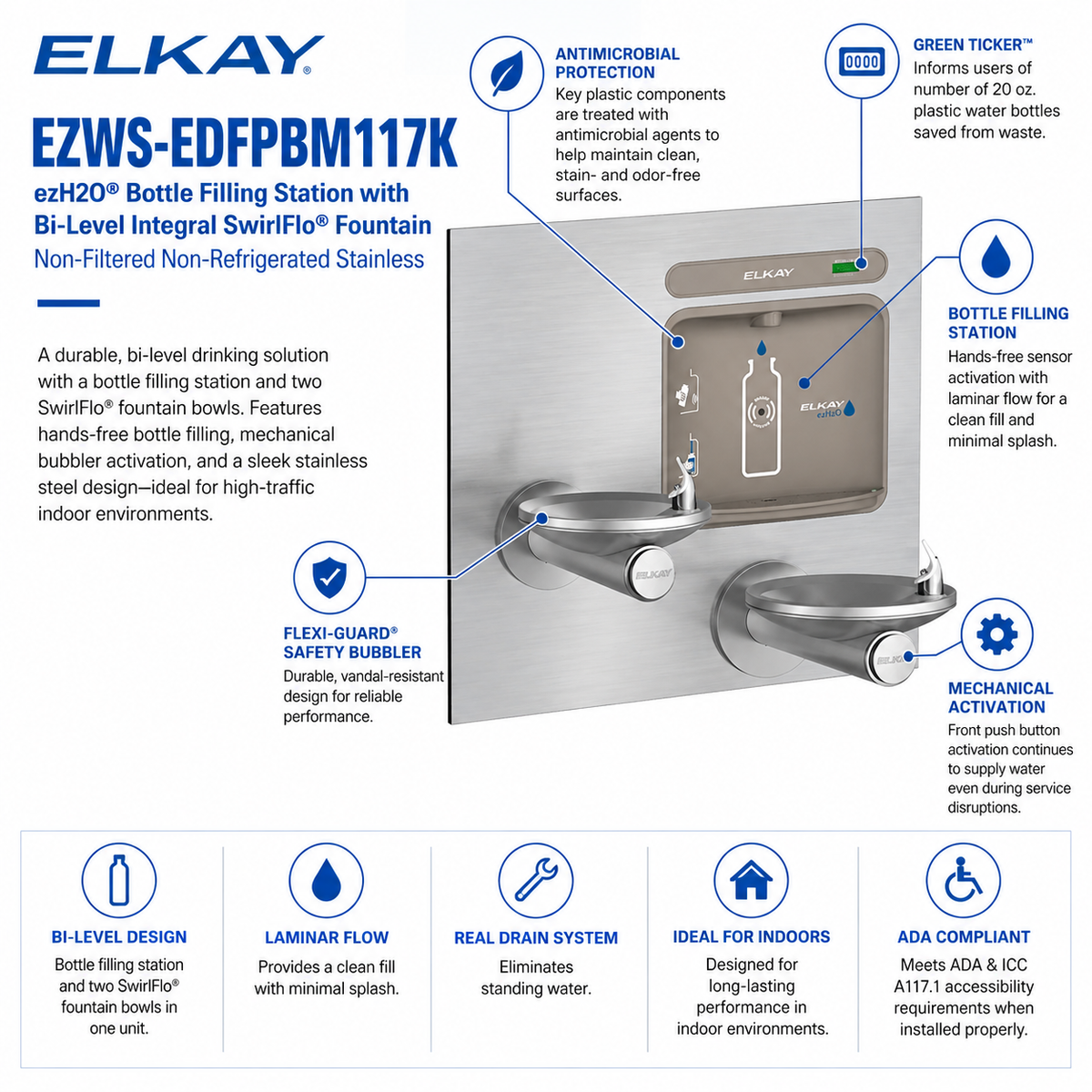

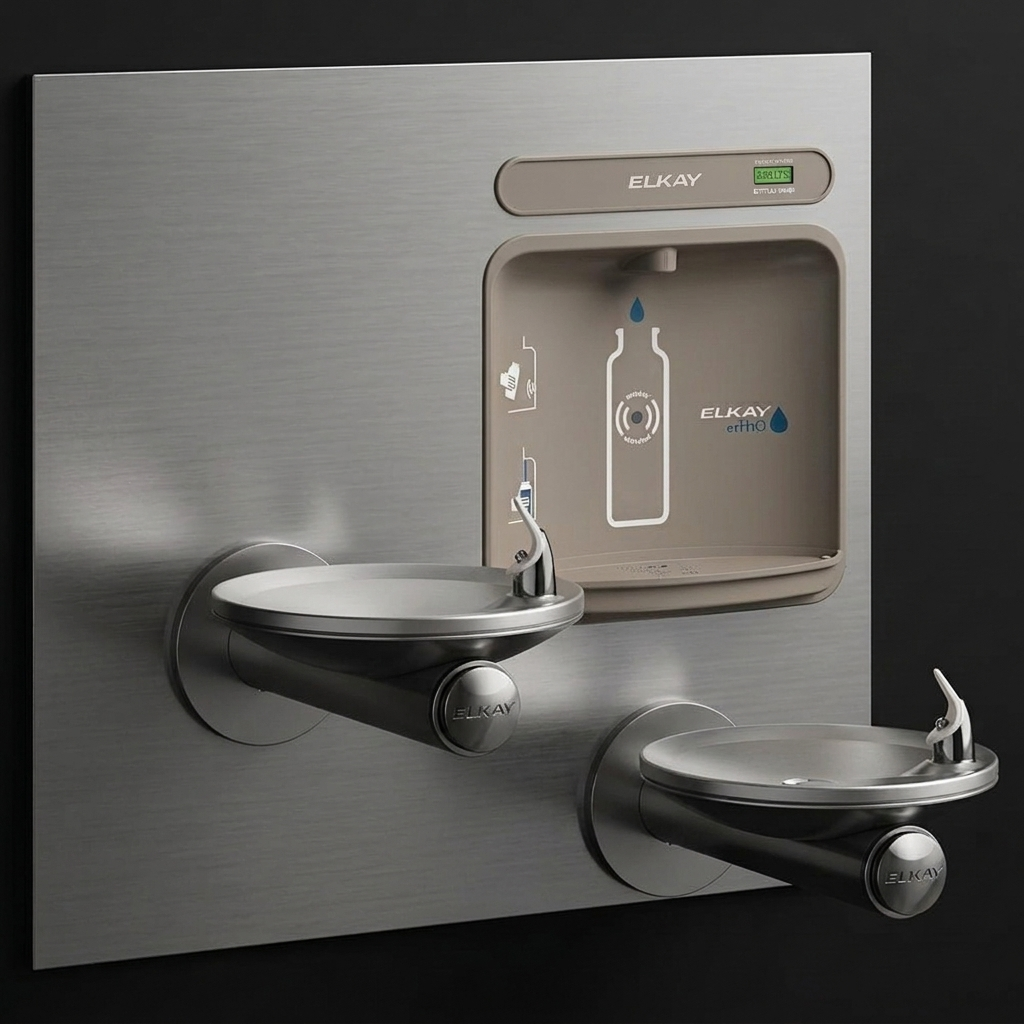

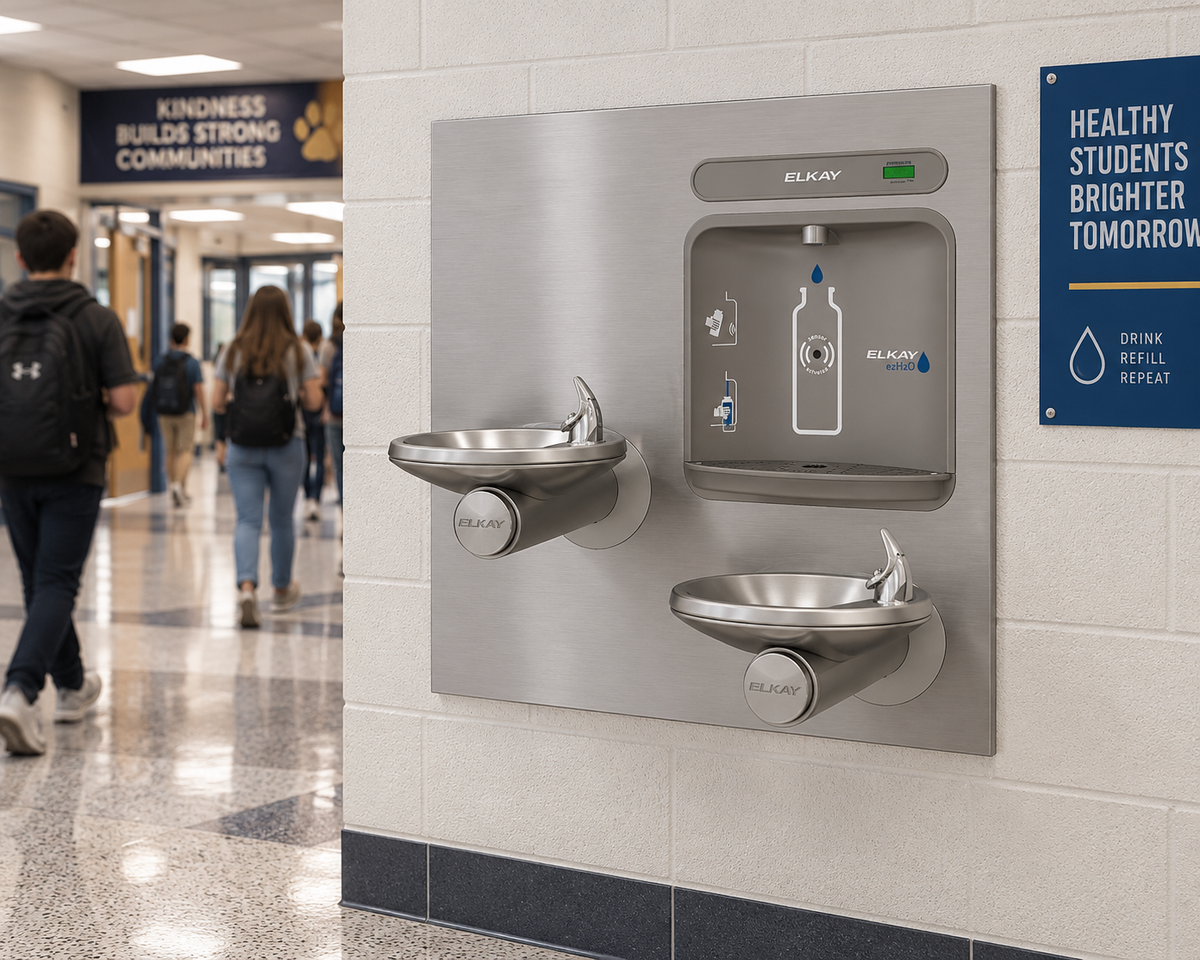

The EZWS-EDFPBM117K is an in-wall, non-refrigerated bottle filling station that includes a bottle filler and two 'Swirflo' drinking fountains. This model has a Stainless Steel color finish.

One of the most popular models, the Elkay EZWS-EDFPBM117K In-Wall Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

  • ADA compliant design
  • Fully Recessed In-wall design
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Green Ticker™ tracks number of plastic bottles saved from waste.

The EZWS-EDFPBM117K drinking fountain features a Flexi-Guard bubbler protected by a flexible antimicrobial mouth guard that helps to protect against injury and microorganisms.

Elkay EZWS-EDFPBM117K Spec Sheet HERE
Elkay EZWS-EDFPBM117K Installation manuals:



FILTERED?

No

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

BUBBLER OPTION

FlexiGuard Safety

MOUNTING DETAILS

Wall Mount (In-Wall Frame/Plate)

CHILLING DETAILS

Non-refrigerated

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

Two fountains

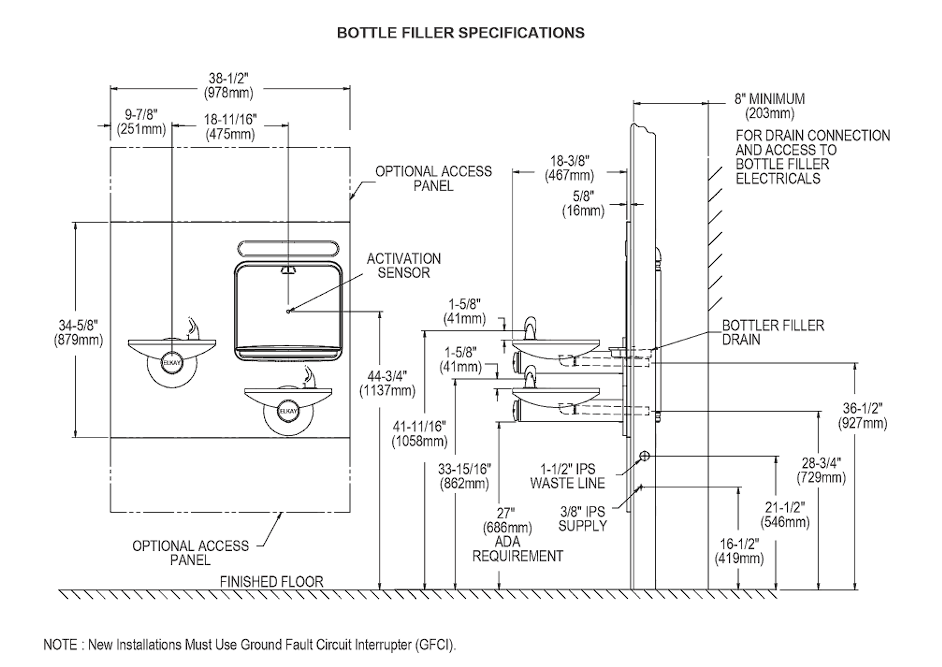

DIMENSIONS

L: 19-3/4″

W: 3-1/2″

H: 40-13/16″

SHIPPING WEIGHT

118 lbs

Elkay EZWS-EDFPBM117K

PRODUCT COMPLIANCE

  • GreenSpec
  • ADA Compliant
  • CAN/CSA 22.2 120
  • ASME A112.19.3/CSA B45.4
  • Buy American Act
  • UL 399
  • NSF 61
  • NSF 372 (no lead)



Warranty

Refrigeration System (IF APPLICABLE)

Elkay EZWS-EDFPBM117K refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay EZWS-EDFPBM117K warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Elkay EZWS-EDFPBM117K requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay EZWS-EDFPBM117K INSTALLATION INSTRUCTIONS.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ

Q: How do I access the filter status and bottle counter button?

A: To access the program button, the lower panel of the unit must be must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.

Q: Does this model come with a Mounting Frame?

A:  Yes, this model comes with an MPW200 In-wall Carrier Mounting Frame.

*MADE IN THE UNITED STATES.

Experience the benefits of the very popular Elkay EZWS-EDFPBM117K Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
