Elkay  |  SKU: LZWS-LRPBM28K

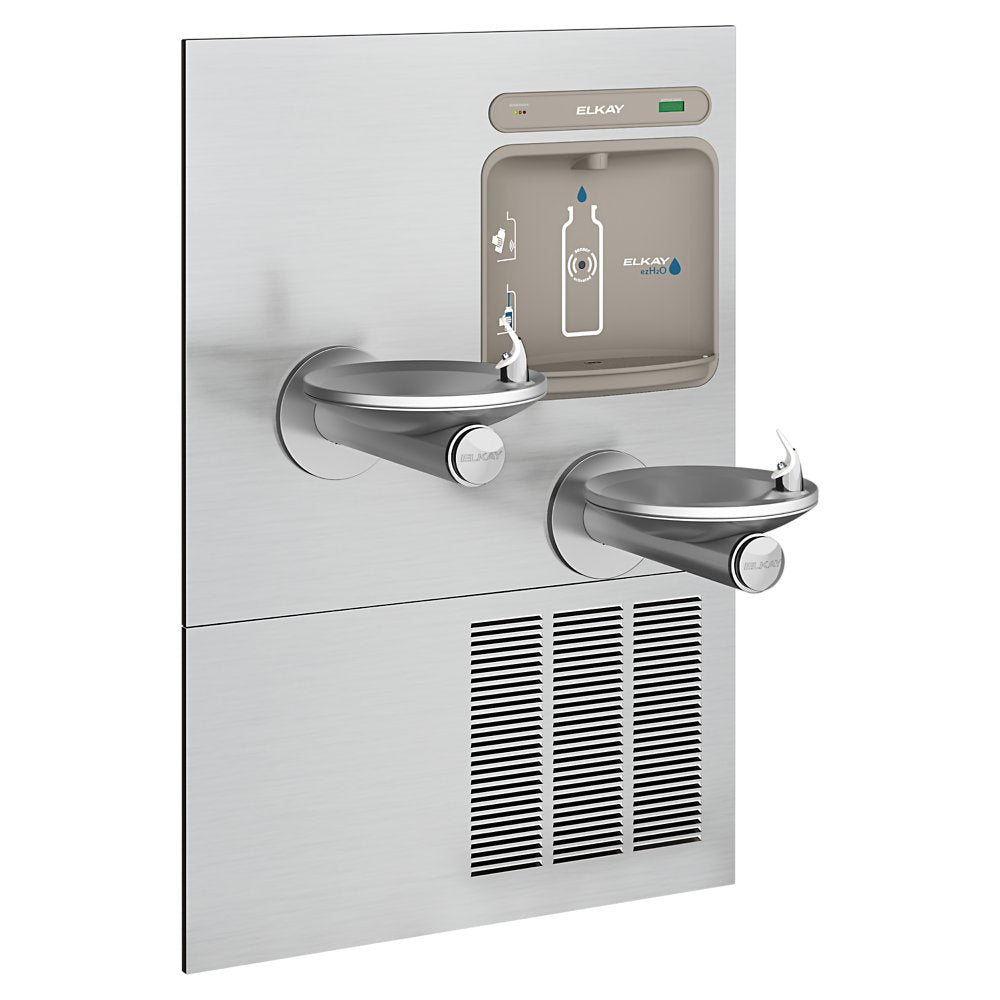

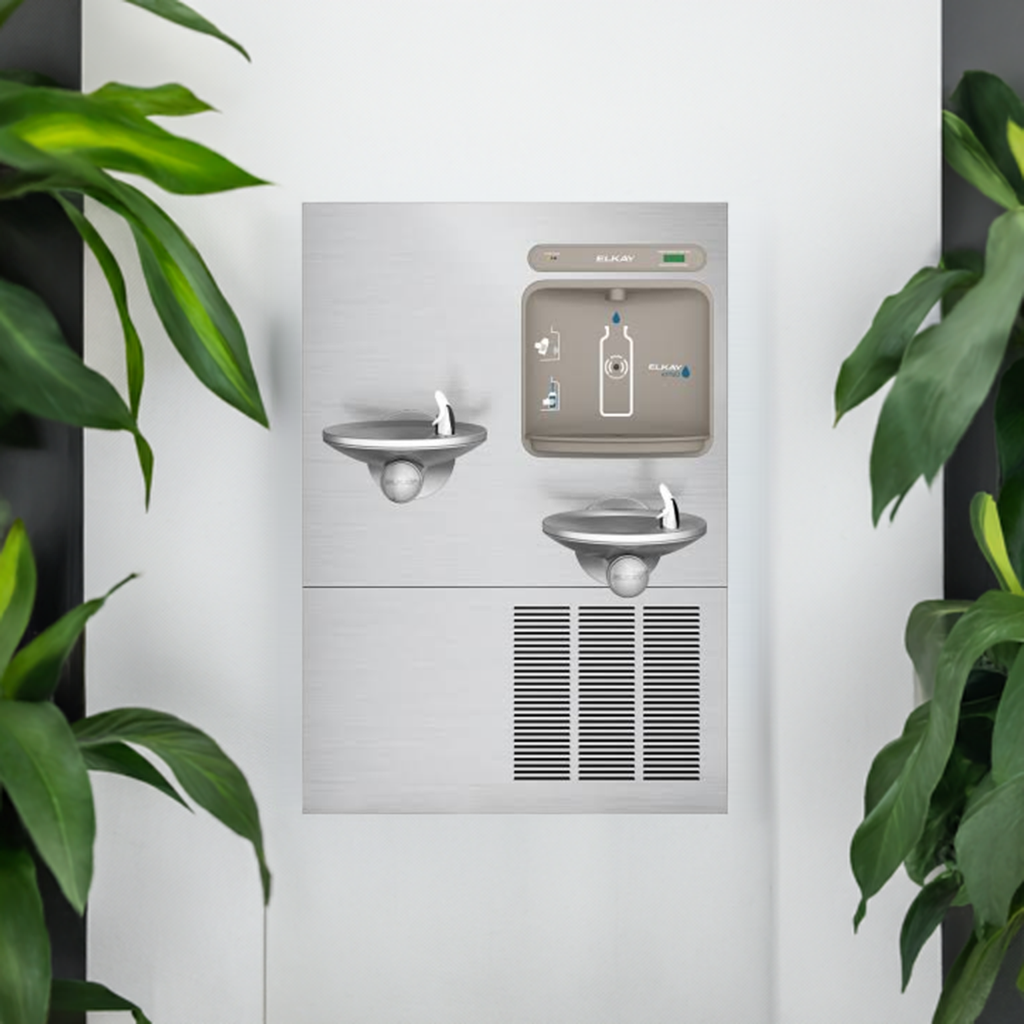

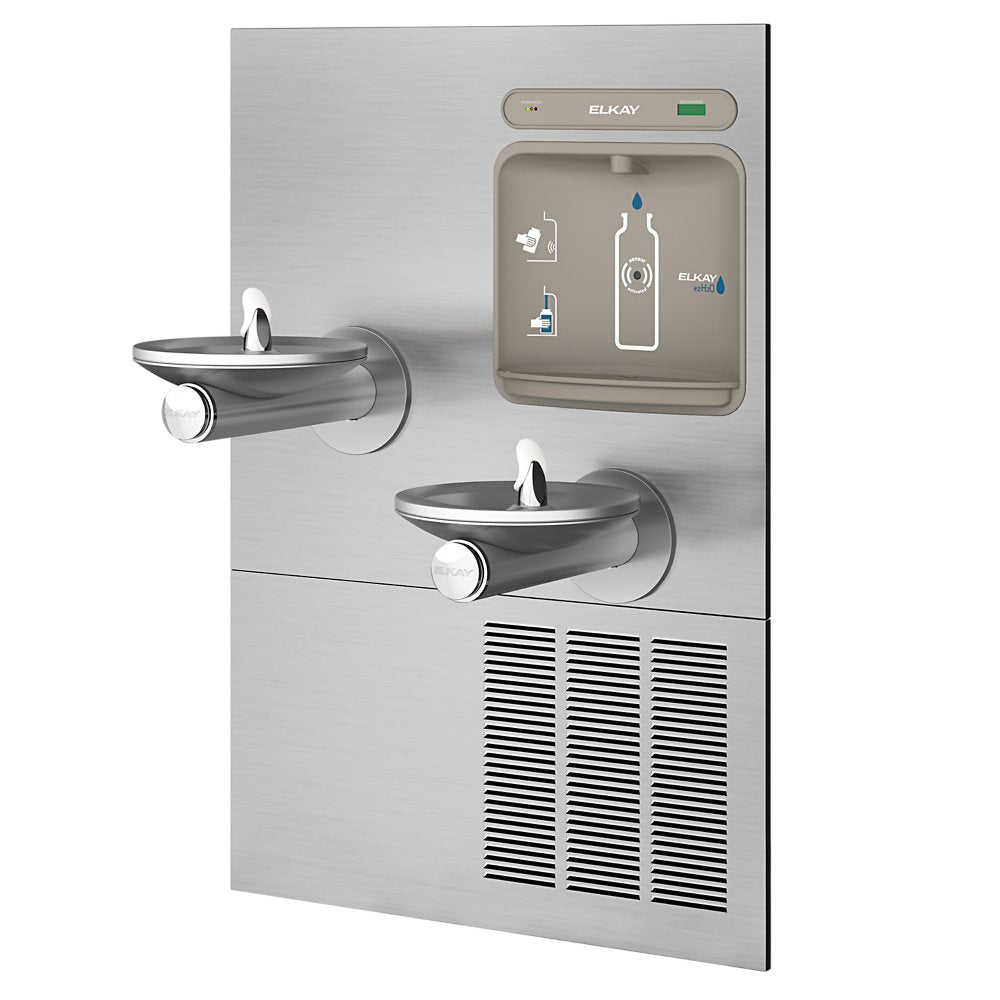

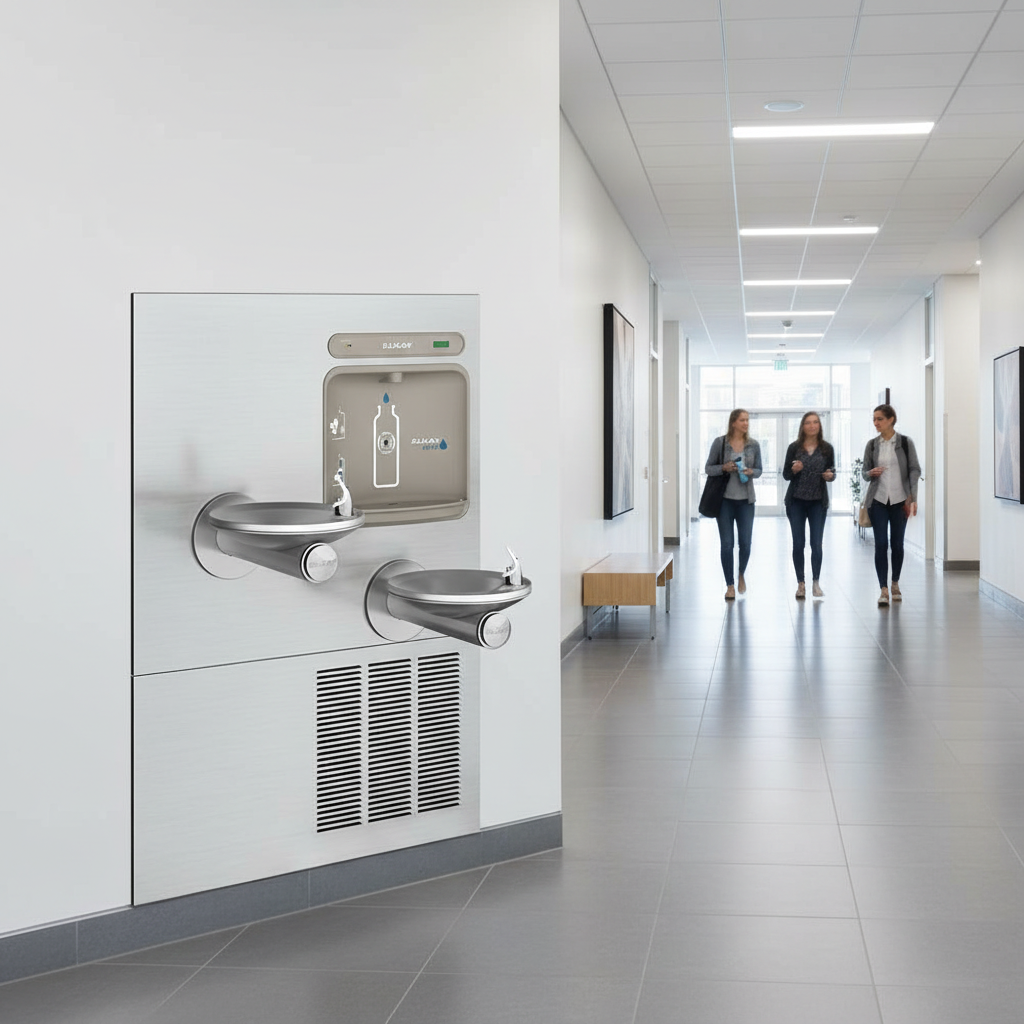

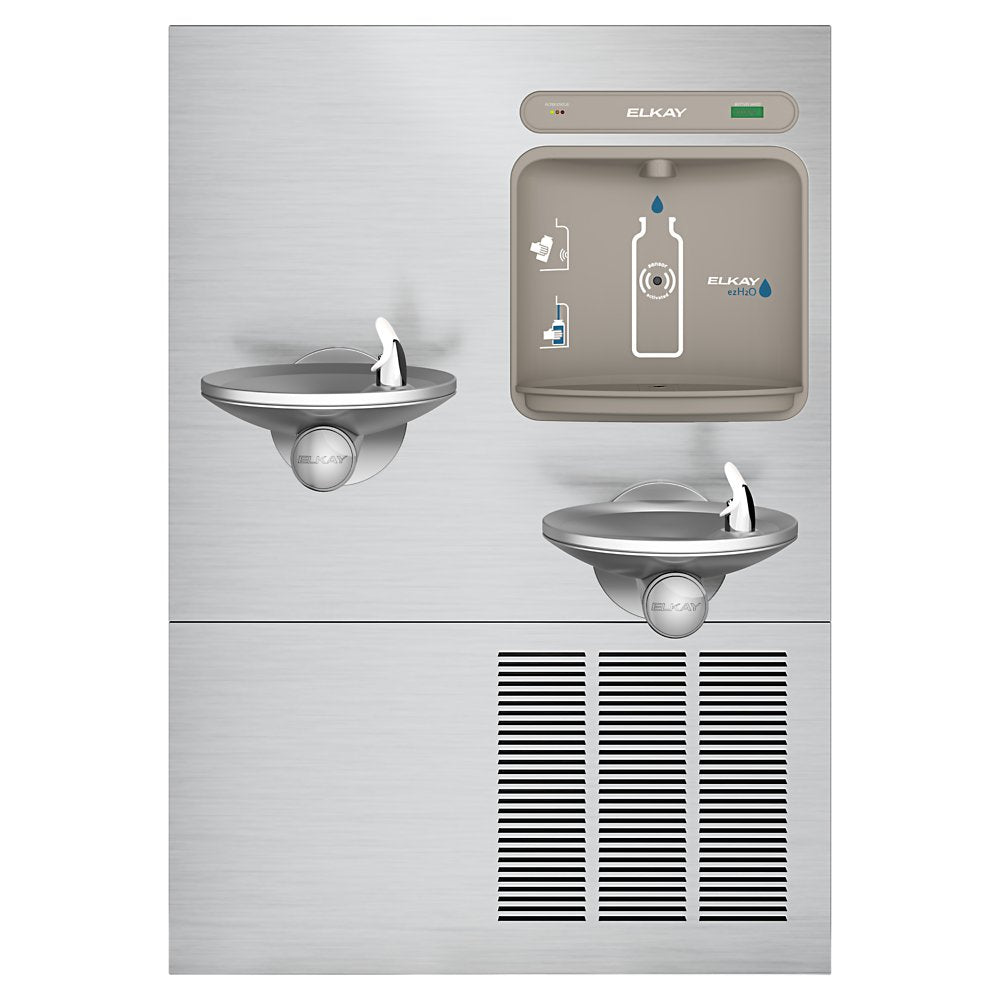

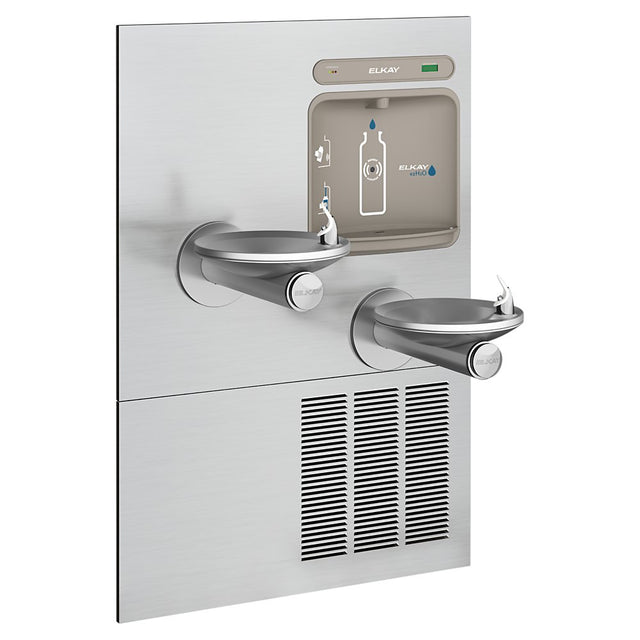

Elkay LZWS-LRPBM28K | | In-wall Bi-level Bottle Filling Station | Filtered, Refrigerated, SwirlFlo fountains (Comes with Mounting Frame)

$ 5,416.20
Shipping calculated at checkout.


In Stock
Free Shipping
_____________________________________
_____________________________________

Product Care Information

Installation


  • Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.

ezH2O Installation Video:


Maintenance


It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit.  It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat.

ezH2O Maintenance Video:


Filter Replacement


When filter status light turns to red, the filter needs to be changed.  Here are some detailed instructions.

ezH20 Filter Change Video:

Requires a minimum of 12" of wall depth for installation.

One of the most popular models, the Elkay LZWS-LRPBM28K In-Wall Drinking Fountain and Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

  • ADA compliant design
  • Fully Recessed In-wall design
  • Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
  • Green Ticker™ tracks number of plastic bottles saved from waste.

VIEW SPEC SHEET HERE: Elkay LZWS-LRPBM28K

FILTERED?

Yes

COOLER CABINET FINISH

Stainless Steel

POWER

115V/60Hz

BUBBLER OPTION

FlexiGuard Safety

MOUNTING DETAILS

Wall Mount (In-Wall Frame/Plate)

CHILLING DETAILS

8 GPH

INSTALLATION LOCATION

INDOOR

NUMBER OF FOUNTAINS

Two fountains

DIMENSIONS

L: 38-1/2″

W: 19″

H: 55-1/16″

SHIPPING WEIGHT

173 lbs

Elkay LZWS-LRPBM28K

PRODUCT COMPLIANCE

  • GreenSpec
  • ADA Compliant
  • CAN/CSA 22.2 120
  • ASME A112.19.3/CSA B45.4
  • Buy American Act
  • UL 399
  • NSF 61
  • NSF 372 (no lead)



Warranty

Refrigeration System (IF APPLICABLE)

Elkay LZWS-LRPBM28K refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay LZWS-LRPBM28K warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.  View more warranty details here.

Installation Notes

  • Elkay LZWS-LRPBM28K requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
  • Requires access to electrical connection.
  • Product also includes physical copy of installation instructions in package.
  • View detailed Elkay LZWS-LRPBM28K INSTALLATION INSTRUCTIONS.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

HOW TO REPLACE FILTER

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

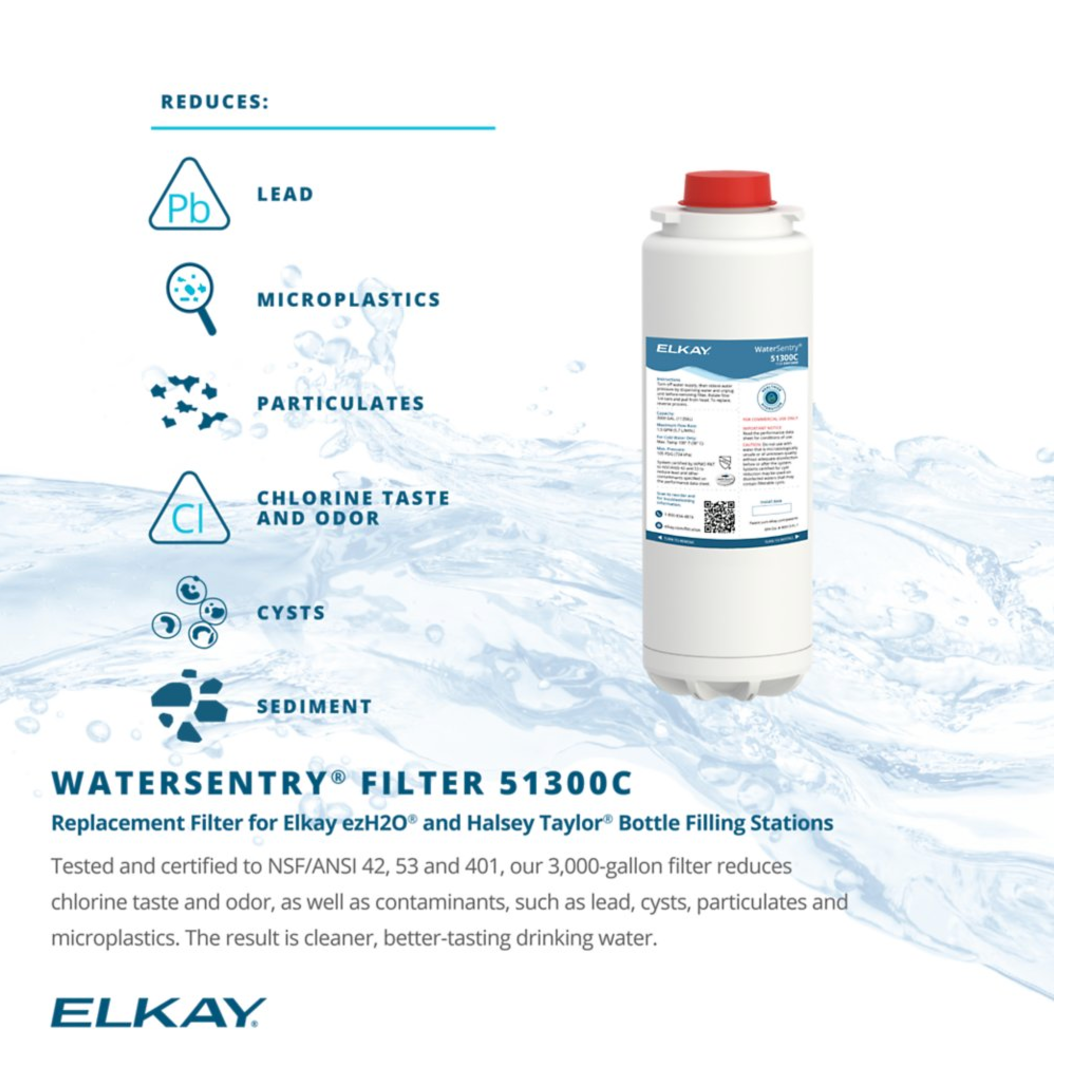

4) Install new WaterSentry Plus filter.

HOW TO RESET FILTER STATUS LIGHT

1) Slide off the circular, steel part that's mounted to the steel panel directly below the bottle filler.

2) Find the the button behind that removed circular, steel part. (if you do not see this button, your station was improperly installed. Call us and we'll send you the necessary part).

3) Depress the program button for approximately 2 seconds until the display changes then release. The display will change and scroll through two messages: “RST FLTR” – Reset Filter Monitor “SETTINGS” – System Settings Sub Menu If the program button is not pushed again the display will scroll through the two messages above for three cycles and then default back to bottle count and be back in run mode.

4) When the display changes to “RST FLTR”, depress the button again. The display will change to show “FLTR =”. Depress the button again and the display will show “FLTR =0”

5) The Green LED should be illuminated indicating that the visual filter monitor has been reset.



View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

FAQ



Q: Does this model come with a Mounting Frame?

A:  Yes, this model comes with an MLP200 In-wall Carrier Mounting Frame.

*MADE IN THE UNITED STATES.

Experience the benefits of the very popular Elkay LZWS-LRPBM28K Water Bottle Filling Station. Best Support, Fast Shipping, & Low Prices. CONTACT US NOW!
