Elkay EMABFDWSSK | Wall-mount Bottle Filling Station | Filterless, Non-refrigerated, EMAB-style fountain, Stainless Steel
Elkay EMABFDWSSK | Wall-mount Bottle Filling Station | Filterless, Non-refrigerated, EMAB-style fountain, Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EMABFDWSSK | Wall-mount Bottle Filling Station | Filterless, ...

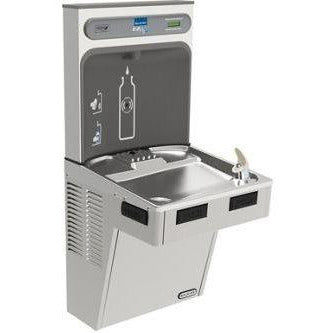

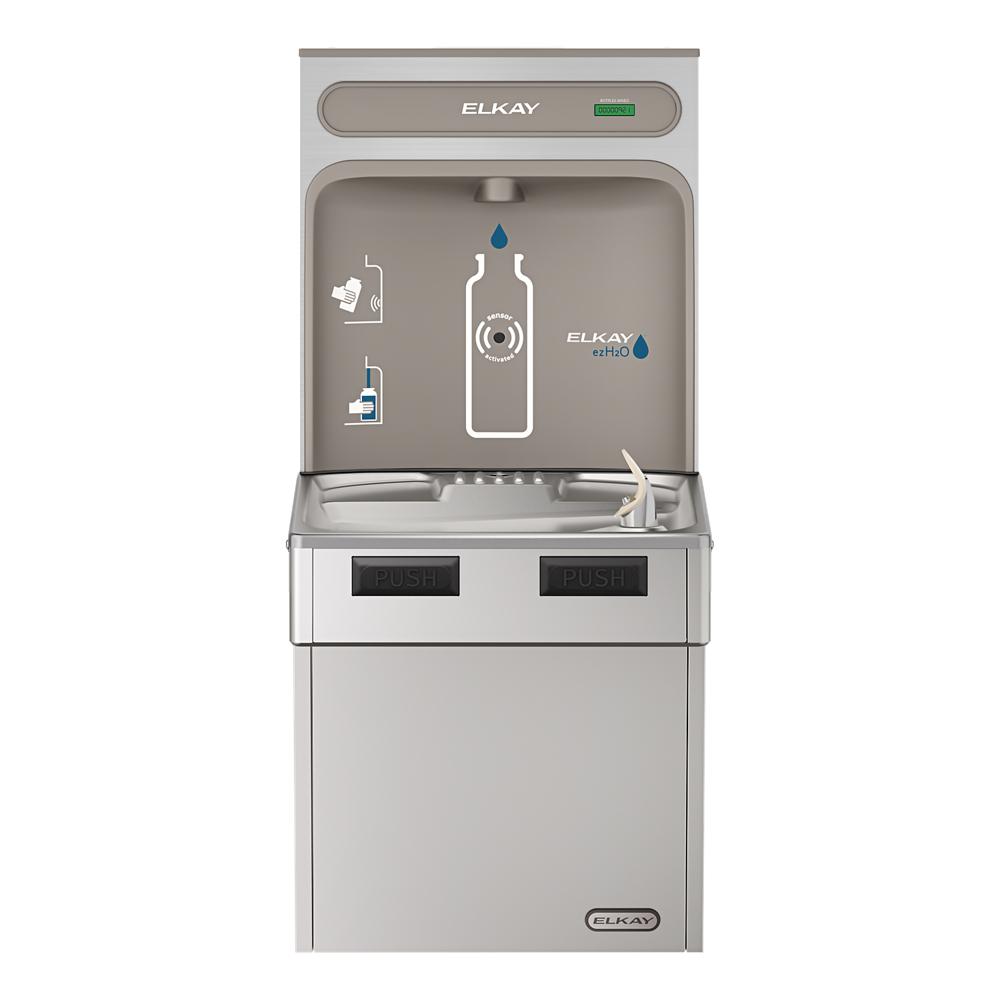

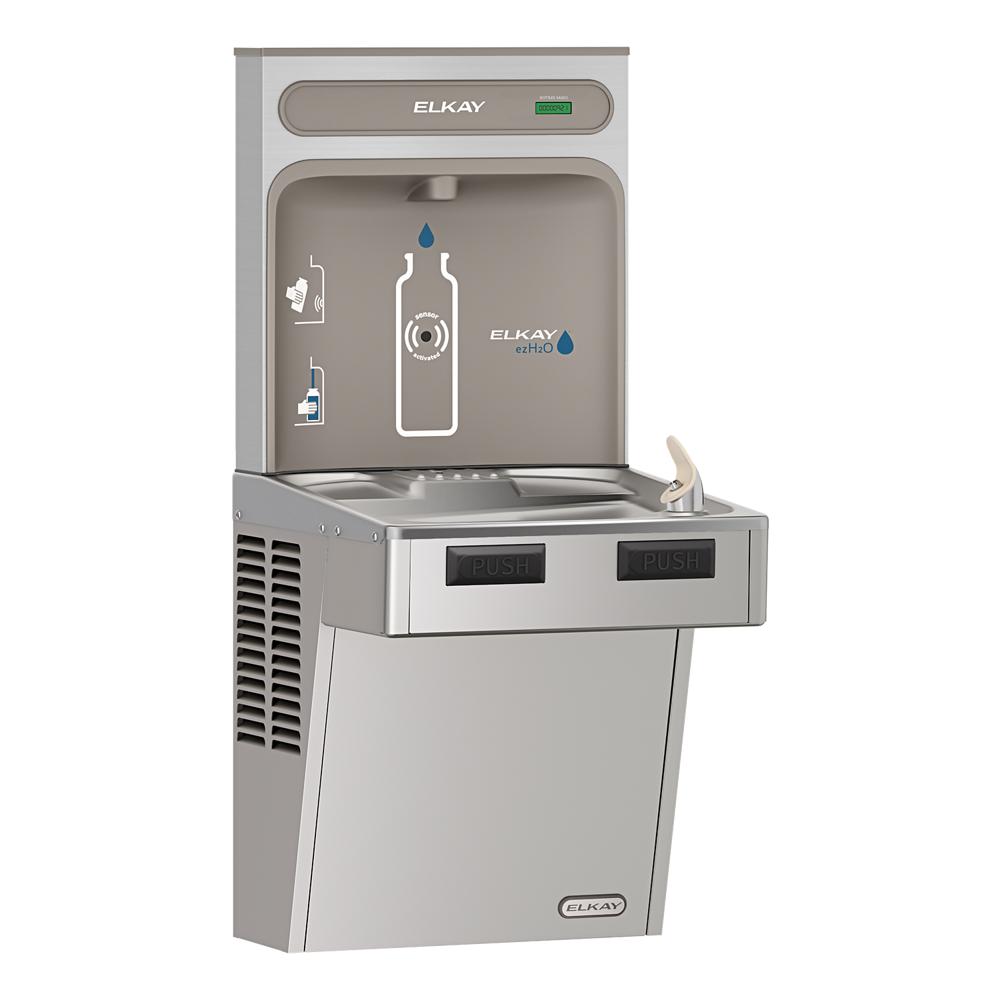

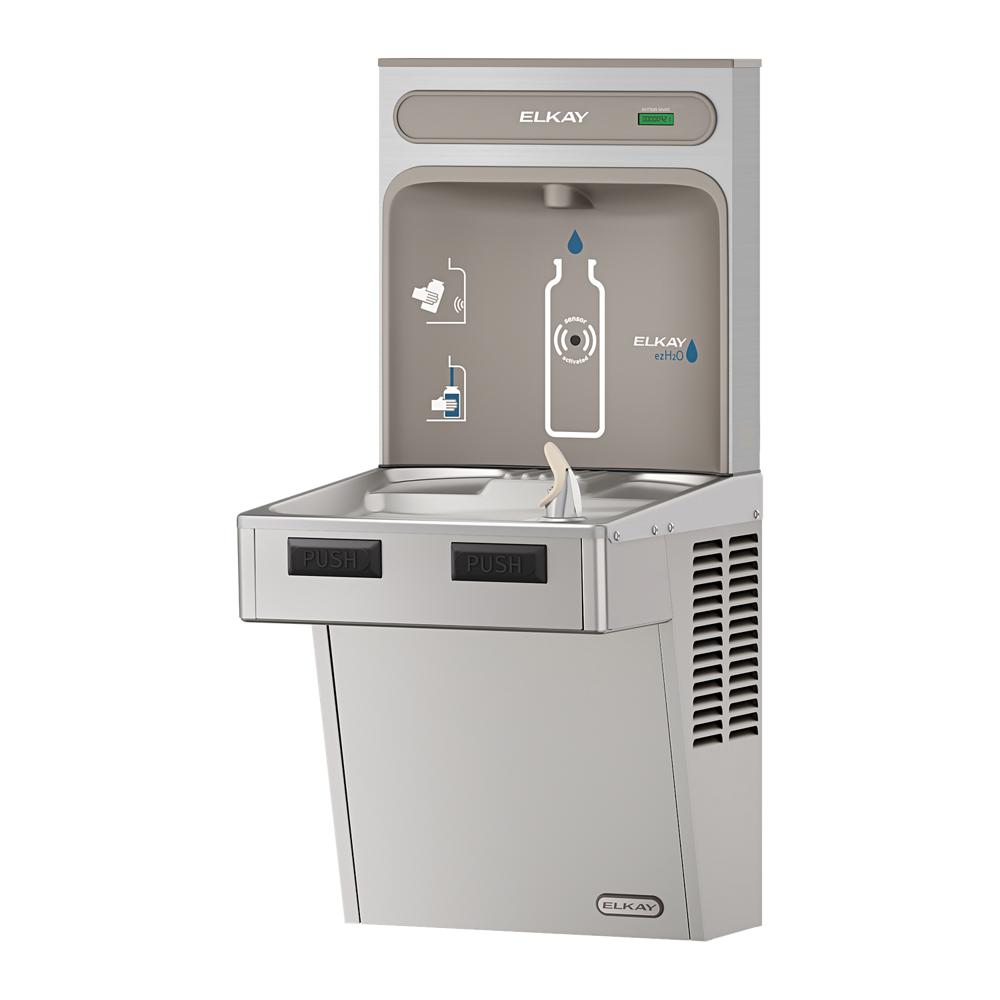

One of the most popular models, the Elkay EMABFDWSSK Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
- ADA compliant design
- Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
VIEW SPEC SHEET HERE: Elkay EMABFDWSSK
|
FILTERED? |
NO |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
BUBBLER OPTION |
FlexiGuard StreamSaver |
|
MOUNTING DETAILS |
Wall Mount (On-Wall) |
|
CHILLING DETAILS |
Non-Refrigerated |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF STATIONS |
Single Station |
|
DIMENSIONS |
L: 17-7/8" W: 18-1/2" H: 39-3/4" |
|
SHIPPING WEIGHT |
54 lbs |
|
Elkay EMABFDWSSK PRODUCT COMPLIANCE |
|
Warranty
Refrigeration System (IF APPLICABLE)
Elkay EMABFDWSSK refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay EMABFDWSSK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. View more warranty details here.
Installation Notes
- Elkay EMABFDWSSK requires installation from licensed plumber. Email us at support@bottlefillingstations.com to be connected to our network of Bottle Filler installation professionals.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
- View detailed Elkay EMABFDWSSK INSTALLATION INSTRUCTIONS.
Maintenance
Cleaning
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
Filter Replacement (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
View VIDEO of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
FAQ
Q: What is included in the Cooler Combo?
A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.
Q: Does the shipment include everything for the installation? Does plumber need anything else?
A: Does not include:
- Shut-off Valve (not furnished)
- 1-1/4” Trap (not furnished).
Q: Does this product come with a Mounting Frame?
A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame (MLP100 or MLP200) can be ordered separately. Please find further details on Spec Sheet and/or Installation Instructions.
Q: Is there a better, more updated model series available?
A: Yes, the latest model series is the Enhanced line, which includes improvements such as easier maintenance. View the Enhanced line HERE.
*MADE IN THE UNITED STATES.
