Elkay EMABF8WSSK | Wall-mount Bottle Filling Station | Filterless, Refrigerated, EMAB-style fountain, Stainless Steel
Elkay EMABF8WSSK | Wall-mount Bottle Filling Station | Filterless, Refrigerated, EMAB-style fountain, Stainless Steel is backordered and will ship as soon as it is back in stock.
Product Care Information
Product Care Information
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.

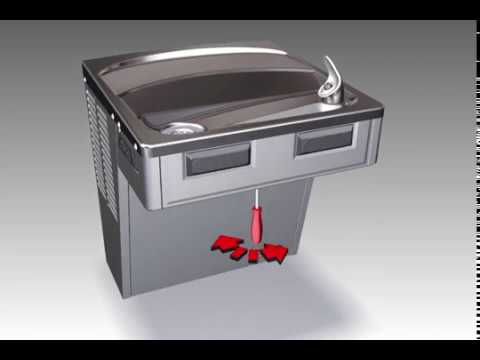

ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
Elkay EMABF8WSSK | Wall-mount Bottle Filling Station | Filterless, ...
In-Stock. Order before 3pm EST for same day shipping.

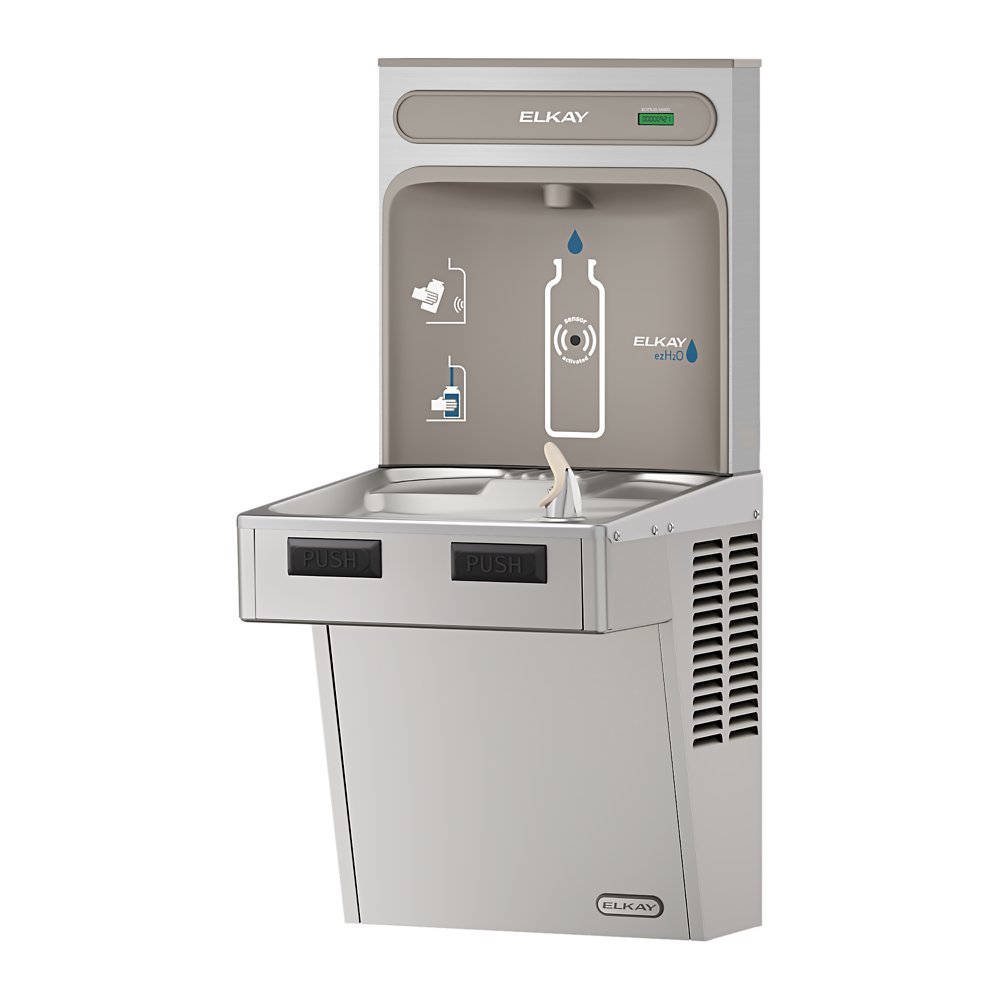

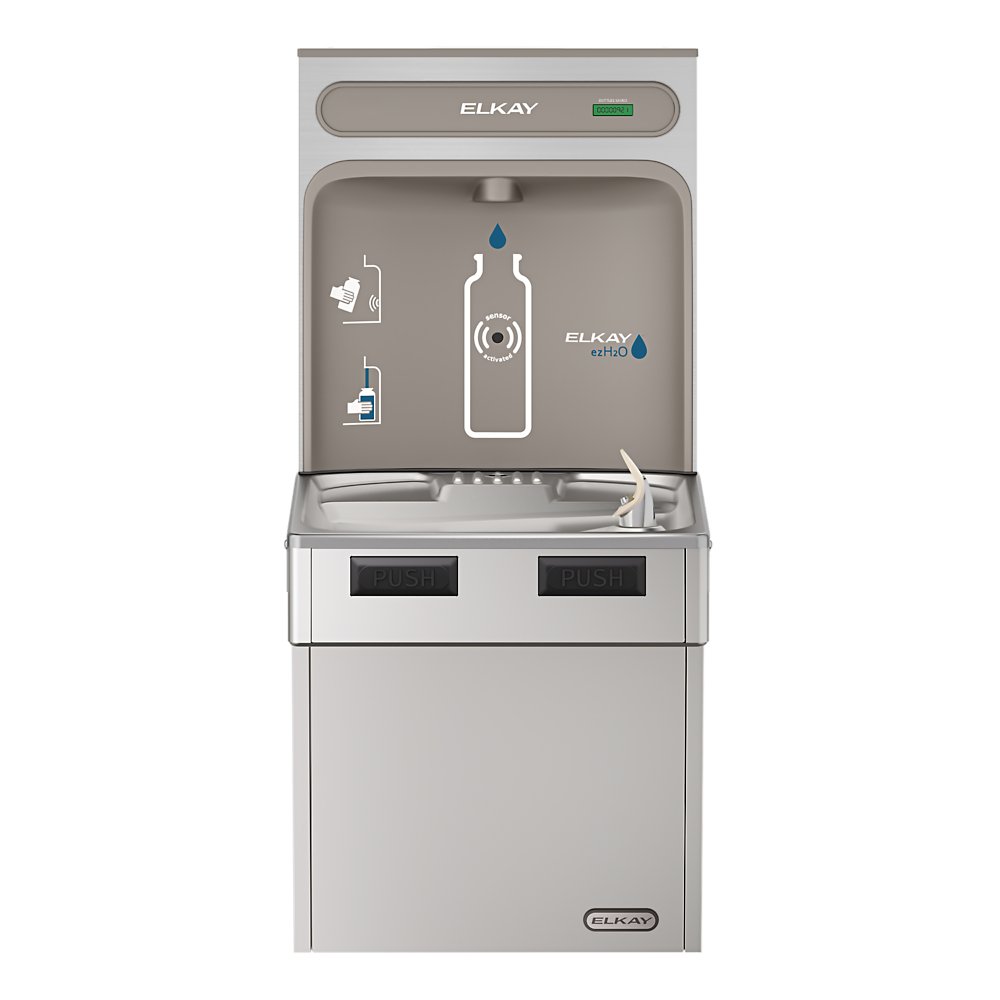

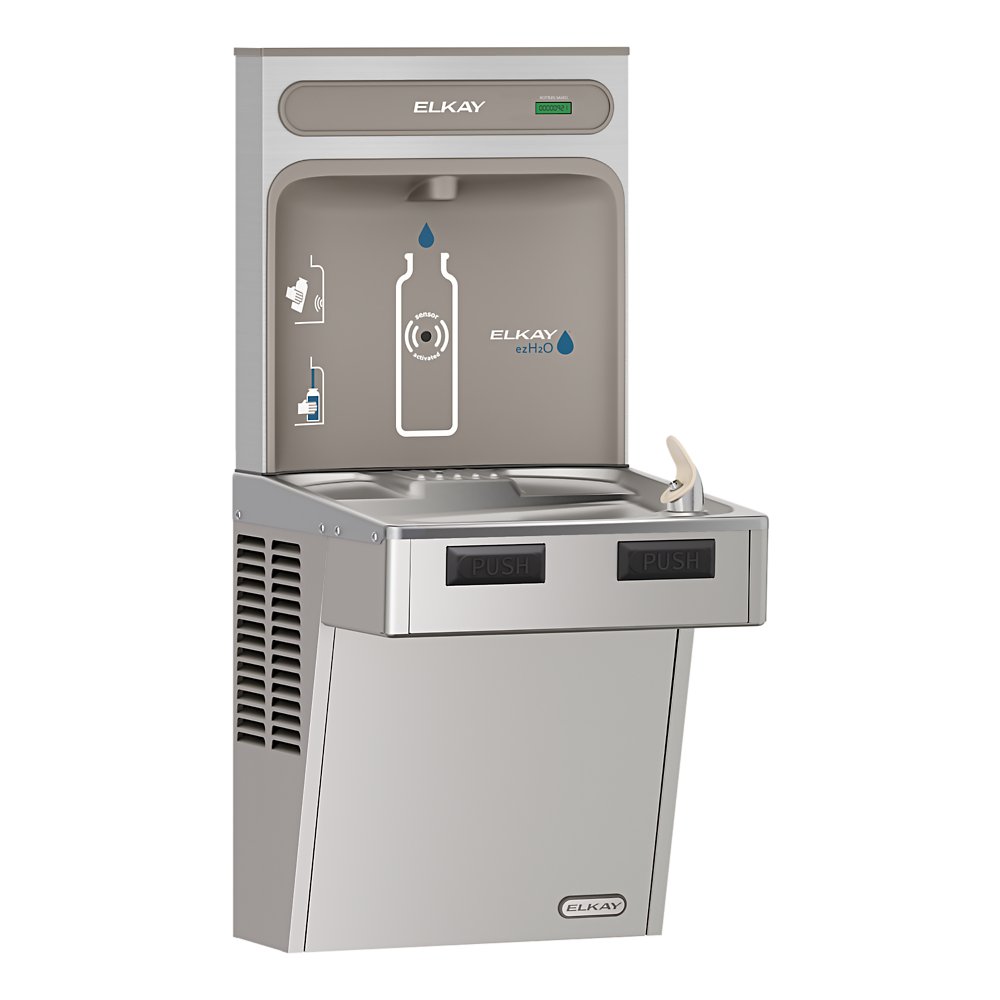

The Elkay EMABF8WSSK is a non-filtered, refrigerated ezH2O® Bottle Filling Station combined with a single ADA cooler. Built in stainless steel, this wall-mounted unit delivers sustainable hydration with hands-free bottle filling, mechanical bubbler activation, and a real drain system for reliable performance in high-traffic indoor environments.
Key Specifications:
- Design: Wall-mounted ADA-compliant bottle filler + single cooler, serving 1 station.
- Finish: Stainless Steel.
- Filtration: Non-filtered model. For built-in filtration, see the LMABF8WSSK filtered version, which includes the 51300C WaterSentry® Plus filter (NSF/ANSI 42, 53, 372, 401 certified).
- Chilling Capacity: 8.0 GPH of 50°F drinking water (based on 80°F inlet water and 90°F ambient, ASHRAE 18 tested).
- Refrigeration: Hermetically sealed compressor, fan-cooled condenser, copper tube/aluminum fin system with EPS foam insulation. Uses R-134a refrigerant.
- Power Requirements: 115V/60Hz, 370W, 6 full load amps.
- Dimensions: 17-7/8" L × 18-1/2" W × 39-3/4" H.
- Stations Served: 1.
- Compliance: ADA & ICC A117.1, UL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 61 & 372 (lead-free).
Features & Benefits:
- Hands-Free Bottle Fill: Sensor-activated bottle filler with laminar flow for hygienic, splash-free filling.
- Mechanical Bubbler Activation: Flexi-Guard® safety bubbler with front and side pushbar activation ensures accessibility.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste, promoting sustainability.
- Antimicrobial Components: Key plastic parts manufactured with silver ion antimicrobial agent to resist stains and odors.
- Real Drain System: Eliminates standing water for improved hygiene.
- Durability: Stainless steel construction resists wear and tampering, ideal for schools, offices, and public spaces.
What's Included:
- EMABF8WSSK Bottle Filling Station + ADA Cooler unit (ships in two boxes)
- Flexi-Guard® safety bubbler
- Hanger brackets for mounting
- Installation hardware and instructions
- Owner’s manual and warranty guide
FAQ
Q: What is included in the Cooler Combo?
A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.
Q: Does the shipment include everything for the installation? Does plumber need anything else?
A: Does not include: Shut-off Valve (not furnished) and 1-1/4” Trap (not furnished).
Q: Does this product come with a Mounting Frame?
A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame (MLP100) can be ordered separately. Please find further details on Spec Sheet and/or Installation Instructions.
Q: Is there a better, more updated model series available?
A: Yes, the latest model series is the Enhanced line, which includes improvements such as easier maintenance. View the Enhanced line HERE.
Q: Is there a filtered version of the EMABF8WSSK?
A: Yes. The LMABF8WSSK is the filtered version. It includes the Elkay 51300C WaterSentry® Plus filter, certified to NSF/ANSI 42, 53, 372, and 401 standards for reducing lead, microplastics, chlorine taste and odor, and more.
Detailed Features & Benefits
Cooling System: Hermetically-sealed compressor with lifetime lubrication, fan-cooled condenser, and EPS foam insulation for efficient chilled water delivery. Refrigerant R-134a controlled by calibrated capillary tube.
Accessibility: ADA-compliant design ensures inclusive access when installed according to ADA & ICC A117.1 standards.
Sustainability: Green Ticker™ encourages reusable bottle use, reducing single-use plastic waste.
Warranty: 5-year limited warranty on refrigeration system; 1-year warranty on electrical components and water system (drinking water applications only).
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
