Elkay LMABFDWSSK | Wall-mount Bottle Filling Station | Filtered, No...

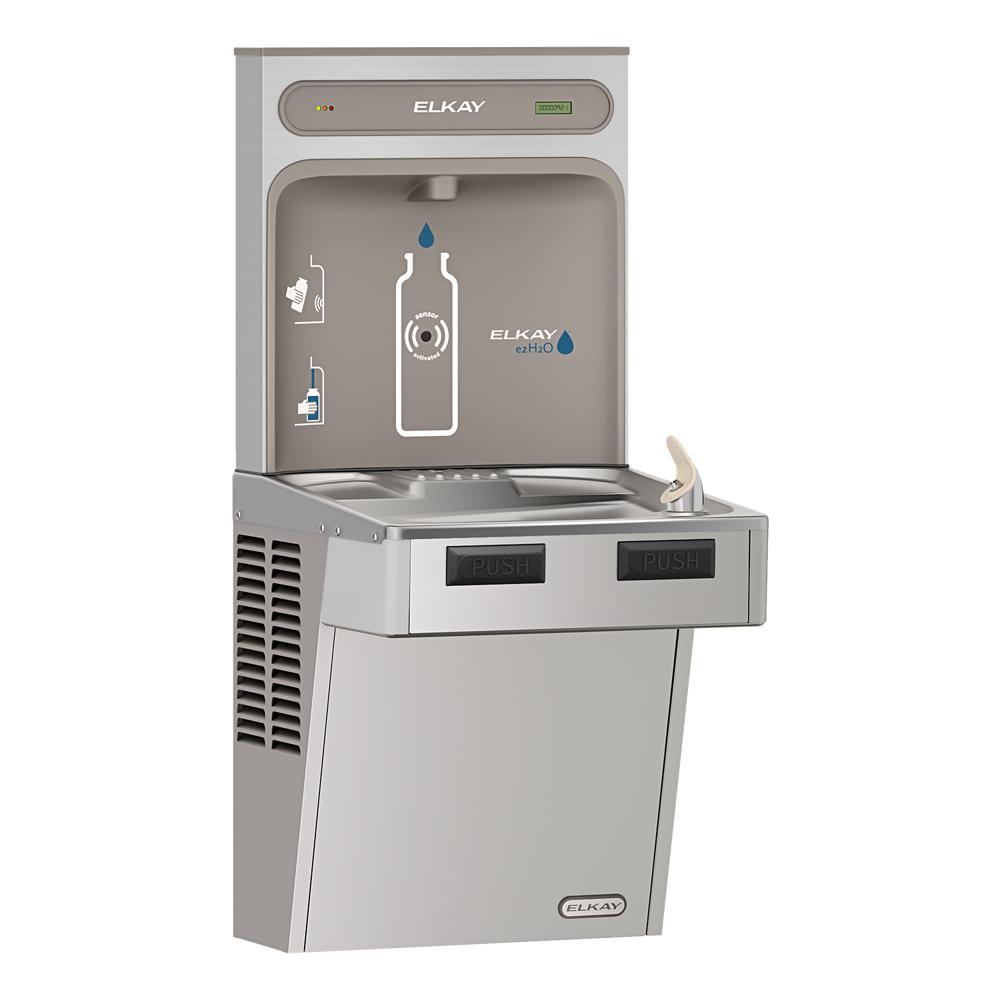

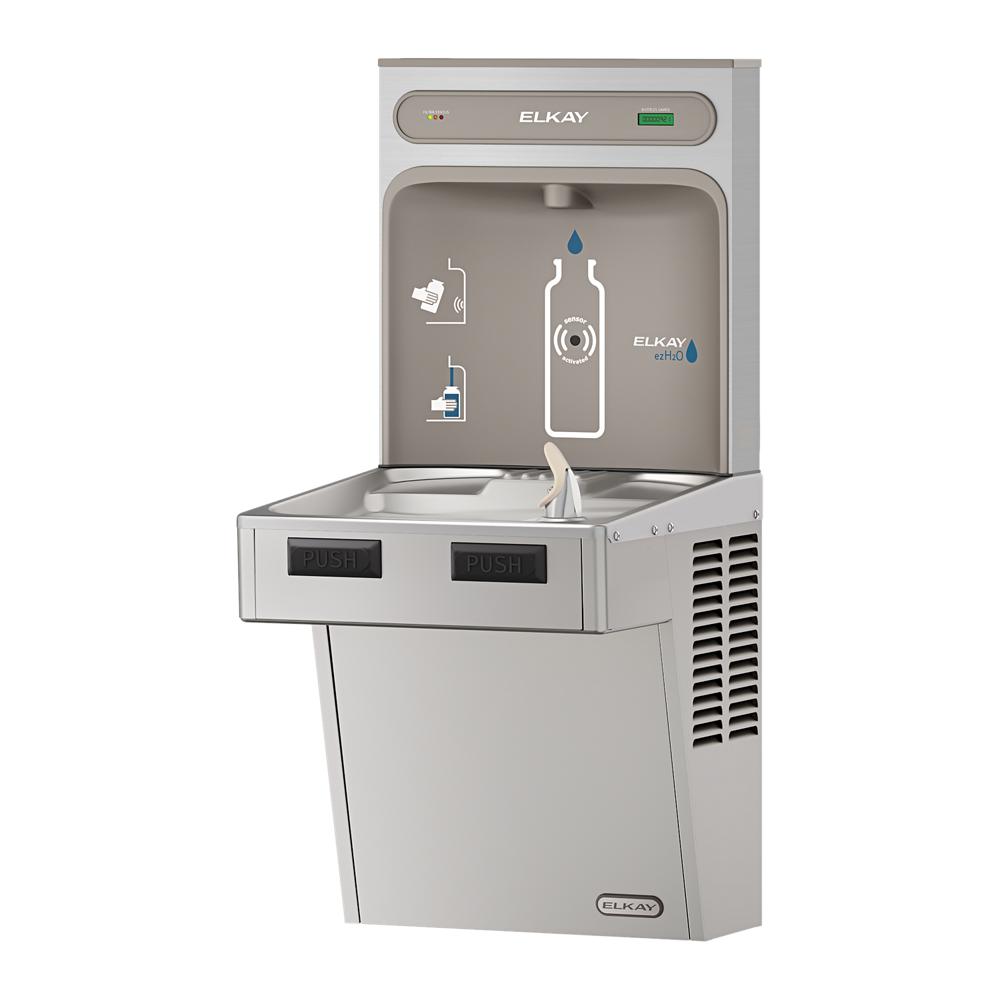

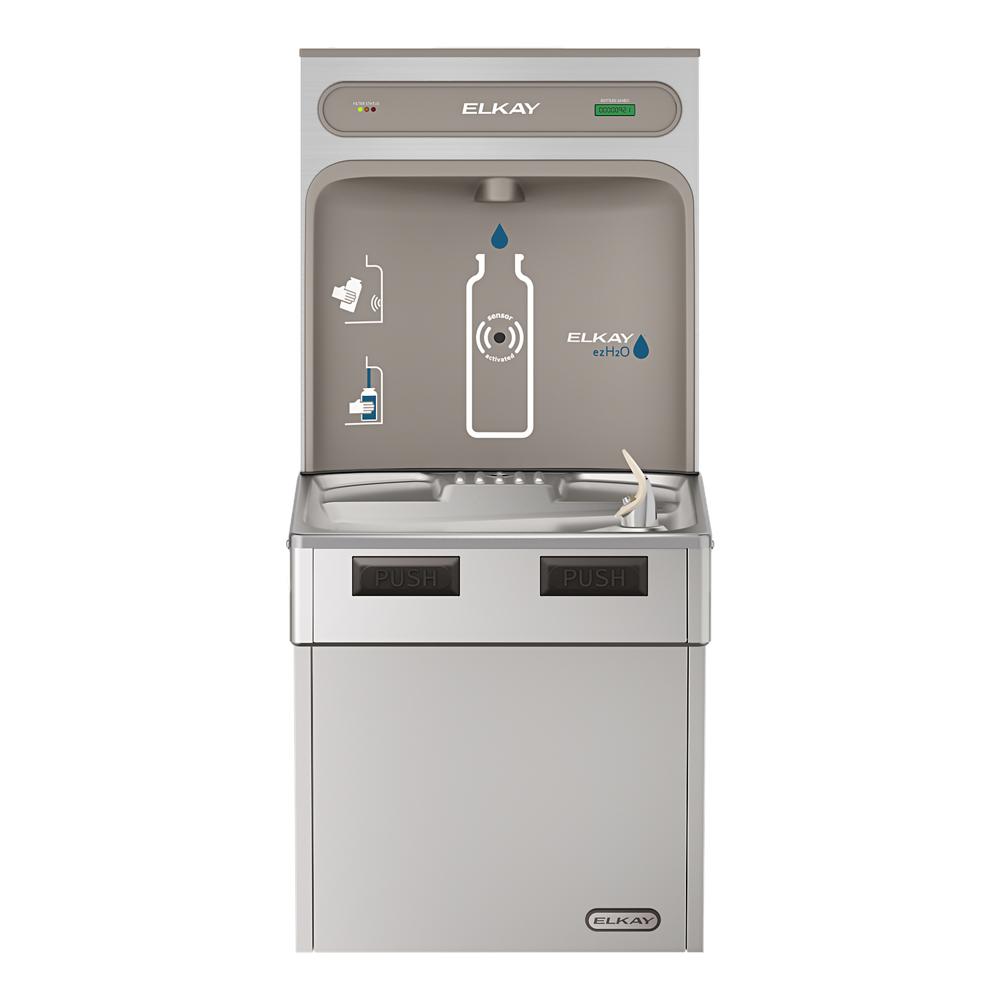

The Elkay LMABFDWSSK ezH2O® Bottle Filling Station combines a mechanically activated single ADA cooler with a filtered, non‑refrigerated stainless steel design. It features a Flexi‑Guard® safety bubbler, electronic bottle filler sensor, and Green Ticker™ to track plastic bottles saved, delivering accessible hydration with advanced filtration and antimicrobial surfaces.
Key Specifications:
- Design: Wall mount ezH2O® bottle filling station with mechanically activated single ADA cooler.
- Finish: Stainless Steel (S). See LMABFDWSSK stainless option.

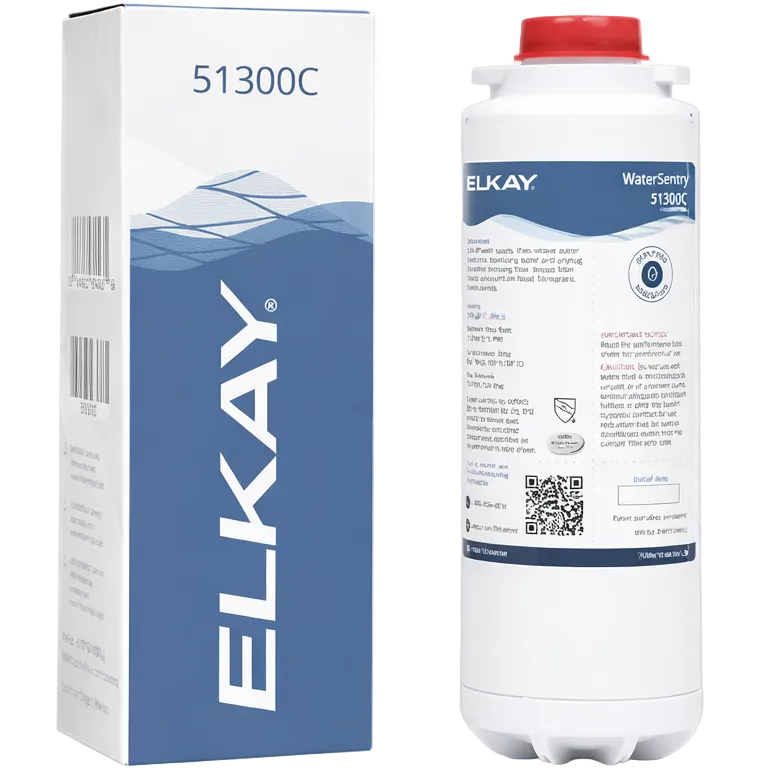

- Filtration: Standard WaterSentry® Plus filter included. For replacements, use 51300C WaterSentry® Filter.
- Refrigeration: Non‑refrigerated. For refrigerated options, see LMABF8WSSK.
- Stations Served: 1 (single station)
Features & Benefits:
- Filtered cooler with NSF/ANSI 42, 53, 372, and 401 certification for lead, microplastics, cysts, and chlorine taste/odor reduction.
- Flexi‑Guard® safety bubbler reduces accidental mouth injuries.
- Electronic bottle filler sensor with Green Ticker™ to track bottles saved from waste.
- Antimicrobial components and real drain system for cleaner operation.
What's Included:
- Elkay LMABFDWSSK ADA cooler
- ezH2O® bottle filler (LZWSR)
- Standard WaterSentry® Plus filter cartridge
- Mounting hardware
FAQ
Q: How often should the filter be replaced?
A: The included WaterSentry® Plus filter has a 3,000 gallon or 1‑year capacity. For replacements, use the 51300C WaterSentry® Filter.
Q: What accessories are available?
A: Compatible accessories include the MLP100 in‑wall carrier for secure installation and the 98324C cane apron for ADA compliance.
Q: Is the LMABFDWSSK ADA compliant?
A: Yes. It meets ADA and ICC A117.1 accessibility requirements when installed correctly.
Q: Does this unit provide chilled water?
A: No. It is non‑refrigerated. For chilled water, see the LMABF8WSSK.
Q: What power supply is required?
A: The LMABFDWSSK requires 115V/60Hz electrical supply and uses 15 rated watts.
NOTICE: The cooler must be connected to the water supply using a dielectric coupling. Installer‑provided drain traps should be plastic to isolate the cooler from building plumbing systems.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
- Prepare wall framing and hanger bracket per rough‑in dimensions provided in the package manual.
- Mount hanger bracket securely using all designated holes; add support carrier if wall will not provide adequate support.
- Hang cooler on bracket, ensuring proper engagement with slots on the back panel.
- Remove front panel to access connections; connect water inlet line and install trap on waste outlet.
- If available, connect filter assembly and ensure proper orientation.
- If available, connect refrigeration components and verify ventilation clearance.
- Reconnect panel after plumbing is complete and check for leaks.
- Adjust bubbler stream height as needed; factory set at 35 psi.
- For detailed steps, refer to the installation manual provided in the package or contact a licensed plumber.
- Inspect bubbler orifice and regulator periodically; clean or adjust if flow is irregular.
- Check quick‑connect fittings and tubing for leaks; reseat if necessary.
- Clean basin and exterior surfaces with mild, non‑abrasive cleaner.
- If available, replace filter at recommended intervals.
- If available, service refrigeration components as required.
- For service or repairs, consult the manual or a licensed technician.
