Elkay ERS11Y | Non-Filtered 1 GPH Remote Chiller
The Elkay ERS11Y is a compact remote chiller designed to deliver 1.5 GPH of chilled drinking water at 50°F. Built with stainless steel waterways and a galvanized steel cabinet, Elkay ERS11Y is ideal for pairing with drinking fountains, bottle fillers, bubblers, or dispensers to provide reliable cold water service in commercial and institutional settings.
Key Specifications:
- Chilling Capacity: 1.5 GPH at 50°F (based on 80°F inlet water and 90°F ambient)
- Finish: Galvanized steel cabinet with stainless steel tank and waterways
- Power: 115V / 60Hz, 140 watts
- Dimensions: 17" L × 7" W × 14" H
- Stations Served: 1
Features & Benefits:
- Compact Design: Installs under fountains or in service areas within 15 feet of the outlet
- Reliable Cooling: Hermetically sealed compressor with fan‑cooled condenser and EPS foam insulation
- Durable Build: Stainless steel tank and waterways resist corrosion and support long‑term use
- Flexible Applications: Compatible with drinking fountains, bubblers, glass fillers, and bottle filling stations
- RO Compatibility: Approved for use with reverse osmosis filtered water
What's Included:
- Elkay ERS11Y Remote Chiller Unit
- Galvanized steel cabinet with stainless steel tank
- Factory‑installed compressor and condenser system
- Installation and operation manual
- Warranty documentation
FAQ
Q: What Products Can Be Paired with Elkay ERS11Y?
A: The ERS11Y can be connected to Elkay drinking fountains, bubblers, glass fillers, and bottle filling stations such as LZWSSM, LZWSDK, LBWDC00WHC, and LBWD00WHC.
Q: What Is the Recommended Installation Location for Elkay ERS11Y?
A: The ERS11Y is designed for indoor installation. It can be placed directly under a fountain or in a nearby service area, with a recommended distance of up to 15 feet from the outlet.
Q: What Water Pressure Range Is Required for Elkay ERS11Y?
A: The ERS11Y operates on supply line pressures between 40–105 PSI. A service stop should be installed at the chiller inlet line.
Q: What Accessories Are Available for Elkay ERS11Y?
A: Optional accessories include the 734261251550 In‑Wall Chiller Box and the PM3 On‑Wall Chiller Shelf for flexible installation options.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now

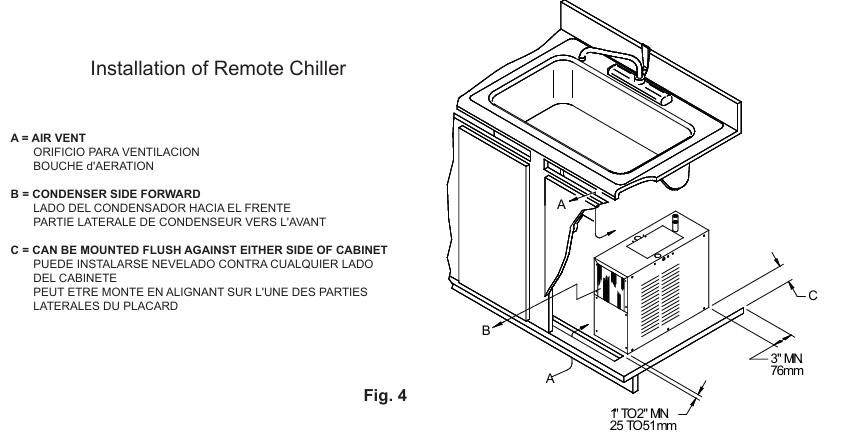

- Position the Elkay ERS11Y remote water chiller in a permanent indoor location; do not install outdoors.
- Allow adequate clearance at the rear and sides for ventilation; ensure airflow around the condenser fan.
- Level the unit front‑to‑rear and side‑to‑side; if mounting under a counter, secure firmly to prevent vibration.

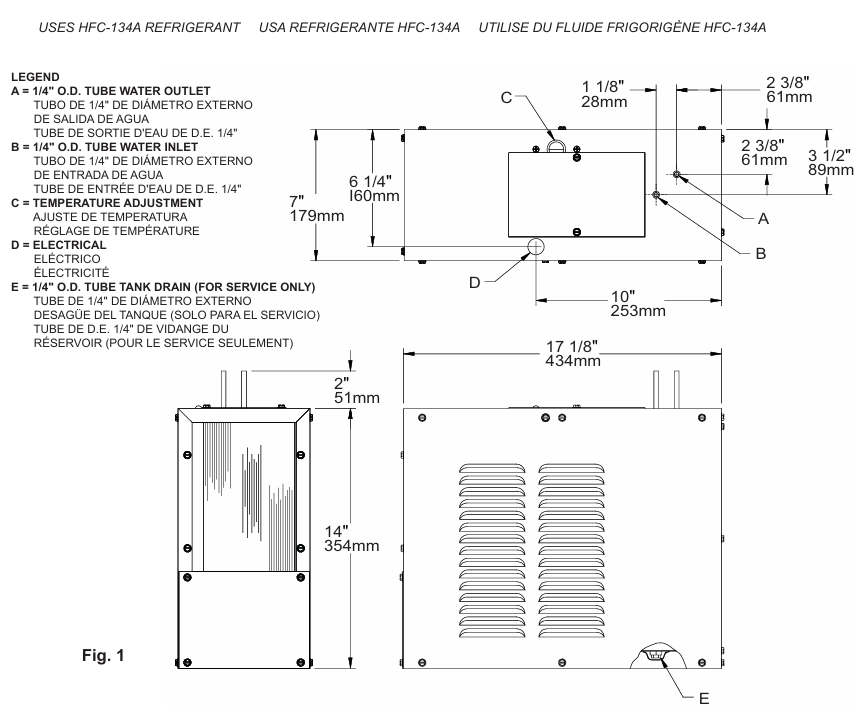

- Connect the cold water supply to the 1/2" FPT inlet using copper tubing; install a shut‑off valve and drain valve.
- Connect the drain to the 3/4" FPT outlet using minimum 3/4" ID hard pipe; maintain a 2" vertical air gap to the floor drain.
- Electrical connection must be to a dedicated 115V/60Hz/1‑phase circuit; ensure proper grounding.
- Confirm water pressure is between 20–105 psi; reverse osmosis water is compatible.
- Check refrigerant lines and compressor mounting pads; ensure fan blade turns freely.
- For detailed steps, refer to the Elkay ERS11Y installation manual or contact a licensed plumber/electrician.
- Inspect all water and drain connections regularly for leaks; tighten or reseal as needed.
- Clean condenser fins and cabinet exterior periodically to maintain cooling efficiency.
- Check water pressure and verify chilled water output (1.5 GPH at 50°F under rated conditions).
- Ensure stainless steel waterways remain free of scale or sediment; flush system if necessary.
- Disconnect power before servicing internal components to avoid electrical hazards.
- Prepare the Elkay ERS11Y for long storage by draining the water system and disconnecting power if ambient temperature may drop below freezing.
- For service or repairs, consult the manual or a certified Elkay service representative.
