Elkay LZSTLDDWSLK | Wall-mount Versatile Bi-Level Bottle Filling St...

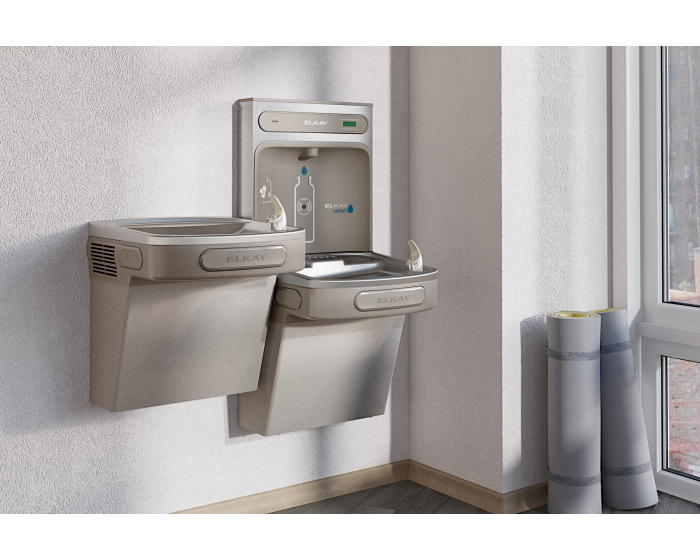

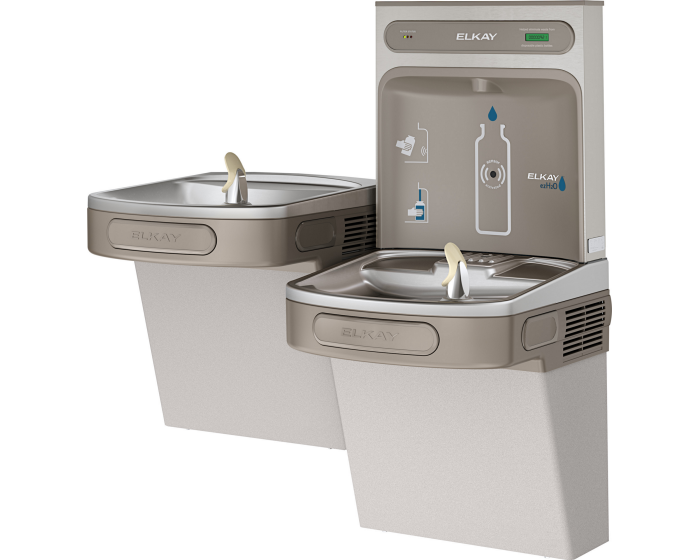

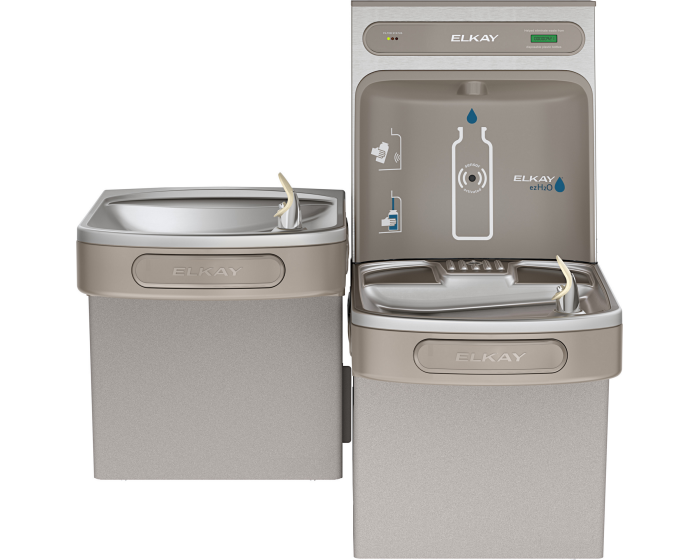

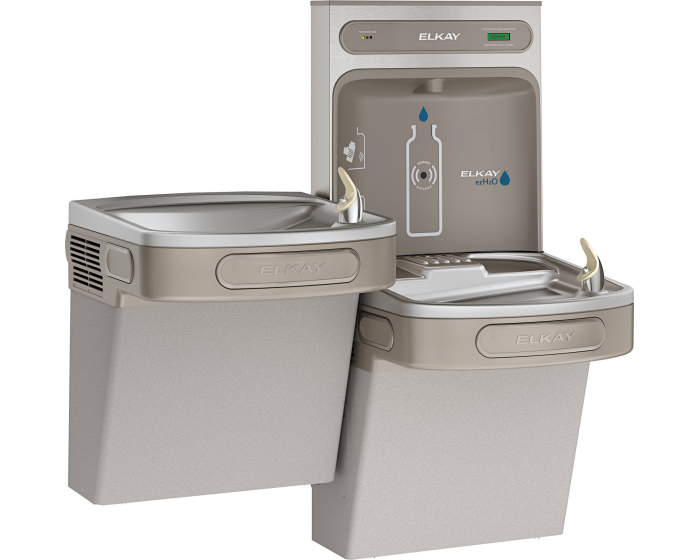

The Elkay LZSTLDDWSLK is a filtered, non-refrigerated bi-level ADA cooler with integrated bottle filler. Designed for indoor use, it combines accessibility, durability, and Elkay’s Green Ticker™ technology to promote sustainable hydration.
Key Specifications:
- Design: Bi-level ADA cooler with integrated bottle filler, wall-mount installation.
- Finish: Light Gray Granite. For Stainless Steel option, choose the LZSTLDDWSSK.
- Filtration: Standard WaterSentry® Plus filter (Elkay 51300C), NSF/ANSI 42, 53, 372 & 401 certified, 3,000-Gal. capacity. Filters Lead, Microplastics, Chlorine, & more.
- Refrigeration: Non-refrigerated. For refrigerated option, choose the LZSTL8WSLK.
- Stations Served: 2 (bi-level cooler + bottle filler).
Features & Benefits:
- Visual Filter Monitor: LED indicator alerts when filter replacement is needed.
- Green Ticker™: Displays the number of 20 oz. plastic bottles saved from waste.
- Flexi-Guard® Safety Bubbler: Antimicrobial mouth guard reduces risk of injury and resists microorganisms.
- Laminar Flow: Provides a clean fill with minimal splash.
- Real Drain System: Eliminates standing water for improved hygiene.
What's Included:
- LZSTLDDWSLK Bottle Filling Station & Bi-Level Cooler unit
- Flexi-Guard® Safety Bubbler
- Standard WaterSentry® Plus filter (51300C)
- Hanger brackets for installation
- Installation instructions and user manual
FAQ
Q: What is included in the Cooler Combo?
A: The Cooler Combo includes both the Bottle Filler and Water Cooler, plus the standard filter, shipped in separate boxes.
Q: Does the shipment include everything for installation?
A: No. Plumber must provide a shut-off valve and 1-1/4” trap (not furnished).
Q: What accessories are available for this model?
A: Recommended accessories include the MLP200 In-Wall Carrier for secure installation and the LKAPREZL Cane Apron for ADA compliance.
Q: Is there a Bottle Filler available with higher capacity & performance?
A: Yes. For facilities requiring higher performance filtration, visit the Elkay Pro Filtration Collection.
Q: Can this unit be installed outdoors?
A: No. The LZSTLDDWSLK is designed for indoor use only and must be installed in compliance with local plumbing and electrical codes.
NOTICE: Do not use with water that is unsafe or of unknown quality without adequate disinfection either before or after the system.
"Hydrate Everyone, Everywhere!" BottleFillingStations.com | Contact us now
Installation
- Elkay & Halsey Taylor Bottle Filling Stations require installation from a licensed plumber. Email us at support@bottlefillingstations.com, and we can see if our network of service professionals cover your area.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
ezH2O Installation Video:
Maintenance
It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat. Remove the four screws to wipe beneath and on top of the mat.
ezH2O Maintenance Video:Filter Replacement
When filter status light turns to red, the filter needs to be changed. Here are some detailed instructions.
ezH20 Filter Change Video:
